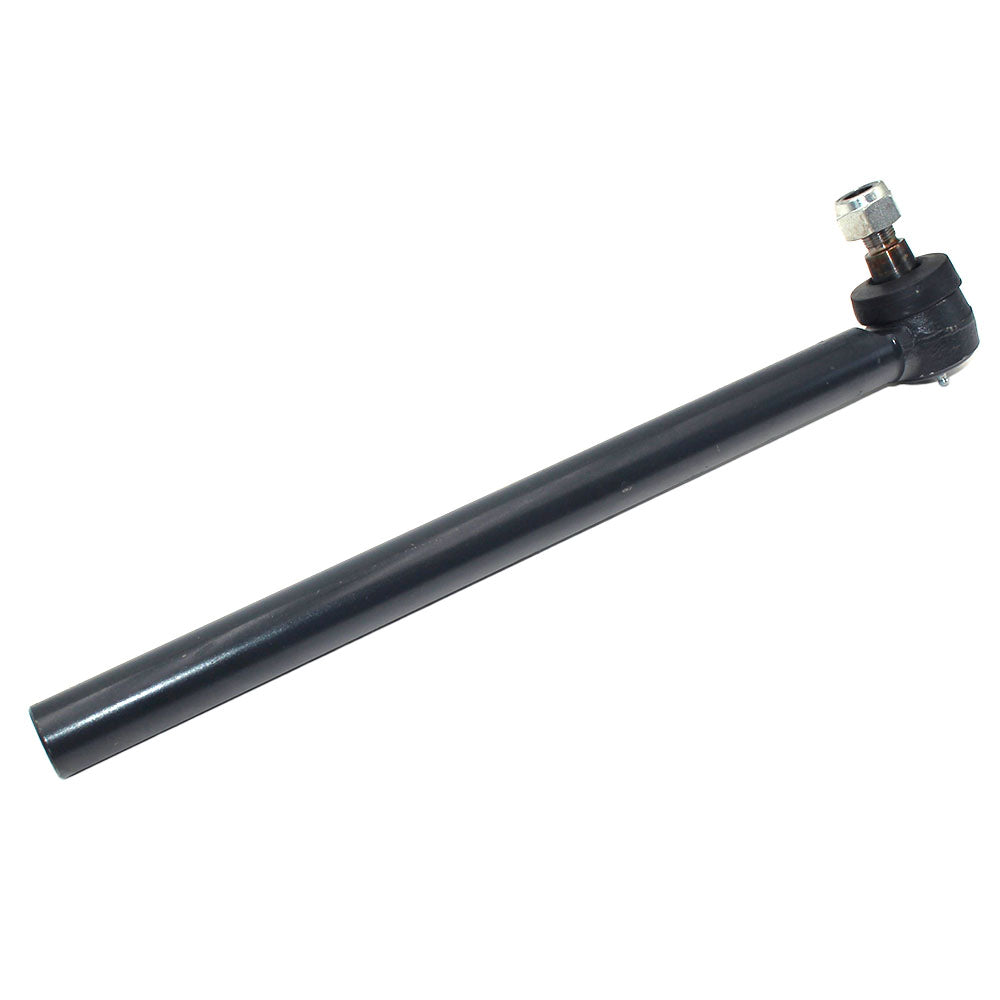

81864106 Tie Rod End, E9Nn3278Aa – Fits Case IH

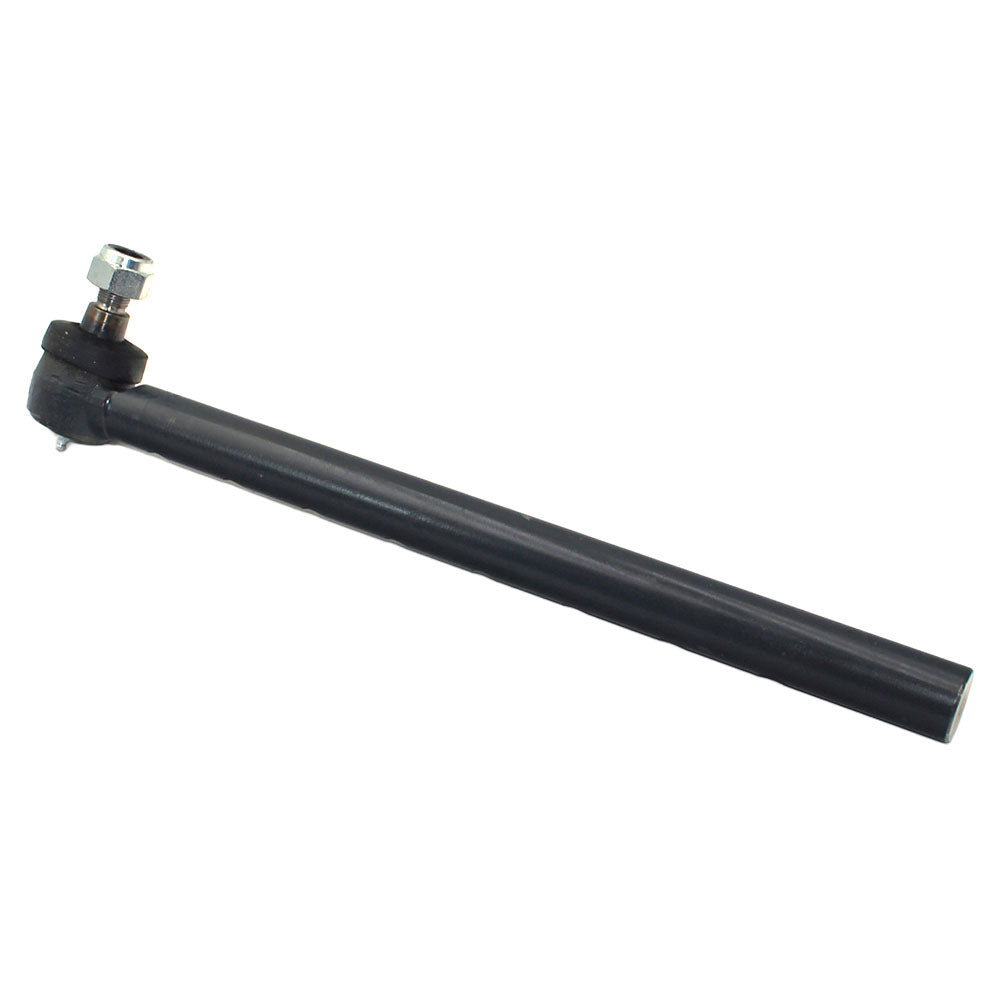

81864106 Tie Rod End, E9Nn3278Aa – Fits Case IH – additional image 281864106 Tie Rod End, E9Nn3278Aa – Fits Case IH – additional image 3

NC-029205 · Tie Rods, Draglinks & Ball Joints

81864106 Tie Rod End, E9Nn3278Aa – Fits Case IH

CAD 245.75

Availability to confirm

Tie Rod End, E9Nn3278Aa – reference 81864106. Catalogue-listed applications: Case IH MAXXUM 100 - LIMITED, MAXXUM 100 - X-LINE, MAXXUM 110 - LIMITED, MAXXUM 110 - X-LINE, MAXXUM 115 - LIMITED, MAXXUM 115 - X-LINE, MXU100. Thread: M20 x 1.5. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-029205
Reference numbers
81864106, 87494456
Listed package quantity
1
Thread
M20 x 1.5
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Tie Rod End, E9Nn3278Aa Fits Case IH.

Configuration: Tie Rod End, E9Nn3278Aa
Fits Case IH Models: MAXXUM 100 - LIMITED, MAXXUM 100 - X-LINE, MAXXUM 110 - LIMITED, MAXXUM 110 - X-LINE, MAXXUM 115 - LIMITED, MAXXUM 115 - X-LINE, MXU100, MXU100 - VALUE, MXU110, MXU110 - X-LINE, MXU115, MXU115 - X-LINE, MXU125, MXU130 - X-LINE, MXU135
Specifications:
-C mm: 18.9
-Inner side thread A mm: 35
-Length mm: 495
-Outer side thread B mm: M20 x 1.5
-Taper C mm: 27 - 24
-Taper length D mm: 24.5
-Thread length E mm: 32.9
Replaces Part Number(s): 81864106, 87494456

Reference numbers: 81864106, 87494456

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case IH MAXXUM 100 - LIMITED
  • Case IH MAXXUM 100 - X-LINE
  • Case IH MAXXUM 110 - LIMITED
  • Case IH MAXXUM 110 - X-LINE
  • Case IH MAXXUM 115 - LIMITED
  • Case IH MAXXUM 115 - X-LINE
  • Case IH MXU100
  • Case IH MXU100 - VALUE
  • Case IH MXU110
  • Case IH MXU110 - X-LINE
  • Case IH MXU115
  • Case IH MXU115 - X-LINE
  • Case IH MXU125
  • Case IH MXU130 - X-LINE
  • Case IH MXU135
Application notes
  • One New Aftermarket Tie Rod End, E9Nn3278Aa
