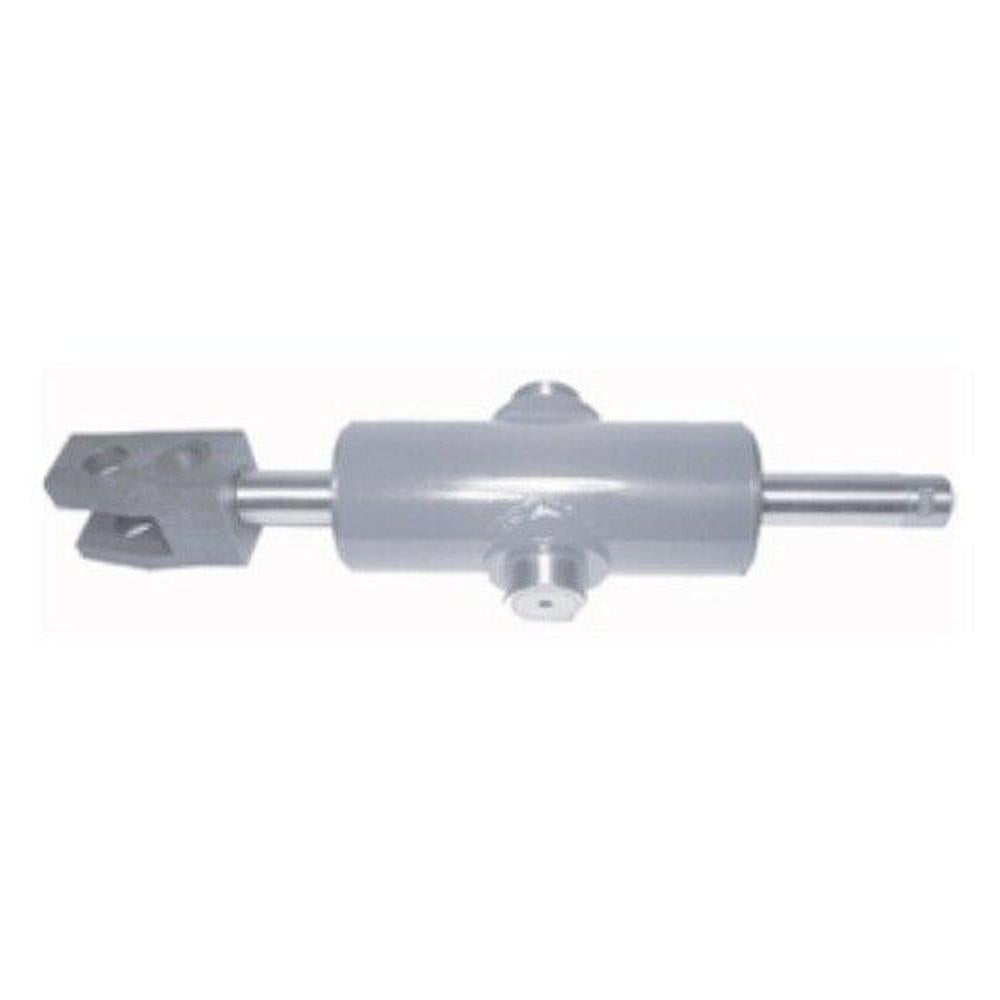

400566R91 Tractor Hydraulic Steering Cylinder Clevis Included – Fits Case IH

NC-028957 · Other Steering Components

400566R91 Tractor Hydraulic Steering Cylinder Clevis Included – Fits Case IH

CAD 376.60

In stock

Tractor Hydraulic Steering Cylinder Clevis Included – reference 400566R91. Catalogue-listed applications: Case IH 674, 684, 685, 695, 784, 785XL, 884. Rod Diameter: 19.05 mm; Length: 114.3 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-028957
Reference numbers
400566R91, 400592R1, 549670R1, 549670R2, 549667R93, 400587R1, 549667R91, 84336125, 549667R92
Listed package quantity
1
Rod Diameter
19.05 mm
Length
114.3 mm
Stroke
135.89 mm
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Tractor Hydraulic Steering Cylinder Clevis Included Fits Case-IH 674 684 685 695.

Configuration: Tractor Power Steering Cylinder Clevis Included
Fits Case-IH Tractor Models: 674, 684, 685, 695, 784, 785XL, 884, 885, 895, 3220, 3230, 4210, 4230, 4240
Specifications:
Clevis End - 4 1/2" Length
Power Steering Cylinder Assembly - 3/4" Rod Diameter, 5.35" Stroke, 1" Diameter Shaft
Replaces Part Numbers:
Clevis End - 3125306R1, 400566R91, 400592R1, 549670R1, 549670R2, 549667R93
Power Steering Cylinder Assembly - 188842A1, 400587R1, 549667R91, 84336125, 549667R92

Reference numbers: 400566R91, 400592R1, 549670R1, 549670R2, 549667R93, 400587R1, 549667R91, 84336125, 549667R92

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case IH 674
  • Case IH 684
  • Case IH 685
  • Case IH 695
  • Case IH 784
  • Case IH 785XL
  • Case IH 884
  • Case IH 885
  • Case IH 895
  • Case IH 3220
  • Case IH 3230
  • Case IH 4210
  • Case IH 4230
  • Case IH 4240
Application notes
  • One New Aftermarket Replacement Tractor Power Steering Cylinder Clevis Included
