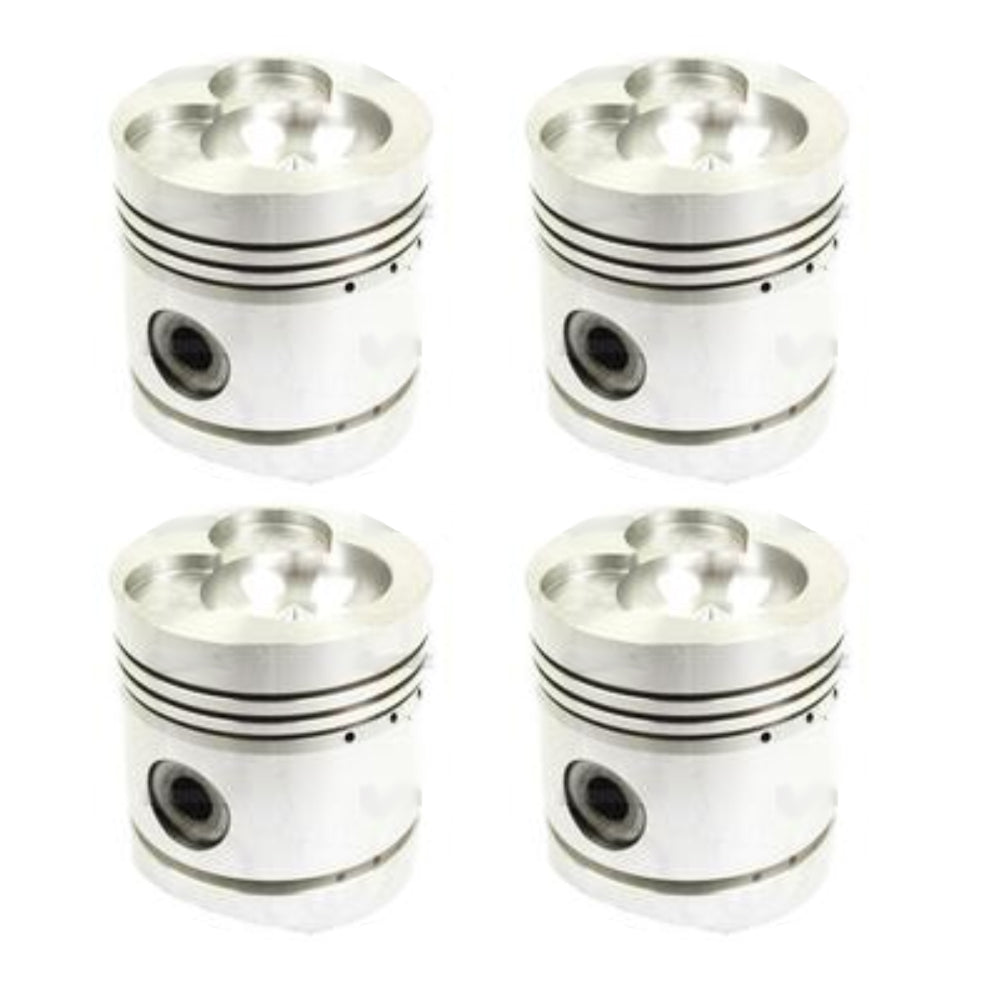

251240R1 Set of 4 Piston Standard

NC-026330 · Internal Engine Components

251240R1 Set of 4 Piston Standard

CAD 706.22

Availability to confirm

Set of 4 Piston Standard – reference 251240R1. Catalogue-listed applications: Case / International Harvester, David Brown, International Harvester. Length: 105.68 mm; Height: 60.35 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-026330
Reference numbers
251240R1, K949474
Listed package quantity
4
Length
105.68 mm
Height
60.35 mm
Depth
20.45 mm
Product information and configuration
Quantity indicated in catalogue: 4

Replacement part: Set of 4 Piston Standard Fits Case IH S.69151 K949474 251240R1 Fits Cub, Fits Cu.

Configuration: Set of Four (4) New Piston & Rings Set
Fits Case-Fits International Harvester Model(s):
Fits Cub, Fits Cub Lo-Boy
Specifications:
Piston Length = 105.68mm.
Chamber Depth = 20.45mm.
Chamber Ø58.73mm.
Pin Ø31.72mm.
Compression Height = 60.35mm.
To Fit Bore Dia. Ø99.41mm.
No. of Rings = 4.
Replaces Part Number(s): 251240R1, K949474

Reference numbers: 251240R1, K949474
Application notes
  • Set of Four (4) New Aftermarket Replacement Piston & Rings Set
