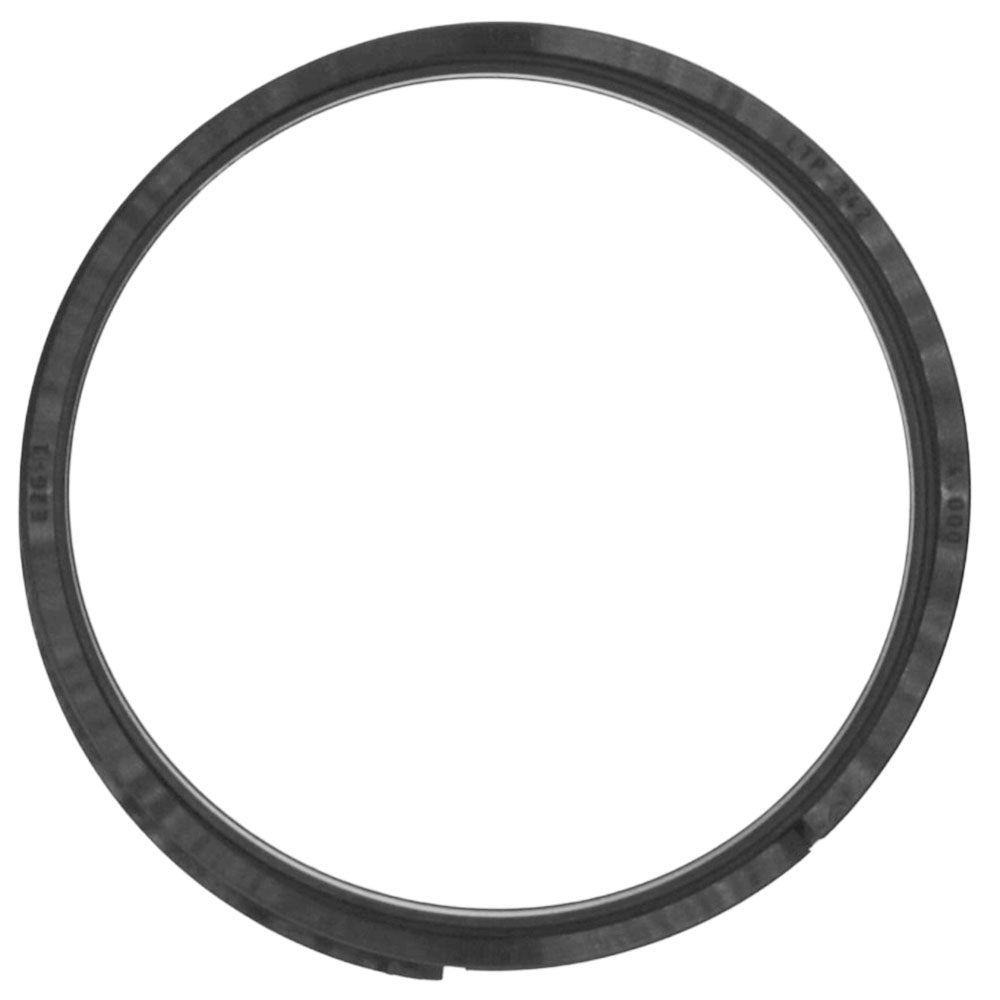

TP-039-L Standard T-Seal
TP-039-L Standard T-Seal – additional image 2TP-039-L Standard T-Seal – additional image 3

NC-026320 · O-Rings, Bearings, Gaskets & Seals

TP-039-L Standard T-Seal

CAD 62.78

In stock

Standard T-Seal – reference TP-039-L. Bore Diameter: 101.6 mm; Inner Diameter: 92.075 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-026320
Reference numbers
TP-039-L
Listed package quantity
1
Bore Diameter
101.6 mm
Inner Diameter
92.075 mm
Width
7.112 mm
Height
7.112 mm
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Standard T-Seal Fits Universal Products Replaces TP-039-L.

Configuration: Standard T-Seal
Specifications:
-Type: Piston T-Seal
-Bore Diameter: 4.00"
-Inner Diameter: 3-5/8"
-Height: 0.28"
-Material: Buna-N (NBR Rubber) + Hard Plastic Backups
-Pressure Range: 0 to 5,000 PSI
-Temp Range: -35 Degrees F to 220 Degrees F
-Speed: 3 Ft./Sec.
-Groove Diameter: 3.628"
-Groove Width: .280"
Made to Fit Universal Products:
Other (Misc) Models: Front-End Loader Attachments, Backhoe Loaders, Bale Processors, Excavators, Forklifts, Skid-Steer Loaders, Dump Trailers, Agricultural Implements
Model Breaks: Hydraulic Cylinders Requiring a 4.00" Bore, 3.628" Groove Diameter, 0.280" Groove Width, and TP-Style Bi-Directional Piston Seal Design
Replaces Part Number(s): TP-039-L

Reference numbers: TP-039-L
Application notes
  • One New Aftermarket Standard T-Seal
