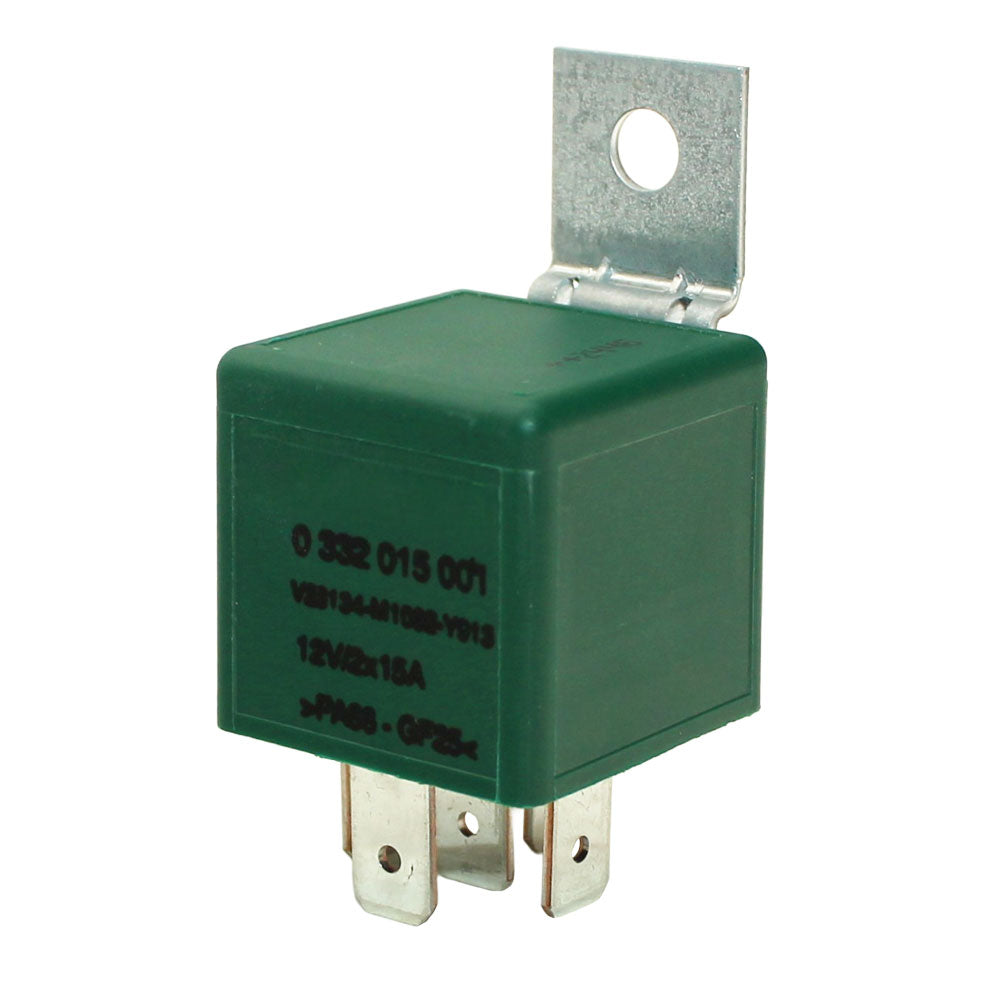

0332015001 Mini Relay – Fits Bosch

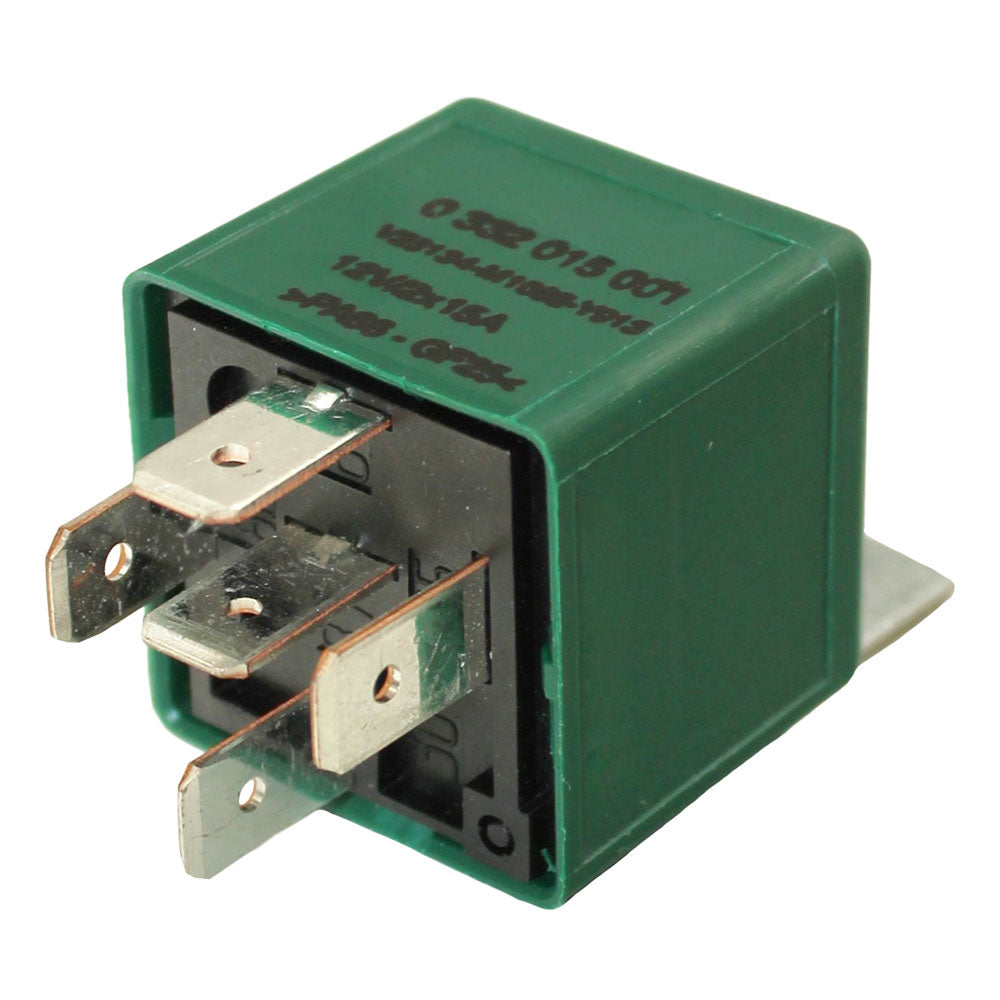

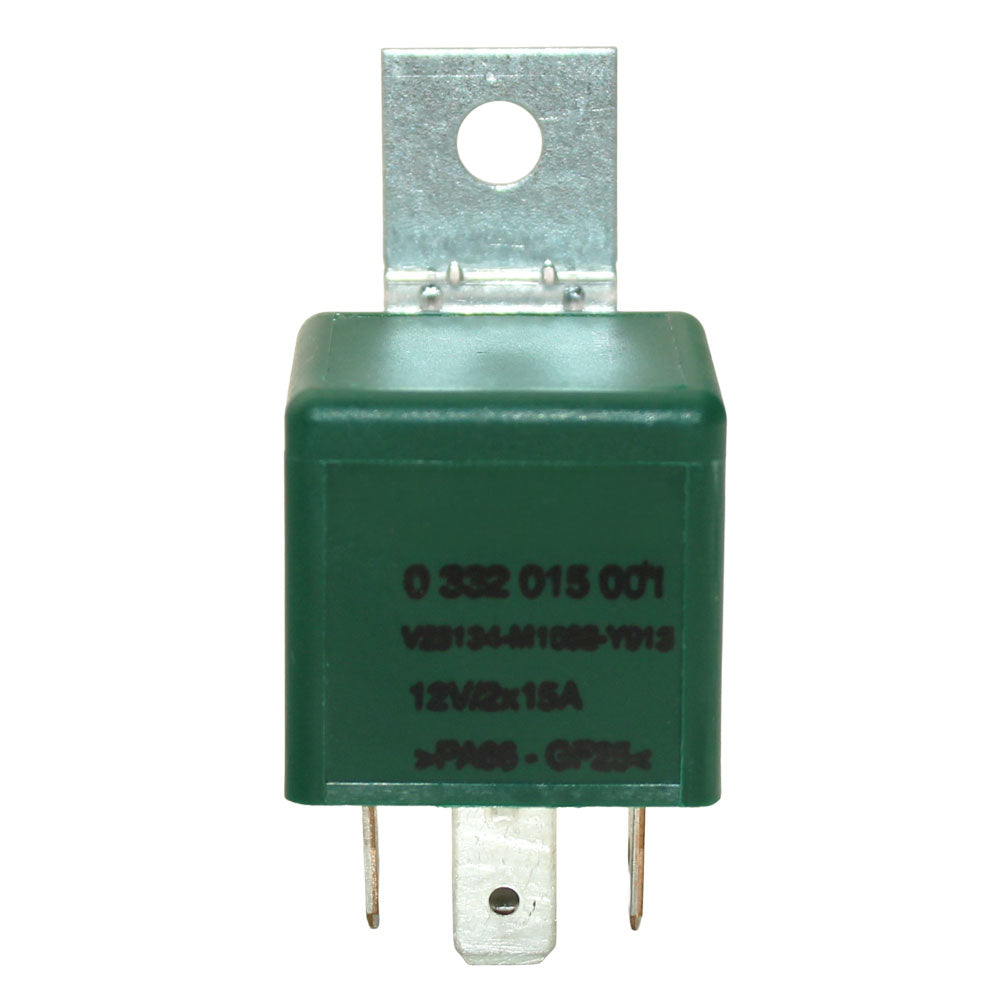

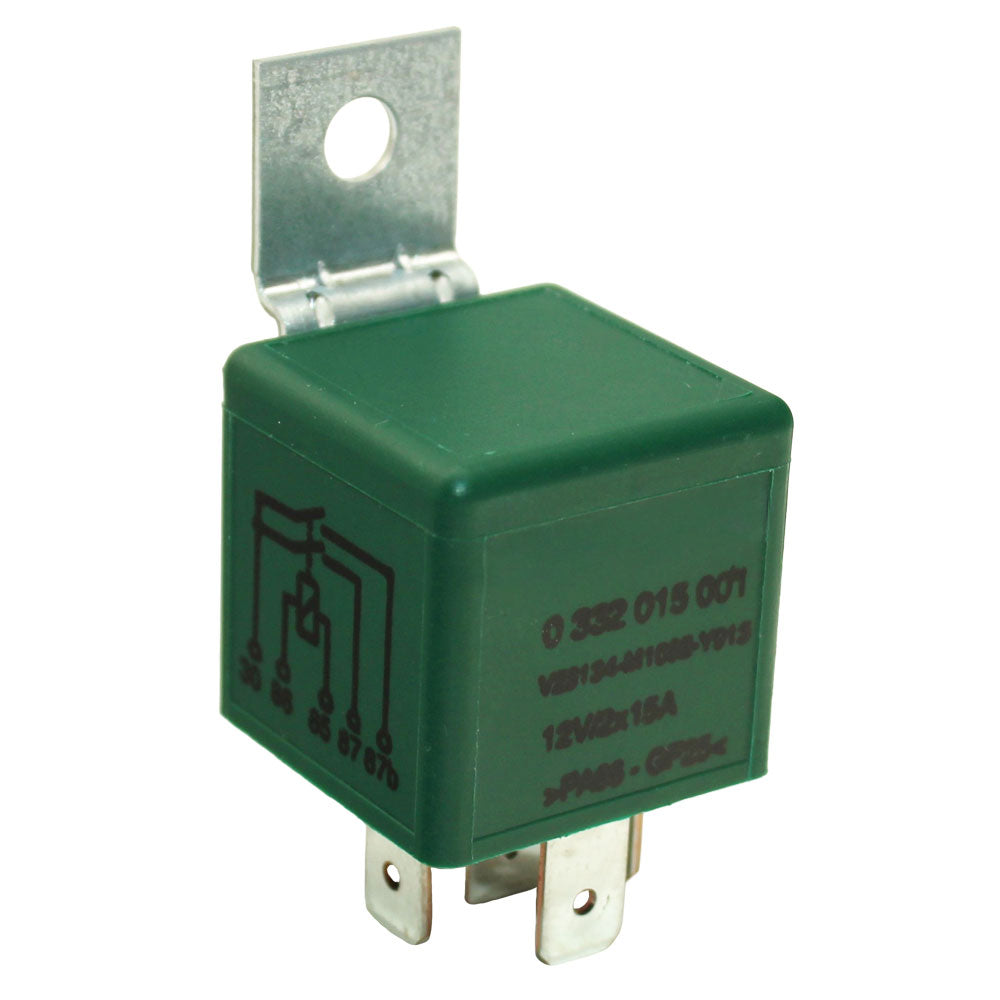

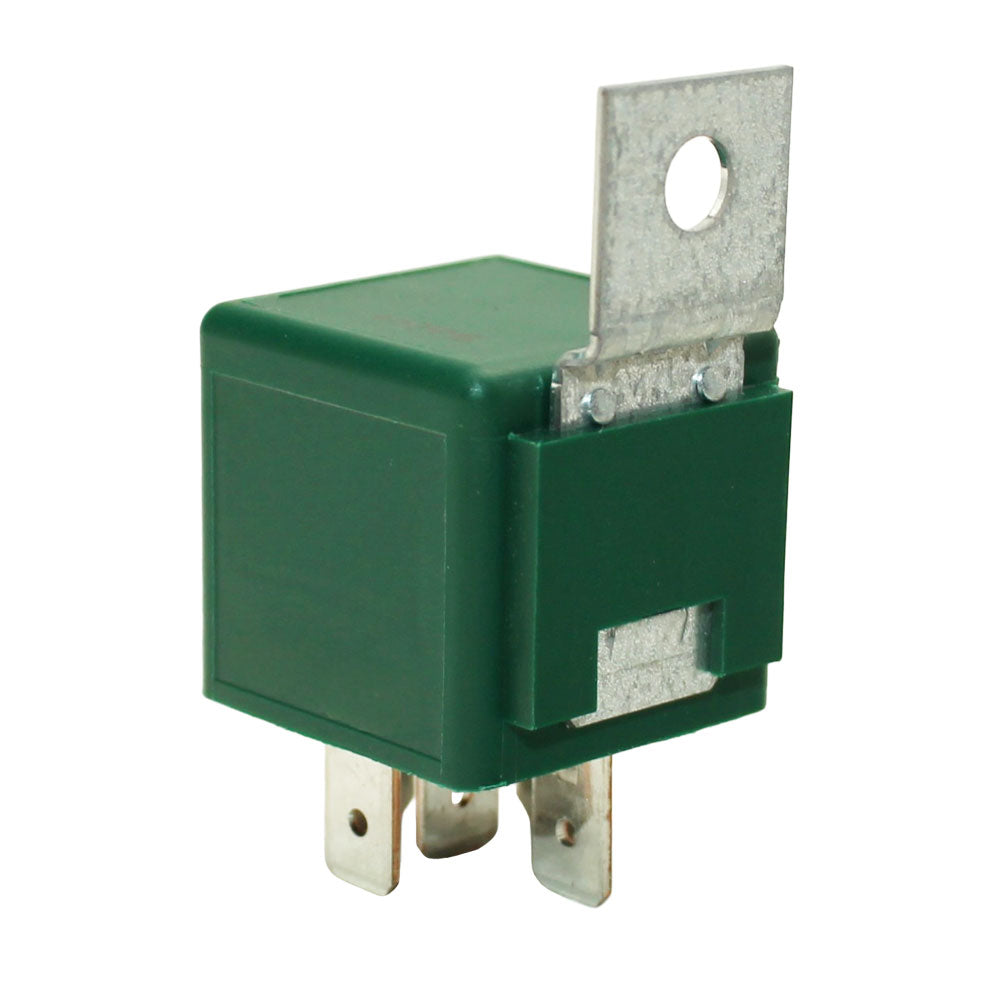

0332015001 Mini Relay – Fits Bosch – additional image 20332015001 Mini Relay – Fits Bosch – additional image 30332015001 Mini Relay – Fits Bosch – additional image 40332015001 Mini Relay – Fits Bosch – additional image 5

NC-026309 · Switches

0332015001 Mini Relay – Fits Bosch

CAD 64.02

Availability to confirm

Mini Relay – reference 0332015001. Catalogue-listed applications: Bosch. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-026309
Reference numbers
0332015001, 0332015001BLK
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Mini Relay Fits Bosch Replaces 0332015001.

Configuration: Mini Relay
Specifications:
-Volt: 12
-Amps: 15
-Terminal ID 2: 30
-Terminal 2 Size: 6.3mm x 0.8mm
-Terminal ID 3: 85
-Terminal 3 Size: 6.3mm x 0.8mm
-Terminal ID 4: 86
-Terminal 4 Size: 6.3mm x 0.8mm
-Terminal ID 5: 87
-Terminal 5 Size: 6.3mm x 0.8mm
-Terminal ID 6: 87b
-Terminal 6 Size: 6.3mm x 0.8mm
-Cap Composition: Metal
-Contact Config: Single Pole, Single Throw (SPST)
-Duty Cycle: Continuous
-No. of Terminals: 5
-Plated Terminals: FALSE
-Resistance Type: Coil Only
-Resistance: 63 ohms
-Includes: Double Make Contacts, Mounting Bracket
Made to Fit Bosch:
Other (Misc) Models: Cars & trucks, Tractors, Skid steers, Lawn & garden equipment, ATVs / UTVs
Construction equipment
Replaces Part Number(s): 0332015001, 0332015001BLK

Reference numbers: 0332015001, 0332015001BLK
Application notes
  • One New Aftermarket Mini Relay
  • -Resistance Type: Coil Only
