382565R1K Ref 2,3,& 5 - Kit: Control arm, roller, spring

Quantity indicated in catalogue: 1

Replacement part: Ref 2,3,& 5 - Kit: Control arm, roller, spring.

Configuration: Hi-Lo Transmission Control Arm Kit for International Harvester (IH) / Case IH Tractors
This control arm repair kit services the Hi-Lo range transmission found on International Harvester and Case IH tractors. It replaces the detent control arm, roller, and tension spring that engage and hold the Hi-Lo shift mechanism -- restoring crisp, positive shifting between direct drive and low range. The arm and spring are not sold separately, making this complete kit the correct replacement solution.

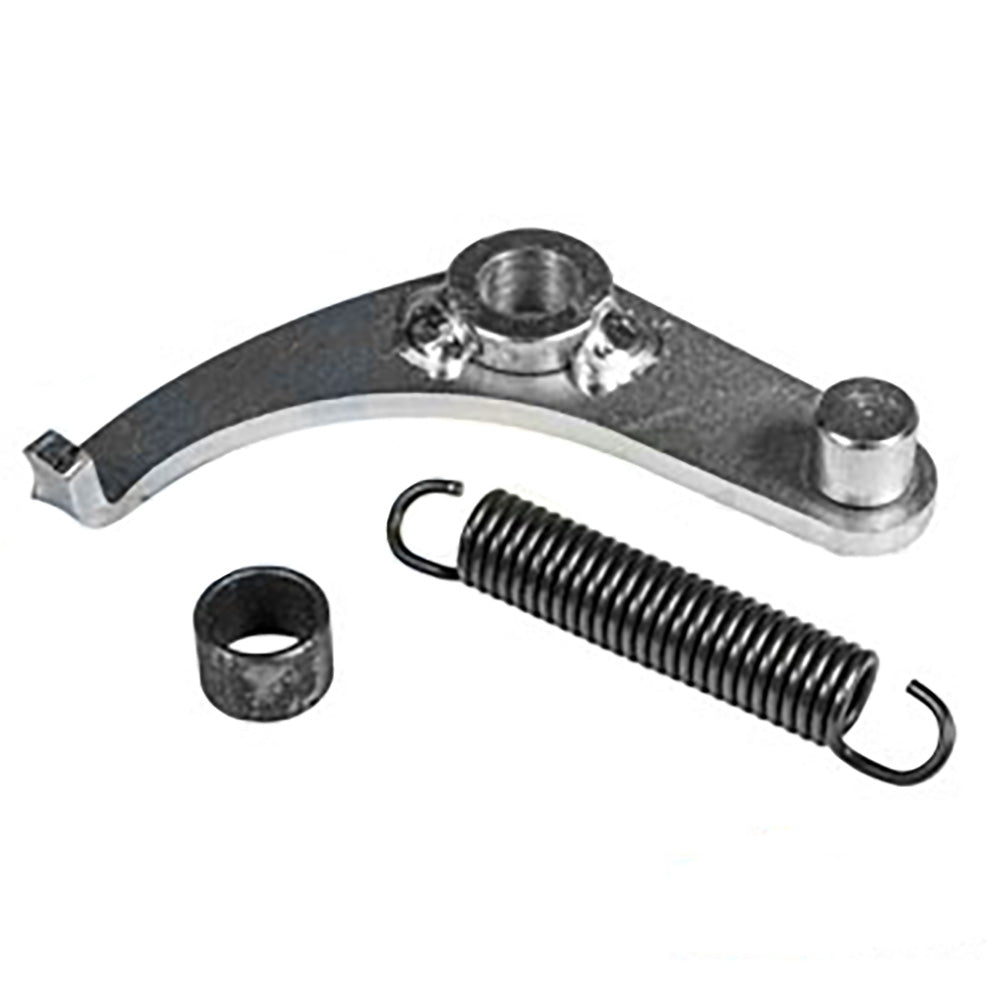

Kit Includes
(1) Control arm (replaces 382565R21 / 38256R21)
(1) Detent roller (replaces 380115R2)
(1) Tension spring (replaces 383997R1)
Compatible Models
International Harvester / Case IH Tractors (Hi-Lo Transmission): 706, 756, 766, 786, 806, 826, 856, 886, 966, 986, 1026, 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586, 2706, 2756, 2806, 2826, 2856, 3088, 3288, 3388, 3488, 3588, 3688, 3788, 4100, 4156, 4166, 4186, 6388, 6488, 6588, 6688, 6788, 21026, 21206, 21256, 21456
Note: Fits tractors equipped with Hi-Lo range transmission only. Verify your tractor is equipped with Hi-Lo Trans before ordering.
Replaces Part Number(s):
382565R1K, 382565K, 382565KIT
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 382565R1K, 382565K, 382565KIT

• One New Aftermarket Replacement Hi-Lo Transmission Control Arm Kit for International Harvester (IH) / Case IH Tractors
• Note: Fits tractors equipped with Hi-Lo range transmission only. Verify your tractor is equipped with Hi-Lo Trans before ordering.
• New aftermarket replacement part - not remanufactured, not used.
