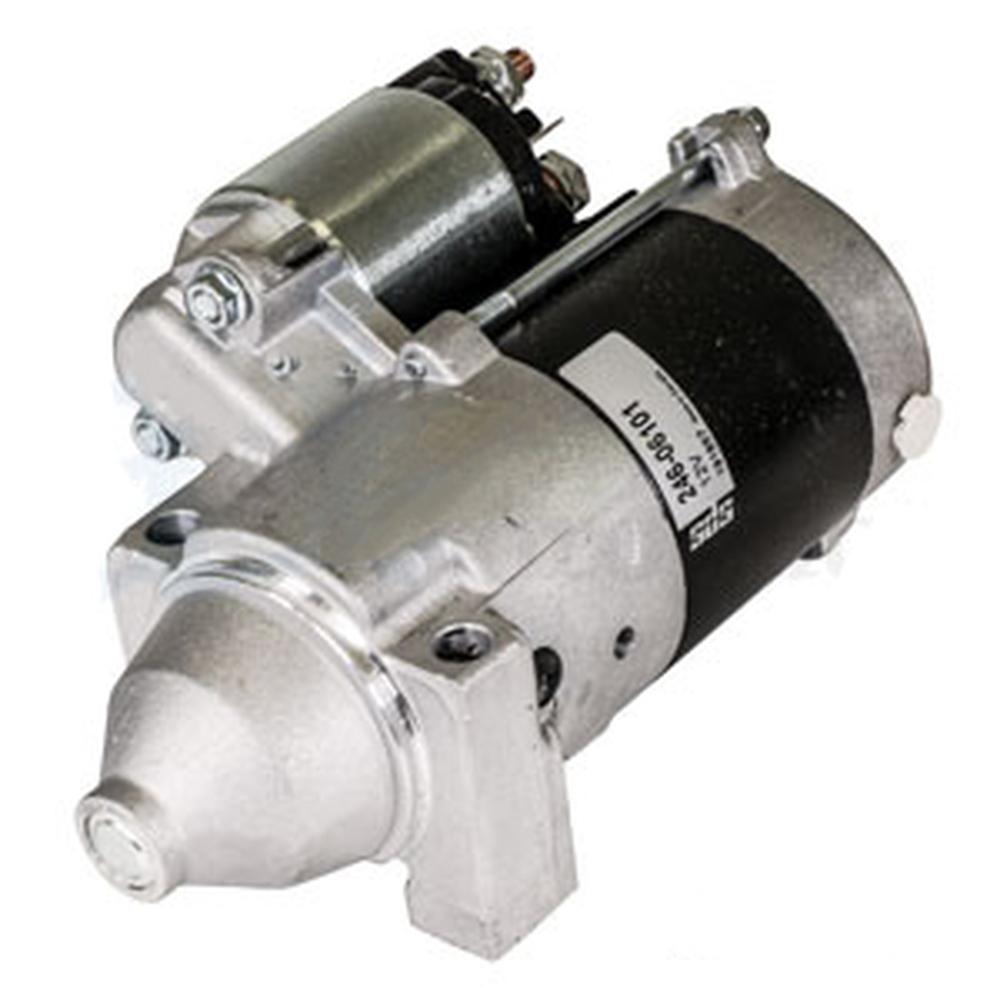

AM107631 N/A

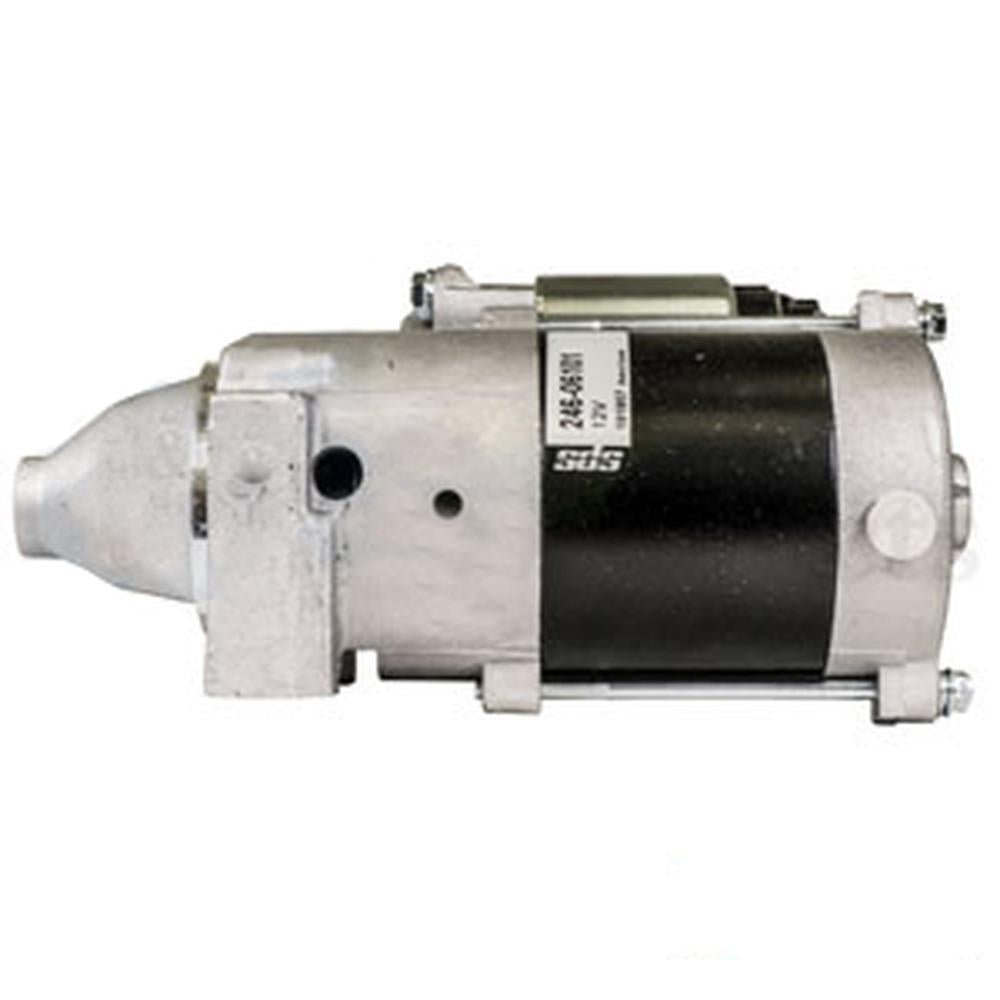

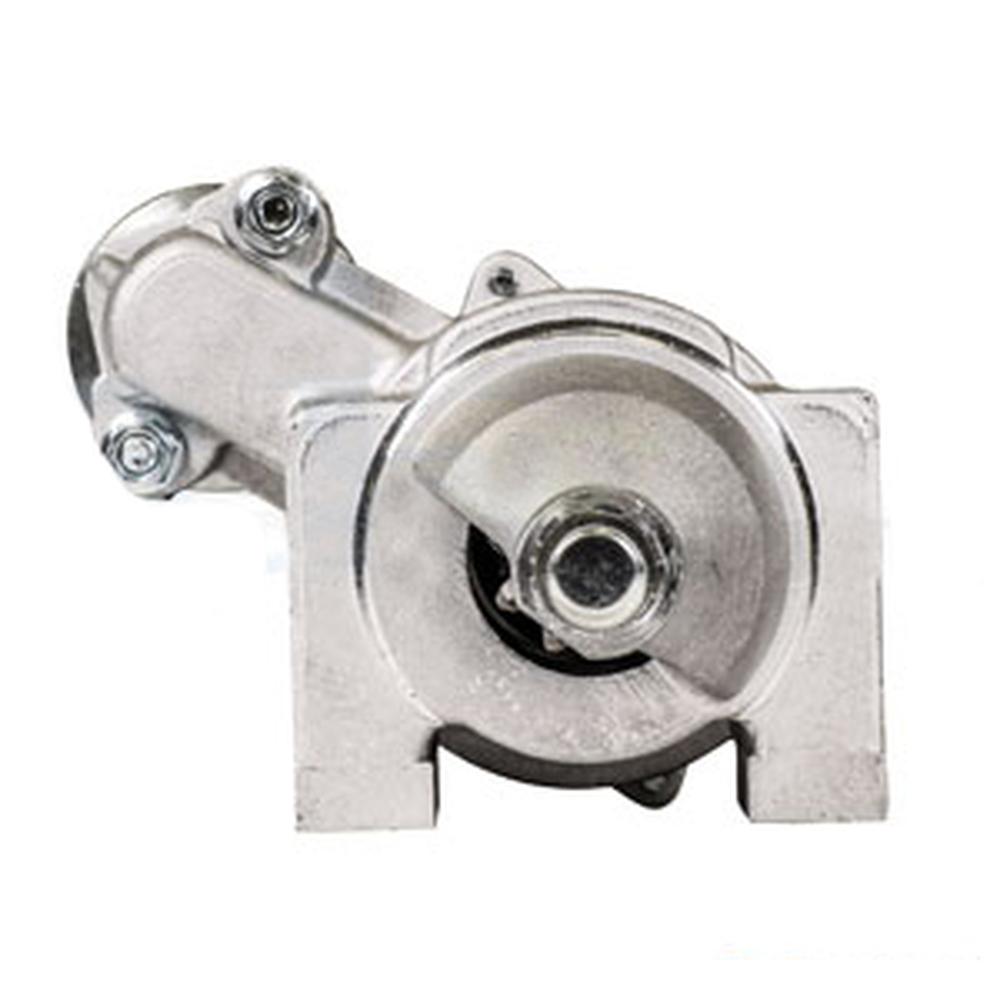

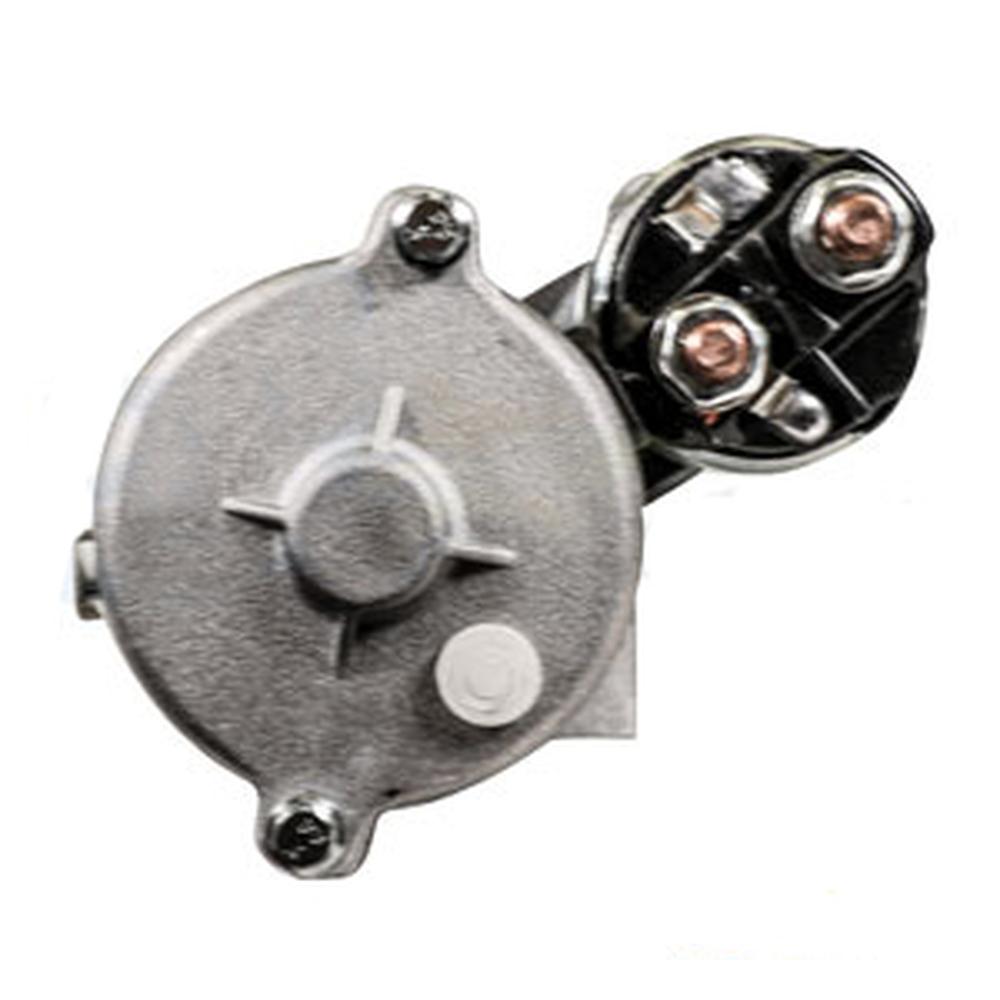

AM107631 N/A – additional image 2AM107631 N/A – additional image 3AM107631 N/A – additional image 4

NC-024245 · Starter

AM107631 N/A

CAD 204.40

In stock

N/A – reference AM107631. Catalogue-listed applications: John Deere, Toro, Cub Cadet F620, F680, F687, M653, M655, M665, Z48. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-024245
Reference numbers
AM107631, AM108390, AM124993, AM131296, AM132702, MIA11473, MIA13172, SE501849, SE501849-A, UC16212, KH-25, 098, 09-S, 21-S, 24-S, KH2509809, KH2509809S, KH2509821S, KH2509824S, KH-24-098-01, KH-25-098-11-S, 12, 01, 03-S, 435, 24, 01-S, 25, 08, 08-S, 09, 11, 11-S, 20-S
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: N/A.

Configuration: Starter for Kohler, Fits John Deere, Fits Toro, Fits Cub Cadet, and Compatible Engines
This 12-volt direct-drive (DD) starter motor is a direct replacement for Kohler Command CH and CV series engines as well as a wide range of Fits John Deere, Fits Toro, Fits Cub Cadet, and other lawn and garden equipment. The starter features counterclockwise (CCW) rotation and a 9-tooth drive gear, fitting the flywheel ring gear on Kohler CH12.5 through CH22 and CV12.5 through CV22 engines commonly found in riding mowers, zero-turn mowers, lawn tractors, and fairway mowers.
Specifications
Voltage: 12V
Power: 0.6kW / 0.8HP
Rotation: CCW (Counterclockwise)
Starter Type: DD (Direct Drive)
Number of Teeth: 9
Gear OD: 1.134 in / 28.8mm
Mounting Ear 1 Hole: 8.5mm Unthreaded
Mounting Ear 2 Hole: 8.5mm Unthreaded
Condition: New
Compatible Models
Kohler Engines: CH12.5, CH14, CH18, CH20, CH22, CV12.5, K161, K181, 14 HP
Fits John Deere Riding Mowers and Lawn Tractors: L120, L130, LS120, LX173, LX255, LX266, STX30, STX38, GT18, GT20, GT20A, GT22, GT22A, GT225, G100, G110
Fits John Deere Front-Mount and Zero-Turn Mowers: F620, F680, F687, M653, M655, M665, Z48, Z54, Z118Z, Z150Z, Z153Z, Z222Z, Z252Z, Z253, Z253Z, Z255, Z255Z, Z256, Z286E, Z320, Z320Z, Z325, Z325Z, Z350, Z355 Z Master, Z510A ZTRAK, Z520A ZTRAK, Z710A ZTRAK, Z720A ZTRAK, Z915B ZTRAK, Z925M EFI ZTRAK, Z925M EFI FLEX FUEL, Z930M EFI ZTRAK, Z945M EFI ZTRAK, Z955M EFI ZTRAK, Z955R EFI ZTRAK
Fits John Deere Commercial/Specialty Mowers: 2084, 2130, 2150, 2155, 2166, 2176, 2185, 2186, 2206, 2284, 2354HV, 2400 PRECISIONCUT, 2554HV, 2700 PRECISIONCUT, 2700 E-CUT HYBRID, 3184, 3186, 3206, 3225, 3235, 3654, 3660, 365, Multi Pro 1200
Fits Toro: Dingo 222, Dingo 322, Dingo TX-420, Groundsmaster 120, 550, 1250
Fits Cub Cadet: 1863, 1864, 1948GV, 1948HV, 2148HV, 518xi, 520xi, 522xi
Replaces Part Number(s):
AM107631, AM108390, AM124993, AM131296, AM132702, MIA11473, MIA13172, SE501849, SE501849-A, UC16212, 12 098 01, 12 098 03-S, 12 435 03-S, 24 098 01, 24 098 01-S, 25 098 08, 25 098 08-S, 25 098 09, 25 098 09-S, 25 098 11, 25 098 11-S, 25 098 20-S, 25 098 21-S, 25 098 24, 25 098 24-S, KH-25 098 09, KH-25 098 09-S, KH-25 098 21-S, KH-25 098 24-S, KH2509809, KH-25-098-09, KH2509809S, KH-25-098-09-S, KH2509821S, KH-25-098-21-S, KH2509824S, KH-25-098-24-S, KH-24-098-01, KH-25-098-11-S, KH-25-098-09-S
Aftermarket Interchange Numbers
246-06101, A-246-06101, 128000-7480, 228000-2640, 228000-7990, 435-331, 435-331-A
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AM107631, AM108390, AM124993, AM131296, AM132702, MIA11473, MIA13172, SE501849, SE501849-A, UC16212, KH-25, 098, 09-S, 21-S, 24-S, KH2509809, KH2509809S, KH2509821S, KH2509824S, KH-24-098-01, KH-25-098-11-S, 12, 01, 03-S, 435, 24, 01-S, 25, 08, 08-S, 09, 11, 11-S, 20-S

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere F620
  • John Deere F680
  • John Deere F687
  • John Deere M653
  • John Deere M655
  • John Deere M665
  • John Deere Z48
  • John Deere Z54
  • John Deere Z118Z
  • John Deere Z150Z
  • John Deere Z153Z
  • John Deere Z222Z
  • John Deere Z252Z
  • John Deere Z253
  • John Deere Z253Z
  • John Deere Z255
  • John Deere Z255Z
  • John Deere Z256
  • John Deere Z286E
  • John Deere Z320
  • John Deere Z320Z
  • John Deere Z325
  • John Deere Z325Z
  • John Deere Z350
  • John Deere Z355 Z Master
  • John Deere Z510A ZTRAK
  • John Deere Z520A ZTRAK
  • John Deere Z710A ZTRAK
  • John Deere Z720A ZTRAK
  • John Deere Z915B ZTRAK
  • John Deere Z925M EFI ZTRAK
  • John Deere Z925M EFI FLEX FUEL
  • John Deere Z930M EFI ZTRAK
  • John Deere Z945M EFI ZTRAK
  • John Deere Z955M EFI ZTRAK
  • John Deere Z955R EFI ZTRAK
  • John Deere 2084
  • John Deere 2130
  • John Deere 2150
  • John Deere 2155
  • John Deere 2166
  • John Deere 2176
  • John Deere 2185
  • John Deere 2186
  • John Deere 2206
  • John Deere 2284
  • John Deere 2354HV
  • John Deere 2400 PRECISIONCUT
  • John Deere 2554HV
  • John Deere 2700 PRECISIONCUT
  • John Deere 2700 E-CUT HYBRID
  • John Deere 3184
  • John Deere 3186
  • John Deere 3206
  • John Deere 3225
  • John Deere 3235
  • John Deere 3654
  • John Deere 3660
  • John Deere 365
  • John Deere Multi Pro 1200
  • Toro Dingo 222
  • Toro Dingo 322
  • Toro Dingo TX-420
  • Toro Groundsmaster 120
  • Toro 550
  • Toro 1250
  • Cub Cadet 1863
  • Cub Cadet 1864
  • Cub Cadet 1948GV
  • Cub Cadet 1948HV
  • Cub Cadet 2148HV
  • Cub Cadet 518xi
  • Cub Cadet 520xi
  • Cub Cadet 522xi
Application notes
  • One New Aftermarket Replacement Starter for Kohler, Fits John Deere, Fits Toro, Fits Cub Cadet, and Compatible Engines
  • Aftermarket Interchange Numbers
  • New aftermarket replacement part - not remanufactured, not used.
