050302 Bearing ( )

Quantity indicated in catalogue: 1

Replacement part: Bearing (NPS100RPC).

Configuration: Prelubricated Spherical Ball Insert Bearing for New Idea, Fits Case/International Harvester, Fits Massey Ferguson, and More
This NPS100RPC prelubricated spherical OD ball insert bearing with eccentric locking collar is a direct aftermarket replacement for a wide range of agricultural equipment. The NP-series narrow inner ring design mounts to a 1-inch shaft using a slip fit and eccentric locking collar, making it well suited for light to medium load applications where space is limited. The sealed construction protects against contamination in field conditions, eliminating the need for relubrication in service.
Specifications

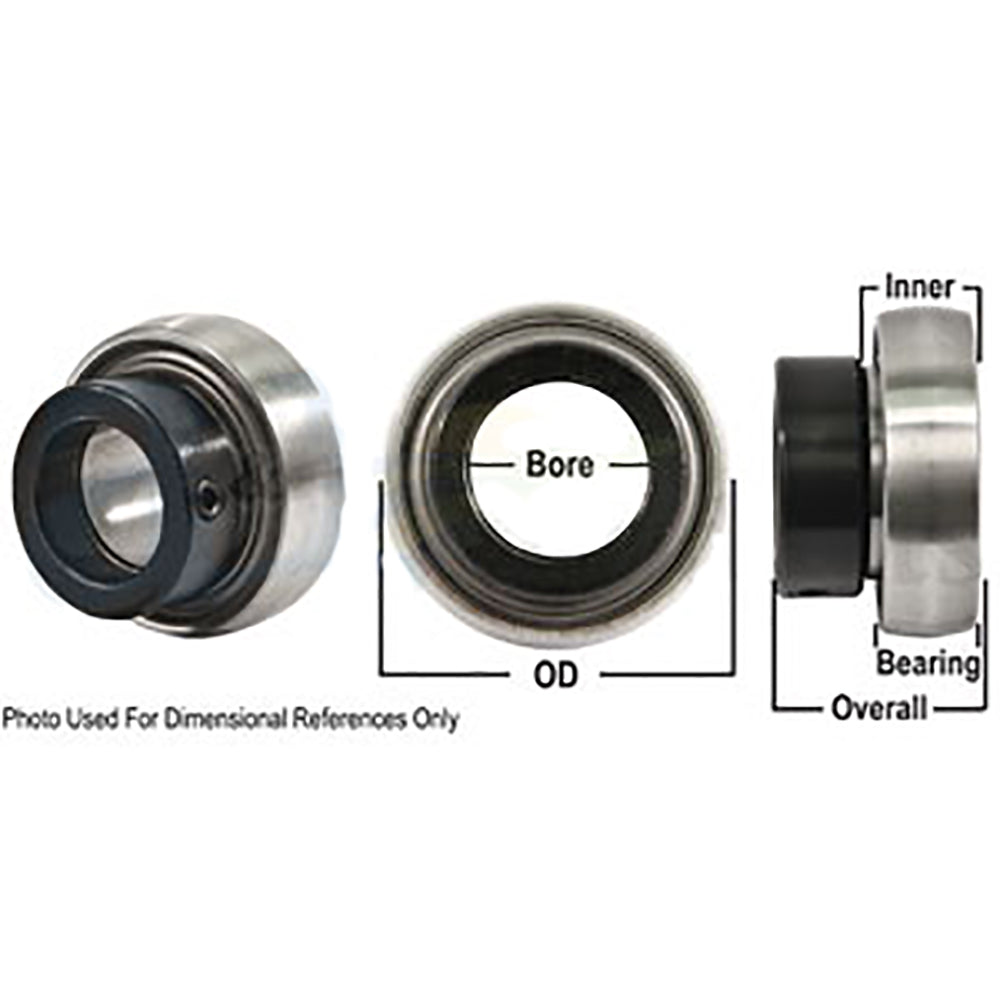

Bore Diameter: 1.000 in (25.4 mm)
Outside Diameter: 2.0472 in (52 mm)
Overall Width: 1.2205 in (31 mm)
Bore Type: Round / Cylindrical
Locking Device: Eccentric Collar
Closure Type: Double Sealed (Contact Seals)
Radial Dynamic Load Capacity: 3,150 lbf (14,000 N)
Radial Static Load Capacity: 1,770 lbf
Max RPM: 5,900
Operating Temperature Range: -40 to 250 degrees F (-40 to 120 degrees C)
Bearing Material: Through Hardened Steel
Seal Material: Nitrile Rubber
Locking Collar Part Number: EL205-100
Pre-lubricated: Yes
Compatible Models
New Idea: 410, 510, 860 and other models
Also fits equipment from: Fits Case/International Harvester (Fits Case IH / IH), Fits Massey Ferguson (AGCO), Fits Allis Chalmers, Long, David Brown, Fits John Deere (Fits JD), Hesston, Fits Ford/New Holland (NH) -- verify model-specific fitment using cross-reference numbers below.
Replaces Part Number(s):
050302, 051680, 1061, 010-11213, 01011213, 041547, 1113373, 1308951, 15-16-001, 1516001, 15A5743A, 16063, 168636, 194572C91, 20H4686, 214366C1, 214366C91, 308-RA100RRB, 308RA100RRB, 360109V1, 38261, 400CBA, 455965R91, 500-01-689, 50001689, 520063, 574844, 710533, 710715, 7441-3, 74413, 834199M1, 834199M91, 842736M1, 842736M91, 851-SA20516, 9-90059, 990018, 990059, 71308951, 6050080, 3074CSA, 9C627, A842736M1, AC10858, AJD8665, AK2752, AM3028, AM3095, ARA100NPPB, ENB10-0001, F50752, F94133, J2752IMP, JD8555, JD8555L/C, JD8665, K2752, K2752A, M216, NPS100RPC, O4306CH, RA100NPPB, RA100PPB, RA100RRB, RA100RRB-IMP, RA100RRB-TIM, RA100RRBBCOL, RA100RRBTIM, TIS-F6003, TISF6003, TN4651, TPJD8555, TPJD8665, X5633, X5683, Z391A
Aftermarket Interchange Numbers
NTN NPS100RPC, BCA NPS100RPC, National NPS-100-RPC, Fafnir RA100RRB, Bower/BCA NPS100RPC
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 050302, 051680, 1061, 010-11213, 041547, 1113373, 1308951, 15-16-001, 15A5743A, 16063, 168636, 194572C91, 20H4686, 214366C1, 214366C91, 308-RA100RRB, 360109V1, 38261, 400CBA, 455965R91, 500-01-689, 520063, 574844, 710533, 710715, 7441-3, 834199M1, 834199M91, 842736M1, 842736M91, 851-SA20516, 9-90059, 990018, 71308951, 6050080, 3074CSA, 9C627, A842736M1, AC10858, AJD8665, AK2752, AM3028, AM3095, ARA100NPPB, ENB10-0001, F50752, F94133, J2752IMP, JD8555, JD8555L/C, JD8665, K2752, K2752A, M216, NPS100RPC, O4306CH, RA100NPPB, RA100PPB, RA100RRB, RA100RRB-IMP, RA100RRB-TIM, RA100RRBBCOL, TIS-F6003, TN4651, TPJD8555, TPJD8665, X5633, X5683, Z391A, EL205-100

• One New Aftermarket Replacement Prelubricated Spherical Ball Insert Bearing for New Idea, Fits Case/International Harvester, Fits Massey Ferguson, and More
• This NPS100RPC prelubricated spherical OD ball insert bearing with eccentric locking collar is a direct aftermarket replacement for a wide range of agricultural equipment. The NP-series narrow inner ring design mounts to a 1-inch shaft using a slip fit and eccentric locking collar, making it well suited for light to medium load applications where space is limited. The sealed construction protects against contamination in field conditions, eliminating the need for relubrication in service.
• Aftermarket Interchange Numbers
• New aftermarket replacement part - not remanufactured, not used.
