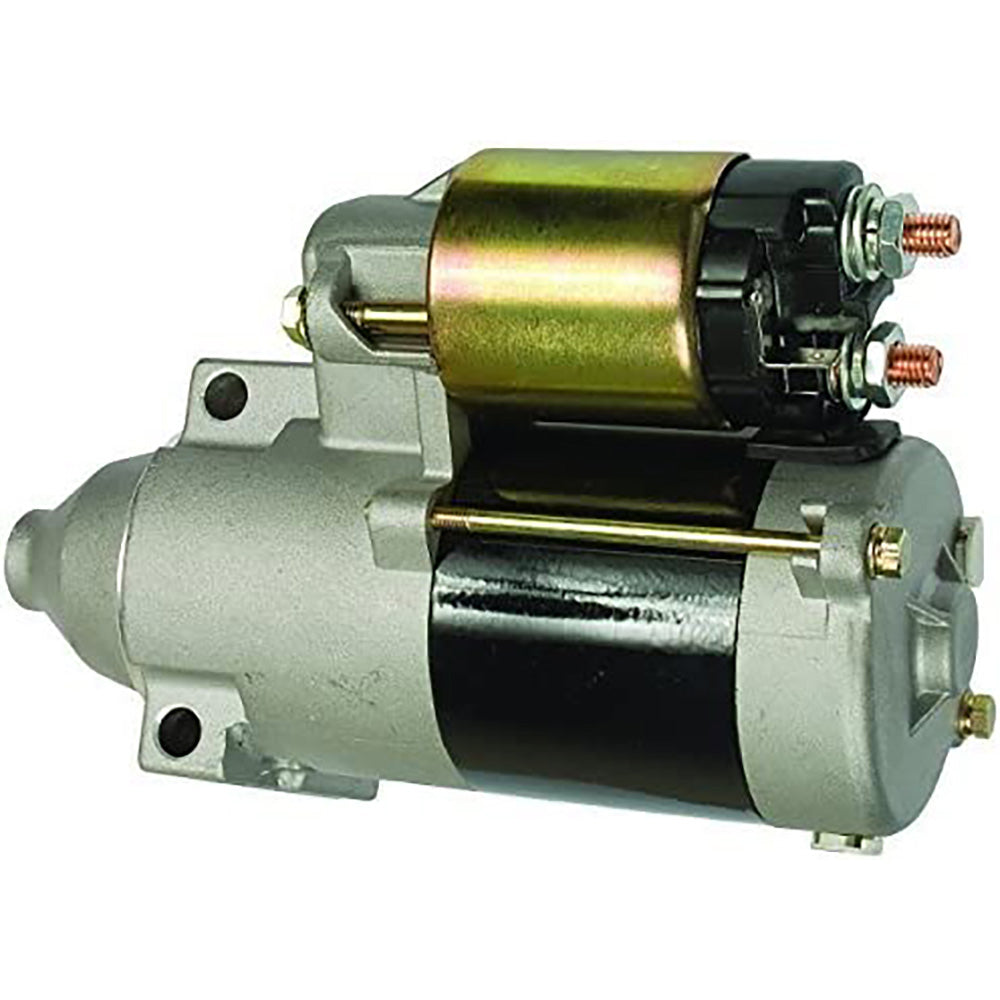

AM107631 Starter, 12V, CCW, 9T, 0.6KW, (New)

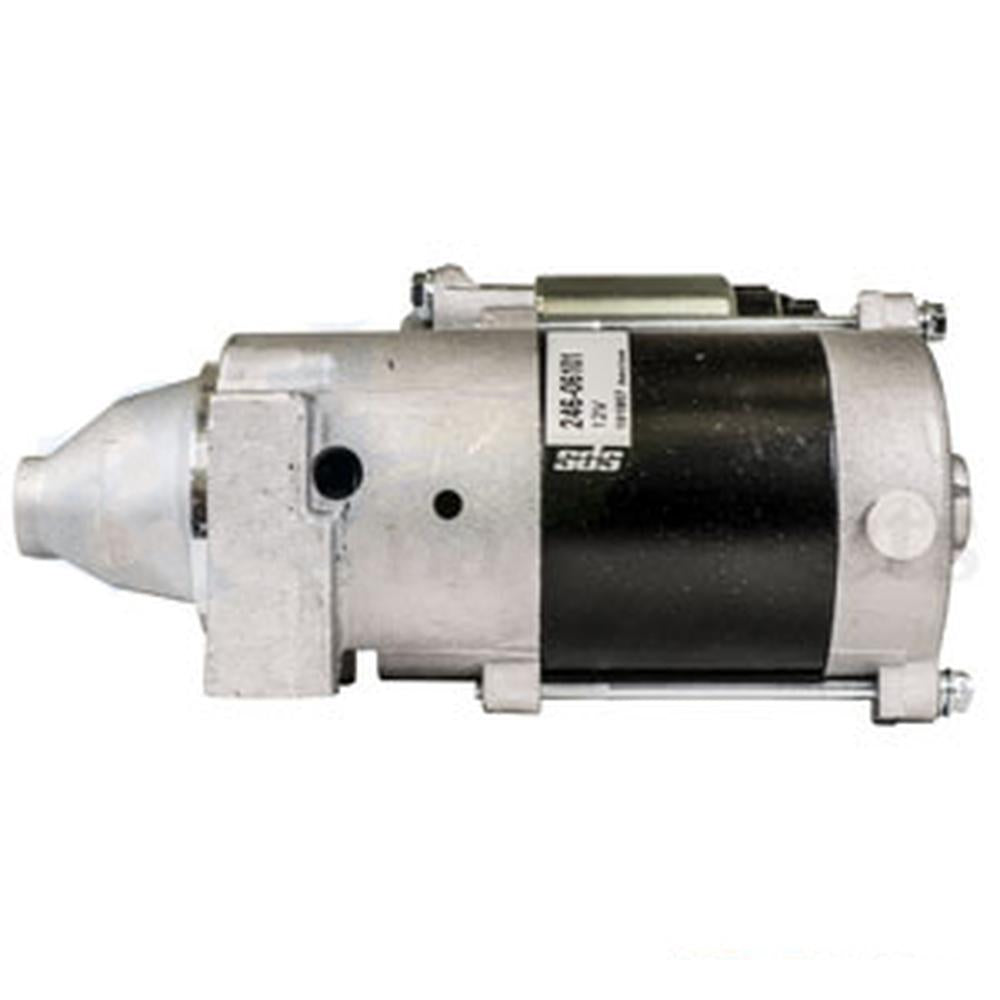

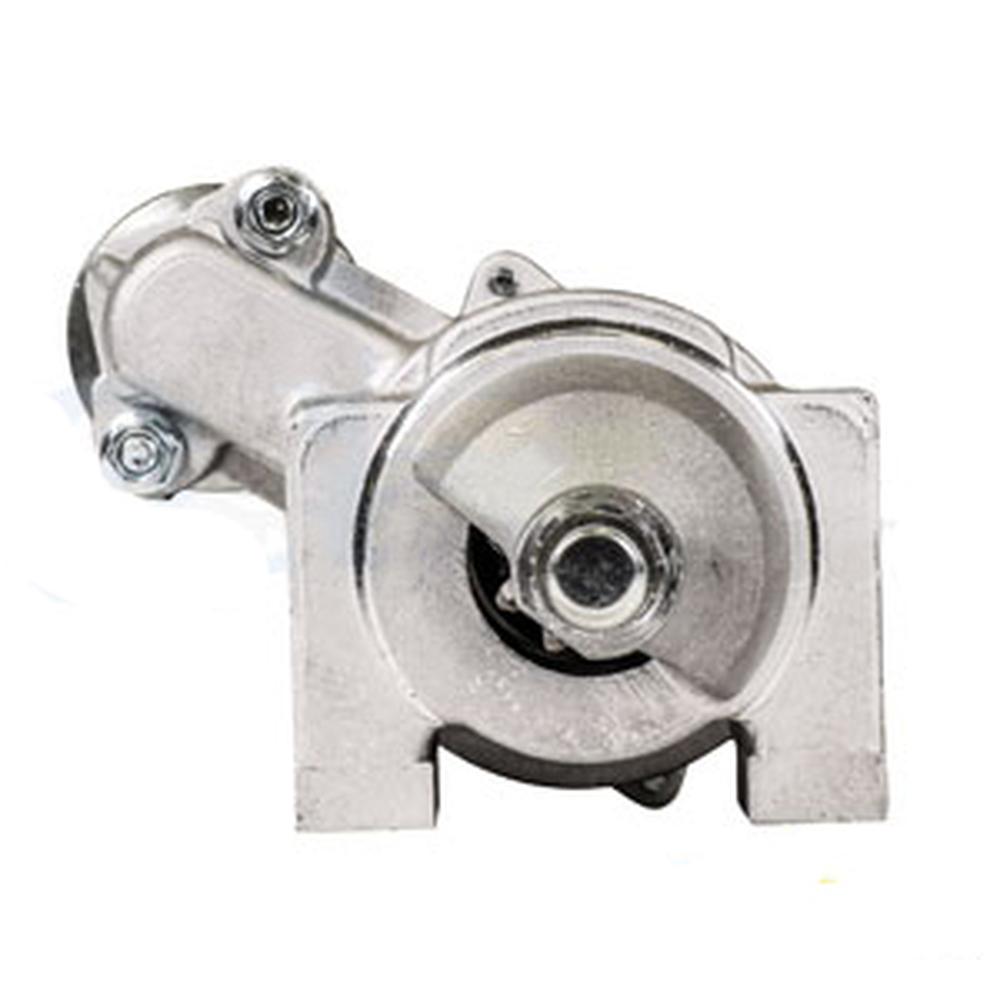

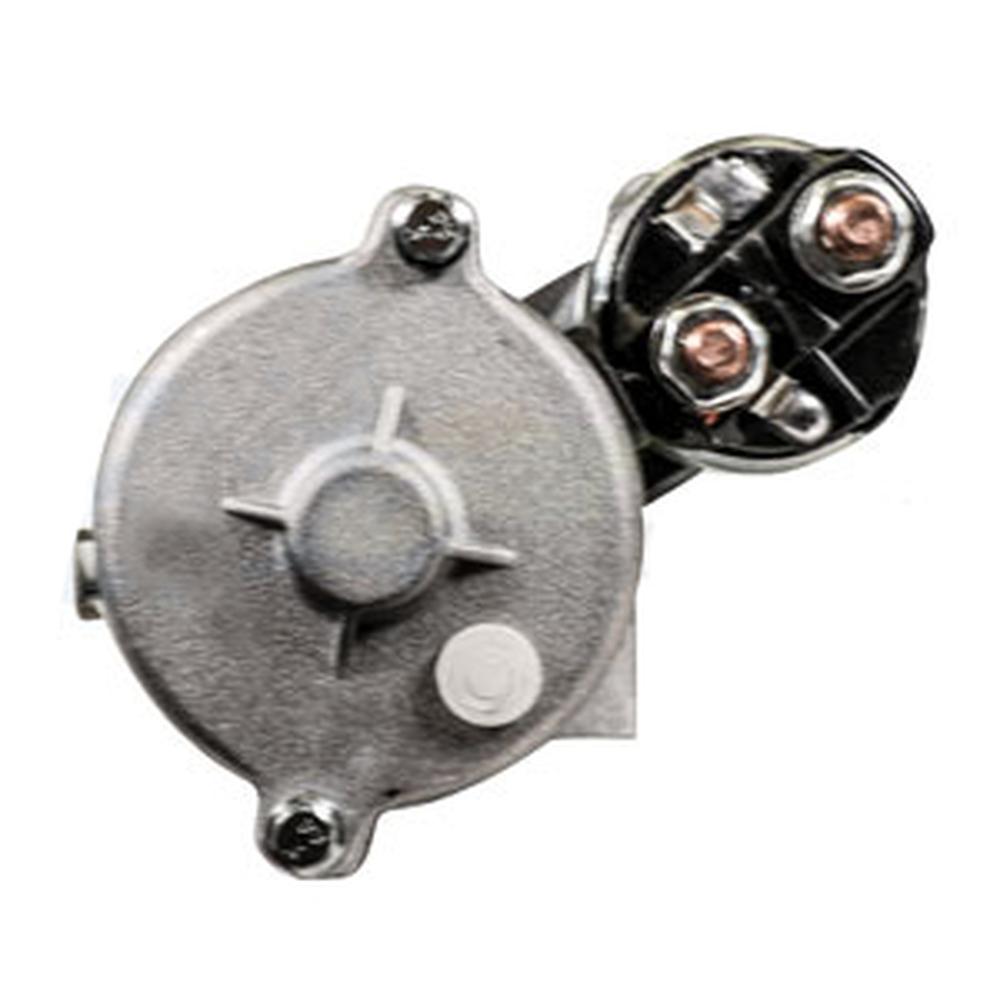

AM107631 Starter, 12V, CCW, 9T, 0.6KW, (New) – additional image 2AM107631 Starter, 12V, CCW, 9T, 0.6KW, (New) – additional image 3AM107631 Starter, 12V, CCW, 9T, 0.6KW, (New) – additional image 4

NC-024187 · Starter

AM107631 Starter, 12V, CCW, 9T, 0.6KW, (New)

CAD 204.40

In stock

Starter, 12V, CCW, 9T, 0.6KW, (New) – reference AM107631. Catalogue-listed applications: John Deere, Toro, Cub Cadet Z510A ZTrak, Z520A ZTrak, Z710A ZTrak, Z720A ZTrak, Z915B ZTrak, Z925M EFI ZTrak, Z925M EFI Flex Fuel. Voltage: 12 V; Power: 0.6 kW. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-024187
Reference numbers
AM107631, AM108390, AM124993, AM131296, AM132702, MIA11473, MIA13172, SE501849, SE501849-A, UC16212, KH-24-098-01, KH-25-098-11-S, KH-25-098-09-S, KH-25, 098, 09-S, 21-S, 24-S, KH2509809, KH2509821S, KH2509824S, 246-06101, 246-06101-A, A-246-06101, 128000-7480, 228000-2640, 228000-7990, 12, 01, 03-S, 435, 24, 01-S, 25, 08, 08-S, 09, 11, 11-S, 20-S
Listed package quantity
1
Voltage
12 V
Power
0.6 kW
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Starter, 12V, CCW, 9T, 0.6KW, (New).

Configuration: Starter for Kohler, Fits John Deere, Fits Toro, Fits Cub Cadet, and Fits Ford/New Holland Equipment
This 12-volt, direct-drive (DD) starter with counterclockwise (CCW) rotation and a 9-tooth pinion gear replaces the original Nippon Fits Denso-style starter found on a wide range of Kohler Command CH and CV series engines powering Fits John Deere, Fits Toro, Fits Cub Cadet, and related lawn and garden equipment. Fits Kohler CH12.5 through CH26 and CV12.5 through CV22 engines as well as AEGIS LH630-LH775 and LV625-LV680 series engines.
Specifications
Voltage: 12V
Power: 0.6kW / 0.8HP
Rotation: CCW (Counterclockwise)
Starter Type: DD (Direct Drive)
Number of Teeth: 9
Gear OD: 1.134 in / 28.8mm
Mounting Ear 1 Hole: 8.5mm Unthreaded
Mounting Ear 2 Hole: 8.5mm Unthreaded
Condition: New
Compatible Models
Fits John Deere Zero-Turn Mowers: Z510A ZTrak, Z520A ZTrak, Z710A ZTrak, Z720A ZTrak, Z915B ZTrak, Z925M EFI ZTrak, Z925M EFI Flex Fuel, Z930M EFI ZTrak, Z945M EFI ZTrak, Z955M EFI ZTrak, Z955R EFI ZTrak, Z118Z, Z150Z, Z153Z, Z222Z, Z252Z, Z253Z, Z255Z, Z256, Z286E, Z320, Z320Z, Z325, Z325Z, Z350, Z355 Z Master
Fits John Deere Riding Mowers/Lawn Tractors: STX30, STX38, LX173, LX255, LX266, L120, L130, LS120, G100, G110, GT18, GT20, GT20A, GT22, GT22A, GT225, F620, F680, F687, M653, M655, M665, 1250, 1863, 1864, 1948GV, 1948HV, 2084, 2130, 2135, 2148HV, 2150, 2155, 2166, 2176, 2185, 2186, 2206, 2284, 2354HV, 2554HV, 3184, 3186, 3206, 3225, 3235, 3654, 3660, 518xi, 520xi, 522xi
Fits John Deere Commercial/Specialty Mowers: 2700 E-Cut Hybrid, 2700 PrecisionCut, Multi Pro 1200, 365, 550
Fits Toro Zero-Turn Mowers: Z48, Z54, Z255, Z253, TimeCutter series
Fits Toro Commercial/Walk Equipment: Groundsmaster 120, Dingo 222, Dingo 322, Dingo TX-420
Fits Toro Fairway Mowers: 2700 PrecisionCut, Multi Pro 1200
Kohler Engines: CH12.5, CH14, CH18, CH20, CH22, CH26, CV12.5, 14 HP, K161, K181
Fits Cub Cadet: GT22A, Z48, Z54, and related models with Kohler Command engines
Fits Ford/New Holland: Compatible models with Kohler CH/CV engine installations
Replaces Part Number(s):
AM107631, AM108390, AM124993, AM131296, AM132702, MIA11473, MIA13172, SE501849, SE501849-A, UC16212, KH-24-098-01, KH-25-098-11-S, KH-25-098-09-S, 12 098 01, 12 098 03-S, 12 435 03-S, 24 098 01, 24 098 01-S, 25 098 08, 25 098 08-S, 25 098 09, 25 098 09-S, 25 098 11, 25 098 11-S, 25 098 20-S, 25 098 21-S, 25 098 24, 25 098 24-S, KH-25 098 09, KH-25 098 09-S, KH-25 098 21-S, KH-25 098 24-S, KH2509809, KH-25-098-09, KH2509809S, KH-25-098-09-S, KH2509821S, KH-25-098-21-S, KH2509824S, KH-25-098-24-S, 246-06101, 246-06101-A, A-246-06101, 128000-7480, 228000-2640, 228000-7990
Aftermarket Interchange Numbers
435-331, 435-331-A, ELS60-0099, 12-098-03, 24-098-01
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AM107631, AM108390, AM124993, AM131296, AM132702, MIA11473, MIA13172, SE501849, SE501849-A, UC16212, KH-24-098-01, KH-25-098-11-S, KH-25-098-09-S, KH-25, 098, 09-S, 21-S, 24-S, KH2509809, KH2509821S, KH2509824S, 246-06101, 246-06101-A, A-246-06101, 128000-7480, 228000-2640, 228000-7990, 12, 01, 03-S, 435, 24, 01-S, 25, 08, 08-S, 09, 11, 11-S, 20-S

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere Z510A ZTrak
  • John Deere Z520A ZTrak
  • John Deere Z710A ZTrak
  • John Deere Z720A ZTrak
  • John Deere Z915B ZTrak
  • John Deere Z925M EFI ZTrak
  • John Deere Z925M EFI Flex Fuel
  • John Deere Z930M EFI ZTrak
  • John Deere Z945M EFI ZTrak
  • John Deere Z955M EFI ZTrak
  • John Deere Z955R EFI ZTrak
  • John Deere Z118Z
  • John Deere Z150Z
  • John Deere Z153Z
  • John Deere Z222Z
  • John Deere Z252Z
  • John Deere Z253Z
  • John Deere Z255Z
  • John Deere Z256
  • John Deere Z286E
  • John Deere Z320
  • John Deere Z320Z
  • John Deere Z325
  • John Deere Z325Z
  • John Deere Z350
  • John Deere Z355 Z Master
  • John Deere 2700 E-Cut Hybrid
  • John Deere 2700 PrecisionCut
  • John Deere Multi Pro 1200
  • John Deere 365
  • John Deere 550
  • Toro Z48
  • Toro Z54
  • Toro Z255
  • Toro Z253
  • Toro Groundsmaster 120
  • Toro Dingo 222
  • Toro Dingo 322
  • Toro Dingo TX-420
  • Toro 2700 PrecisionCut
  • Toro Multi Pro 1200
  • Toro CH12.5
  • Toro CH14
  • Toro CH18
  • Toro CH20
  • Toro CH22
  • Toro CH26
  • Toro CV12.5
  • Toro 14 HP
  • Toro K161
  • Toro K181
Application notes
  • One New Aftermarket Replacement Starter for Kohler, Fits John Deere, Fits Toro, Fits Cub Cadet, and Fits Ford/New Holland Equipment
  • This 12-volt, direct-drive (DD) starter with counterclockwise (CCW) rotation and a 9-tooth pinion gear replaces the original Nippon Fits Denso-style starter found on a wide range of Kohler Command CH and CV series engines powering Fits John Deere, Fits Toro, Fits Cub Cadet, and related lawn and garden equipment. Fits Kohler CH12.5 through CH26 and CV12.5 through CV22 engines as well as AEGIS LH630-LH775 and LV625-LV680 series engines.
  • Fits Cub Cadet: GT22A, Z48, Z54, and related models with Kohler Command engines
  • Fits Ford/New Holland: Compatible models with Kohler CH/CV engine installations
  • Aftermarket Interchange Numbers
  • New aftermarket replacement part - not remanufactured, not used.
