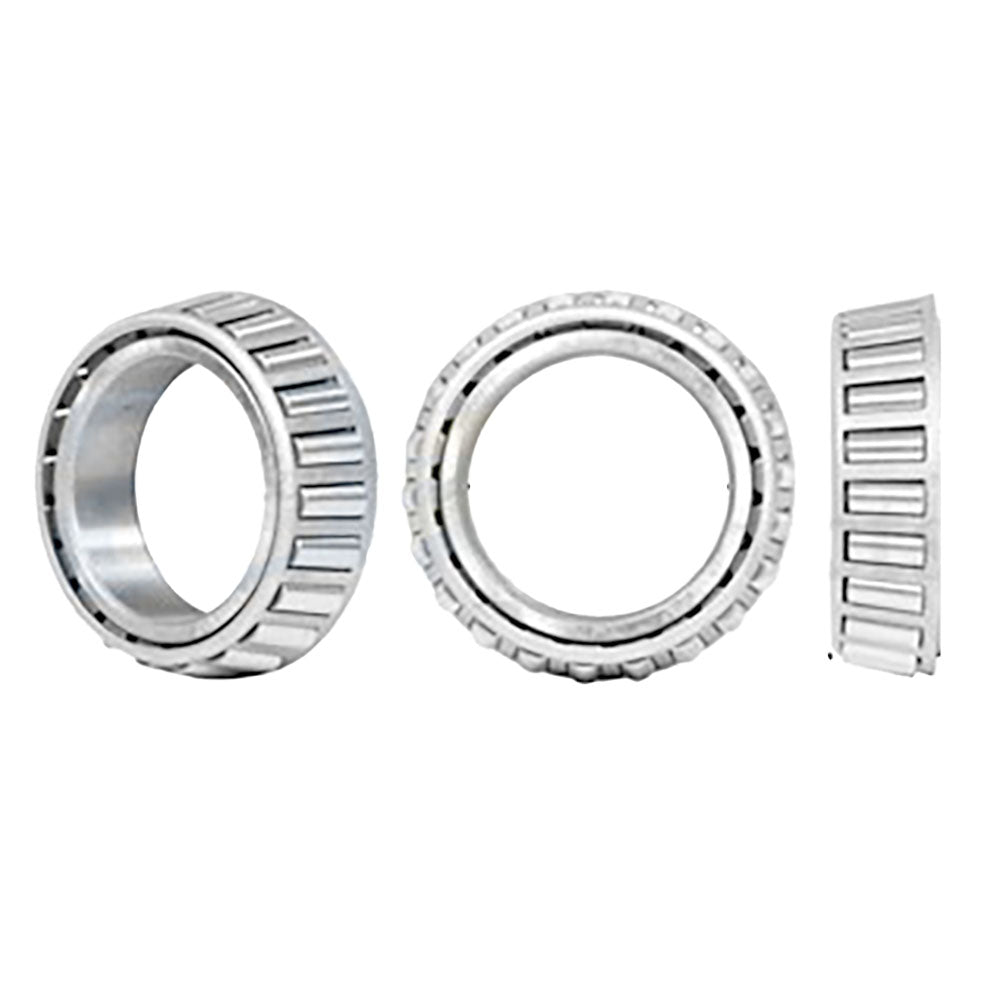

520047 Bearing ( )

Quantity indicated in catalogue: 1

Replacement part: Bearing (LM48548).

Configuration: Bearing Cone (LM48548) for Agricultural and Industrial Equipment
This tapered roller bearing cone (LM48548) is a widely used imperial-series single-row tapered roller bearing component designed to handle both radial and axial loads. It is commonly found in front axle wheel hubs, steering components, planter units, disc harrows, and a broad range of other agricultural and industrial implement applications. The LM48548 cone pairs with the LM48510 cup (outer race) and is typically mounted in opposing pairs on a shaft for maximum load capacity and smooth rotation.
Specifications
Bearing Type: Tapered Roller Bearing Cone (single row)
Bore (Inner Diameter): 1.375 in (34.925 mm)
Width: 0.720 in (18.03 mm)
Outer Diameter: 2.5625 in (65.09 mm)
Casting Number: H6606/6182 CTD
Compatible Cup: LM48510
ABMA Precision Rating: Class 2
Compatible Models
Fits Case / Fits Case IH: 460, 504, 544, 560, 574, 584, 606, 615, 620, 621, 631, 641, 651, 656, 666, 674, 684, 686, 706, 756, 766, 784, 786, 806, 815, 820 (3 CYL), 826, 830 (3 CYL), 856, 886, 915, 930, 940, 966, 986, 990, 990A, 990B, 990Q, 990SK, 995, 995Q, 995SK, 996, 996Q, 996SK, 1026, 1040, 1066, 1080, 1085, 1086, 1130, 1140, 1206, 1256, 1390, 1394, 1420, 1440, 1456, 1460, 1466, 1468, 1470, 1480, 1486, 1530, 1550, 1566, 1568, 1586, 1620, 1630, 1640, 1644, 1660, 1666, 1680, 1688, 1705, 1715, 1725, 1730, 1735, 1750, 1822, 1830, 1844, 2022, 2044, 2144, 2155, 2166, 2188, 2255 (SWEPT BACK), 2300, 2344, 2355 (MID-HI AXLE), 2366, 2377, 2388, 2500, 2500A, 2550, 2555 (MID-HI AXLE), 2577, 2588, 2600, 2600N, 2600R, 2600V, 2610V, 2630, 2640, 2656, 2706, 2755 (MID-HI AXLE), 2756, 2826, 2856, 2930, 3055, 3088, 3288, 3300, 3488 Hydro, 3500, 3688, 4031, 4121, 4131, 4190, 5088, 5288, 5488, 6088, 7088, 7340, Hydro 70, Hydro 86, Hydro 100, Hydro 186, I-544, 21026
Fits John Deere: 20, 20C, 20D, 20F, 82, 150, 175, 180, 200, 202, 203, 204, 205, 230, 230A, 231, 233, 234, 235, 240, 245, 250, 255, 265, 268, 269, 272, 273, 275, 276, 300, 300B, 303, 310, 315, 333, 334, 335, 364, 384, 385, 395, 403, 415, 420, 425, 430, 431, 451, 454, 461, 470, 475, 480, 484, 485, 490, 495, 500, 500B, 503, 530, 531, 541, 543, 600B, 611, MaxEmerge, MaxEmerge 2
Fits Massey Ferguson: 135, 165, 185, 203, 230A, 240, 250, 265, 275, 285, 595, 595XL, 685, 685XL, 695, 695XL, 880, 880B, 885, 885Q, 885SK, 895, 1085, 1190, 1290, 1294, 1390, 1394
Fits Ford/New Holland: 2000, 2010, 2030, 2040, 2100, 2110, 2120, 2130, 2150, 2240, 2300A, 2310, 2350 (LOWPROFILE), 2400A, 2450, 2550, 2600, 2610, 2640, 2810, 2830, 2910, 3000, 3100, 3110, 3120, 3150, 3190, 3288 (see Fits Case IH), 3310, 3330, 3488, 3550, 3600, 3600N, 3600R, 3600V, 3610, 3610V, 3688 (see Fits Case IH), 3900, 3910, 3910H, 3910R, 3910V, 3930, 4000, 4030, 4040, 4100, 4110, 4110NO, 4110O, 4110TR, 4120, 4130, 4130AP, 4130N, 4140, 4200, 4330, 4340, 4410, 4410SU, 4500, 4600, 4610, 4610N, 4610NO, 4610O, 4610SU, 4630, 4830, 4830N, 5030, 5030O, 6000, 7000, 7000 Series, 7100, 7200, 7240, 7300
Fits Allis Chalmers: 160, 170, 175, 180, 185, 190, 200, 210, 220
David Brown: 990, 990A, 990B, 1190, 1194, 1290, 1294, 1390, 1394
Leyland: 154, 245, 255, 270, 272, 282, 384, 485, 502, 602, 702, 704
Additional compatible brands: Vermeer, Amco, Kewanee, Hesston, Rhino, GEHL, Krause, Fits Woods, Speeco, Bush Hog, Fits Caterpillar, Sidewinder -- see models metafield for full list.
Replaces Part Number(s):
 520047, 16076SW, 10353, 710475, 913-LM48548, AT320692, JD8194, JD9099, 1288571C91, 144074C91, 371896R91, 371897R91, 371898R1, 383459C91, 56504C91, 618022R91, 618023R1, 618023R91, 671078R91, 826928C91, G57451, G57452, 86516468, 3043869R91, 3043871R91, 70045, 1716071, 146241BH, 573BH, 4096588, 70227665, 70430421, 70929628, 74254317, 0227665, 1766918, 227665, 254317, 40460, 4254317, 430421, 530474, 851-IM48548, 9091, LM48548, X5656, 48977, 80340634, 81854752, 83400377, 83992408, BE22140, GHB144, 41112, 005-0471, 0050471, 050471, 791265M91, 831078M1
Aftermarket Interchange Numbers
4T-LM48548, LM48548J, LM48548C, LM48548L, LM48548A
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 520047, 16076SW, 10353, 710475, 913-LM48548, AT320692, JD8194, JD9099, 1288571C91, 144074C91, 371896R91, 371897R91, 371898R1, 383459C91, 56504C91, 618022R91, 618023R1, 618023R91, 671078R91, 826928C91, G57451, G57452, 86516468, 3043869R91, 3043871R91, 70045, 1716071, 146241BH, 573BH, 4096588, 70227665, 70430421, 70929628, 74254317, 0227665, 1766918, 227665, 254317, 40460, 4254317, 430421, 530474, 851-IM48548, 9091, LM48548, X5656, 48977, 80340634, 81854752, 83400377, 83992408, BE22140, GHB144, 41112, 005-0471, 050471, 791265M91, 831078M1

• One New Aftermarket Replacement Bearing Cone (LM48548) for Agricultural and Industrial Equipment
• This tapered roller bearing cone (LM48548) is a widely used imperial-series single-row tapered roller bearing component designed to handle both radial and axial loads. It is commonly found in front axle wheel hubs, steering components, planter units, disc harrows, and a broad range of other agricultural and industrial implement applications. The LM48548 cone pairs with the LM48510 cup (outer race) and is typically mounted in opposing pairs on a shaft for maximum load capacity and smooth rotation.
• Aftermarket Interchange Numbers
• New aftermarket replacement part - not remanufactured, not used.
