AH161589 Kit, Hydraulic Cylinder – Fits John Deere

NC-024061 · Cylinders

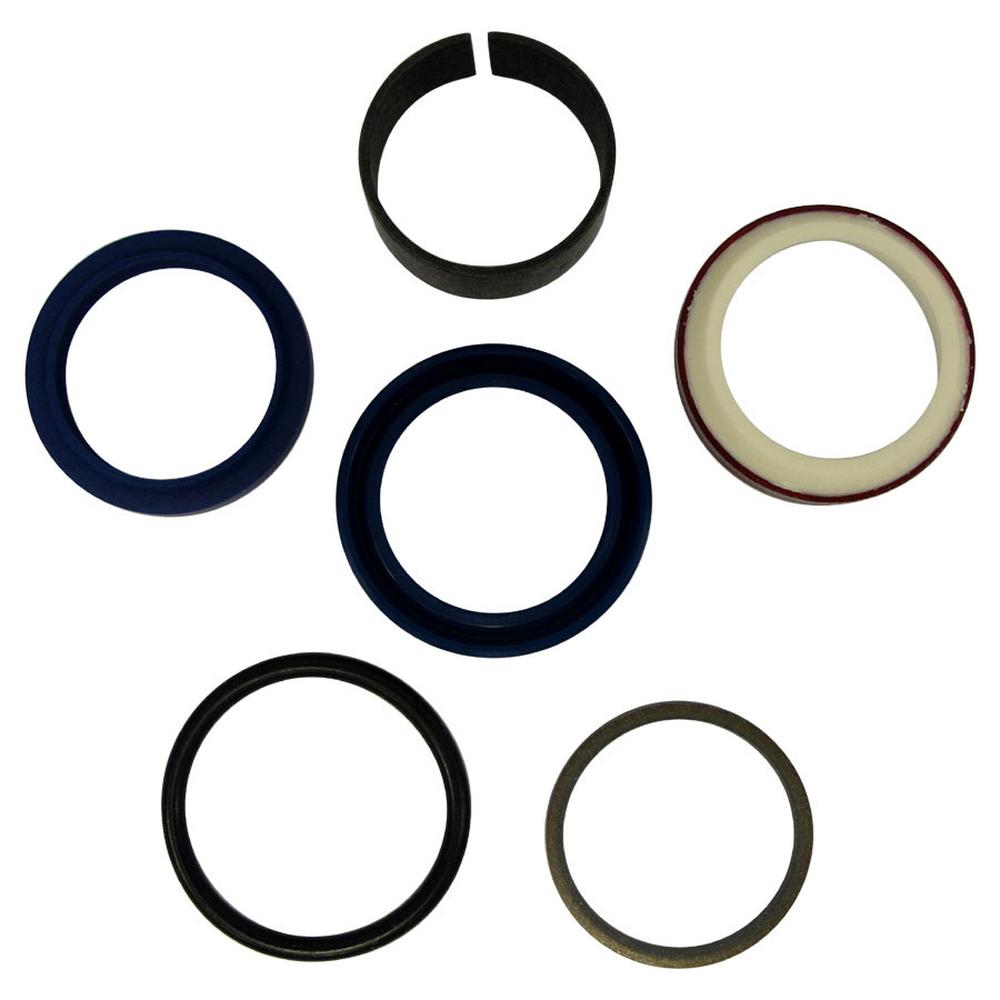

AH161589 Kit, Hydraulic Cylinder – Fits John Deere

CAD 120.57

In stock

Kit, Hydraulic Cylinder – reference AH161589. Catalogue-listed applications: John Deere 620 P, 620G, 620GP, 622, 622G, 622GP, 670. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-024061
Reference numbers
AH161589
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Kit, Hydraulic Cylinder.

Configuration: Hydraulic Cylinder Seal Kit Fits John Deere Equipment
This hydraulic cylinder rod seal kit (also known as a cylinder rod seal kit) restores hydraulic cylinder performance across a wide range of Fits John Deere (Fits JD) equipment, including motor graders, crawler/dozers, wheel loaders, loader backhoes, skid steer loaders, compact track loaders, and farm loaders. The kit seals the 32mm rod and includes a press-in wiper rod seal and U-seal. Compatible with OEM cylinder numbers AH205056 and AHC10900.
Important
Listed applications:
Note: On 444H, 444H LL, and TC44H Wheel Loaders, this seal kit applies to the steering cylinder and fits S/N 568519 and above only. On 240 and 250 Skid Steer Loaders, this kit fits BSN 925239 and above. Verify your full model number and serial number before ordering.
Specifications
Rod/Bore Size: 32mm
Seal Type: Press-in wiper rod seal; U-seal
Buffer Piston Seal: None
Kit
Weight: approx. 0.13-0.15 lb
Compatible Models
Fits John Deere Motor Graders: 620 P, 620G, 620GP, 622, 622G, 622GP, 670, 670B, 670C, 670CH, 670D, 670G, 670GP, 672B, 672CH C-Series II, 672D, 672G, 672GP, 770, 770B, 770BH, 770C, 770CH, 770D, 770G, 770GP, 772, 772B, 772BH, 772CH C-Series II, 772D, 772G, 772GP, 870D, 870G, 870GP, 872D, 872G, 872GP
Fits John Deere Crawler/Dozers: 750K, 850 P, 850 X, 850K, 850L, 950 P, 950K, 1050 P, 1050K, 1050K PL
Fits John Deere Wheel Loaders: 444 P, 444H (S/N 568519-Up), 444H LL (S/N 568519-Up), 444J, 444K, 444L, 643J, 724K, 843J
Fits John Deere Loader Backhoes: 310 G, 310 P, 310E, 310J, 310K, 310K EP, 310L, 310L EP, 310SE, 310SG, 315, 315SE, 315SG
Fits John Deere Skid Steer Loaders: 240 (BSN 925239-Up), 250 (BSN 925239-Up), 313, 315, 317, 320
Fits John Deere Compact Track Loaders: CT315, CT322
Fits John Deere Farm Loaders: 100, 175, 265, 280, 500M, 520, 521, 522, 540, 540M, 540R, 541, 562, 600M, 600R, 620R, 640, 640R, 660R, 680R, 700M, 740, 843, H260, H310, H340, H360, H380, H480
Replaces Part Number(s):
AH161589
Aftermarket Interchange Numbers
AH149310, AH160843, AH168286, AH231936. Compatible with OEM cylinder assemblies AH205056 and AHC10900.
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AH161589

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 620 P
  • John Deere 620G
  • John Deere 620GP
  • John Deere 622
  • John Deere 622G
  • John Deere 622GP
  • John Deere 670
  • John Deere 670B
  • John Deere 670C
  • John Deere 670CH
  • John Deere 670D
  • John Deere 670G
  • John Deere 670GP
  • John Deere 672B
  • John Deere 672D
  • John Deere 672G
  • John Deere 672GP
  • John Deere 770
  • John Deere 770B
  • John Deere 770BH
  • John Deere 770C
  • John Deere 770CH
  • John Deere 770D
  • John Deere 770G
  • John Deere 770GP
  • John Deere 772
  • John Deere 772B
  • John Deere 772BH
  • John Deere 772D
  • John Deere 772G
  • John Deere 772GP
  • John Deere 870D
  • John Deere 870G
  • John Deere 870GP
  • John Deere 872D
  • John Deere 872G
  • John Deere 872GP
  • John Deere 750K
  • John Deere 850 P
  • John Deere 850 X
  • John Deere 850K
  • John Deere 850L
  • John Deere 950 P
  • John Deere 950K
  • John Deere 1050 P
  • John Deere 1050K
  • John Deere 1050K PL
  • John Deere 444 P
  • John Deere 444H (S/N 568519-Up)
  • John Deere 444H LL (S/N 568519-Up)
  • John Deere 444J
  • John Deere 444K
  • John Deere 444L
  • John Deere 643J
  • John Deere 724K
  • John Deere 843J
  • John Deere 310 G
  • John Deere 310 P
  • John Deere 310E
  • John Deere 310J
  • John Deere 310K
  • John Deere 310K EP
  • John Deere 310L
  • John Deere 310L EP
  • John Deere 310SE
  • John Deere 310SG
  • John Deere 315
  • John Deere 315SE
  • John Deere 315SG
  • John Deere 240 (BSN 925239-Up)
  • John Deere 250 (BSN 925239-Up)
  • John Deere 313
  • John Deere 317
  • John Deere 320
  • John Deere CT315
  • John Deere CT322
  • John Deere 100
  • John Deere 175
  • John Deere 265
  • John Deere 280
  • John Deere 500M
  • John Deere 520
  • John Deere 521
  • John Deere 522
  • John Deere 540
  • John Deere 540M
  • John Deere 540R
  • John Deere 541
  • John Deere 562
  • John Deere 600M
  • John Deere 600R
  • John Deere 620R
  • John Deere 640
  • John Deere 640R
  • John Deere 660R
  • John Deere 680R
  • John Deere 700M
  • John Deere 740
  • John Deere 843
  • John Deere H260
  • John Deere H310
  • John Deere H340
  • John Deere H360
  • John Deere H380
  • John Deere H480
Application notes
  • One New Aftermarket Replacement Hydraulic Cylinder Seal Kit Fits John Deere Equipment
  • This hydraulic cylinder rod seal kit (also known as a cylinder rod seal kit) restores hydraulic cylinder performance across a wide range of Fits John Deere (Fits JD) equipment, including motor graders, crawler/dozers, wheel loaders, loader backhoes, skid steer loaders, compact track loaders, and farm loaders. The kit seals the 32mm rod and includes a press-in wiper rod seal and U-seal. Compatible with OEM cylinder numbers AH205056 and AHC10900.
  • Important Fitment Note: On 444H, 444H LL, and TC44H Wheel Loaders, this seal kit applies to the steering cylinder and fits S/N 568519 and above only. On 240 and 250 Skid Steer Loaders, this kit fits BSN 925239 and above. Verify your full model number and serial number before ordering.
  • Fits John Deere Wheel Loaders: 444 P, 444H (S/N 568519-Up), 444H LL (S/N 568519-Up), 444J, 444K, 444L, 643J, 724K, 843J
  • Aftermarket Interchange Numbers
  • AH149310, AH160843, AH168286, AH231936. Compatible with OEM cylinder assemblies AH205056 and AHC10900.
  • New aftermarket replacement part - not remanufactured, not used.
