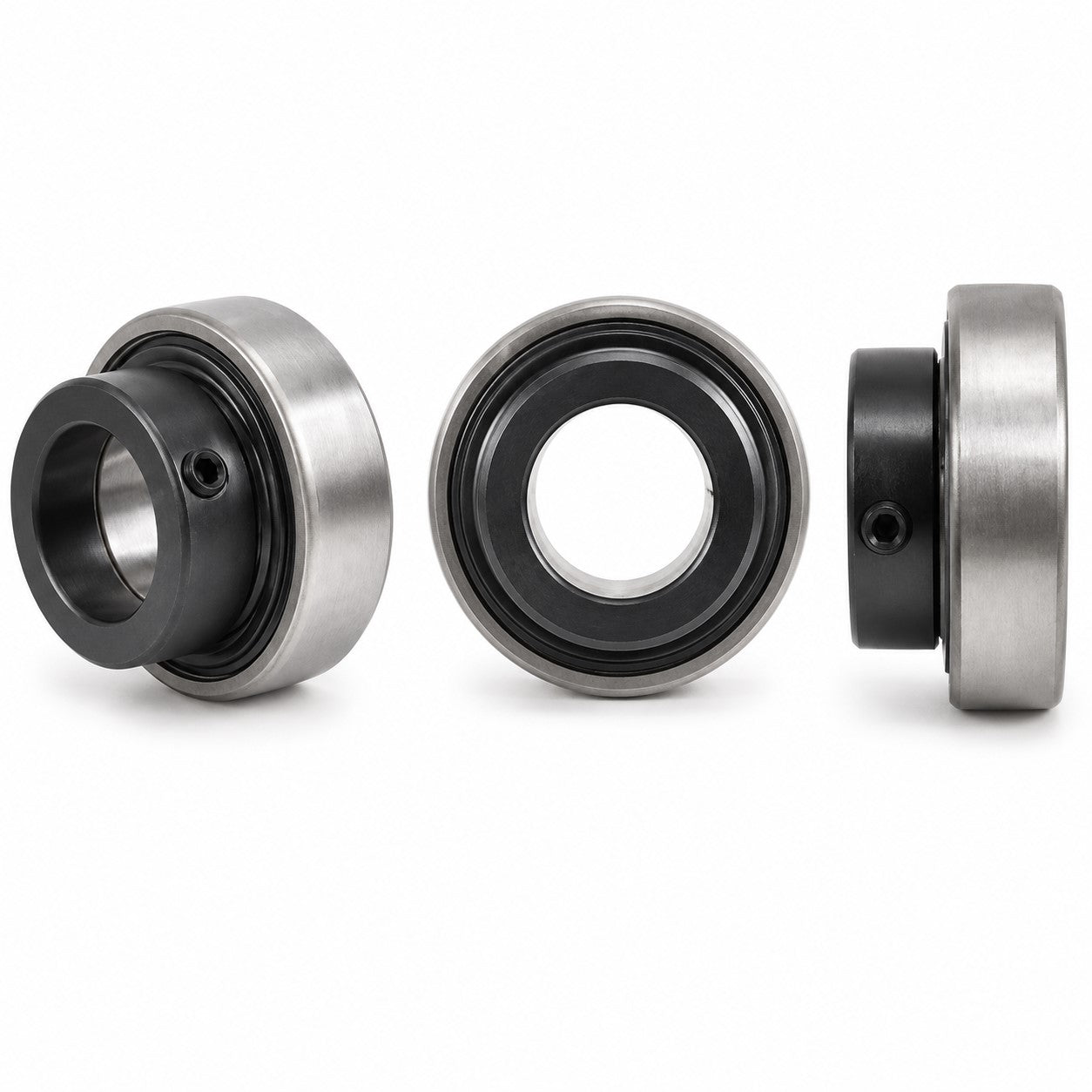

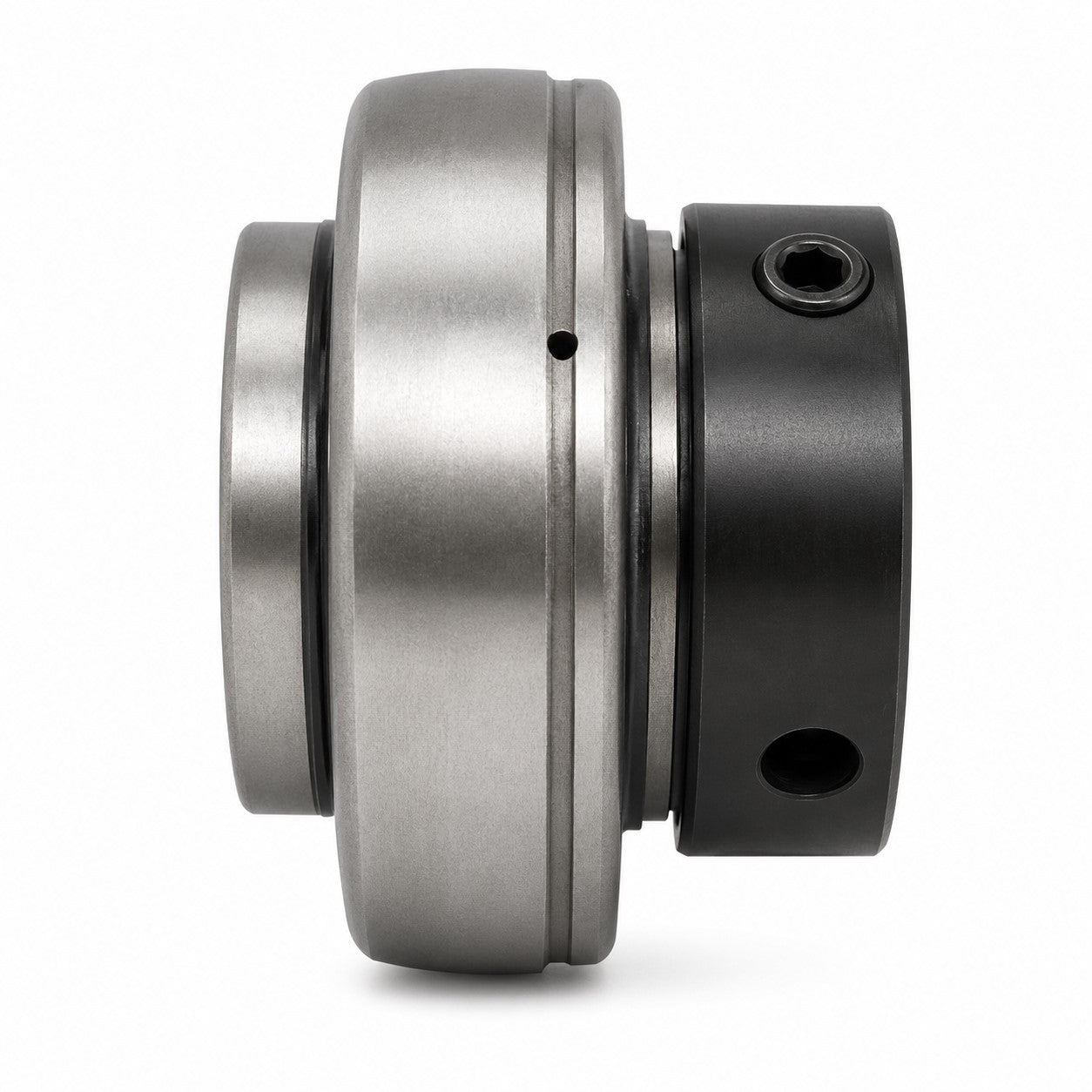

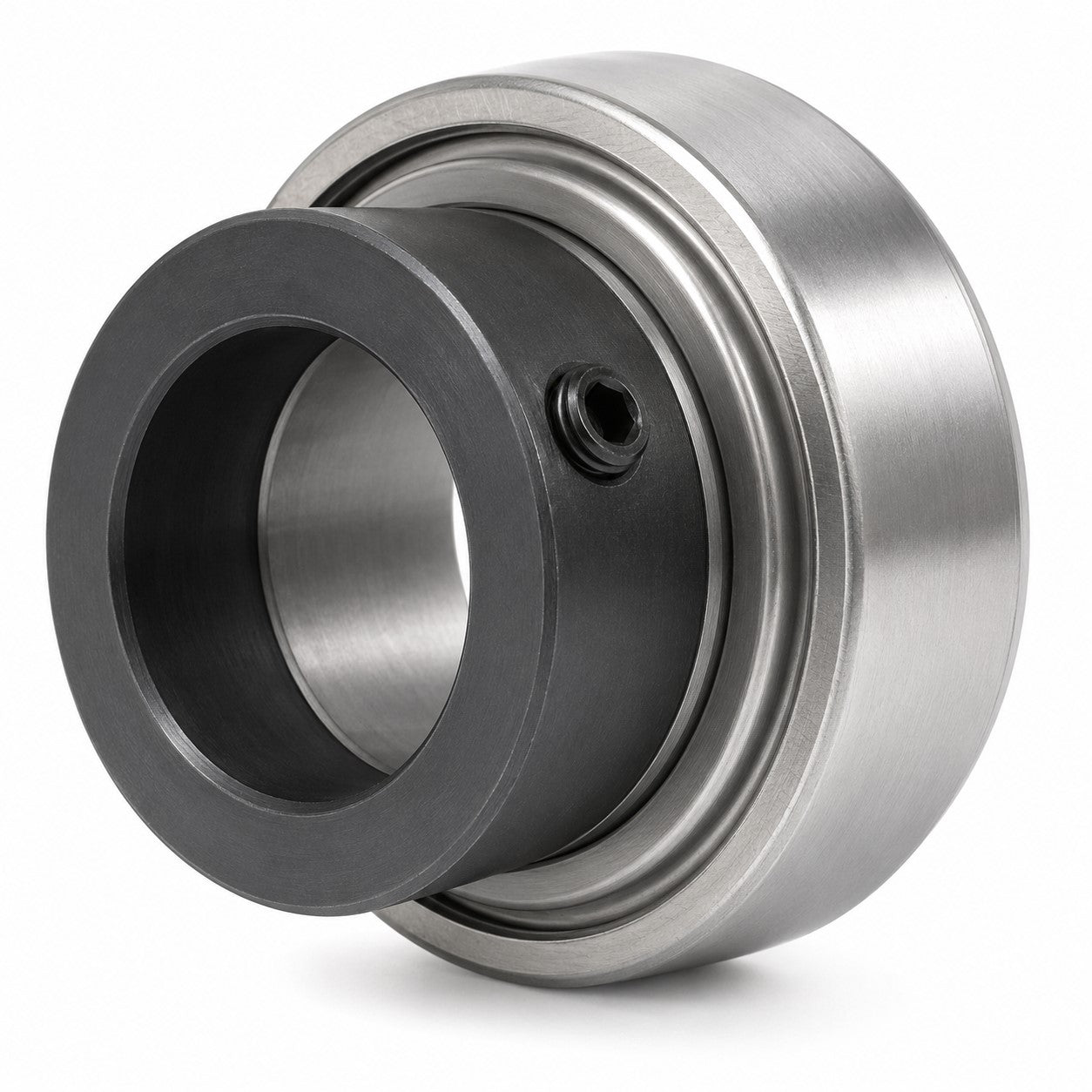

K4037 Bearing ( )

Quantity indicated in catalogue: 1

Replacement part: Bearing (WPS106GRC).

Configuration: Spherical Ball Bearing (WPS106GRC) for New Idea, Fits Case/International Harvester, Fits John Deere, Hesston and More
This wide inner ring spherical ball bearing (industry number WPS106GRC) is a direct aftermarket replacement for K4037 and cross-referenced OEM numbers used across a broad range of agricultural equipment including combines, balers, swathers/windrowers, mower conditioners, manure spreaders, and corn pickers. The spherical outer race allows for shaft and housing misalignment, while the eccentric locking collar secures the bearing firmly to the shaft. Supplied double-sealed and pre-lubricated (greaseable/relubricable).
Specifications
Bearing Type: Wide Inner Ring Spherical Ball Bearing Insert
Inner Diameter: 1-3/8 in (1.375 in / 34.928 mm)
Outer Diameter: 2.8346 in (72 mm)
Overall Width: 2.0194 in (51.294 mm)
Inner Race Width: 1.484 in
Outer Race Width: 0.748 in
Bore Type: Round

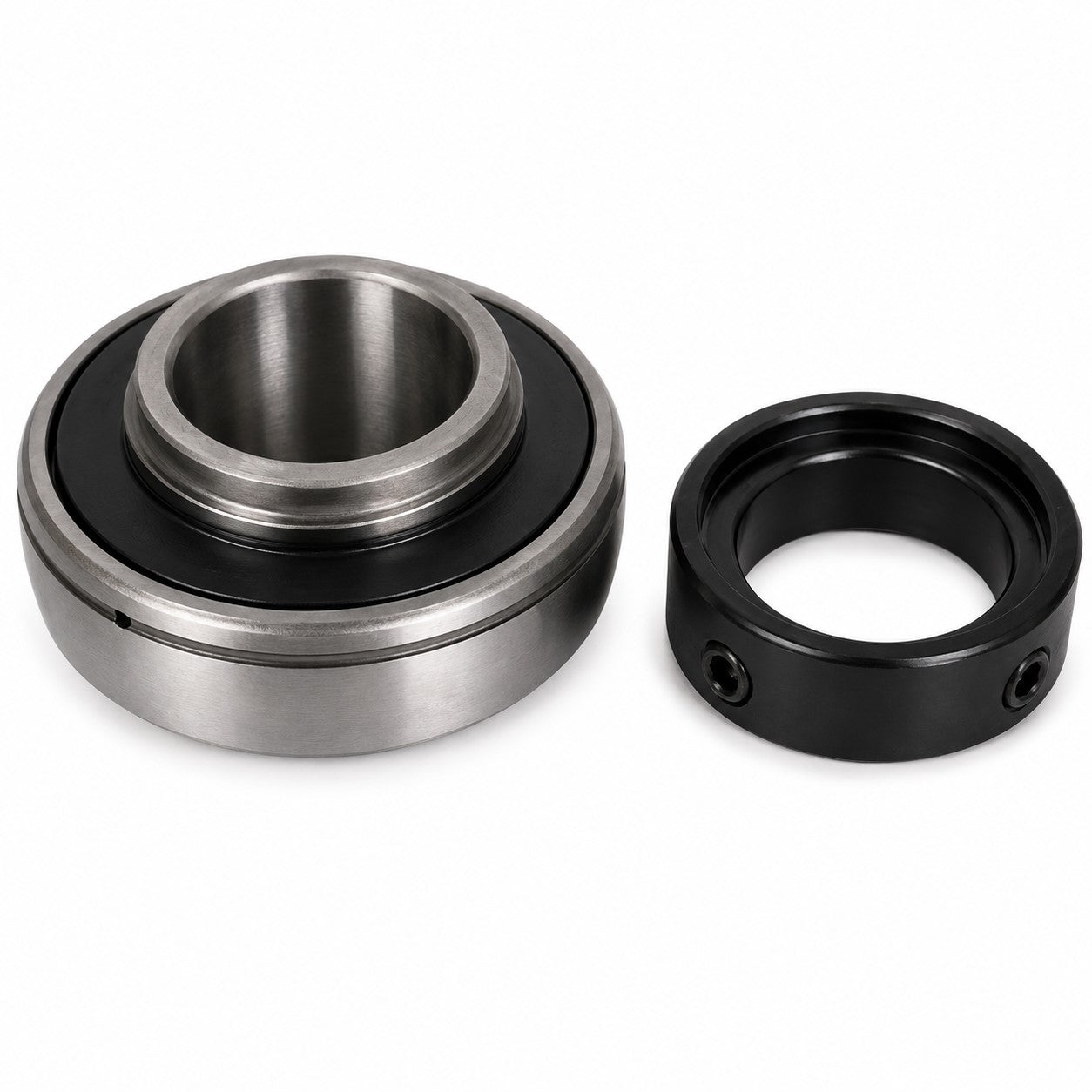

Locking Device: Eccentric Locking Collar (included)
Enclosure: Double Sealed
Lubrication: Pre-lubricated, Greaseable
Radial Dynamic Load Capacity: 5,800 lbf
Radial Static Load Capacity: 3,450 lbf
Max RPM: 2,250
Compatible Models
Fits Case/International Harvester Combines: 615, 715, 815, 915, 1420, 1440, 1460, 1470, 1480, 1482, 1660, 1666, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588, 3300 (ASN 200000), 4400 (ASN 201251), 4420, 4650, 4655, 4755, 4790, 4900, 4910, 6600 (ASN 206200), 6620, 7700 (ASN 213300), 7720, 8820
Fits John Deere: General harvesting and hay equipment applications
New Idea / Hesston: Mower conditioners, balers, swathers/windrowers
Also fits: Corn pickers, manure spreaders, and other harvesting and hay equipment from multiple manufacturers
Replaces Part Number(s):
K4037, WPS106GRC, 3242414, 050864, 50864, 711861, 712307, JD9275, JD9319, 611582R91, 611583R91, 80553C91, 517618R91, T18852, F86574, 15271SW, HC207-22, 012630, HIB10-0093
Aftermarket Interchange Numbers
NTN WPS106GRC, BCA WPS106GRC, National WPS-106-GRC
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: K4037, WPS106GRC, 3242414, 050864, 50864, 711861, 712307, JD9275, JD9319, 611582R91, 611583R91, 80553C91, 517618R91, T18852, F86574, 15271SW, HC207-22, 012630, HIB10-0093
