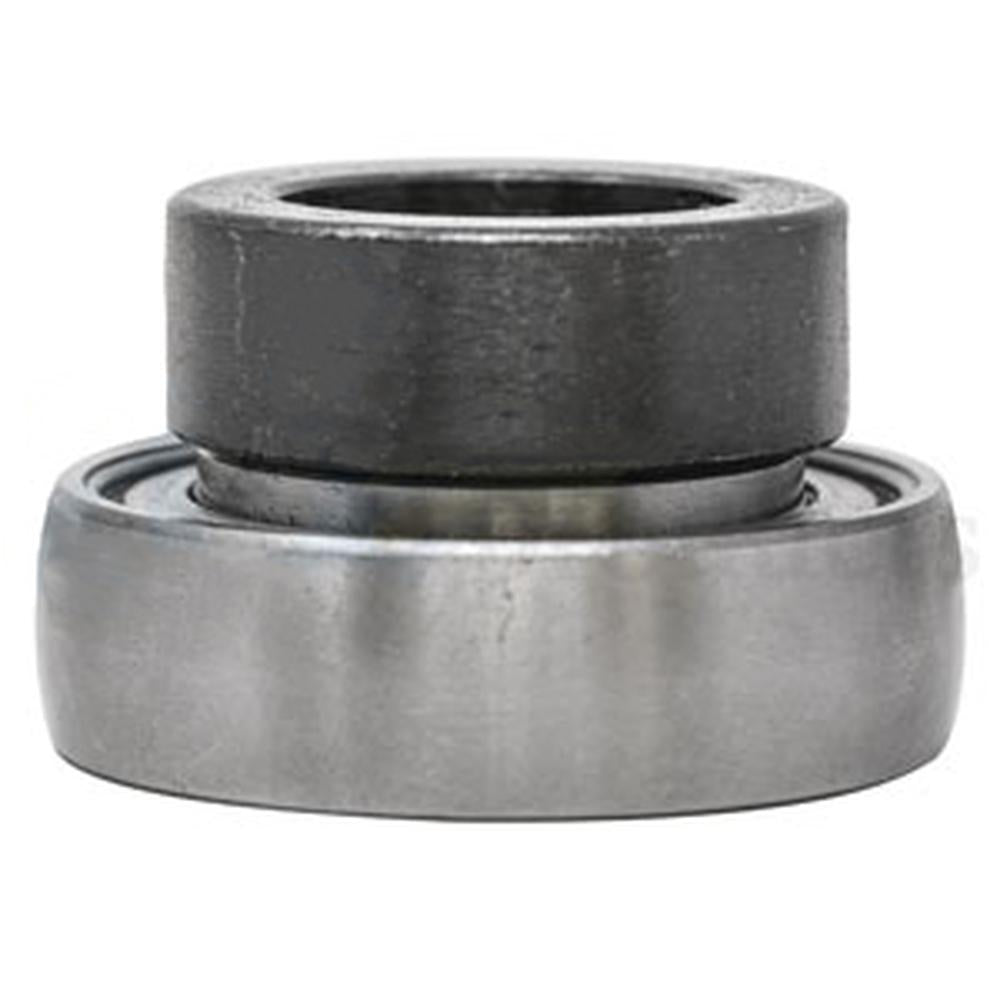

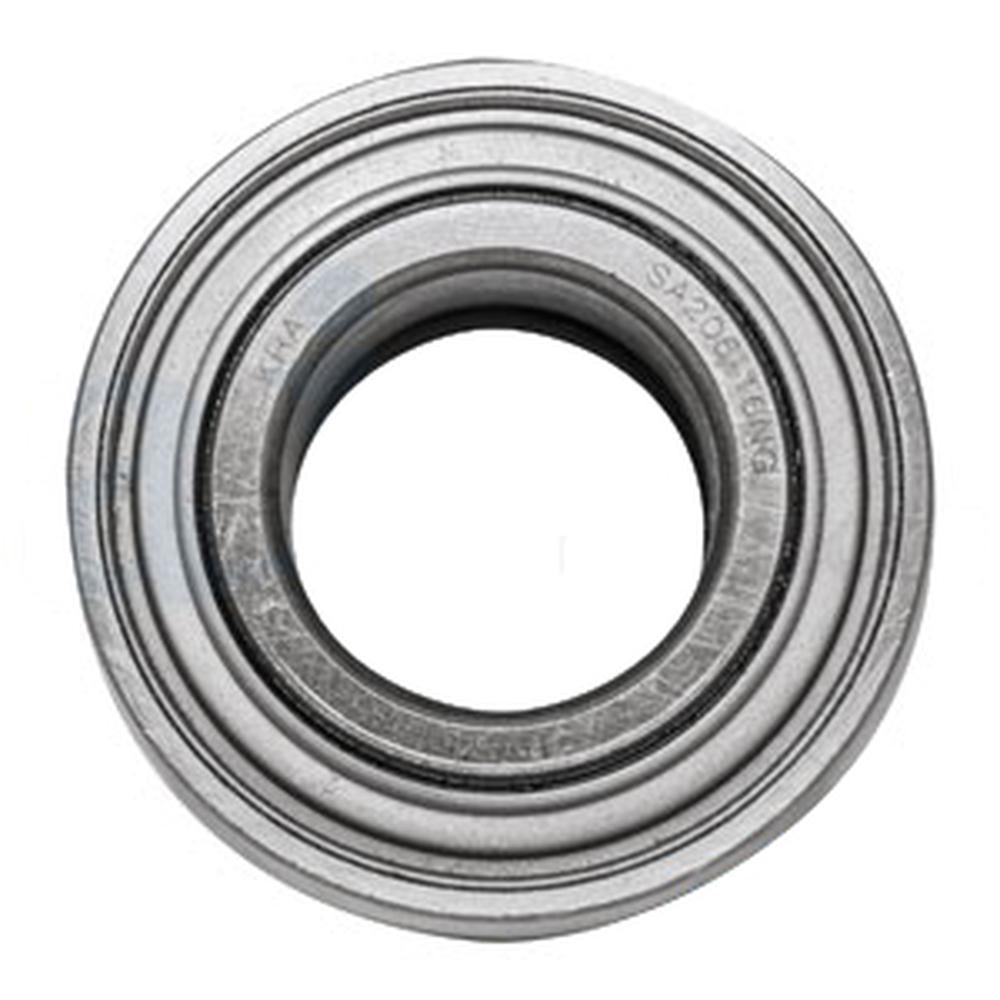

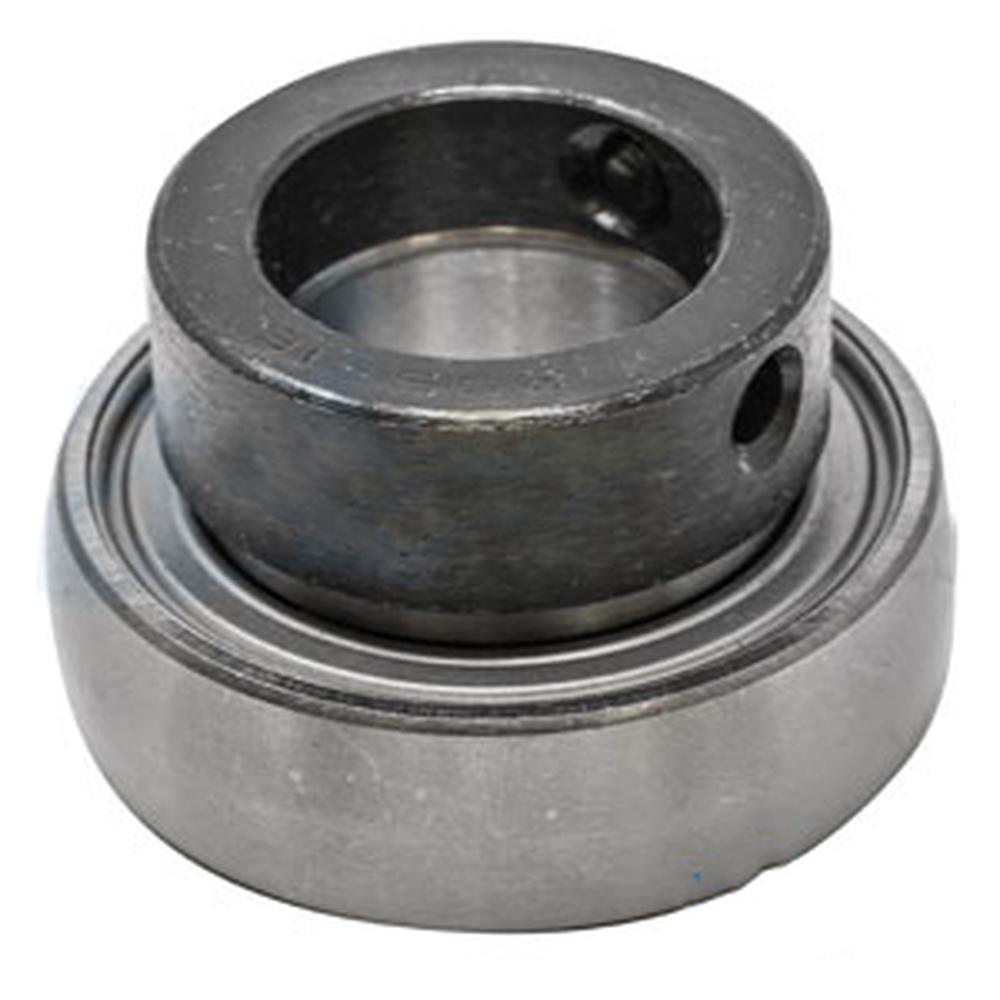

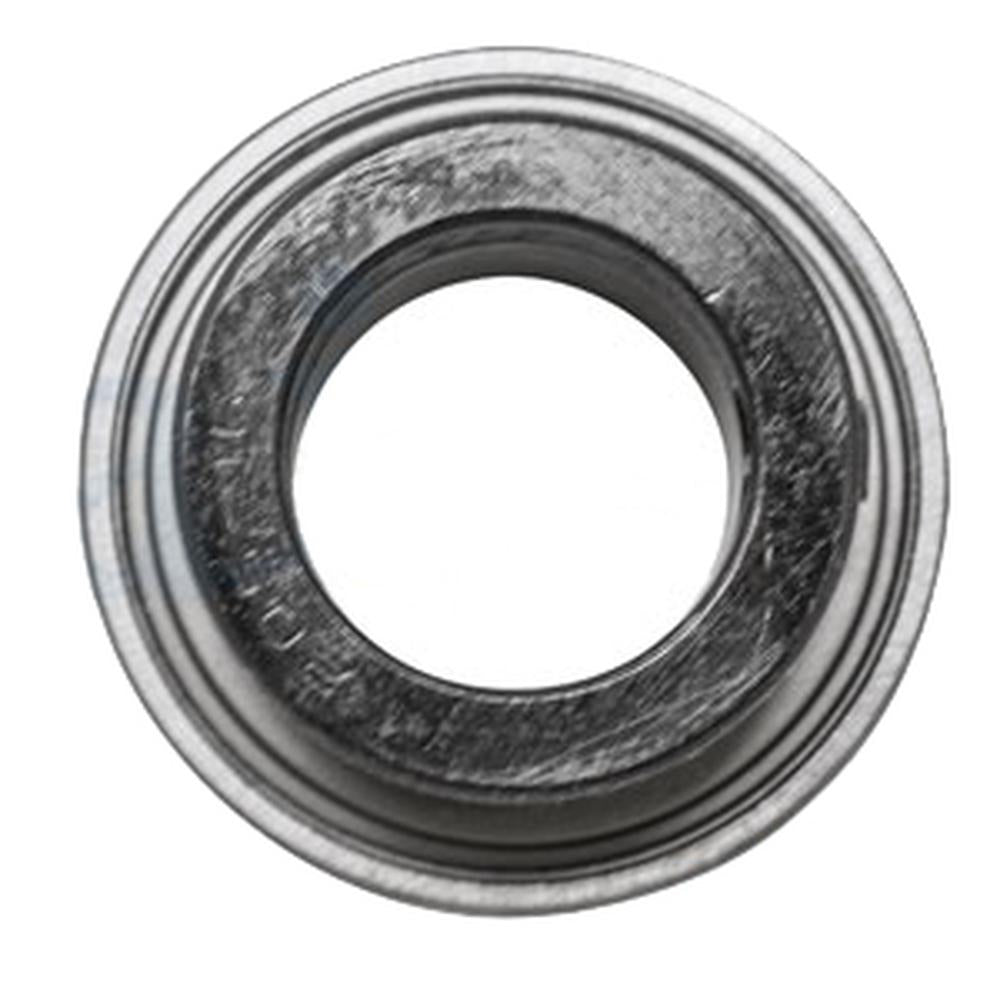

010-11213 041547 (NPS100RPC)

Quantity indicated in catalogue: 1

Replacement part: 041547 (NPS100RPC).

Configuration: Prelubed Spherical Insert Bearing (NPS100RPC) Fits John Deere, Fits Case IH, Fits Massey Ferguson, Fits New Holland, and Gleaner Combines
This prelubed NPS-series spherical outer diameter ball bearing insert with eccentric locking collar is a direct replacement for auger shaft bearings used throughout a wide range of combine models. It is commonly used on horizontal unloading augers, grain tank bottom augers, grain delivery leveling augers, bin stuffer augers, lower clean grain augers, and bottom bin cross auger shafts on Fits John Deere (Fits JD), Fits Case IH, Fits Massey Ferguson (MF), Fits New Holland (NH/Fits Ford), and Gleaner combines. Narrow inner ring design suits space-constrained mounting locations. Pre-filled with grease for immediate installation.
Specifications
Bore Diameter: 1.0000 in (25.4 mm)
Outside Diameter: 2.0472 in (52 mm)
Overall Width: 1.2205 in (31 mm)
Inner Ring Width: 0.8465 in
Outer Ring Width: 0.5906 in (15 mm)
Locking Device: Eccentric Collar (EL205-100)
Bore Type: Round / Cylindrical
Internal Clearance: C3
Seal Type: Contact Sealed
Operating Temperature Range: -40 to 250 degrees F
Radial Dynamic Load Capacity: 3150 lbf
Radial Static Load Capacity: 1770 lbf
Max RPM: 5900
Weight: approx. 0.42-0.54 lbs
Bearing Material: Through Hardened Steel
Compatible Models
Fits John Deere Combines (Horizontal Unloading Augers and Tubes): 4400, 4420, 4435, 6600, 6620 (s/n 610301 and earlier), 7700, 7720, 8820, 9400, 9410, 9500, 9510, 9550, 9600, 9610, 9650, 9650 CTS, 9650 STS (s/n 690501 and earlier), 9750 STS (s/n 690601 and earlier)
Fits John Deere Compact Tractors (various auger/shaft applications): 655, 755, 855, 3033R
Fits Case IH Combines (Grain Delivery Leveling Augers): 1660, 1666, 1680, 1688, 2144, 2166, 2188, 2344, 2366, 2388, 2588
Fits Case IH Combines (Grain Tank Bottom Augers): 1440, 1460, 1470, 1480, 1482, 1640, 1644, 1660, 1666, 1670, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2388
Fits Case/International Harvester (Lower Clean Grain Augers): 1440, 1460
Fits Massey Ferguson Combines: 300, 410, 510, 550, 750, 760, 850, 860
Fits New Holland Combines (Bin Stuffer Augers, s/n 563258 and earlier): TR70, TR75, TR76, TR85, TR86, TR87, TR88, TR95, TR96, TR97, TR98
Gleaner Combines (Lower Clean Grain Augers): L (High Capacity ASN 15500), L (Regular Capacity BSN 15000), L (SN 15500-28000), L2, M (High Capacity), M2, M2 (High Capacity SN 15401-18400), M2 (SN 15401-18400), M3 (SN 15401-18400)
Replaces Part Number(s):
010-11213, 01011213, 041547, 051680, 050302, 1061, 1113373, 1308951, 15-16-001, 1516001, 15A5743A, 16063, 168636, 194572C91, 20H4686, 214366C1, 214366C91, 308-RA100RRB, 308RA100RRB, 360109V1, 38261, 400CBA, 455965R91, 500-01-689, 50001689, 520063, 574844, 6050080, 710533, 710715, 7441-3, 74413, 834199M1, 834199M91, 842736M1, 842736M91, 851-SA20516, 9-90059, 990018, 990059, 9C627, A842736M1, AC10858, AJD8665, AK2752, AM3028, AM3095, ARA100NPPB, F50752, F94133, J2752IMP, JD8555, JD8555L/C, JD8665, K2752, K2752A, M216, NPS100RPC, O4306CH, RA100NPPB, RA100PPB, RA100RRB, RA100RRB-IMP, RA100RRB-TIM, RA100RRBBCOL, RA100RRBTIM, TIS-F6003, TISF6003, TN4651, TPJD8555, TPJD8665, X5633, X5683, Z391A, 3074CSA, 71308951
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 010-11213, 041547, 051680, 050302, 1061, 1113373, 1308951, 15-16-001, 15A5743A, 16063, 168636, 194572C91, 20H4686, 214366C1, 214366C91, 308-RA100RRB, 360109V1, 38261, 400CBA, 455965R91, 500-01-689, 520063, 574844, 6050080, 710533, 710715, 7441-3, 834199M1, 834199M91, 842736M1, 842736M91, 851-SA20516, 9-90059, 990018, 9C627, A842736M1, AC10858, AJD8665, AK2752, AM3028, AM3095, ARA100NPPB, F50752, F94133, J2752IMP, JD8555, JD8555L/C, JD8665, K2752, K2752A, M216, NPS100RPC, O4306CH, RA100NPPB, RA100PPB, RA100RRB, RA100RRB-IMP, RA100RRB-TIM, RA100RRBBCOL, TIS-F6003, TN4651, TPJD8555, TPJD8665, X5633, X5683, Z391A, 3074CSA, 71308951

• One New Aftermarket Replacement Prelubed Spherical Insert Bearing (NPS100RPC) Fits John Deere, Fits Case IH, Fits Massey Ferguson, Fits New Holland, and Gleaner Combines
• This prelubed NPS-series spherical outer diameter ball bearing insert with eccentric locking collar is a direct replacement for auger shaft bearings used throughout a wide range of combine models. It is commonly used on horizontal unloading augers, grain tank bottom augers, grain delivery leveling augers, bin stuffer augers, lower clean grain augers, and bottom bin cross auger shafts on Fits John Deere (Fits JD), Fits Case IH, Fits Massey Ferguson (MF), Fits New Holland (NH/Fits Ford), and Gleaner combines. Narrow inner ring design suits space-constrained mounting locations. Pre-filled with grease for immediate installation.
• Fits John Deere Combines (Horizontal Unloading Augers and Tubes): 4400, 4420, 4435, 6600, 6620 (s/n 610301 and earlier), 7700, 7720, 8820, 9400, 9410, 9500, 9510, 9550, 9600, 9610, 9650, 9650 CTS, 9650 STS (s/n 690501 and earlier), 9750 STS (s/n 690601 and earlier)
• Fits New Holland Combines (Bin Stuffer Augers, s/n 563258 and earlier): TR70, TR75, TR76, TR85, TR86, TR87, TR88, TR95, TR96, TR97, TR98
• New aftermarket replacement part - not remanufactured, not used.
