2N12284 Tune Up Kit

Quantity indicated in catalogue: 1

Replacement part: Tune Up Kit Fits Massey Ferguson MF35 MF50 MF65 MF135 MF150 MF165 MF175.

Configuration: Ignition Tune Up Kit Fits Delco
Fits Massey Ferguson Tractor Models: 35, 50, 65, 135, 150, 165, 175, 180, 202, 204, 302, 304, 356,
Fits Delco Screw Down Distributor Cap
Specifications:

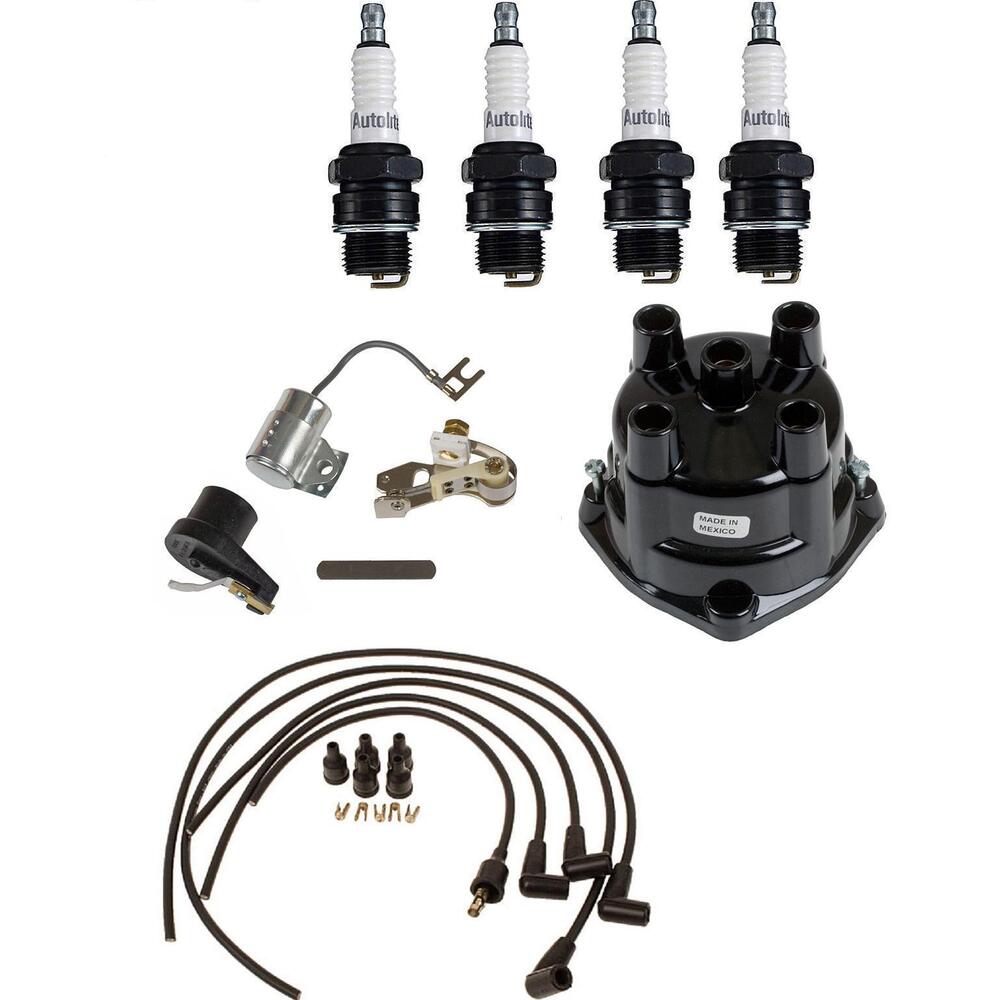

Includes:
(1) 4-Cylinder Spark Plug Wiring Set:
Copper Core Wires with Aluminum Coating to Prevent Corrosion
90 Degree Boots.
Note: You Must Cut the Wires to Length and Crimp the Ends with a Crimping Tool
Wire Lengths Are Approximately;
(2) 24-3/4" Spark Plug Wires
(1) 29-3/4" Spark Plug Wire
(1) 34-1/2" Spark Plug Wire
(1) 23-1/2" Long Coil Wire.
The Coil Wire Is Made from Excess Wire Left Over from the Spark Plug Wire.
Replaces Part Number(s): 2N12284, 9N12259A, 9N12259B, 9N12283, 9N12284, 9N12286, 9N12287A, 9N12287B
(1) Distributor Cap:
Fits Delco Distributor with Screw Held Cap (4-Cylinder 1963 and up)
Replaces Part Number(s): 1960833, 1969456, 74058876V, 4058876, 74058876, R11257, 1024914M91, 10P3022, 30-3024016
(1) Ignition Tune Up Kit:
Fits Delco Distributor
Includes: Spark Plugs, Heavy Duty Points, Condenser, Rotor Button
18mm Diameter Spark Plug Thread Size
1/2" Reach and 7/8" Hex
0.025" Spark Plug Gap
0.020" Point Gap
Medium Hot Range Spark Plugs
Replaces Part Number(s): AL386, 386, D16, D21

Reference numbers: 2N12284, 9N12259A, 9N12259B, 9N12283, 9N12284, 9N12286, 9N12287A, 9N12287B, 1960833, 1969456, 74058876V, 4058876, 74058876, R11257, 1024914M91, 10P3022, 30-3024016, AL386, 386, D16, D21

• One New Aftermarket Replacement Ignition Tune Up Kit Fits Delco
• Copper Core Wires with Aluminum Coating to Prevent Corrosion
• Note: You Must Cut the Wires to Length and Crimp the Ends with a Crimping Tool
• Fits Delco Distributor with Screw Held Cap (4-Cylinder 1963 and up)
