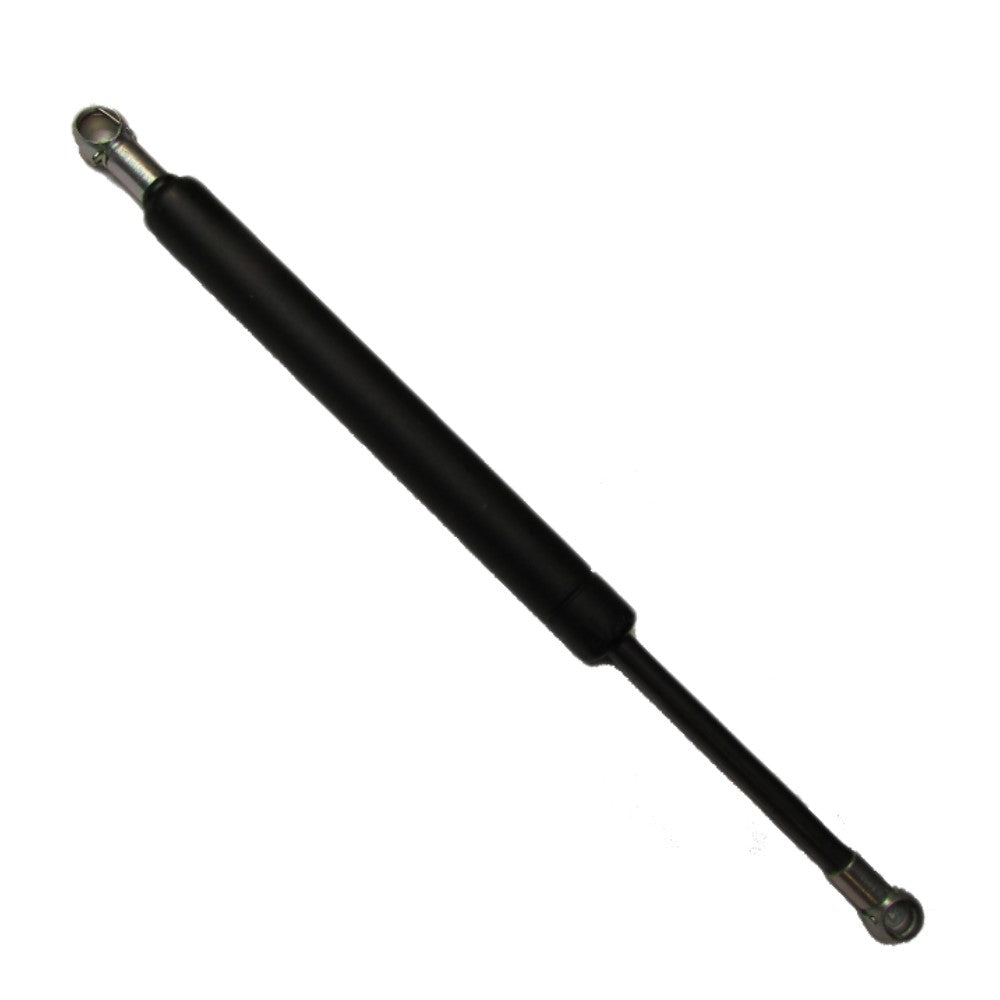

AL78435 Cab Door Strut – Fits John Deere

NC-022397 · Cab Door & Related

AL78435 Cab Door Strut – Fits John Deere

CAD 27.96

In stock

Cab Door Strut – reference AL78435. Catalogue-listed applications: John Deere 5220, 5320, 5420, 5520, 5620, 5720+++. Overall Length: 250.0122 mm; Rod Diameter: 8.001 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-022397
Reference numbers
AL78435, AL174358, AL110629, AL151278
Listed package quantity
1
Overall Length
250.0122 mm
Rod Diameter
8.001 mm
Stroke
75.0062 mm
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Cab Door Strut Fits John Deere 5220 5320 5420 5520 5620 5720+++.

Configuration: Door Gas Strut
Fits John Deere Models: 5220, 5320, 5420, 5520, 5620, 5720+++
Specifications:
Operators Station, Basic.
Dimensions:
Dim A (1) Overall Length 9.843"
Dim B (2) Piston Stroke 2.953"
Dim C (3) Cylinder Diameter .709"
Dim D (4) Rod Diameter .315"
Dim E (5) Cylinder & Rod End Fitting Both Metal Socket
Dim F (6) Force 350N
Replaces Part Numbers:
Fits John Deere AL151278, AL78435, AL174358, AL110629

Reference numbers: AL78435, AL174358, AL110629, AL151278

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 5220
  • John Deere 5320
  • John Deere 5420
  • John Deere 5520
  • John Deere 5620
  • John Deere 5720+++
Application notes
  • One New Aftermarket Replacement Door Gas Strut
