ABC496 Complete Clutch Kit
ABC496 Complete Clutch Kit – additional image 2ABC496 Complete Clutch Kit – additional image 3ABC496 Complete Clutch Kit – additional image 4ABC496 Complete Clutch Kit – additional image 5ABC496 Complete Clutch Kit – additional image 6

NC-016340 · Clutch Assemblies

ABC496 Complete Clutch Kit

CAD 1263.44

Availability to confirm

Complete Clutch Kit – reference ABC496. Catalogue-listed applications: Minneapolis Moline, John Deere G750. Thickness: 4.445 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-016340
Reference numbers
ABC496
Thickness
4.445 mm
Product information and configuration

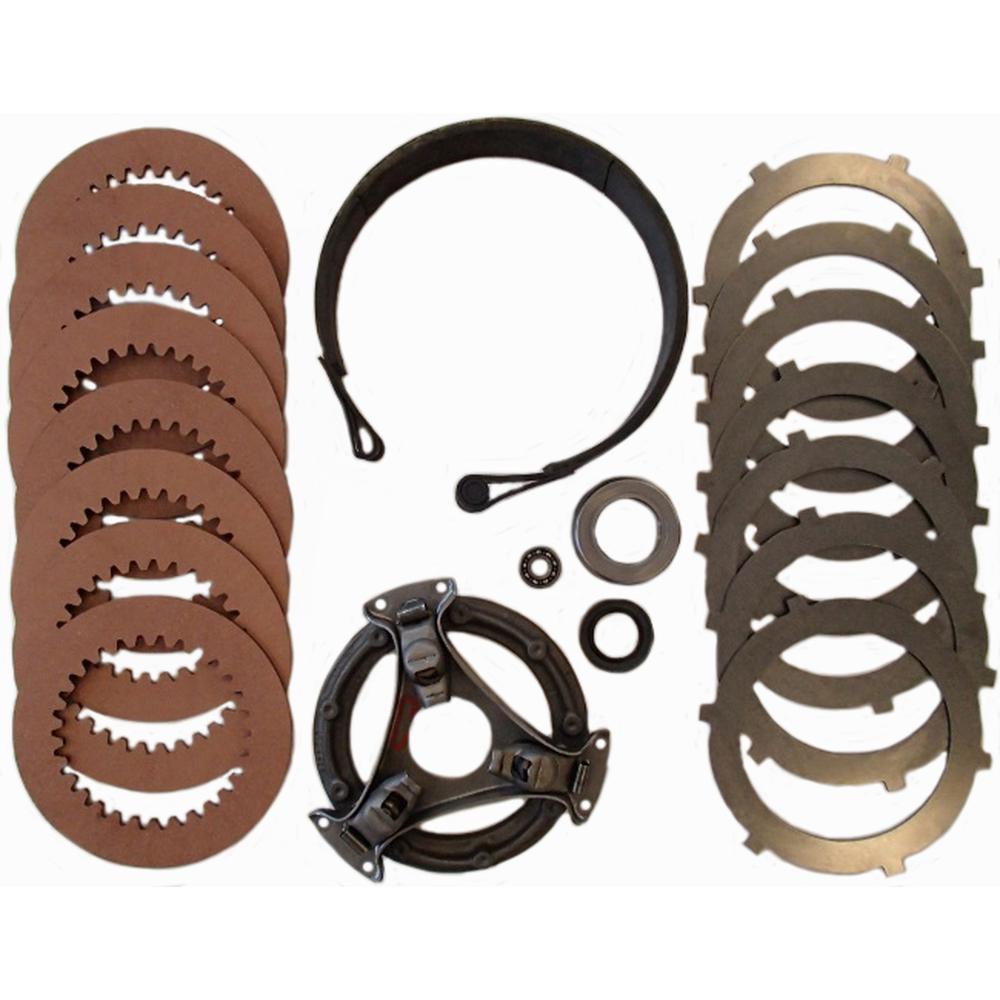

Replacement part: Complete Clutch Kit Fits Minneapolis-Moline G750.

Configuration: Complete John Deere Clutch Kit
Specifications:

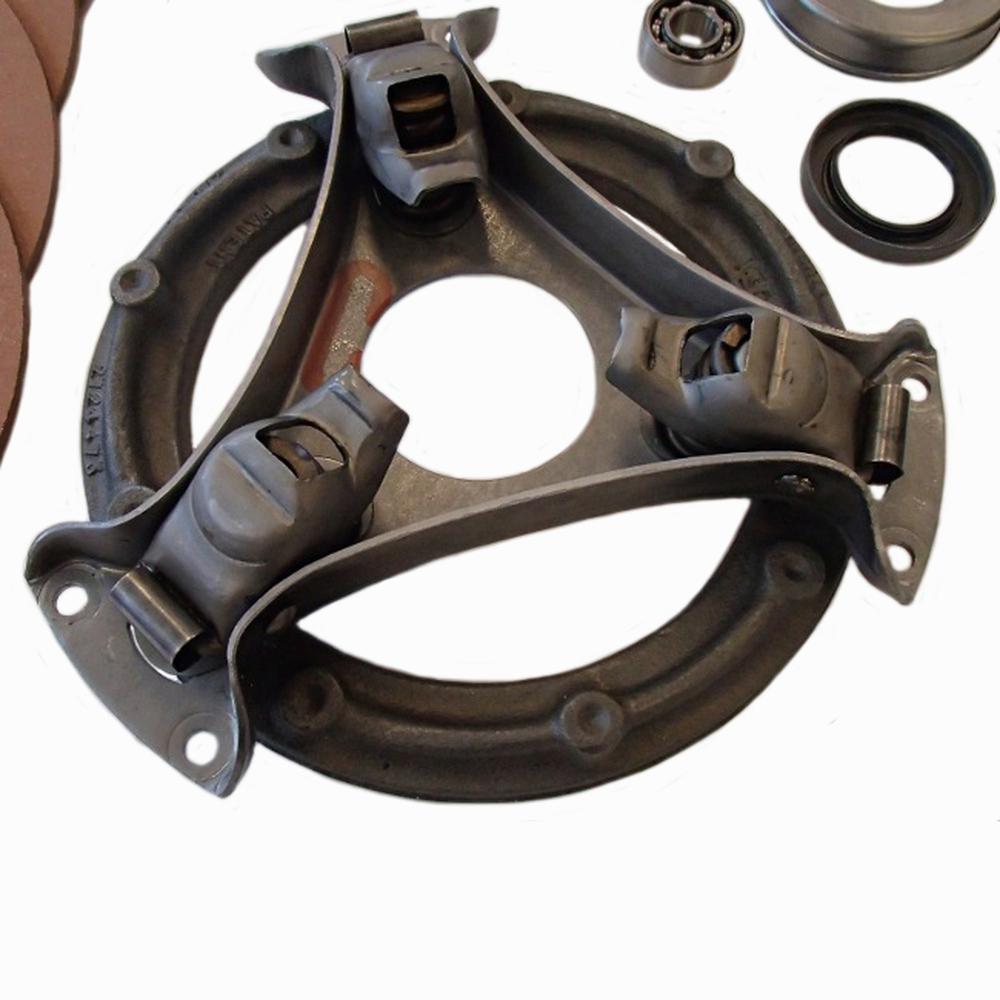

-(1) 9" Pressure Plate
-3 Lever
-Replaces: AT18886
-

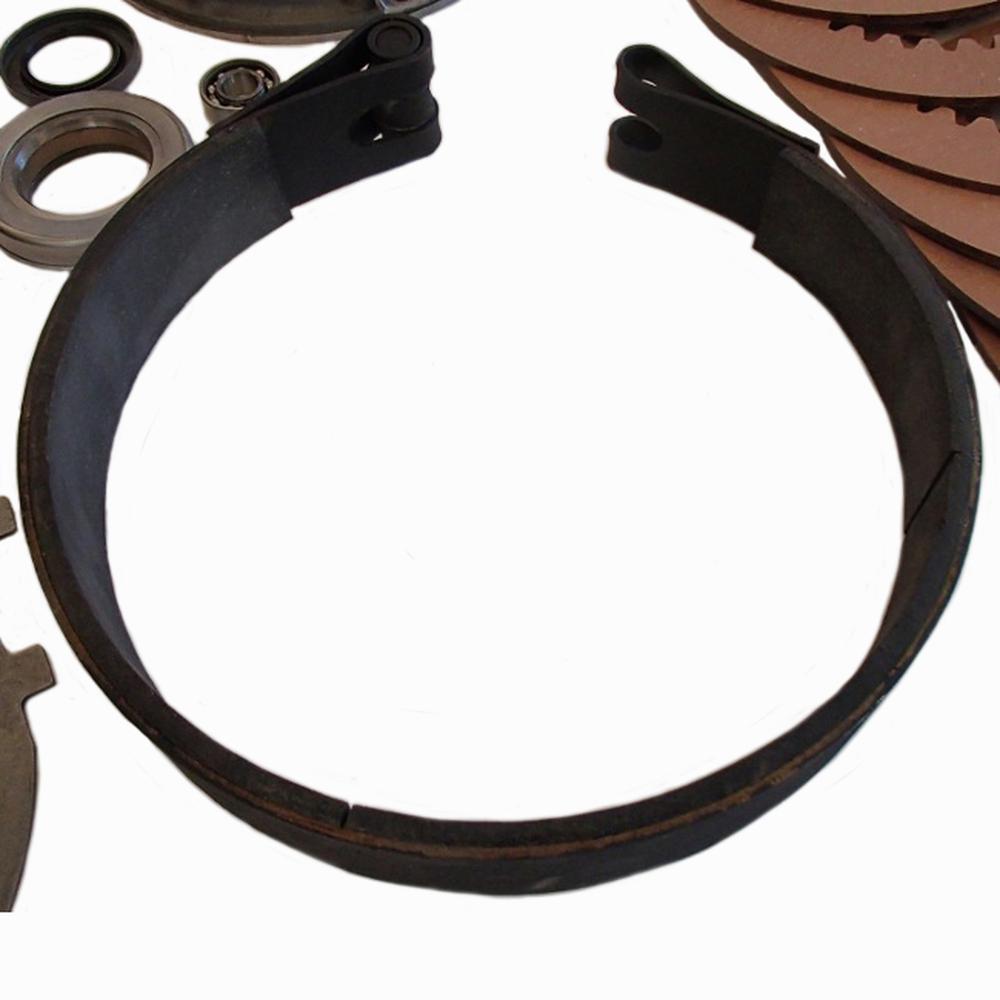

-(1) Brake Band
-Width: 2"
-Replaces: AT129805
-

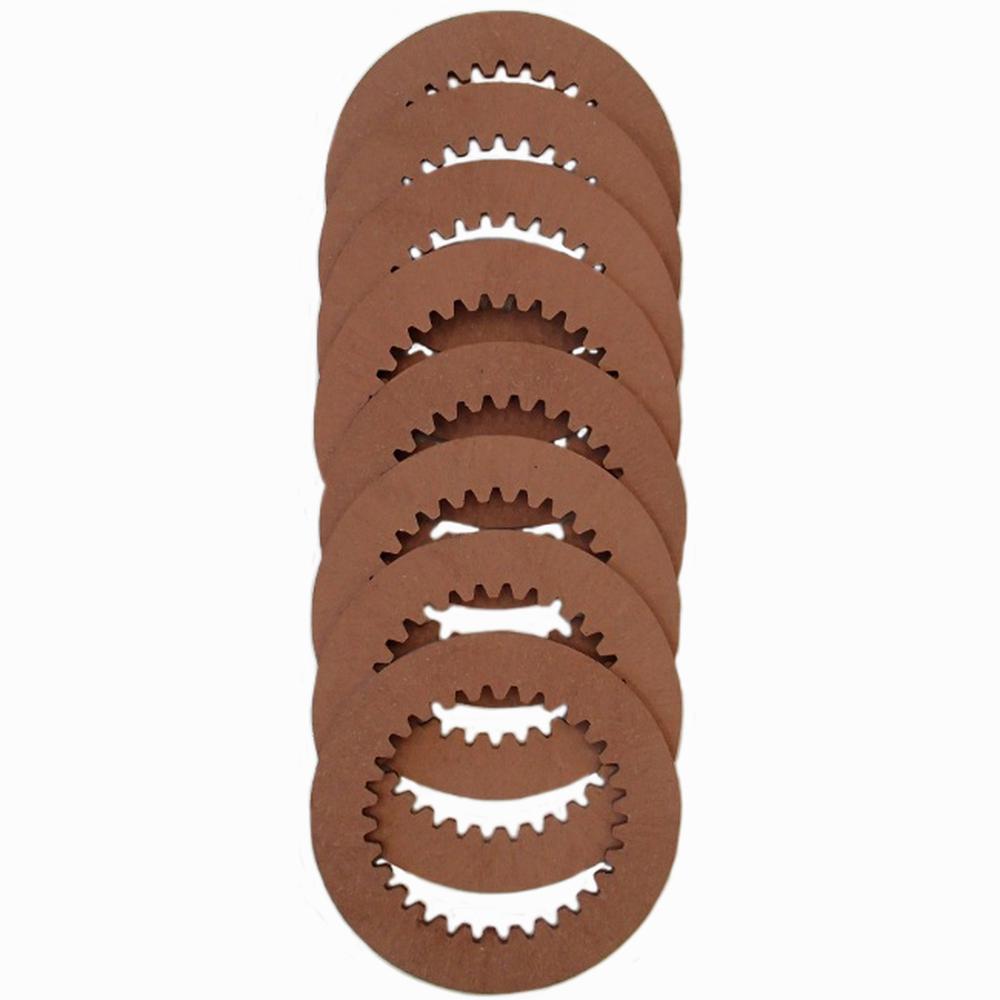

-(8) Fiber Steering Discs
-Outer Diameter: 8.958"
-Inner Diameter: 5.826"
-Thickness: .175"
-30 internal teeth
-Replaces: T20790
-

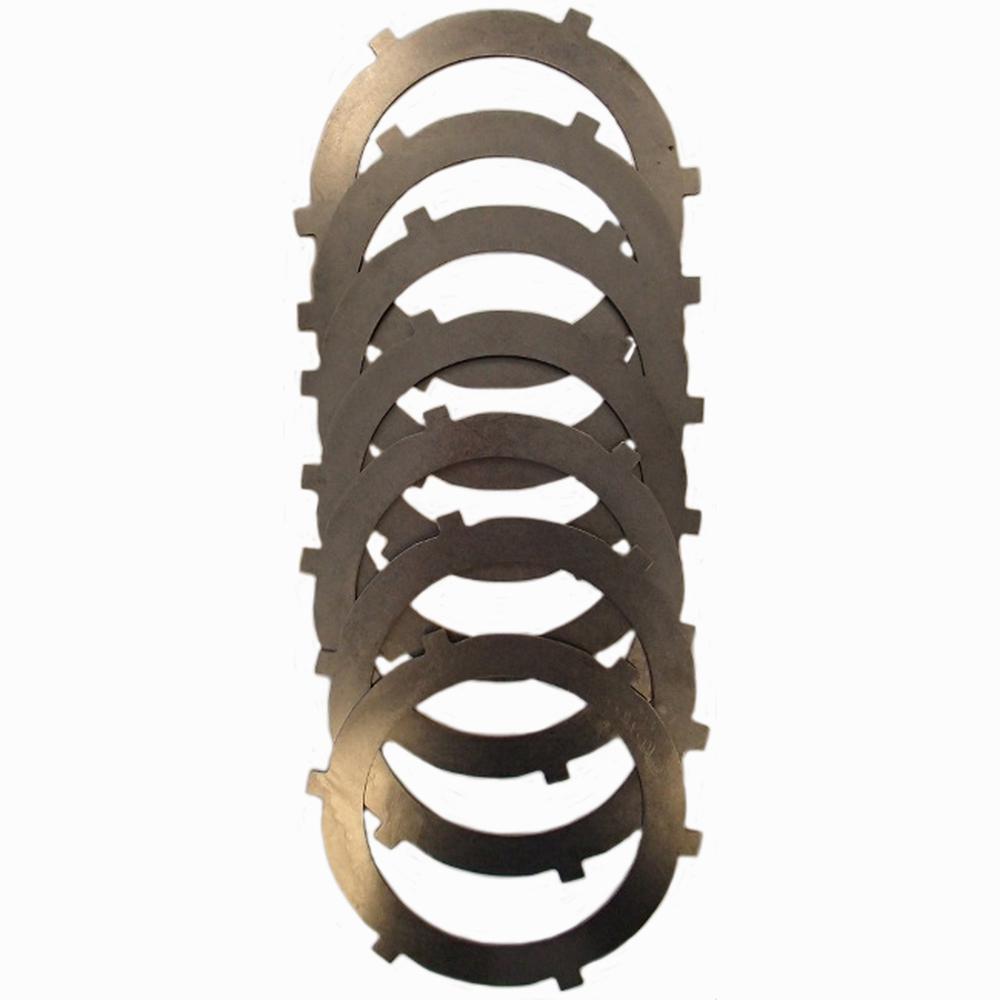

-(7) Steel Steering Disc
-Outer Diameter: 9.682"
-Inner Diameter: 6.882"
-6 external ears
-Replaces: T21315
-

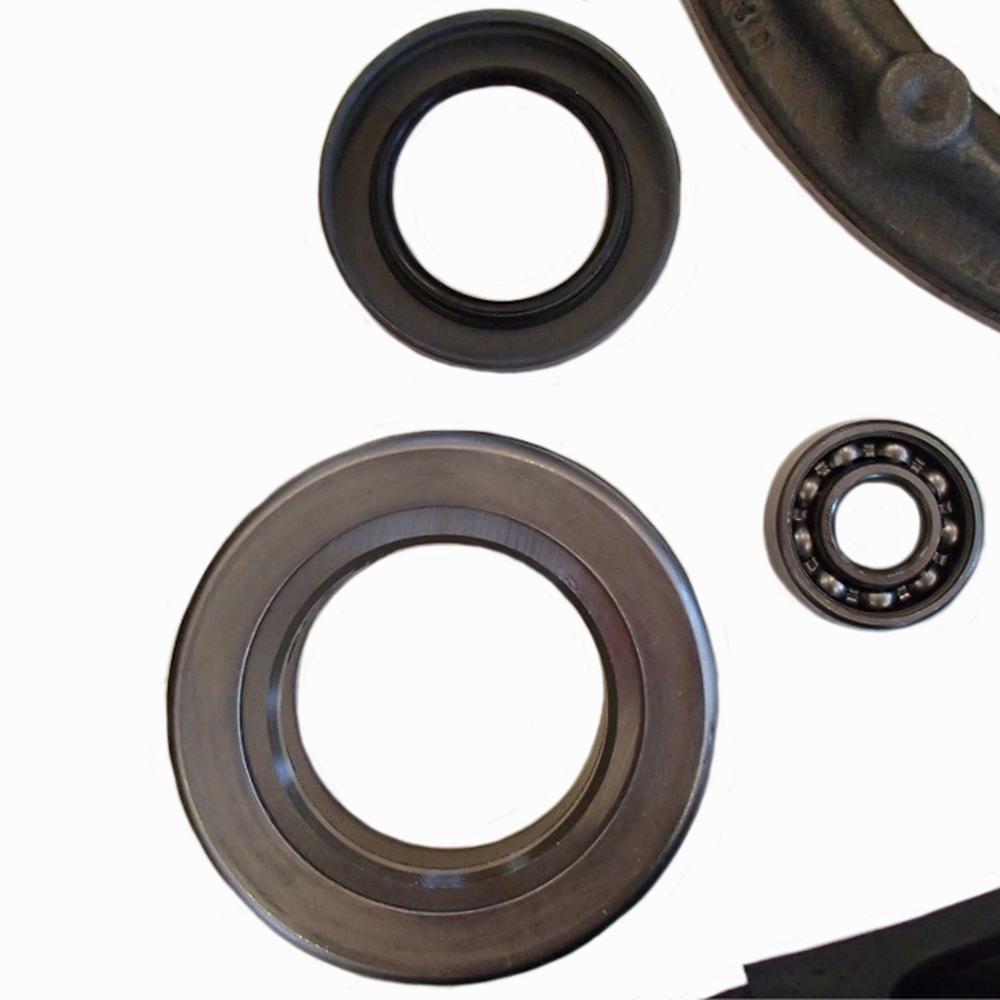

-(1) Release Bearing
-Bearing Type Sealed Roller
-Grease Non-greaseable
-Inner Diameter: 2.060"
-Inner Diameter: Type Round
-Outer Diameter: 3.560"
-Width Overall: 0.795"
-Replaces: AM3983T
-
-(1) Rear Axle Inner Seal
-Inner Diameter: 2.000”
-Outer Diameter: 2.876”
-Width: .468”
-Replaces: AM1717T
-
-(1) Pilot Bearing
-Inner Diameter: 15mm
-Outer Diameter: 35mm
-Width: 0.5”
-Replaces: 87502
Fits Minneapolis-Moline:
Tractor Models: G750
Replaces Part Number(s): ABC496

Reference numbers: ABC496

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Minneapolis Moline G750
Application notes
  • Aftermarket Complete John Deere Clutch Kit
