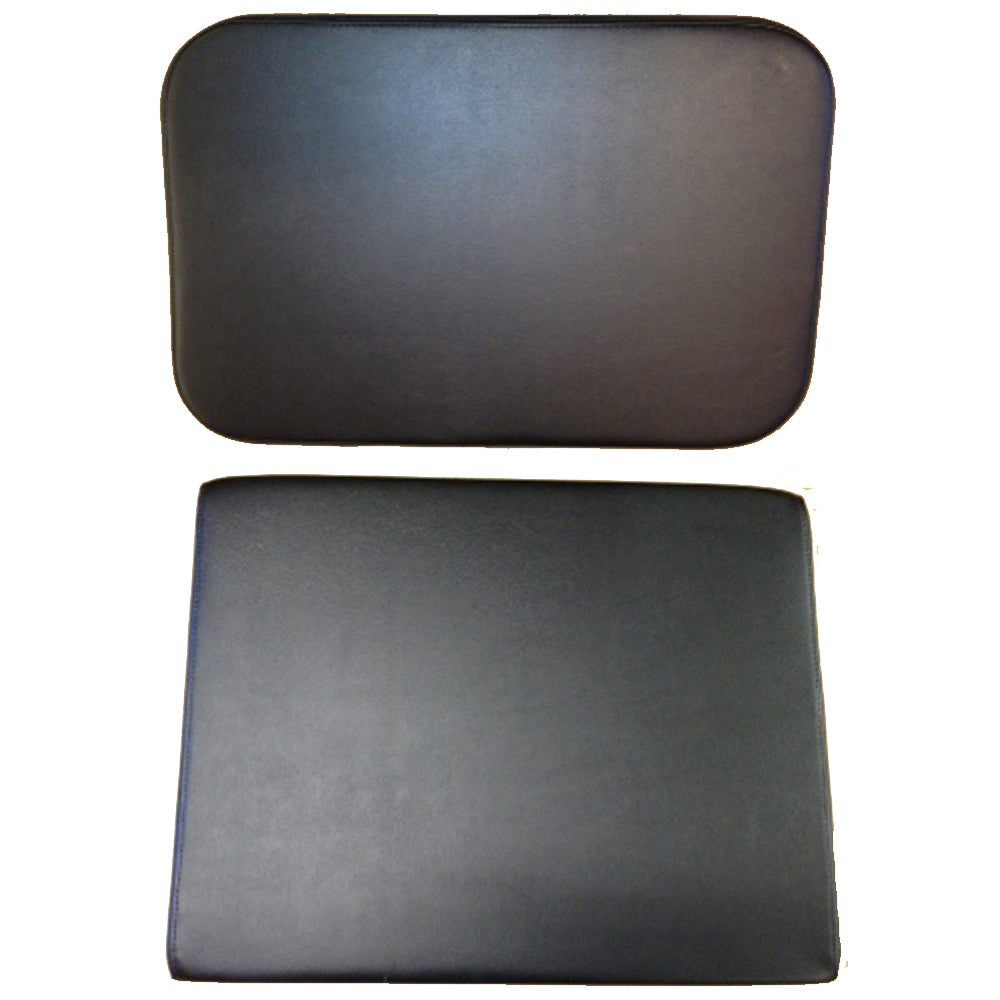

8H433 Seat Cushion Set Bottom & Back Only – Fits Caterpillar
8H433 Seat Cushion Set Bottom & Back Only – Fits Caterpillar – additional image 28H433 Seat Cushion Set Bottom & Back Only – Fits Caterpillar – additional image 3

NC-016188 · Complete Seats & Seat Cushions

8H433 Seat Cushion Set Bottom & Back Only – Fits Caterpillar

CAD 809.65

Availability to confirm

Seat Cushion Set Bottom & Back Only – reference 8H433. Catalogue-listed applications: Caterpillar. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-016188
Reference numbers
8H433
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: New Seat Cushion Set Bottom & Back Only Fits CAT D5 D6C D7 D8 D9 4H4078.

Configuration: D6 2-Piece Seat Cushion Set (Back & Bottom) Fits Caterpillar models: Serial Numbers (D5, 82H, 84H, 94J, 96J, 6R), (D6C, 10K, 74A, 76A, 911), (D7, 47A), (D8, 35A, 36A, 46A to 10724), (D9, 34A, 49A, 50A).
-- Bottom and Back Cushions Only.
Dimensions & Notes:

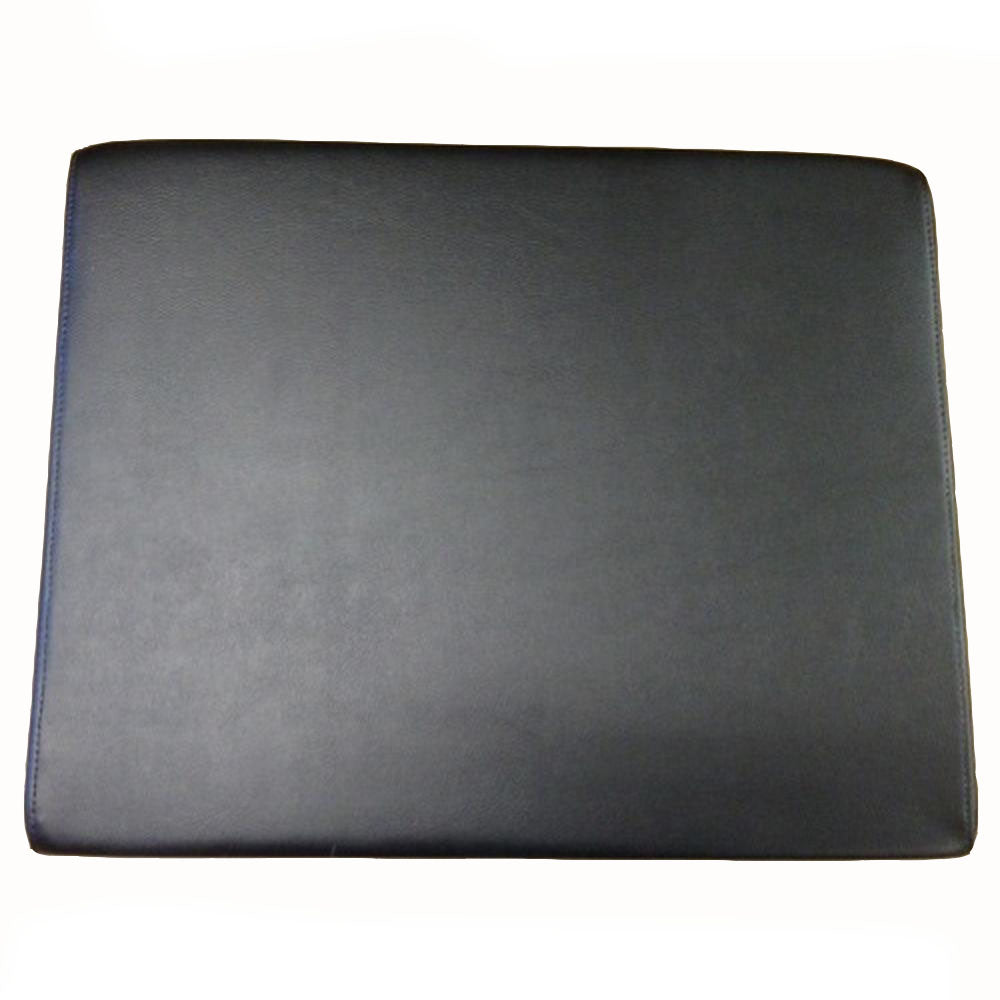

(1) Seat Bottom: 8H433: 22" x 17" x 5" to 4"

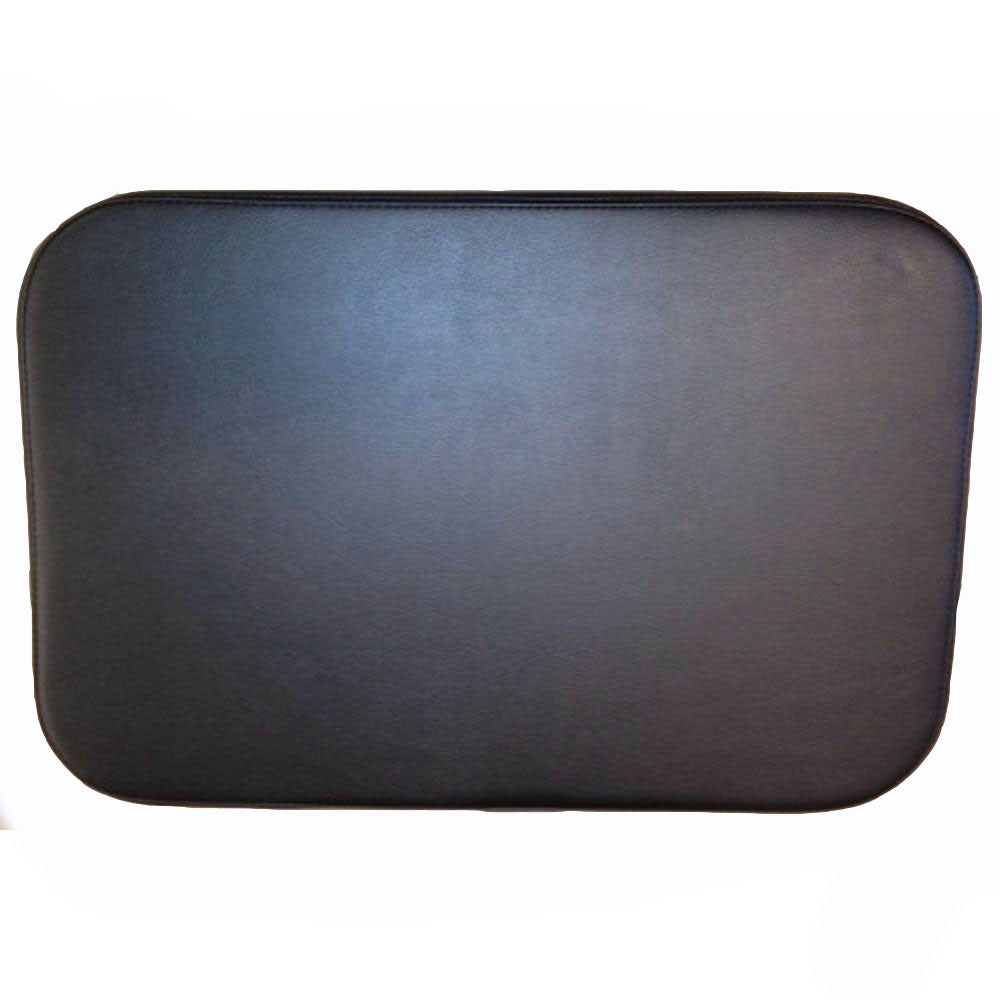

(1) Seat Back: 4H4078, 1S7171 or 9C3361: 22" x 14.50" x 5", 10.5" or 6" mounting top to bottom / 10" bolt spacin
Replaces Part Number: 8H433 Fits CAT2PC-CUSHIONSET (which consists of 1 Seat Bottom # 8H433, and 1 Seat Back # 4H4078)

Reference numbers: 8H433
Application notes
  • One New Aftermarket Replacement D6 2-Piece Seat Cushion Set (Back & Bottom) Fits Caterpillar models: Serial Numbers (D5, 82H, 84H, 94J, 96J, 6R), (D6C, 10K, 74A, 76A, 911), (D7, 47A), (D8, 35A, 36A, 46A to 10724), (D9, 34A, 49A, 50A).
  • -- Bottom and Back Cushions Only.
