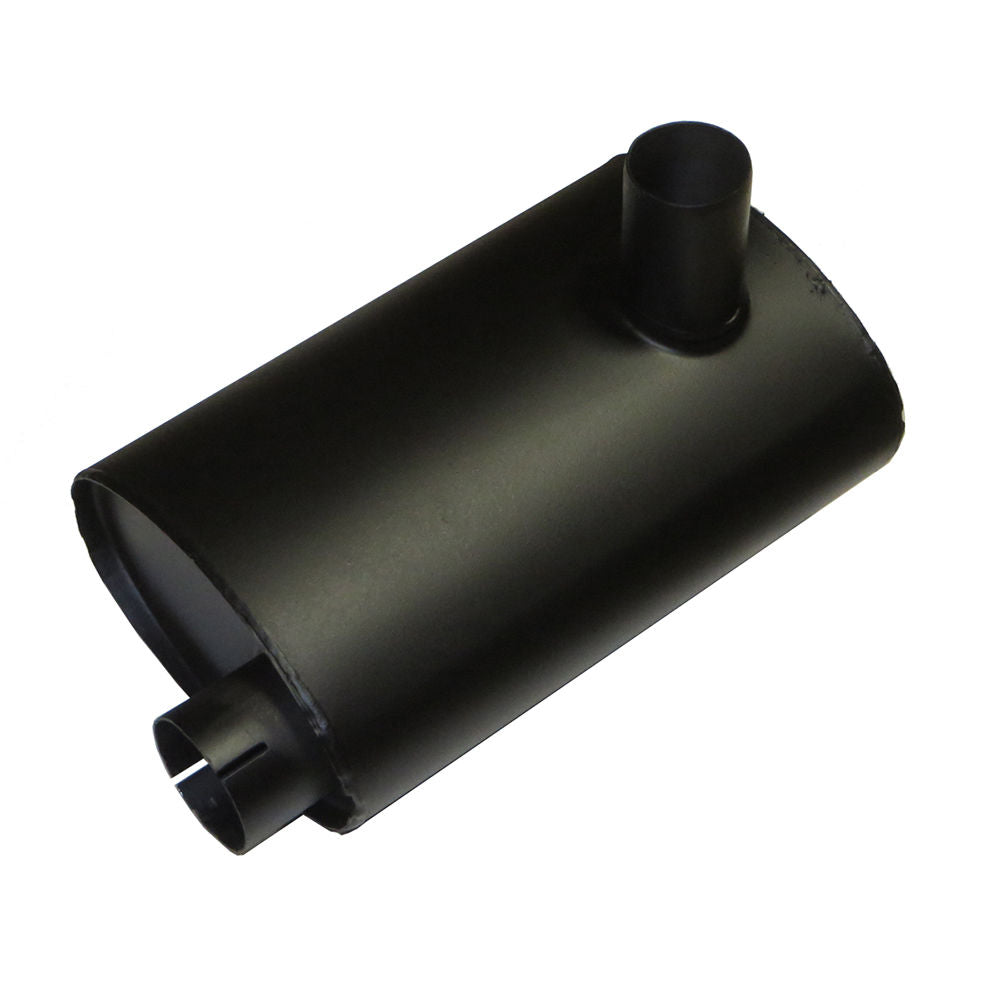

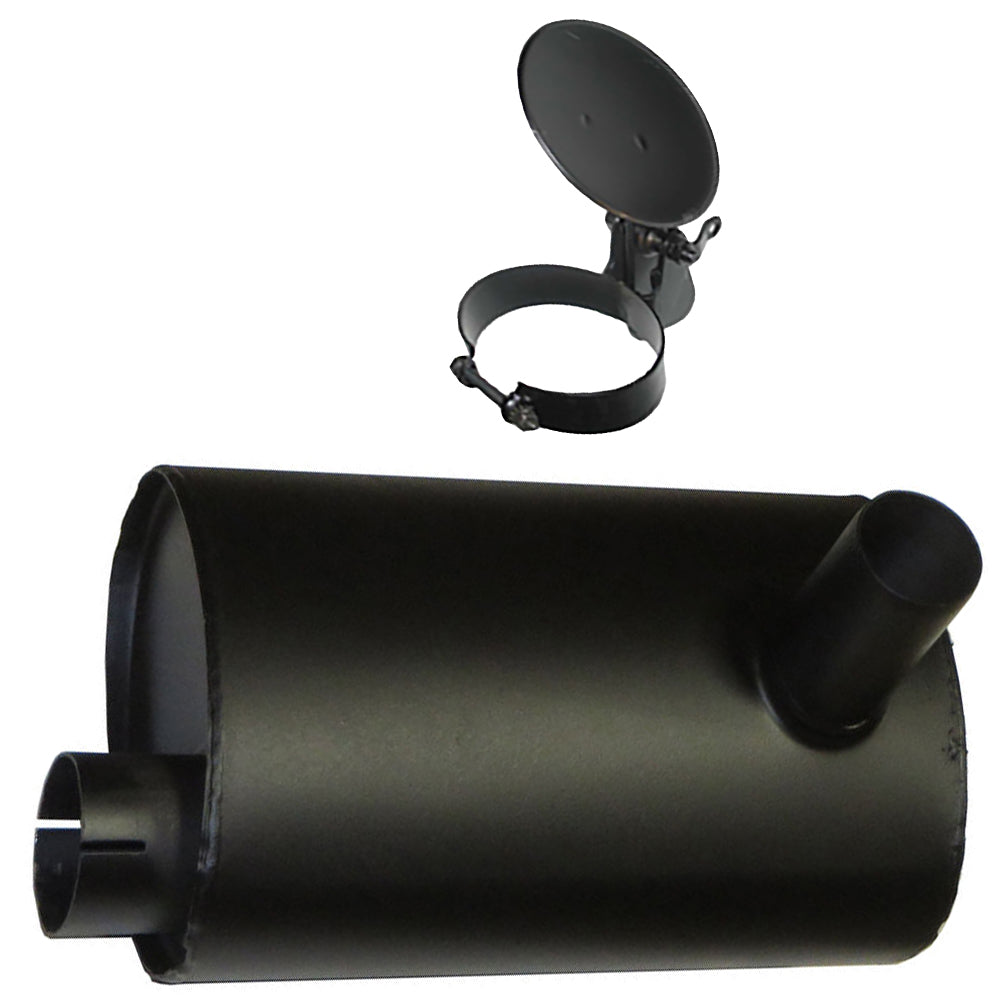

7N4674 Muffler & Rain Cap Assembly – Fits Caterpillar
7N4674 Muffler & Rain Cap Assembly – Fits Caterpillar – additional image 27N4674 Muffler & Rain Cap Assembly – Fits Caterpillar – additional image 3

NC-016184 · Weather Caps and Other Parts

7N4674 Muffler & Rain Cap Assembly – Fits Caterpillar

CAD 169.54

Availability to confirm

Muffler & Rain Cap Assembly – reference 7N4674. Catalogue-listed applications: Caterpillar D3B, D3C, D4C, 931B, 931C, 935C, 910. Overall Length: 451 mm; Outer Diameter: 66.68 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-016184
Reference numbers
7N4674, 7S4995
Overall Length
451 mm
Outer Diameter
66.68 mm
Inner Diameter
76.657 mm
Length
394 mm
Width
177.8 mm
Product information and configuration
Replacement part: Muffler & Rain Cap Assembly Fits Caterpillar 910 931B 931C 935C D3B D3C.

Configuration: Muffler & Rain Cap Assembly
Specifications:
-Muffler
-Overall Length: 451 mm, 17-3/4"
-Body Length: 394 mm, 15-1/2"
-Width: 177.8 mm, 7"
-Inlet ID: 76.657 mm, 3.02"
-Outlet OD: 66.68 mm, 2.62"
-Replaces: 7N4674
-
-Rain Cap Assembly
-Minimum Pipe Diameter: 88 MM or 3.46"
-Maximum Pipe Diameter: 94 MM or 3.70"
-Replaces: 7S4995
Fits Caterpillar:
Industrial/Construction Models: D3B, D3C, D4C, 931B, 931C, 935C, 910, IT12
Replaces Part Number(s): 7N4674, 7S4995

Reference numbers: 7N4674, 7S4995

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Caterpillar D3B
  • Caterpillar D3C
  • Caterpillar D4C
  • Caterpillar 931B
  • Caterpillar 931C
  • Caterpillar 935C
  • Caterpillar 910
  • Caterpillar IT12
Application notes
  • Aftermarket Muffler & Rain Cap Assembly
