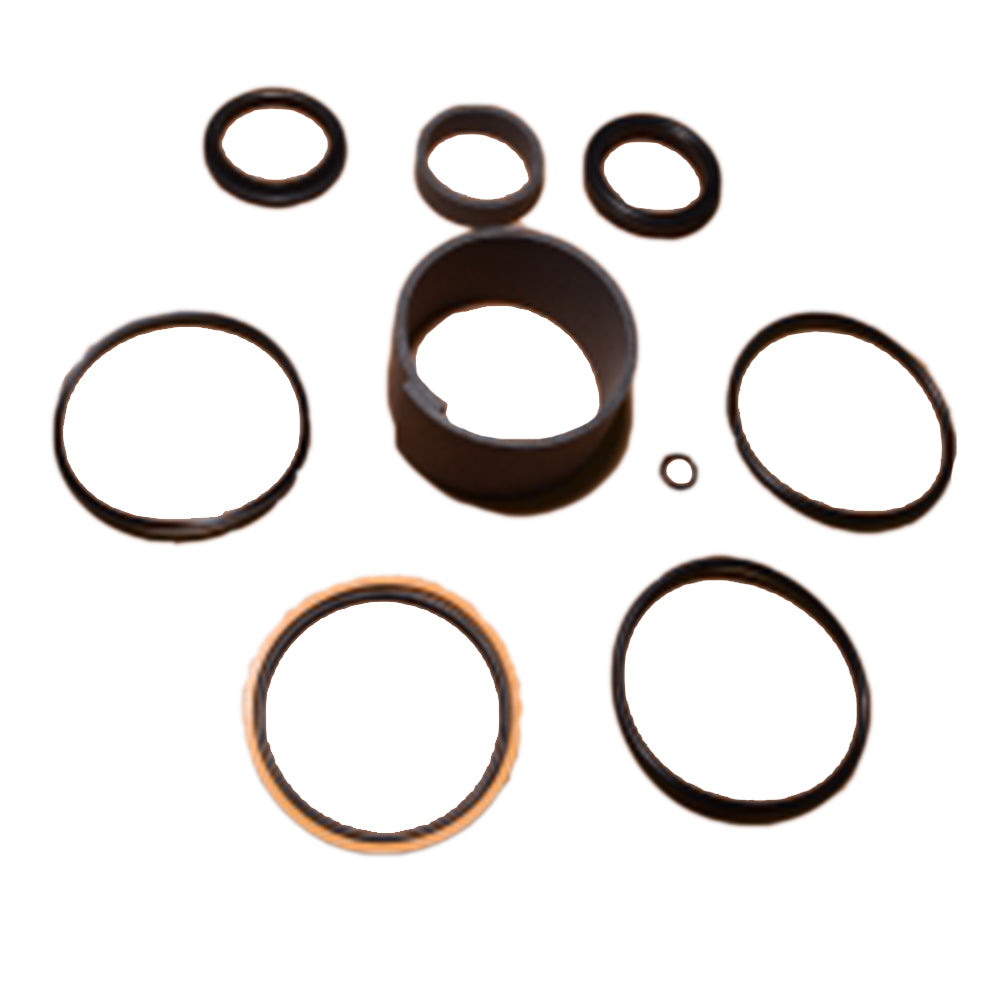

2309357 Loader Bucket Cyl Seal Repair Kit – Fits Caterpillar

NC-016027 · Cylinders

2309357 Loader Bucket Cyl Seal Repair Kit – Fits Caterpillar

CAD 78.18

Availability to confirm

Loader Bucket Cyl Seal Repair Kit – reference 2309357. Catalogue-listed applications: Caterpillar With Cylinder# 2265540, CBD1-UP, SHA1-UP, MBH1-UP, HLS1-UP, KMW1-UP, PHC1-UP. Bore Diameter: 76.2 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-016027
Reference numbers
2309357, 2309357-A
Listed package quantity
1
Bore Diameter
76.2 mm
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Loader Bucket Cyl Seal Repair Kit Fits CAT Fits Caterpillar 416D-430E.

Configuration: Hydraulic Bucket Cylinder Seal Kit
Fits Caterpillar Backhoe Loaders
Application: Loader Bucket MP
All Below Models With Cylinder# 2265540
416D - SN# BFP12900-UP
416E - SN# BWC1-UP; CBD1-UP; SHA1-UP
420D - SN# FDP18400-UP; MBH1-UP
420E - SN# GAN1-UP; HLS1-UP; KMW1-UP; PHC1-UP; PRA1-UP
422E, 428E
430D - SN# BML4800-UP; BNK5900-UP
430E - SN# DDT1-UP; EAT1-UP; RLN1-UP; SCD1-UP
Specifications:
Rod Size: 1 1/2"
Bore: 3"
Replaces Part: 2309357

Reference numbers: 2309357, 2309357-A

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Caterpillar With Cylinder# 2265540
  • Caterpillar CBD1-UP
  • Caterpillar SHA1-UP
  • Caterpillar MBH1-UP
  • Caterpillar HLS1-UP
  • Caterpillar KMW1-UP
  • Caterpillar PHC1-UP
  • Caterpillar PRA1-UP
  • Caterpillar 422E
  • Caterpillar 428E
  • Caterpillar BNK5900-UP
  • Caterpillar EAT1-UP
  • Caterpillar RLN1-UP
  • Caterpillar SCD1-UP
Application notes
  • One Brand New Aftermarket Replacement Hydraulic Bucket Cylinder Seal Kit
  • All Below Models With Cylinder# 2265540
  • 416D - SN# BFP12900-UP
  • 416E - SN# BWC1-UP; CBD1-UP; SHA1-UP
  • 420D - SN# FDP18400-UP; MBH1-UP
  • 420E - SN# GAN1-UP; HLS1-UP; KMW1-UP; PHC1-UP; PRA1-UP
  • 430D - SN# BML4800-UP; BNK5900-UP
  • 430E - SN# DDT1-UP; EAT1-UP; RLN1-UP; SCD1-UP
