G105520 Hydraulic Seal Repair Kit Tilt Cylinder

NC-015696 · Repair/Seal Kits

G105520 Hydraulic Seal Repair Kit Tilt Cylinder

CAD 212.91

Availability to confirm

Hydraulic Seal Repair Kit Tilt Cylinder – reference G105520. Catalogue-listed applications: Case, International Harvester 26, 26B, 26S, 32, 33, 33S, 34. Rod Diameter: 57.15 mm; Bore Diameter: 114.3 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-015696
Reference numbers
G105520
Listed package quantity
1
Rod Diameter
57.15 mm
Bore Diameter
114.3 mm
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Hydraulic Seal Repair Kit Tilt Cylinder Fits Case W14 310 1150 780B 850 W7 580 450 780C.

Configuration: Fits Case Boom/ Dipper/ Loader Tilt Cylinder Seal Kit
Fits:
310G, 450, (580 (1pc), 750, W7, W7C, W7E, (W9, W9A, W9B, W9C, W9E, W10, W10B, W10 (2pc), with Backhoe Boom Models 26, 26B, 26S, 32, 33, 33S, 34, 35, Cylinder: 3023001 2pc
680B, 680C, 850, W7, W7C, W7E, (W9, W9A, W9B, W9C, W9E, W10, W10B, W10C, W10E (2pc), with Backhoe Dipper Models 34, 35, 36, 2pc
780, 850, with Backhoe Loader Lift Models 34, 35, 36
1150, with Backhoe Dipper Models 32, 34, 362, 2pc
1150, (1150B, 1150C, 1150D, 1155D, 1450 (2pc), 1450B, 1455B, with Backhoe Loader Clam Models 32, 34, 36
1150B, 1150C, 1150D, 1155D, Dozer Tilt 2pc
1150B, Feller Buncher 2pc
1150B, 1150C, 1150D, 1155D, W14, W14B, W14L, W14H, W30, W36, Loader Tilt 2pc
780 Backhoe Swing 2pc

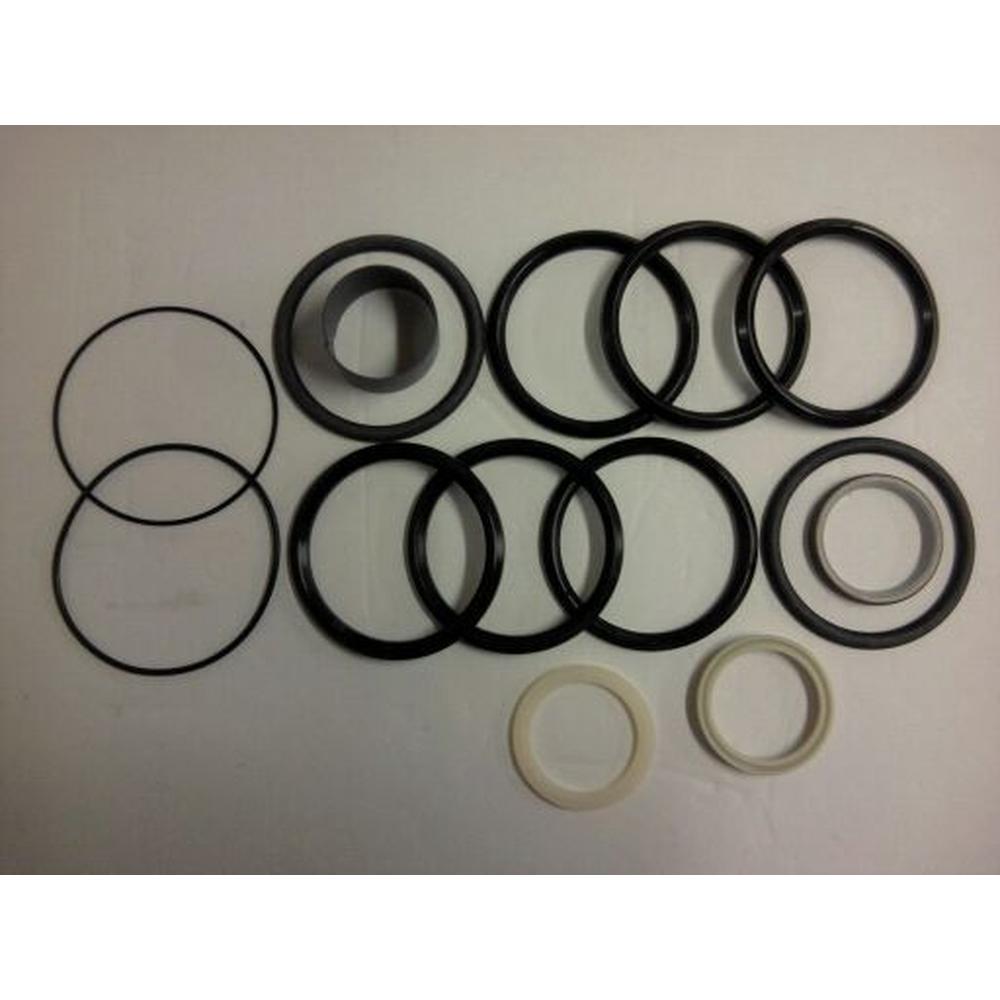

Actual photo of seal kit. Some kits may vary.
Specifications:
Rod: 2-1/4"Bore: 4-1/2"
Replaces Part Number: G105520

Reference numbers: G105520

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 26
  • Case 26B
  • Case 26S
  • Case 32
  • Case 33
  • Case 33S
  • Case 34
  • Case 35
  • Case 36
  • Case 2pc
  • Case 362
  • Case 1150B
  • Case 1150C
  • Case 1150D
  • Case 1155D
  • Case Dozer Tilt 2pc
  • Case Feller Buncher 2pc
  • Case W14
  • Case W14B
  • Case W14L
  • Case W14H
  • Case W30
  • Case W36
  • Case Loader Tilt 2pc
Application notes
  • 310G, 450, (580 (1pc), 750, W7, W7C, W7E, (W9, W9A, W9B, W9C, W9E, W10, W10B, W10 (2pc), with Backhoe Boom Models 26, 26B, 26S, 32, 33, 33S, 34, 35, Cylinder: 3023001 2pc
  • 680B, 680C, 850, W7, W7C, W7E, (W9, W9A, W9B, W9C, W9E, W10, W10B, W10C, W10E (2pc), with Backhoe Dipper Models 34, 35, 36, 2pc
  • 780, 850, with Backhoe Loader Lift Models 34, 35, 36
  • 1150, with Backhoe Dipper Models 32, 34, 362, 2pc
  • 1150, (1150B, 1150C, 1150D, 1155D, 1450 (2pc), 1450B, 1455B, with Backhoe Loader Clam Models 32, 34, 36
