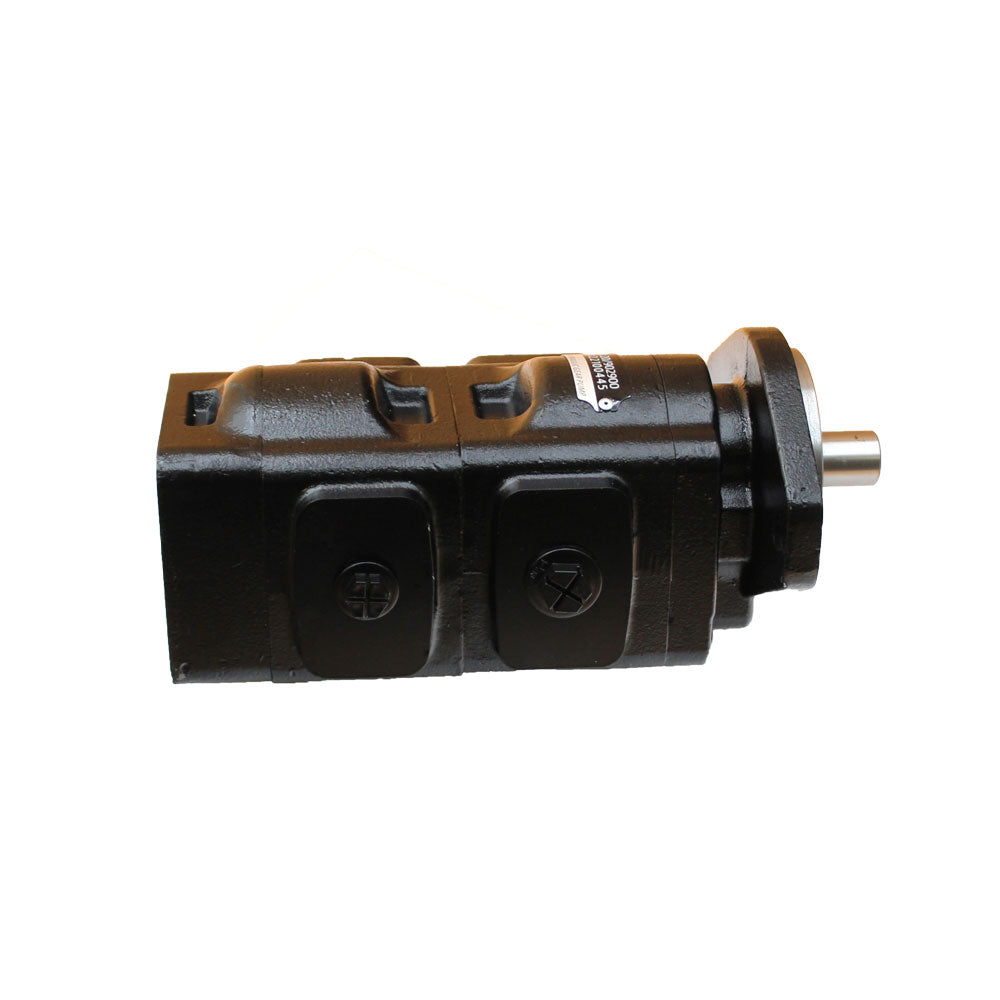

4070 - 4072 Counter-Clockwise 3CX Main Hydraulic Pump – Fits JCB

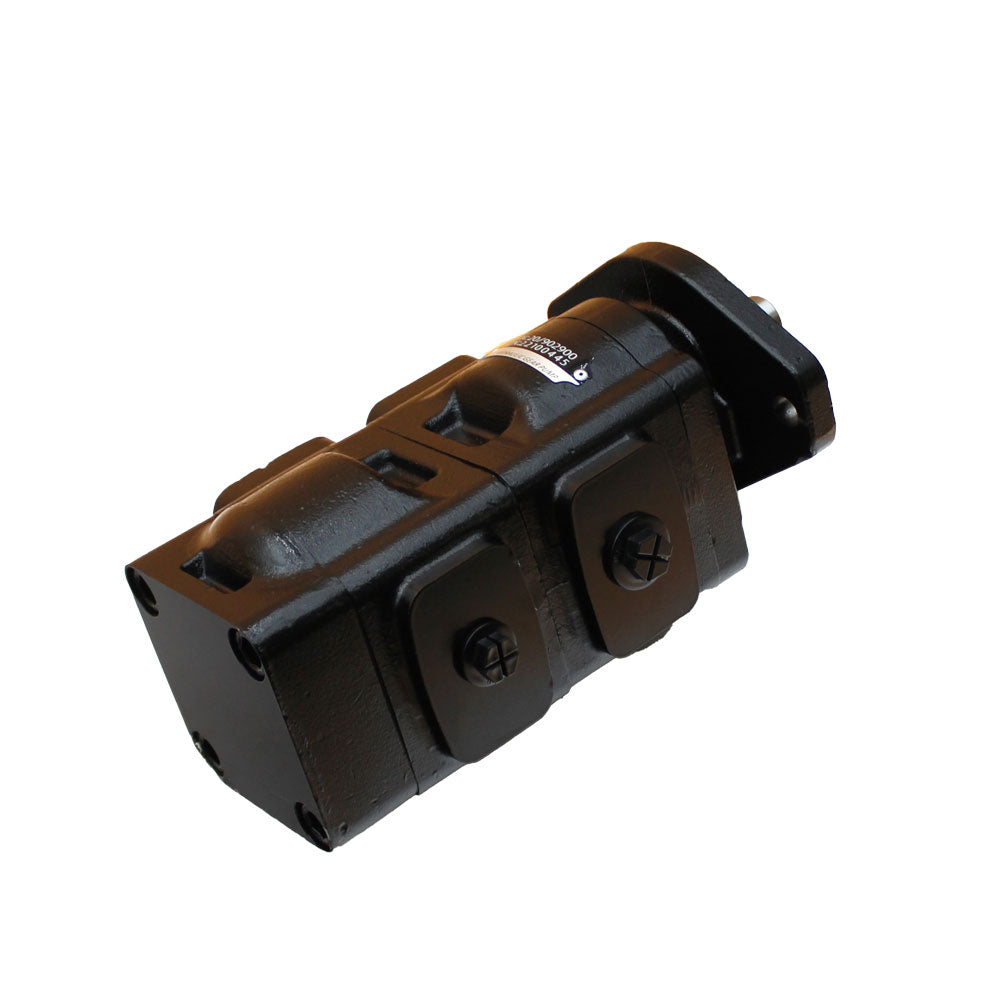

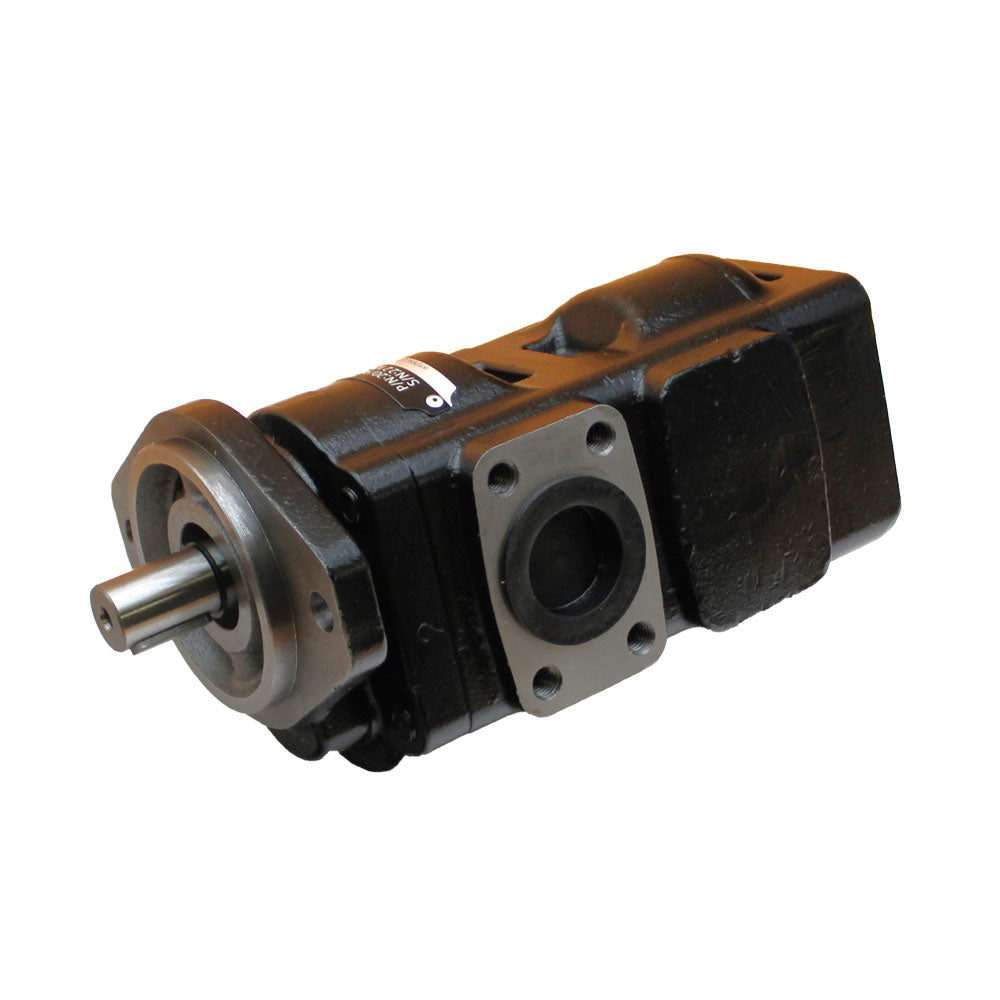

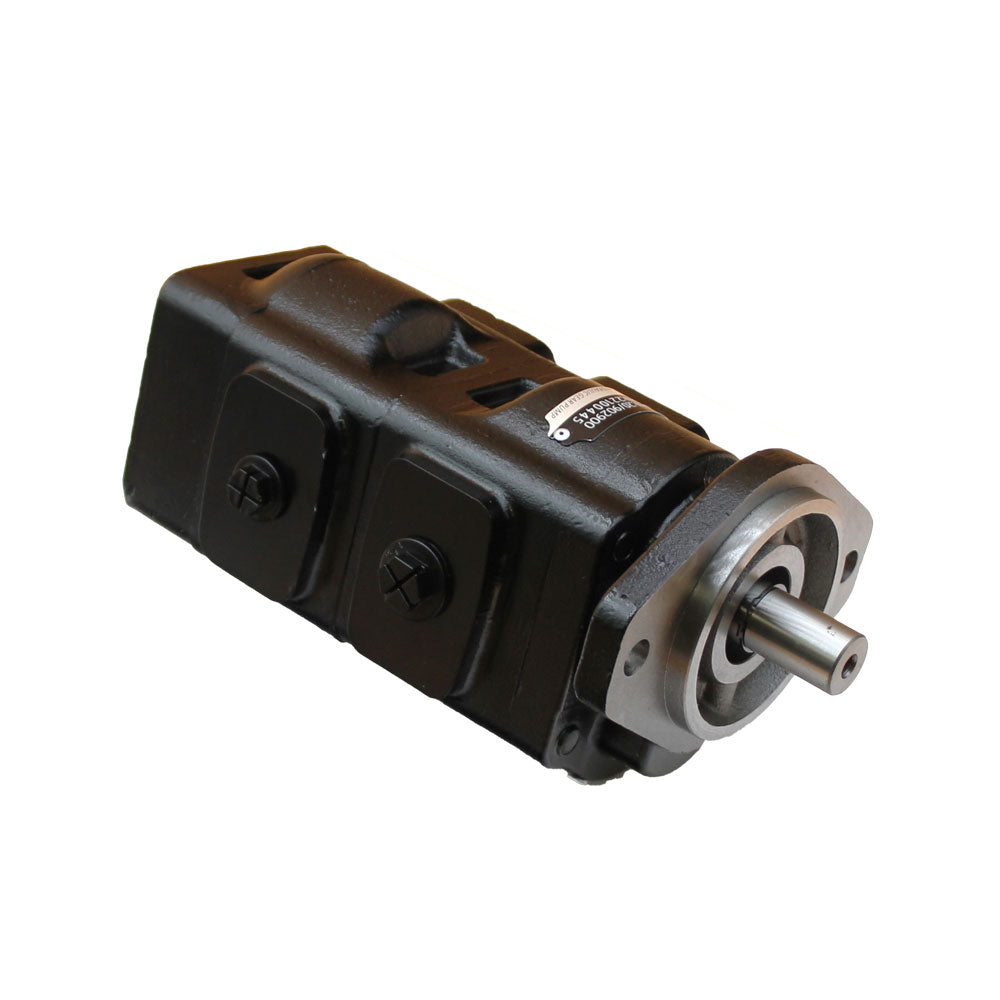

4070 - 4072 Counter-Clockwise 3CX Main Hydraulic Pump – Fits JCB – additional image 24070 - 4072 Counter-Clockwise 3CX Main Hydraulic Pump – Fits JCB – additional image 34070 - 4072 Counter-Clockwise 3CX Main Hydraulic Pump – Fits JCB – additional image 4

NC-014204 · Pumps

4070 - 4072 Counter-Clockwise 3CX Main Hydraulic Pump – Fits JCB

CAD 1513.93

In stock

4070 - 4072 Counter-Clockwise 3CX Main Hydraulic Pump. Catalogue-listed applications: JCB 3CXHM, 30, 3CXSM, 35, 3CX, 20, 3CXT. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-014204
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: 4070 - 4072 Counter-Clockwise 3CX Main Hydraulic Pump.

Configuration: Main Hydraulic Pump
Fits JCB Construction & Industrial Models (M410293 Sideshift 9802/9600):
3CXHM 30, 3CXSM 30, 3CXHM 35, 3CX 20, 3CX 35, 3CX 30, 3CXSM 9802/9700, 3CXT 35, 3CX 9802/9700, 3CXSM 35, 3CXT 20, 3CXT 30
Tech Information:
3CX Twin Hydraulic Pump 33 + 29 CC/REV
Rotation: Counter-Clockwise (looking from shaft end)
1” Diameter parallel keyed shaft
SAE B 2 hole mounting flange
Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
Combined 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 7/8”-14 UNF threaded
Maximum working pressure on front pump: 275 bar
Maximum working pressure on rear pump: 275 bar
Max. Input shaft torque: 325 Nm
Replaces Part Numbers:
20/902900 - 20/903100 - 20/912800 -7470 - 4070 - 4072

Additional specifications: Rotation: Counter-Clockwise (looking from shaft end) Shaft: 1” Diameter Parallel Keyed Shaft Mounting Flange: SAE B 2 Hole Front Pump Displacement: 33 cc/rev (33L/Min per 1000 rpm) Middle Pump Displacement: 29 cc/rev (29L/Min per 1000 rpm) Inlet: Combined 2” SAE Flange Front Pump Outlet: 1 1/16”-12 UNF Threaded Rear Pump Outlet: 7/8”-14 UNF Threaded Maximum Working Pressure On Front Pump: 275 bar Maximum Working Pressure On Rear Pump: 275 bar Max. Input Shaft Torque: 325 Nm Main Hydraulic Pump

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • JCB 3CXHM
  • JCB 30
  • JCB 3CXSM
  • JCB 35
  • JCB 3CX
  • JCB 20
  • JCB 3CXT
Application notes
  • One New Aftermarket Replacement Main Hydraulic Pump
