G109434 Bucket Cylinder Assembly 2 1/2" Rod – Fits Case
G109434 Bucket Cylinder Assembly 2 1/2" Rod – Fits Case – additional image 2G109434 Bucket Cylinder Assembly 2 1/2" Rod – Fits Case – additional image 3G109434 Bucket Cylinder Assembly 2 1/2" Rod – Fits Case – additional image 4

NC-008712 · Cylinders

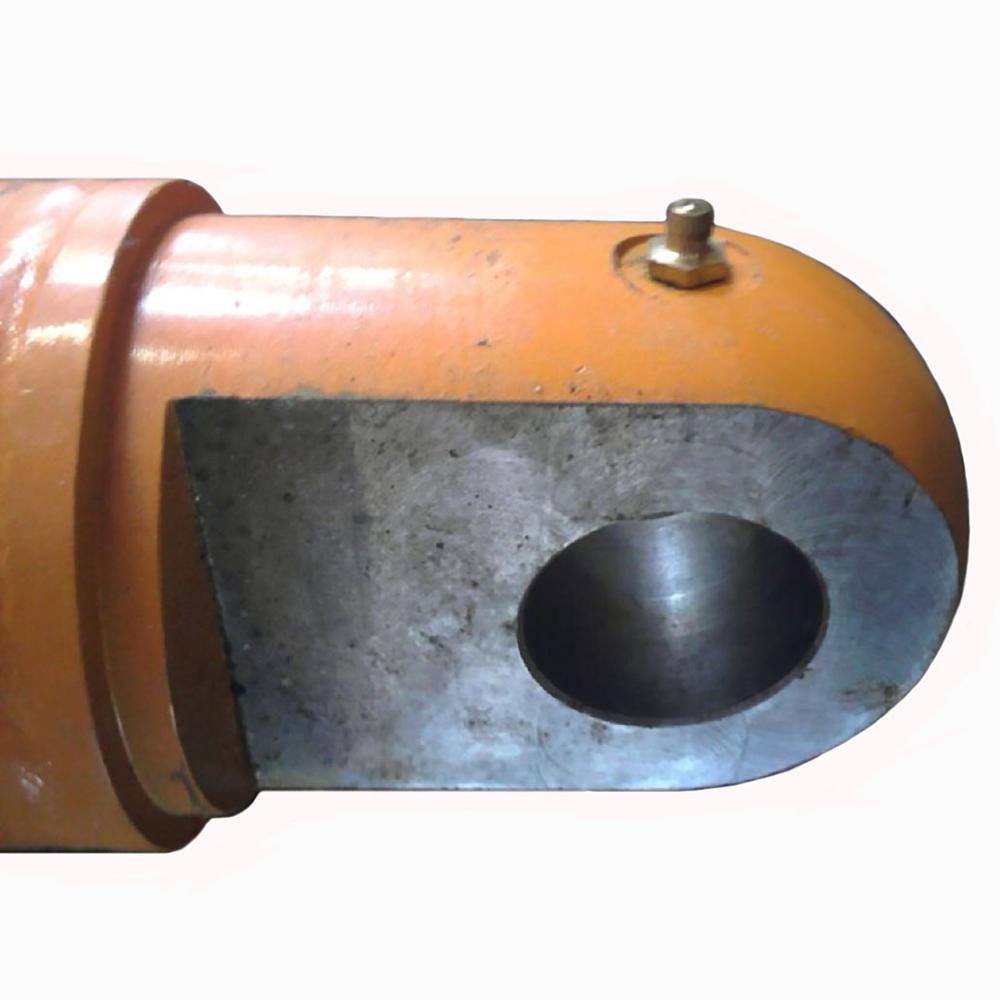

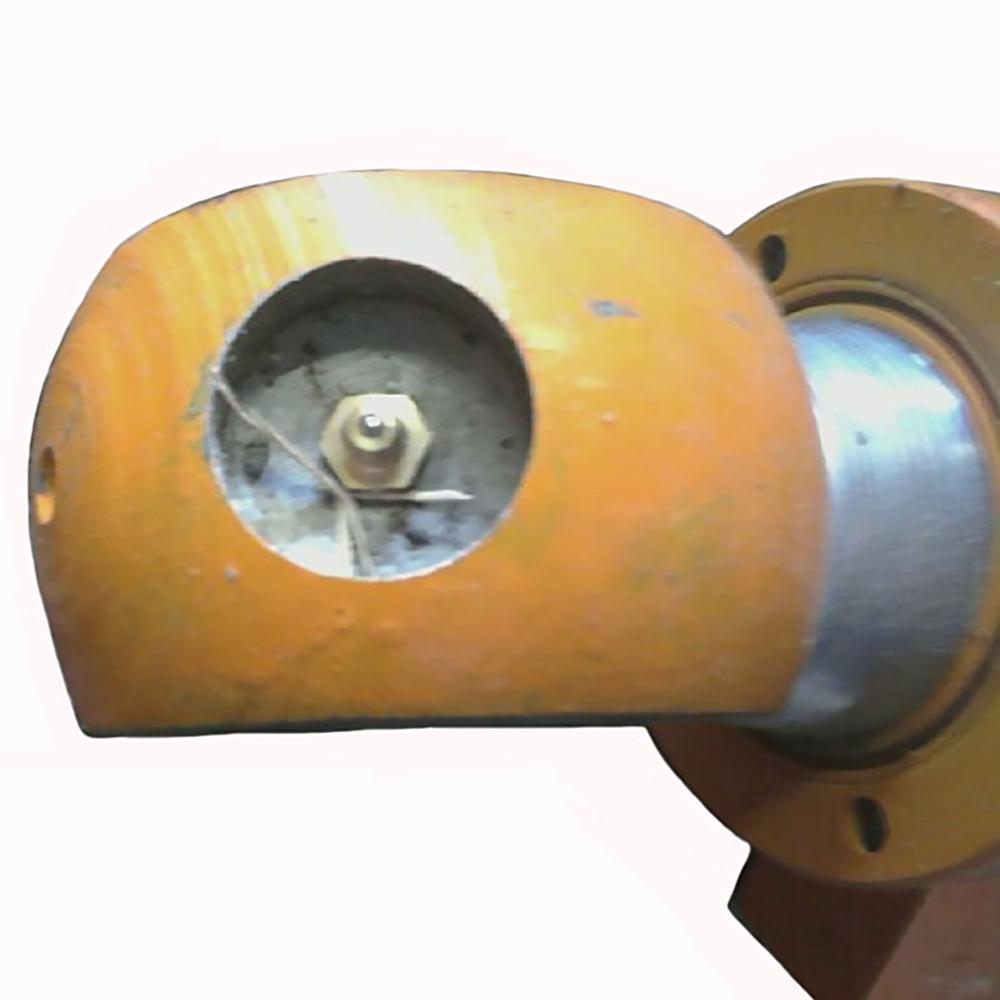

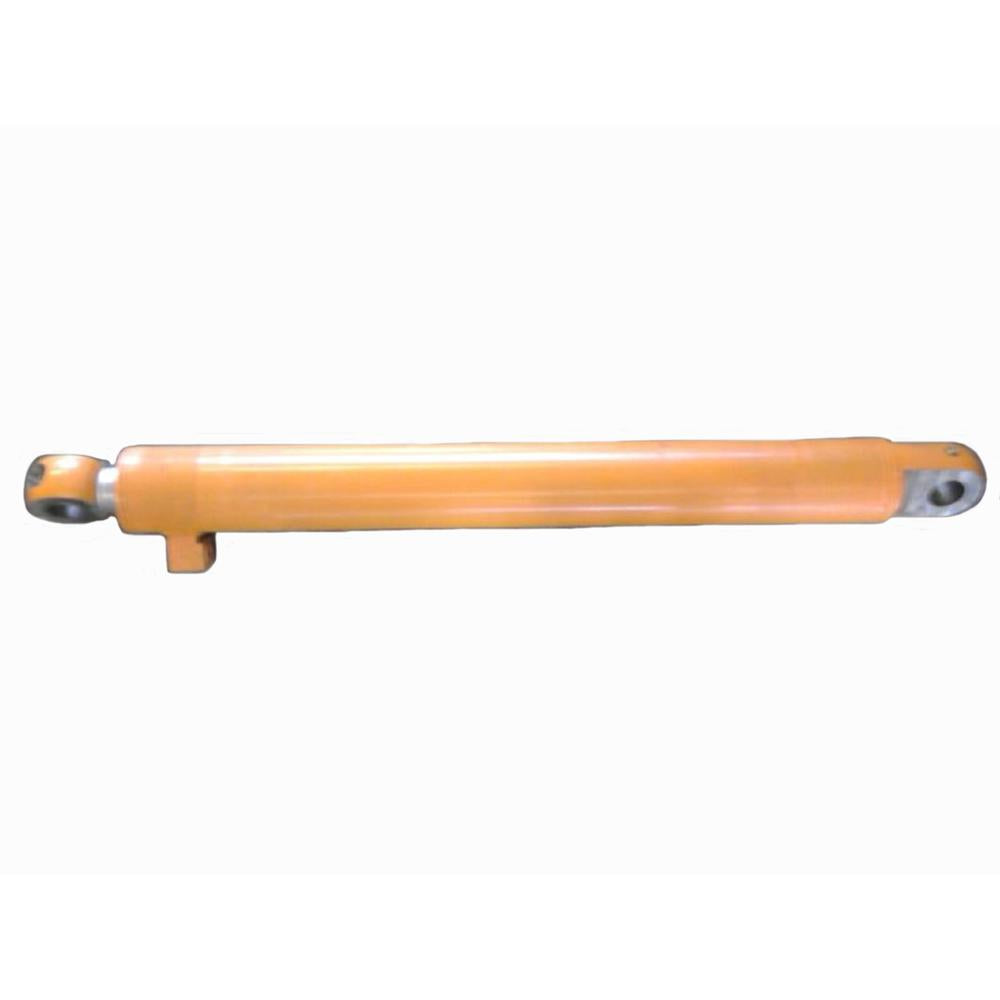

G109434 Bucket Cylinder Assembly 2 1/2" Rod – Fits Case

CAD 1697.45

In stock

Bucket Cylinder Assembly 2 1/2" Rod – reference G109434. Catalogue-listed applications: Case 580B, 580C, 580D, 580 Super D (580SD), 580E, 580 Super E (580SE). View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-008712
Reference numbers
G109434, G109433, G103550, G103350, G101176
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Bucket Cylinder Assembly 2 1/2" Rod Fits Case 580B, 580C, 580D, 580E.

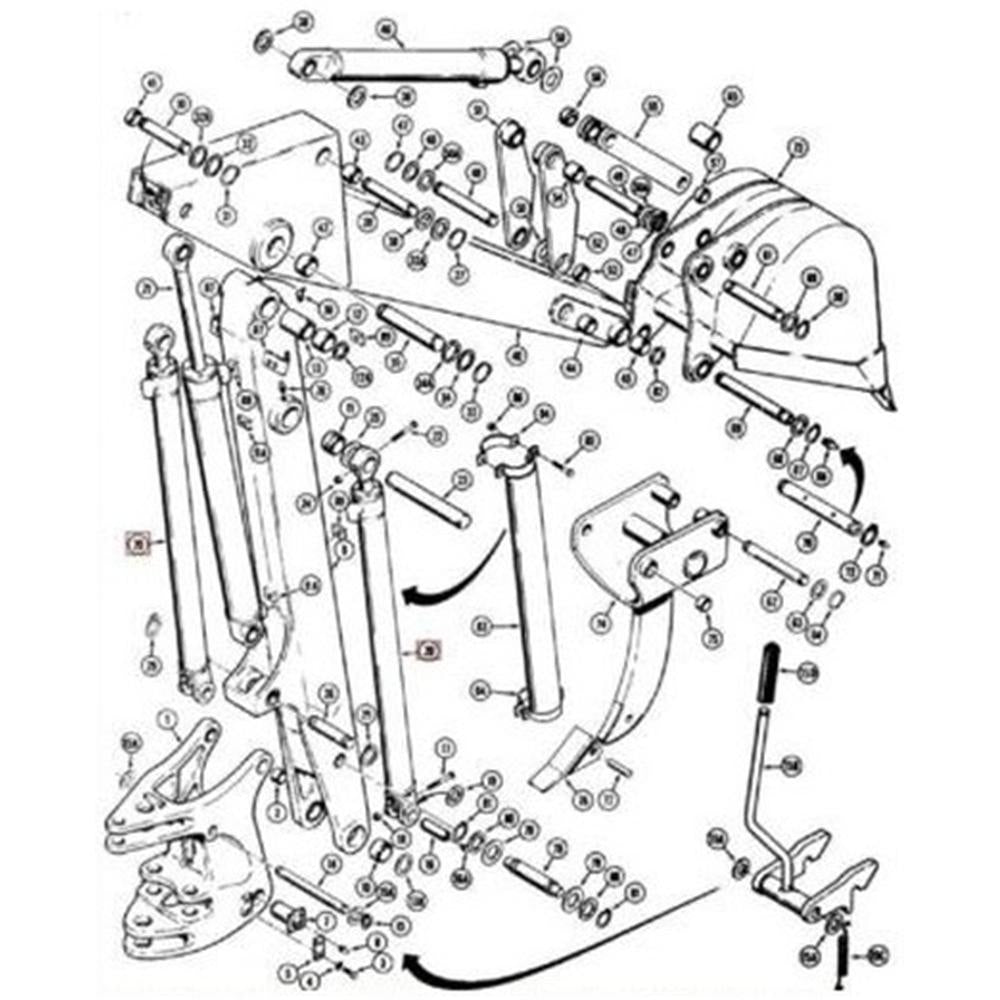

Configuration: Backhoe Bucket Cylinder Assembly Fits Case 580 Series Loader Backhoes
This aftermarket replacement hydraulic bucket cylinder assembly Fits Case 580 series loader backhoes and controls curl and dump movement of the backhoe bucket. Featuring a 2-1/2" rod diameter and 3-1/2" barrel bore, this cylinder is a direct-fit replacement for the Fits Case (CNH) backhoe dipper end. Note: Will not work on the Fits Case 580CK.
Specifications
Rod Diameter: 2-1/2"
Barrel Inside Diameter (Bore): 3-1/2"
Stroke: 30-1/2"
Length Overall: 46"
Center to Center of Eyelet: 42.5"
Compatible Models
Fits Case 580 Series Loader Backhoes: 580B, 580C, 580D, 580 Super D (580SD), 580E, 580 Super E (580SE)
All serial numbers. Not Fits Case 580CK.
Replaces Part Number(s):
G109434, G109433, G103550, G103350, G101176
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: G109434, G109433, G103550, G103350, G101176

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 580B
  • Case 580C
  • Case 580D
  • Case 580 Super D (580SD)
  • Case 580E
  • Case 580 Super E (580SE)
Application notes
  • One New Aftermarket Replacement Backhoe Bucket Cylinder Assembly Fits Case 580 Series Loader Backhoes
  • This aftermarket replacement hydraulic bucket cylinder assembly Fits Case 580 series loader backhoes and controls curl and dump movement of the backhoe bucket. Featuring a 2-1/2" rod diameter and 3-1/2" barrel bore, this cylinder is a direct-fit replacement for the Fits Case (CNH) backhoe dipper end. Note: Will not work on the Fits Case 580CK.
  • All serial numbers. Not Fits Case 580CK.
  • New aftermarket replacement part - not remanufactured, not used.
