403507 Block, Lever – Fits Case

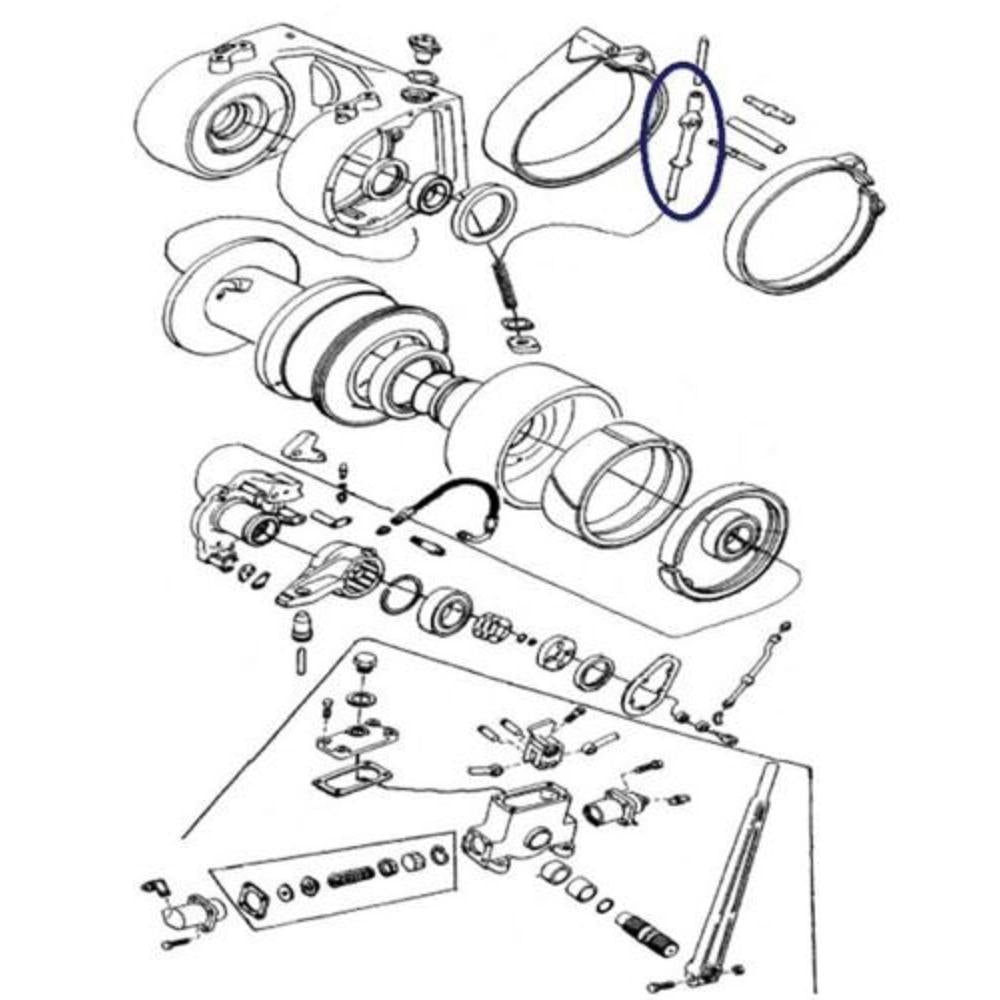

403507 Block, Lever – Fits Case – additional image 2

NC-008646 · Winch Components

403507 Block, Lever – Fits Case

CAD 232.60

Availability to confirm

Block, Lever – reference 403507. Catalogue-listed applications: Case 450, 450B, 450C, 455B, 455C, 550, 550E. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-008646
Reference numbers
403507
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Block, Lever.

Configuration: Aluminum Lever Block for Gearmatic and Carco (Cargo) Winches
This aluminum lever block (part number 403507) is a winch brake control component used in the brake assembly of Gearmatic Model 19 and Carco (Cargo) Model 28 winches. These winches are commonly mounted on Fits Case crawler dozers and are used in demanding construction and earth-moving applications. The lever block serves as a critical mechanical linkage in the winch brake system, enabling controlled cable drum operation.
Specifications
Material: Aluminum
Part Type: Lever Block (Brake Assembly Component)
Compatible Models
Gearmatic / Carco (Cargo) Winch Models: Gearmatic Model 19, Carco (Cargo) Model 28
Fits Case Crawler Dozers (equipped with Gearmatic 19 or Carco 28 winch): 450, 450B, 450C, 455B, 455C, 550, 550E, 550G, 650, 650G, 750, 850, 850B, 850C, 850D, 850E, 855D, 855E, 850G
Replaces Part Number(s):
403507
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 403507

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 450
  • Case 450B
  • Case 450C
  • Case 455B
  • Case 455C
  • Case 550
  • Case 550E
  • Case 550G
  • Case 650
  • Case 650G
  • Case 750
  • Case 850
  • Case 850B
  • Case 850C
  • Case 850D
  • Case 850E
  • Case 855D
  • Case 855E
  • Case 850G
Application notes
  • One New Aftermarket Replacement Aluminum Lever Block for Gearmatic and Carco (Cargo) Winches
  • Fits Case Crawler Dozers (equipped with Gearmatic 19 or Carco 28 winch): 450, 450B, 450C, 455B, 455C, 550, 550E, 550G, 650, 650G, 750, 850, 850B, 850C, 850D, 850E, 855D, 855E, 850G
  • New aftermarket replacement part - not remanufactured, not used.
