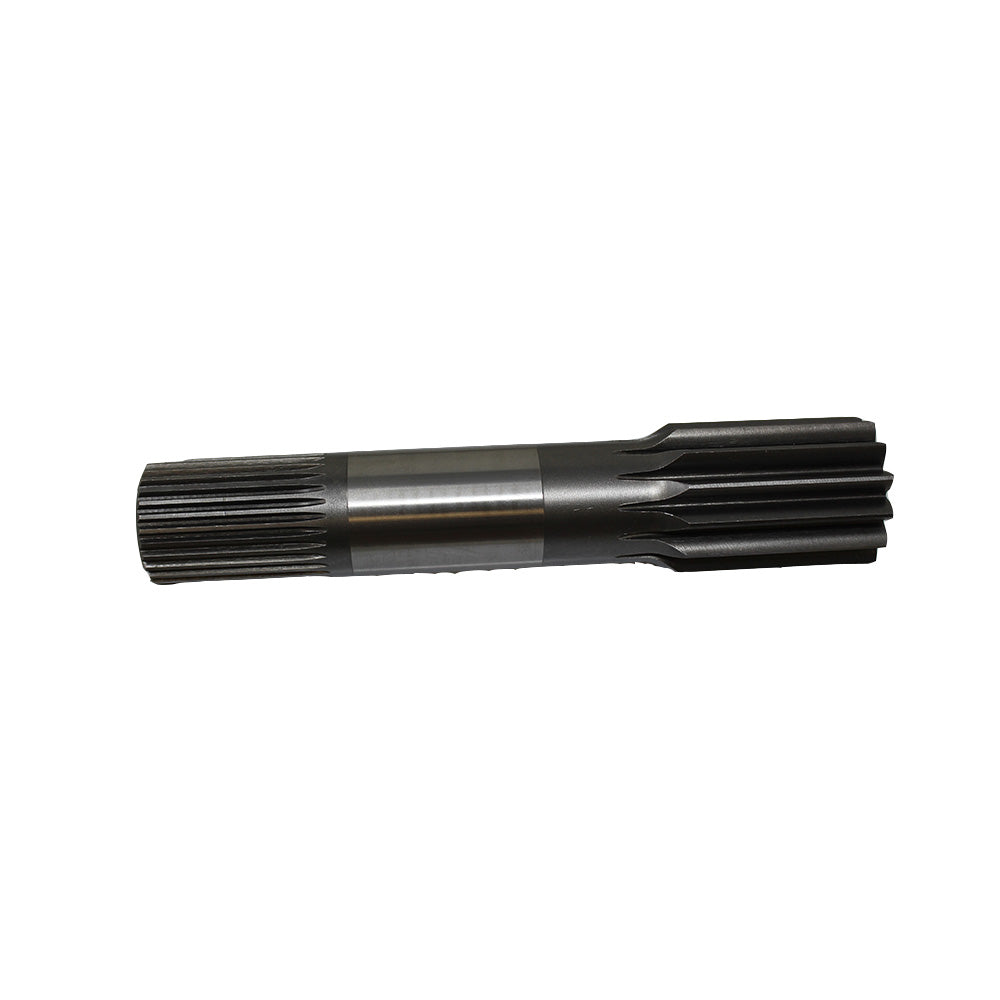

292896A1 Shaft

NC-008632 · Shafts

292896A1 Shaft

CAD 221.92

In stock

Shaft – reference 292896A1. Catalogue-listed applications: Case IH, Volvo, Carraro 580 Super L Series II (580SL Ser. 2), 580 Super M (580SM), 580 Super M Series II (580SM Ser. 2), 590 Super M, BL71 (Carraro axle), WB91R-2, WB93R-2. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-008632
Reference numbers
292896A1, 138735, CA0138735, 11709379, 6193422M1, 91364090
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Shaft Fits Case 580SL Ser. 2, 580SM, 580SM Ser. 2.

Configuration: Rear Axle Planetary Drive Shaft Fits Case (Fits Case IH) Backhoe Loaders
This rear axle planetary hub drive shaft fits the Carraro axle assembly found on Fits Case 580 Super L Series II, 580 Super M, and 590 Super M backhoe loaders. It is a precision-machined, hardened steel shaft located in the final drive planetary assembly and is a direct aftermarket replacement for OEM Carraro part number 138735 and Fits Case part number 292896A1.
Important Serial Number Fitment Restrictions:
Fits Case 580 Super L Series II: After Serial # JJG0239360
Fits Case 580 Super M Series I and II: Before Serial # N8C504000
Fits Case 590 Super M Series I: Before Serial # N4C309000
Verify your machine serial number before ordering.
Specifications
Length: 218 mm (8.6")
Teeth: 13
Spline: 29
Material: Hardened, precision-machined steel
OEM Axle Manufacturer: Carraro
Compatible Models
Fits Case / Fits Case IH Backhoe Loaders: 580 Super L Series II (580SL Ser. 2), 580 Super M (580SM), 580 Super M Series II (580SM Ser. 2), 590 Super M
Fits Volvo Backhoe Loaders: BL71 (Carraro axle)
Komatsu / Fermec-Terex Backhoe Loaders: WB91R-2, WB93R-2, WB97R-2, WB140-2, WB140PS-2, WB150-2, WB150PS-2 (verify Carraro axle fitment)
Replaces Part Number(s):
292896A1, 138735, CA0138735, 11709379, 6193422M1, 91364090
Aftermarket Interchange Numbers
Carraro 138735, CA0138735, S06/42323
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 292896A1, 138735, CA0138735, 11709379, 6193422M1, 91364090

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case IH 580 Super L Series II (580SL Ser. 2)
  • Case IH 580 Super M (580SM)
  • Case IH 580 Super M Series II (580SM Ser. 2)
  • Case IH 590 Super M
  • Volvo BL71 (Carraro axle)
  • Volvo WB91R-2
  • Volvo WB93R-2
  • Volvo WB97R-2
  • Volvo WB140-2
  • Volvo WB140PS-2
  • Volvo WB150-2
  • Volvo WB150PS-2 (verify Carraro axle fitment)
Application notes
  • One New Aftermarket Replacement Rear Axle Planetary Drive Shaft Fits Case (Fits Case IH) Backhoe Loaders
  • This rear axle planetary hub drive shaft fits the Carraro axle assembly found on Fits Case 580 Super L Series II, 580 Super M, and 590 Super M backhoe loaders. It is a precision-machined, hardened steel shaft located in the final drive planetary assembly and is a direct aftermarket replacement for OEM Carraro part number 138735 and Fits Case part number 292896A1.
  • Important Serial Number Fitment Restrictions:
  • Fits Case 580 Super L Series II: After Serial # JJG0239360
  • Fits Case 580 Super M Series I and II: Before Serial # N8C504000
  • Fits Case 590 Super M Series I: Before Serial # N4C309000
  • Verify your machine serial number before ordering.
  • Aftermarket Interchange Numbers
  • New aftermarket replacement part - not remanufactured, not used.
