G109139 Stabilizer Cylinder, L/H – Fits Case

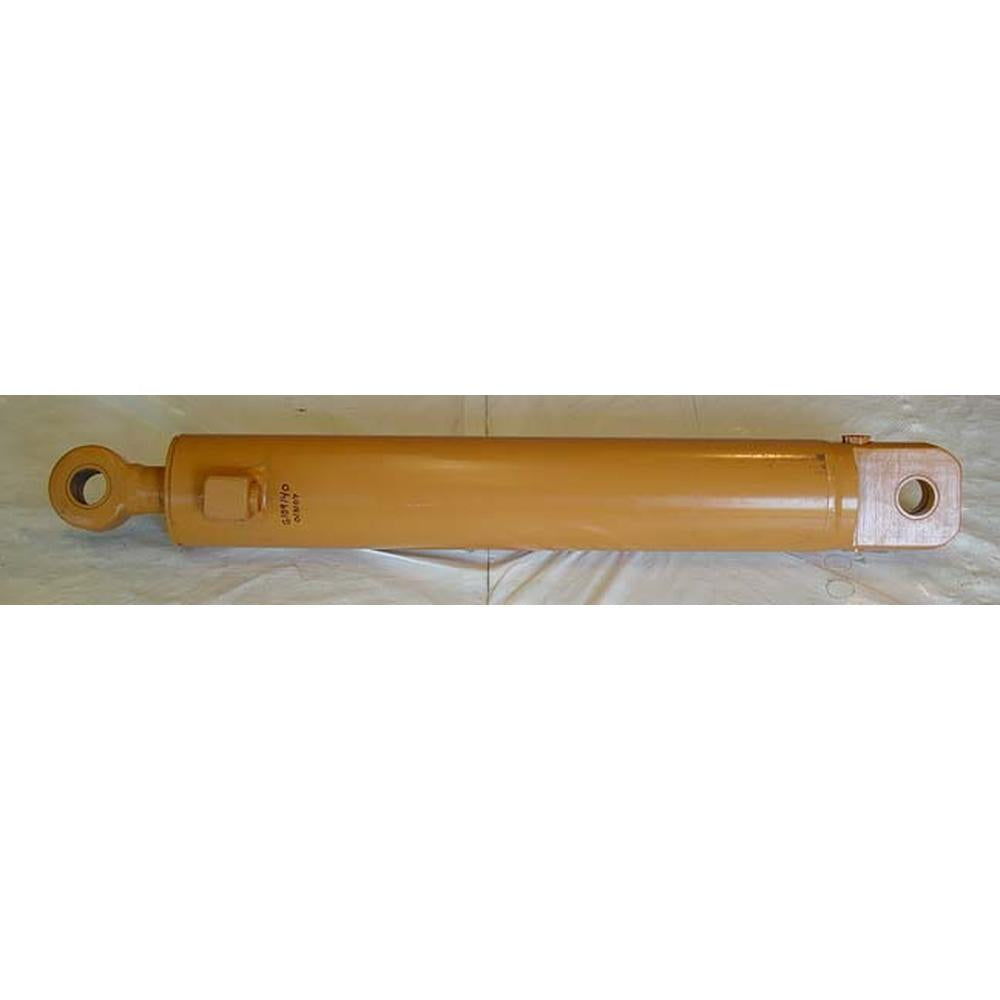

G109139 Stabilizer Cylinder, L/H – Fits Case – additional image 2

NC-008564 · Cylinders & Seal Kits

G109139 Stabilizer Cylinder, L/H – Fits Case

CAD 2519.33

Availability to confirm

Stabilizer Cylinder, L/H – reference G109139. Catalogue-listed applications: Case 580D, 580 Super D (580SD), 580E, 580 Super E (580SE). View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-008564
Reference numbers
G109139, G109139-40, G109140, G103253
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Stabilizer Cylinder, L/H - Fits Case 580D, 580E.

Configuration: Stabilizer Cylinder (L/H) Fits Case 580 Series Backhoe Loaders
This aftermarket hydraulic stabilizer (outrigger) cylinder is a direct replacement for the left-hand side of Fits Case 580 Series backhoe loaders. The stabilizer cylinders anchor the machine firmly to the ground during digging, lifting, and loading operations, providing the lateral stability required for safe and precise backhoe work. Note: this cylinder can be configured for either the left-hand or right-hand side by changing the plug -- verify your side requirement before ordering.
Specifications
Center to Center Length: 34-1/4"
Stroke Length: 21"
Rod Diameter: 2"
Bore: 4"
Configurable L/H or R/H by changing the plug
Compatible Models
Fits Case 580 Series Backhoe Loaders: 580D, 580 Super D (580SD), 580E, 580 Super E (580SE)
Replaces Part Number(s):
G109139, G109139-40, G109140, G103253
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: G109139, G109139-40, G109140, G103253

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 580D
  • Case 580 Super D (580SD)
  • Case 580E
  • Case 580 Super E (580SE)
Application notes
  • One New Aftermarket Replacement Stabilizer Cylinder (L/H) Fits Case 580 Series Backhoe Loaders
  • This aftermarket hydraulic stabilizer (outrigger) cylinder is a direct replacement for the left-hand side of Fits Case 580 Series backhoe loaders. The stabilizer cylinders anchor the machine firmly to the ground during digging, lifting, and loading operations, providing the lateral stability required for safe and precise backhoe work. Note: this cylinder can be configured for either the left-hand or right-hand side by changing the plug -- verify your side requirement before ordering.
  • New aftermarket replacement part - not remanufactured, not used.
