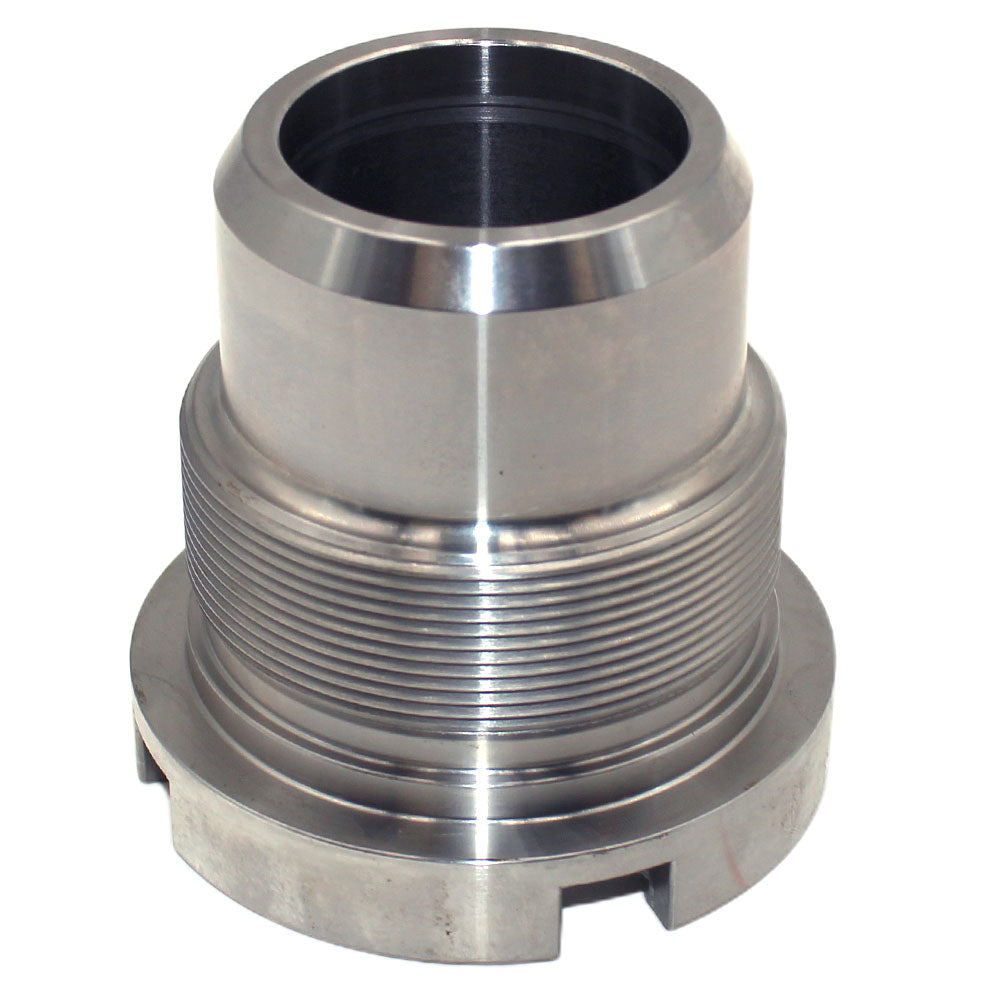

1482593 Head-Hyd Cylinder – Fits Caterpillar

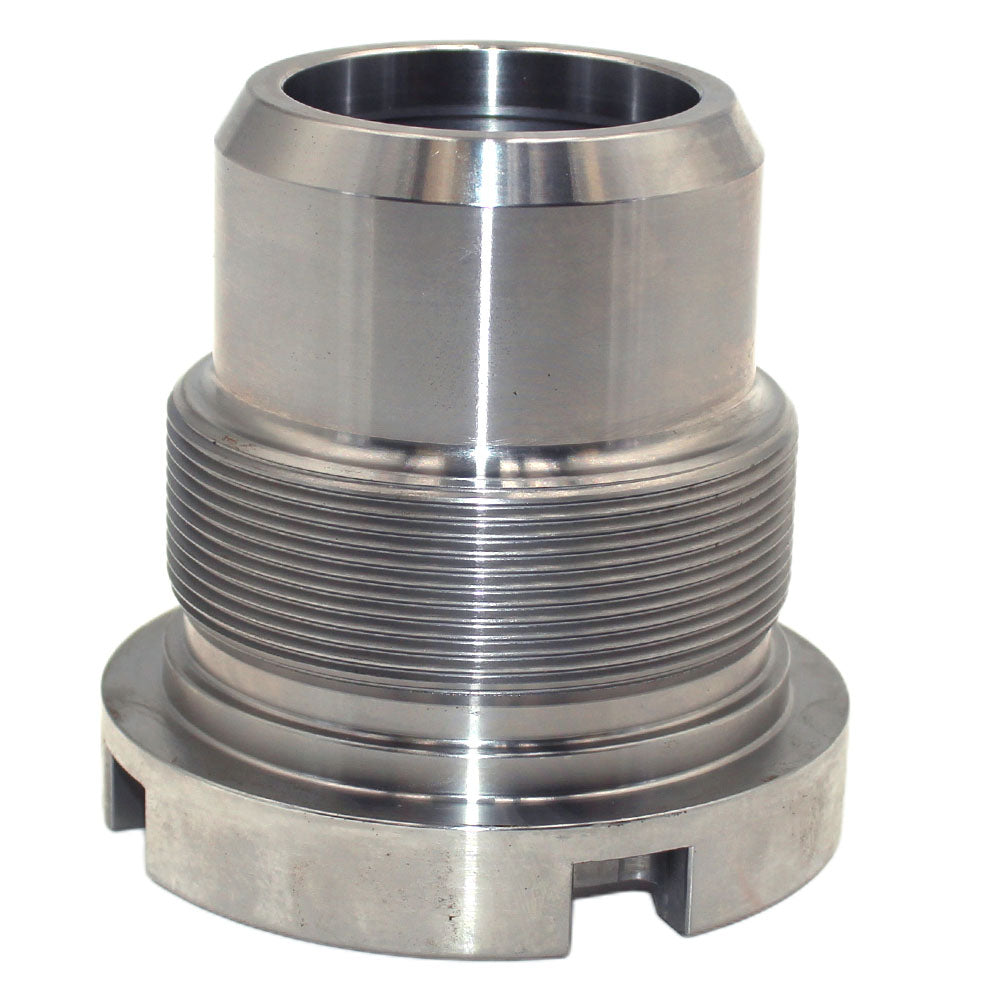

1482593 Head-Hyd Cylinder – Fits Caterpillar – additional image 21482593 Head-Hyd Cylinder – Fits Caterpillar – additional image 31482593 Head-Hyd Cylinder – Fits Caterpillar – additional image 41482593 Head-Hyd Cylinder – Fits Caterpillar – additional image 5

NC-008205 · Fittings

1482593 Head-Hyd Cylinder – Fits Caterpillar

CAD 309.67

Availability to confirm

Head-Hyd Cylinder – reference 1482593. Catalogue-listed applications: Caterpillar 12G, 12H, 12H ES, 12H NA, 12K, 12M, 2. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-008205
Reference numbers
1482593, CA1482593
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Head-Hyd Cylinder Fits Caterpillar Models.

Configuration: Hydraulic Cylinder Head for Caterpillar (Cat) Motor Graders
This aftermarket replacement hydraulic cylinder threaded gland head (Head-Hyd Cylinder) is a precision-fit component used in the hydraulic cylinder assemblies on Caterpillar motor graders. It replaces OEM part number 1482593 (also formatted as 148-2593) and is rated to withstand high hydraulic oil pressure in demanding construction applications.
Specifications
Outer Diameter (Flange): 98mm
Insert Diameter: 80.8mm
Insert Length: 79mm
Inside Diameter: 51.13mm
Weight: Approximately 3 lbs (1 kg)
Material: Ductile Iron Casting
Compatible Models
Caterpillar Motor Graders: 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 160G, 160H, 160H ES, 160H NA, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 163H, 163H NA
Replaces Part Number(s):
1482593, 148-2593, CA1482593
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 1482593, CA1482593

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Caterpillar 12G
  • Caterpillar 12H
  • Caterpillar 12H ES
  • Caterpillar 12H NA
  • Caterpillar 12K
  • Caterpillar 12M
  • Caterpillar 2
  • Caterpillar 3
  • Caterpillar 120H
  • Caterpillar 120H ES
  • Caterpillar 120H NA
  • Caterpillar 120K
  • Caterpillar 120M
  • Caterpillar 130G
  • Caterpillar 135H
  • Caterpillar 135H NA
  • Caterpillar 140G
  • Caterpillar 140H
  • Caterpillar 140H ES
  • Caterpillar 140H NA
  • Caterpillar 140K
  • Caterpillar 140M
  • Caterpillar 143H
  • Caterpillar 160G
  • Caterpillar 160H
  • Caterpillar 160H ES
  • Caterpillar 160H NA
  • Caterpillar 160K
  • Caterpillar 160M
  • Caterpillar 163H
  • Caterpillar 163H NA
Application notes
  • One New Aftermarket Replacement Hydraulic Cylinder Head for Caterpillar (Cat) Motor Graders
  • This aftermarket replacement hydraulic cylinder threaded gland head (Head-Hyd Cylinder) is a precision-fit component used in the hydraulic cylinder assemblies on Caterpillar motor graders. It replaces OEM part number 1482593 (also formatted as 148-2593) and is rated to withstand high hydraulic oil pressure in demanding construction applications.
  • New aftermarket replacement part - not remanufactured, not used.
