1577338 Edge-Cutting – Fits Caterpillar

NC-008196 · Other Parts

1577338 Edge-Cutting – Fits Caterpillar

CAD 181.45

Availability to confirm

Edge-Cutting – reference 1577338. Catalogue-listed applications: Caterpillar D3C, D3G, D3K, D3K XL, D3K2 LGP, D4G, D4K. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-008196
Reference numbers
1577338, CA1577338
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Edge-Cutting Fits Caterpillar Models.

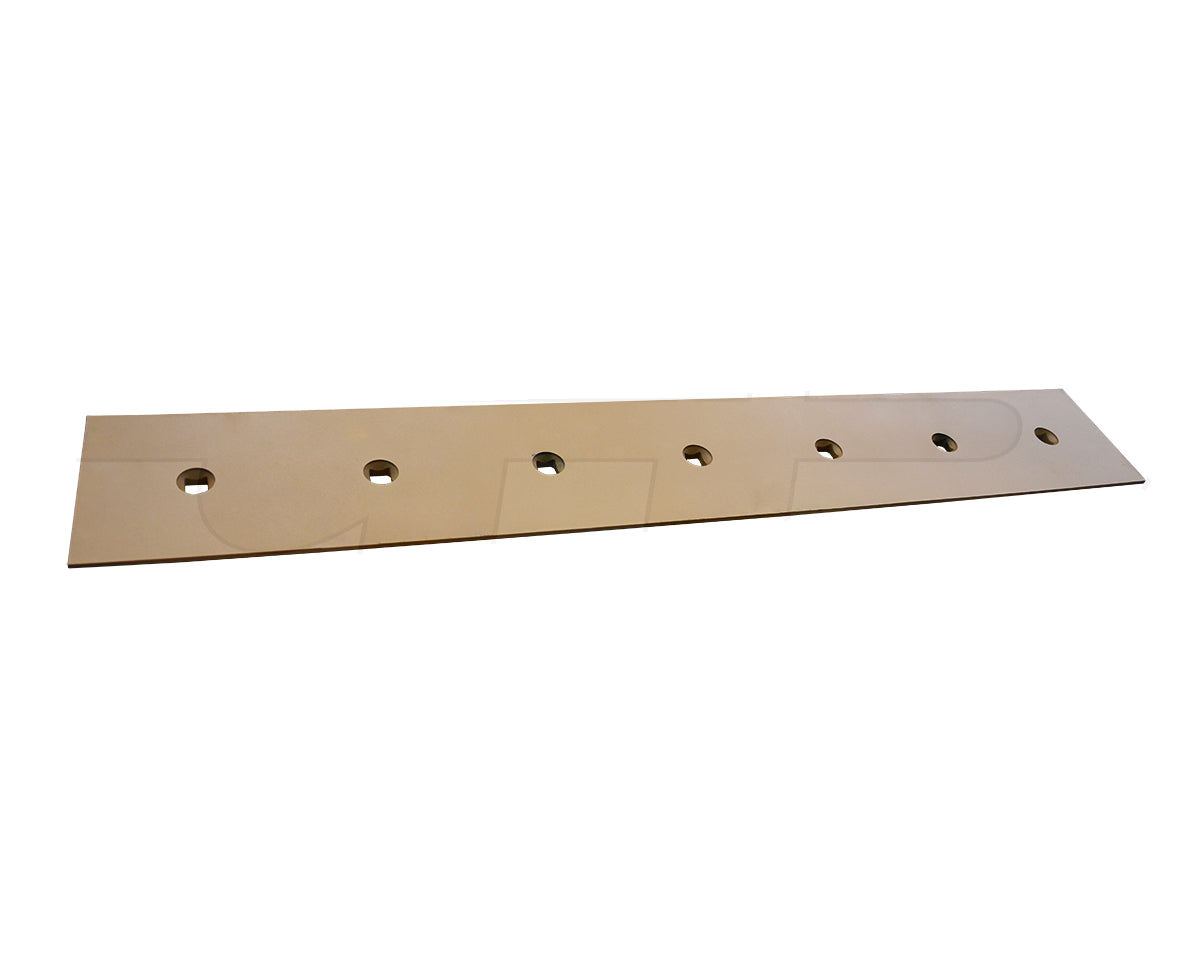

Configuration: Center Cutting Edge for Caterpillar (Cat) D-Series Dozers
This aftermarket replacement center cutting edge installs on the dozer blade of Caterpillar (Cat) D3 through D5 series track-type tractors. The bolt-on center blade edge is a wear part that protects the blade and provides ground-engaging cutting action during earthmoving and grading operations. Replaces OEM part number 1577338 (also formatted as 157-7338).
Specifications
Position: Center blade cutting edge
Thickness: 5/8 in (16 mm)
Width: 6-1/2 in (165 mm)
Length: 43-1/4 in (1099 mm)
Weight: approximately 41-44 lbs (18.6-20 kg)
Number of bolt holes: 7
Bolt hole size: 5/8 in (18 mm) diameter
Hole spacing: 6 in center to center (152.4 mm)
Hardware required: (7) 4F3656 bolts and (7) 4K0367 nuts (sold separately)
Compatible Models
Caterpillar D3 Series: D3C, D3G, D3K, D3K XL, D3K2 LGP
Caterpillar D4 Series: D4G, D4K, D4K XL, D4K2 XL
Caterpillar D5 Series: D5G, D5K, D5K LGP, D5K2 XL
Replaces Part Number(s):
1577338, 157-7338, CA1577338
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 1577338, CA1577338

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Caterpillar D3C
  • Caterpillar D3G
  • Caterpillar D3K
  • Caterpillar D3K XL
  • Caterpillar D3K2 LGP
  • Caterpillar D4G
  • Caterpillar D4K
  • Caterpillar D4K XL
  • Caterpillar D4K2 XL
  • Caterpillar D5G
  • Caterpillar D5K
  • Caterpillar D5K LGP
  • Caterpillar D5K2 XL
Application notes
  • One New Aftermarket Replacement Center Cutting Edge for Caterpillar (Cat) D-Series Dozers
  • This aftermarket replacement center cutting edge installs on the dozer blade of Caterpillar (Cat) D3 through D5 series track-type tractors. The bolt-on center blade edge is a wear part that protects the blade and provides ground-engaging cutting action during earthmoving and grading operations. Replaces OEM part number 1577338 (also formatted as 157-7338).
  • New aftermarket replacement part - not remanufactured, not used.
