2040910 Fan As – Fits Caterpillar
2040910 Fan As – Fits Caterpillar – additional image 2

NC-008148 · Other Parts

2040910 Fan As – Fits Caterpillar

CAD 188.58

Availability to confirm

Fan As – reference 2040910. Catalogue-listed applications: Caterpillar 318C, 319C, 320C, 320C FM, 320C L, 320C LN, 320C LRR. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-008148
Reference numbers
2040910
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Fan As Fits Caterpillar Models.

Configuration: Fan Assembly for Caterpillar (Cat) Hydraulic Excavators

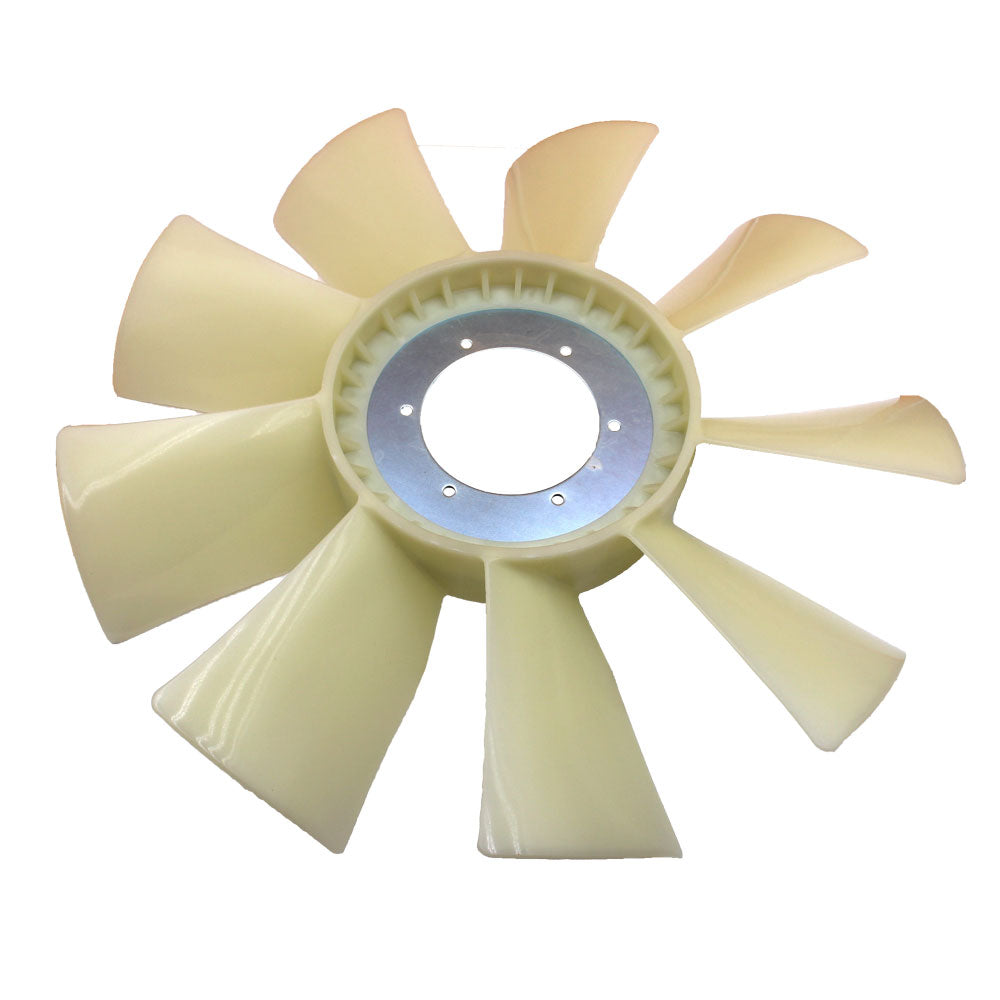

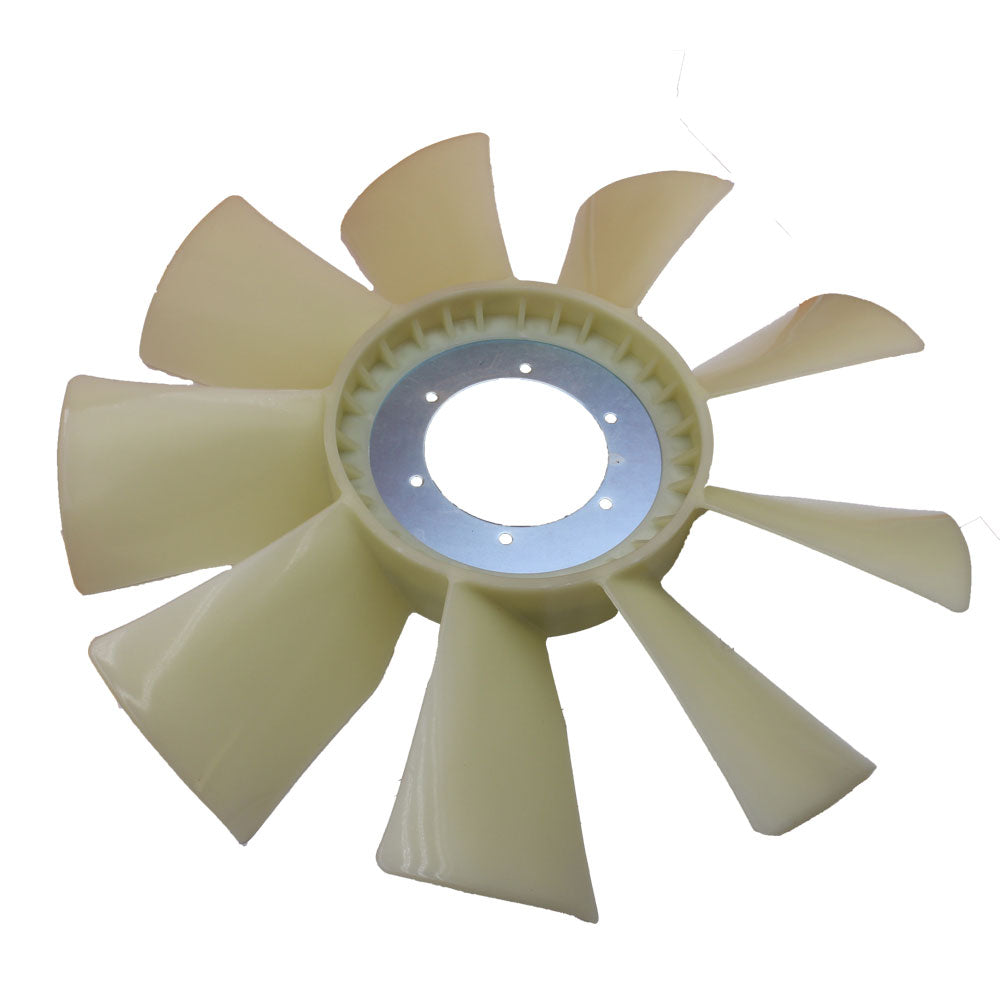

This 9-blade suction-type engine cooling fan assembly (Fan As) mounts to the radiator cooling system on Caterpillar C-Series hydraulic excavators powered by the 3066 and C-9 engines. Replaces OEM part number 2040910 (also formatted as 204-0910).
Specifications
Number of Blades: 9
Type: Suction
Outer Diameter (OD): 720 mm
Pilot Hole Diameter: 145 mm
Bolt Circle Diameter: 170 mm
Number of Pitch Holes: 6
Pitch Circle Hole Diameter: 9 mm
Hub Thickness: 14.07 mm
Blade Width: 95 mm
Weight: Approx. 9.6 lbs (4.32 kg)
Compatible Models
Caterpillar C-Series Hydraulic Excavators: 318C, 319C, 320C, 320C FM, 320C L, 320C LN, 320C LRR, 320C S, 320C U, 320C LU, 321C, 321C LCR, 330C, 330C FM, 330C L, 330C LN, 330C MH
Compatible engines: Caterpillar 3066, C-9
Replaces Part Number(s):
2040910, 204-0910
Aftermarket Interchange Numbers
CA2040910
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 2040910

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Caterpillar 318C
  • Caterpillar 319C
  • Caterpillar 320C
  • Caterpillar 320C FM
  • Caterpillar 320C L
  • Caterpillar 320C LN
  • Caterpillar 320C LRR
  • Caterpillar 320C S
  • Caterpillar 320C U
  • Caterpillar 320C LU
  • Caterpillar 321C
  • Caterpillar 321C LCR
  • Caterpillar 330C
  • Caterpillar 330C FM
  • Caterpillar 330C L
  • Caterpillar 330C LN
  • Caterpillar 330C MH
  • Caterpillar C-9
Application notes
  • One New Aftermarket Replacement Fan Assembly for Caterpillar (Cat) Hydraulic Excavators
  • Aftermarket Interchange Numbers
  • New aftermarket replacement part - not remanufactured, not used.
