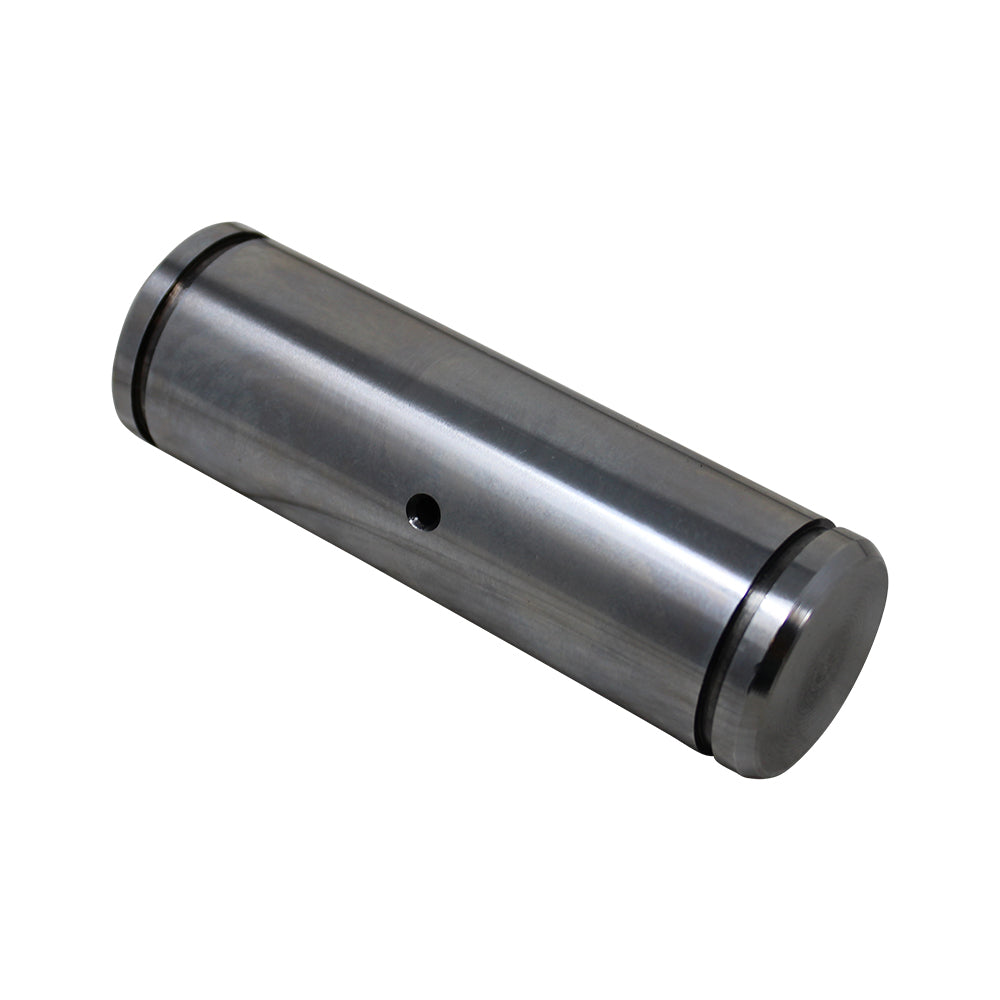

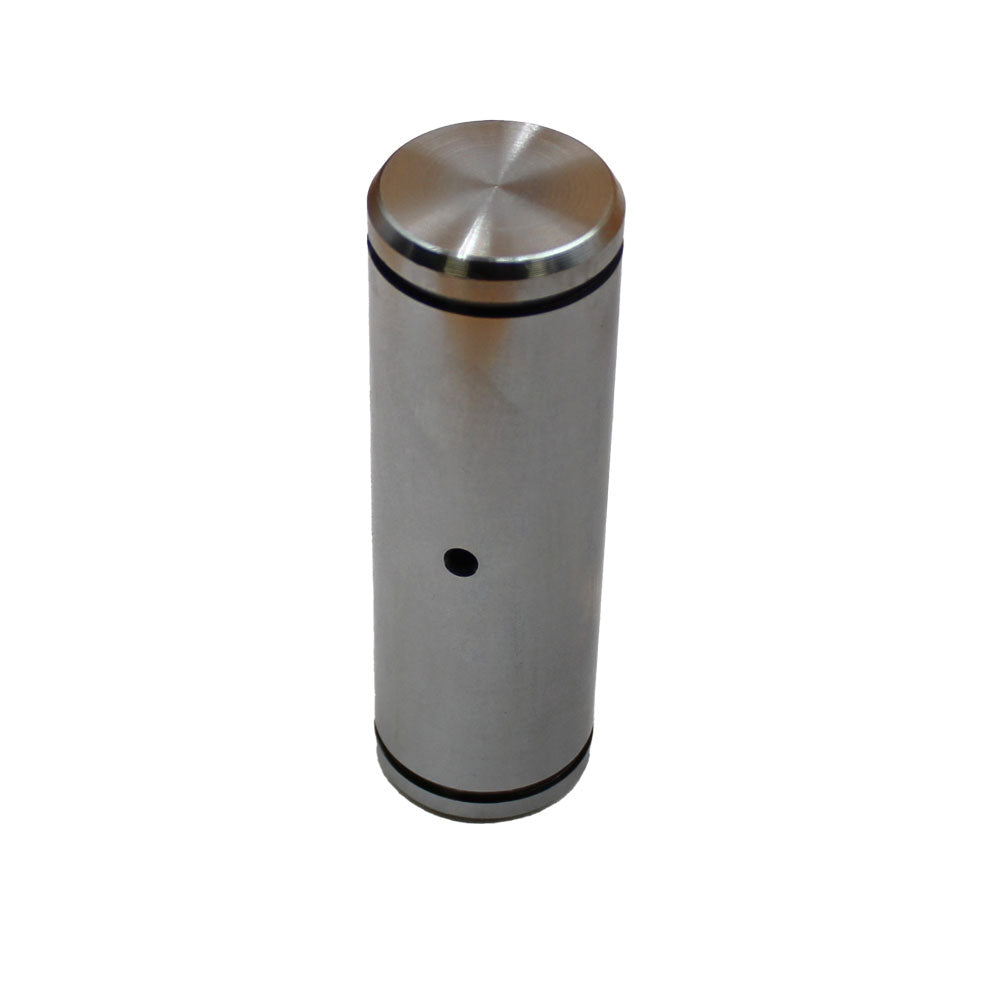

116339A1 Cylinder Pin – Fits Case / International Harvester

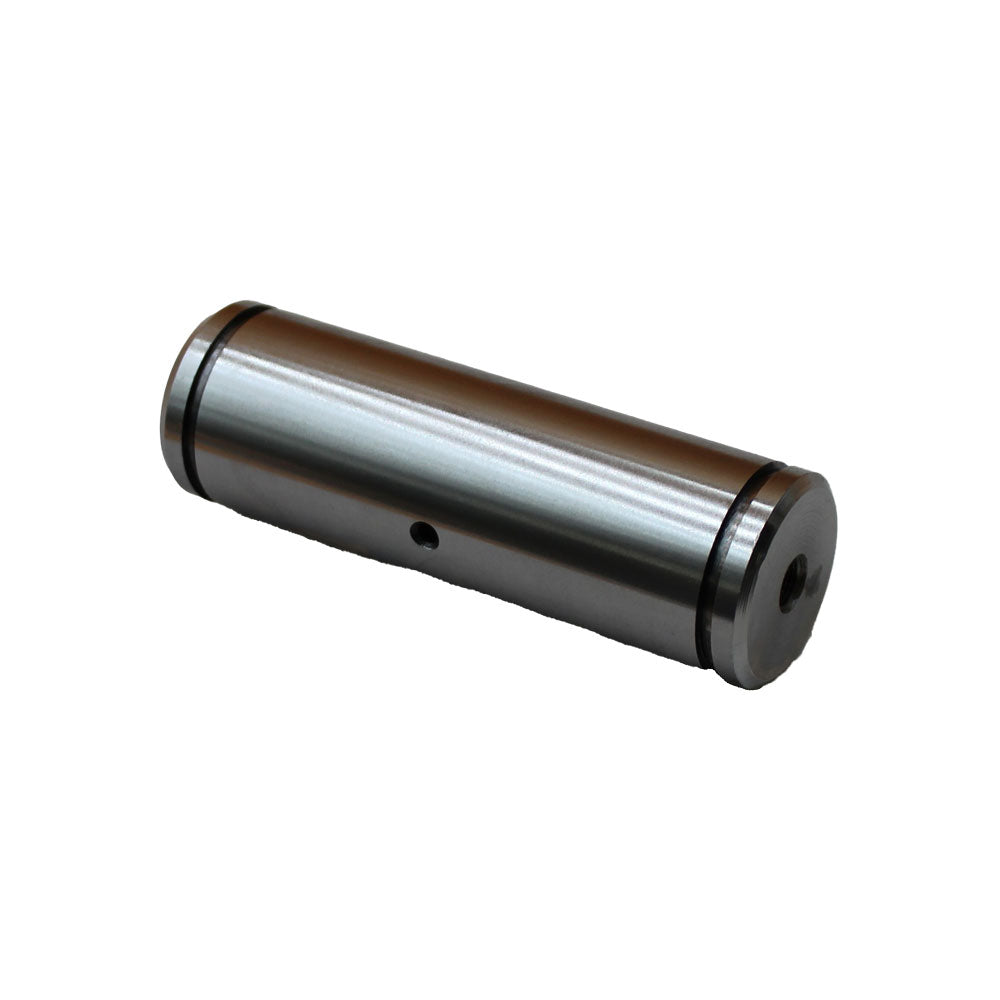

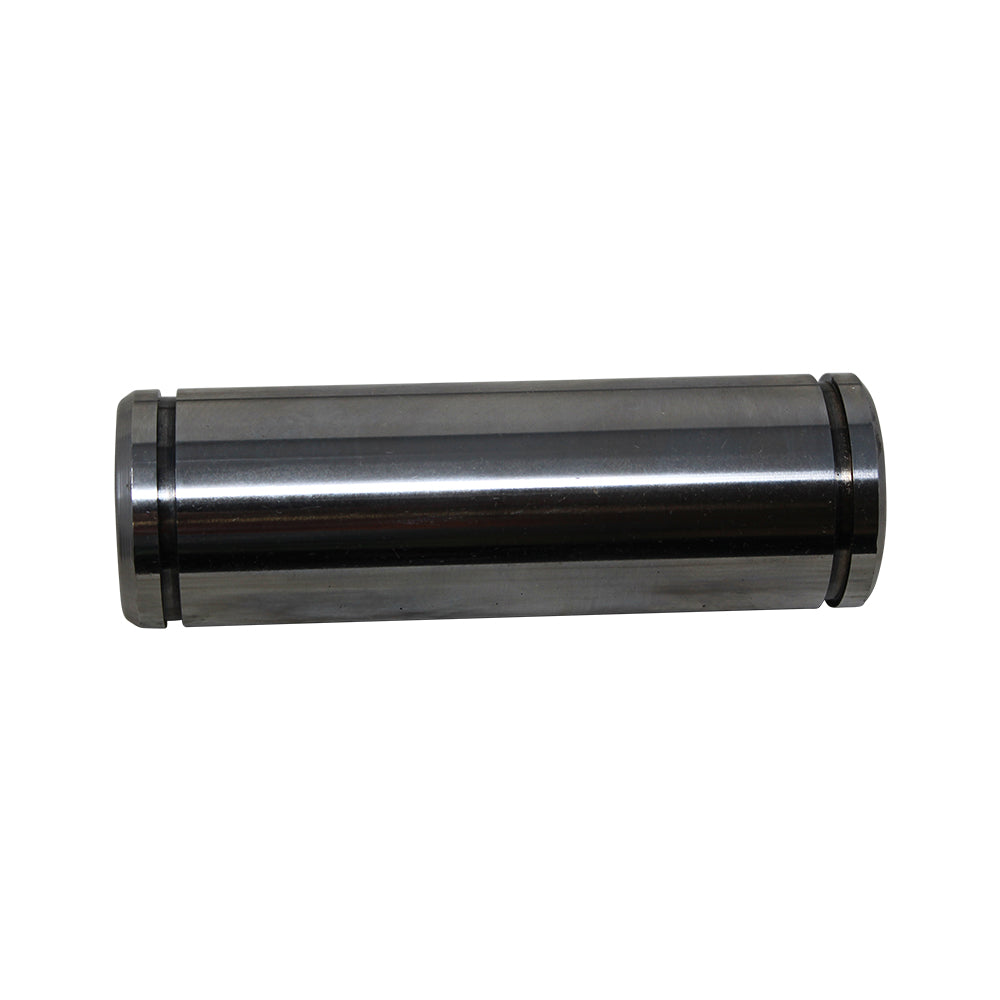

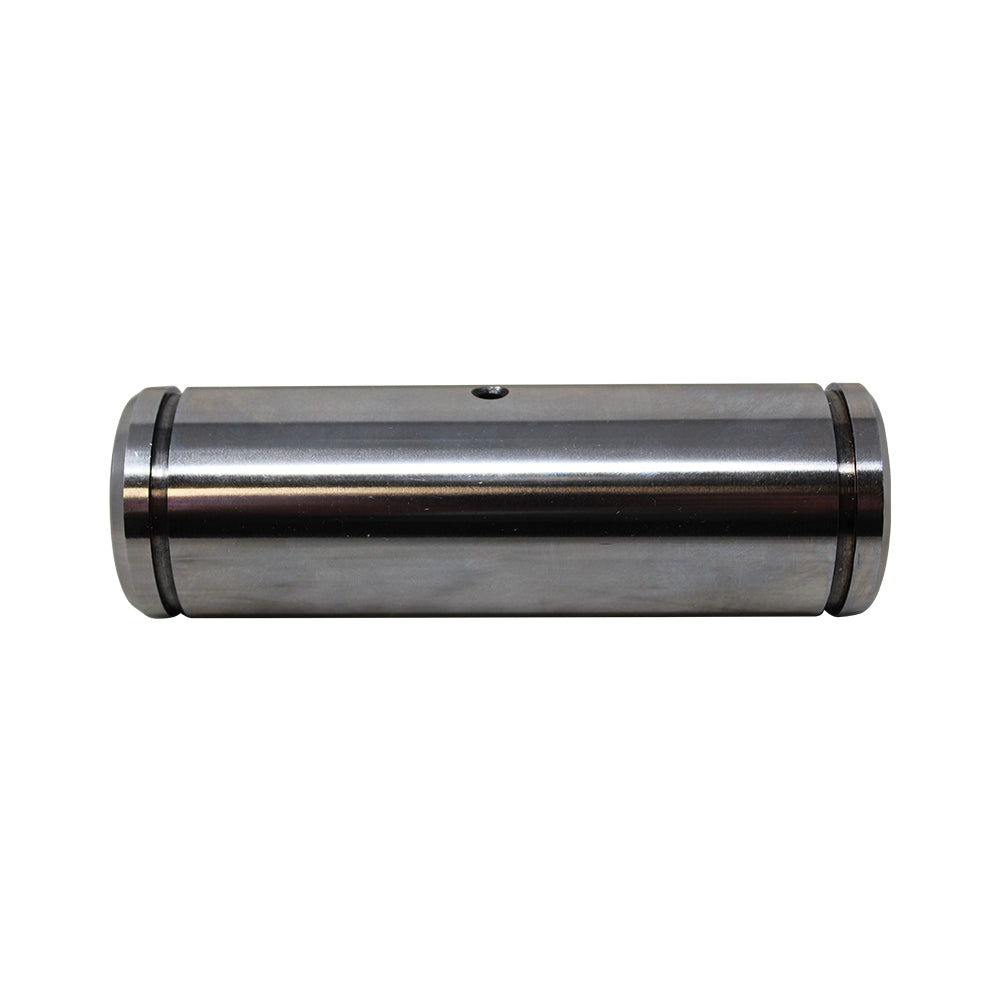

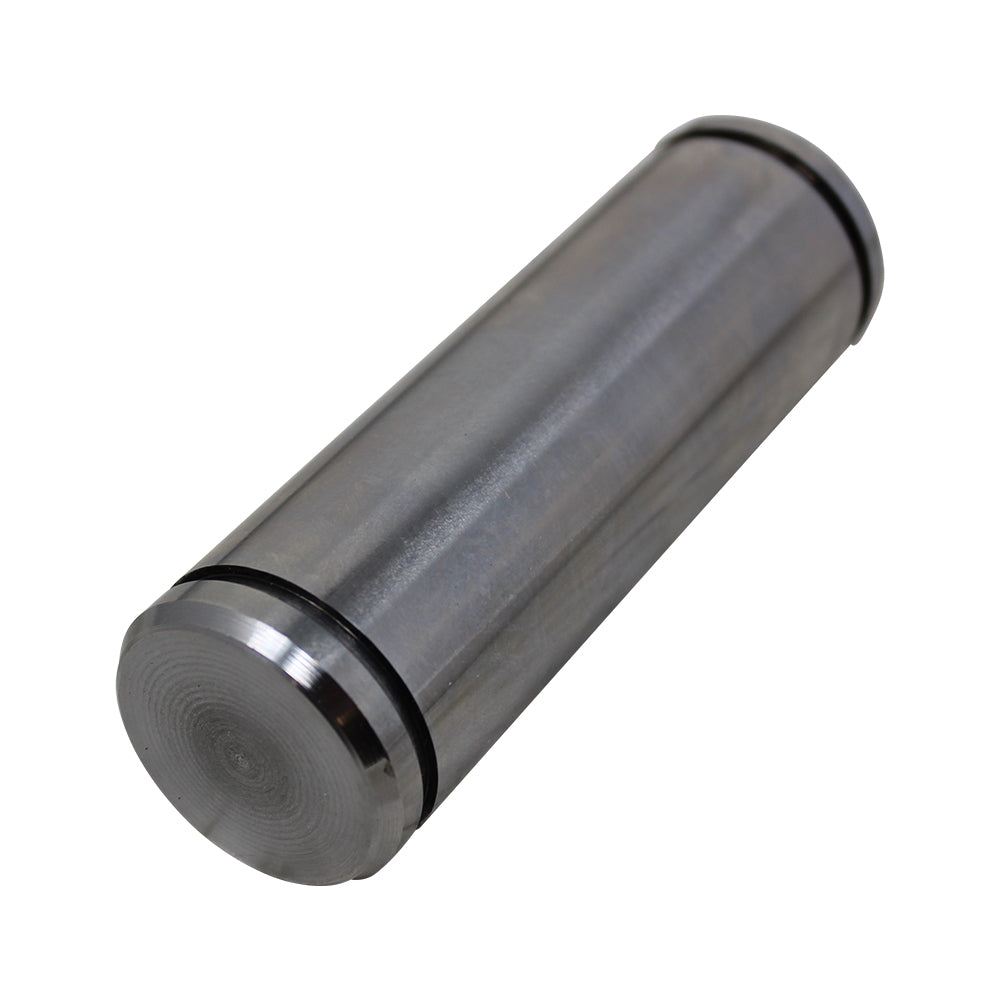

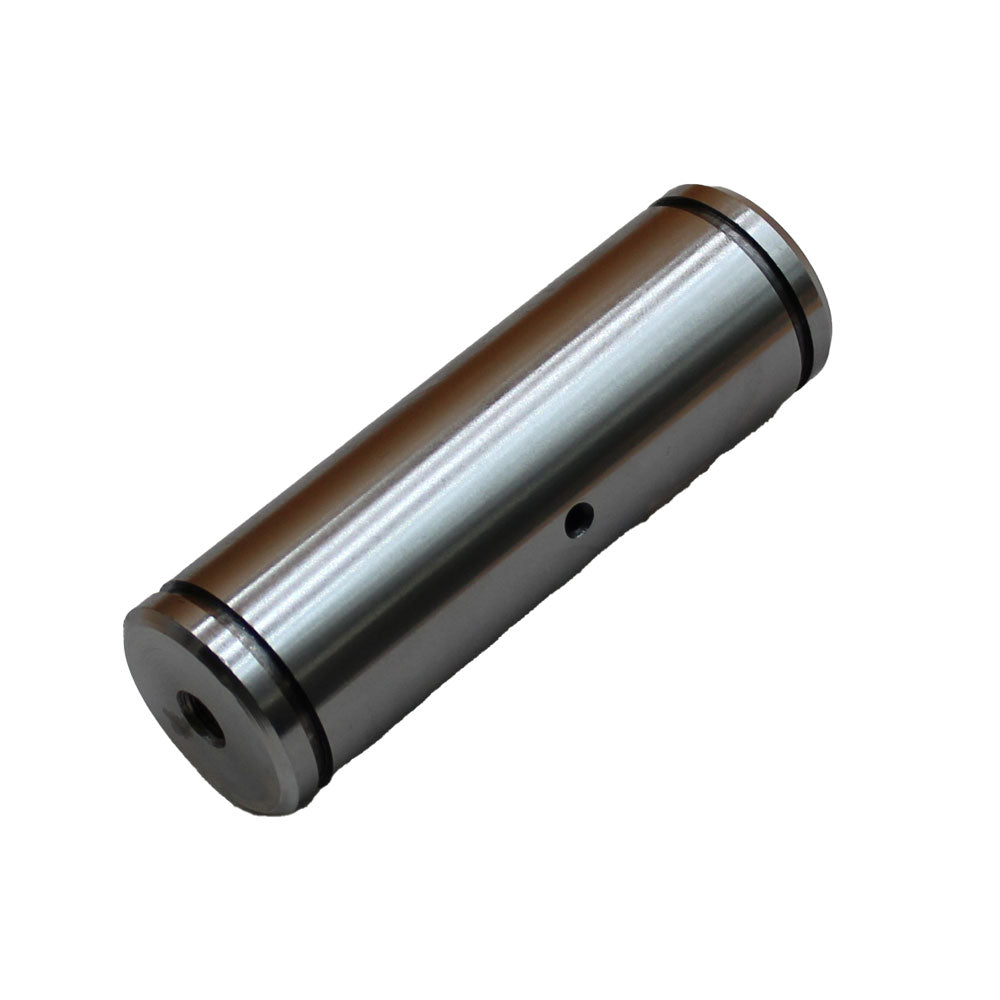

116339A1 Cylinder Pin – Fits Case / International Harvester – additional image 2116339A1 Cylinder Pin – Fits Case / International Harvester – additional image 3116339A1 Cylinder Pin – Fits Case / International Harvester – additional image 4116339A1 Cylinder Pin – Fits Case / International Harvester – additional image 5116339A1 Cylinder Pin – Fits Case / International Harvester – additional image 6116339A1 Cylinder Pin – Fits Case / International Harvester – additional image 7

NC-007353 · Hardware

116339A1 Cylinder Pin – Fits Case / International Harvester

CAD 48.08

In stock

Cylinder Pin – reference 116339A1. Catalogue-listed applications: Case / International Harvester 580L, 580 Super L, 580M, 580 Super M. Length: 124.46 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-007353
Reference numbers
116339A1
Length
124.46 mm
Product information and configuration
Replacement part: Cylinder Pin Fits Case/International Harvester.

Configuration: Cylinder Pin
Specifications:
-Total Length: 4.9" (125 mm)
-Biggest Finished Diameter: 1.6" (40 mm)
-Number of Radial Grooves: 2
-Number of Grease Holes: 1
-Number of Grease Entrances: 1
-Number of Internal Threads: 1
-Size of Internal Thread: 1/8"
-Type of Internal Thread: BSP
-Internal Thread Pitch (Imperial): 28 tpi
-Right or Left Handed Internal Thread: Right Handed
-Application: Rod End Pin for Bucket Hydraulic Cylinder
Fits Case/International Harvester:
Backhoe Models: 580L, 580 Super L, 580M, 580 Super M
Replaces Part Number(s): 116339A1

Reference numbers: 116339A1

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case / International Harvester 580L
  • Case / International Harvester 580 Super L
  • Case / International Harvester 580M
  • Case / International Harvester 580 Super M
Application notes
  • Aftermarket Cylinder Pin
