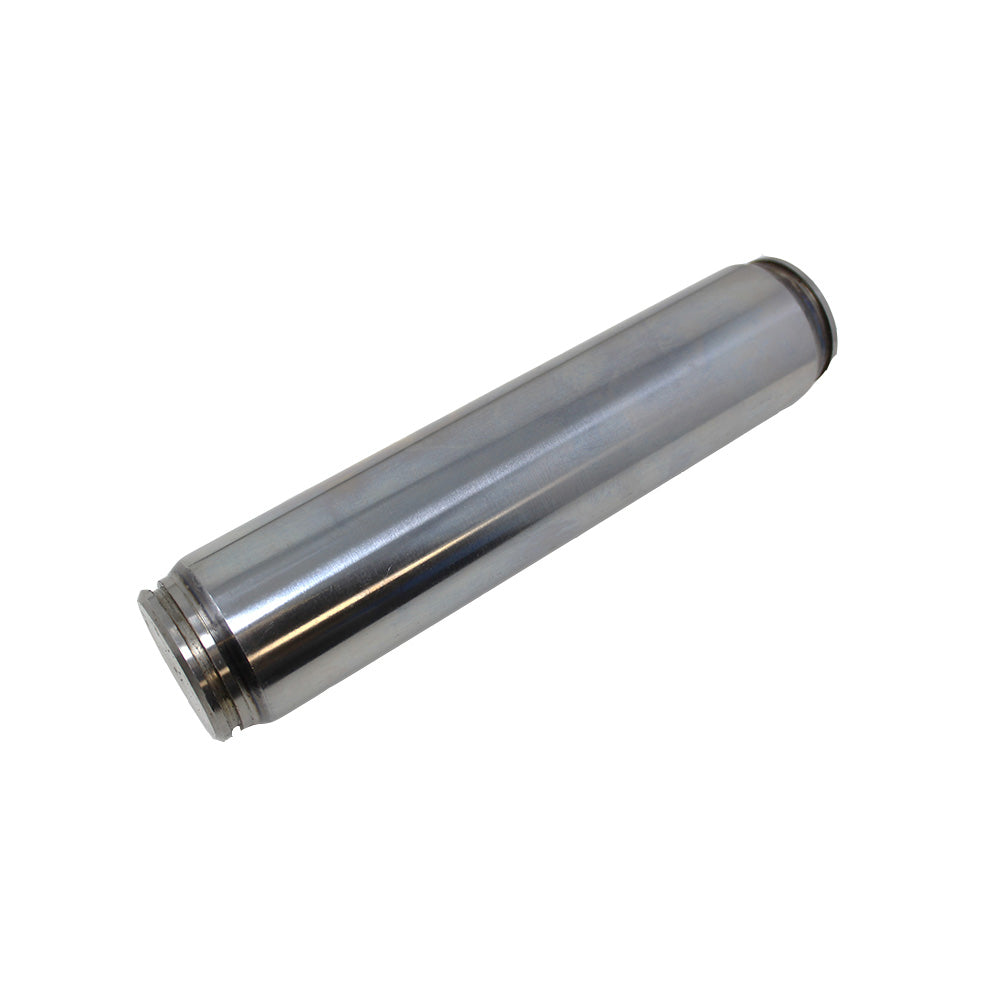

129040A1 Pin dipper cylinder to boom – Fits Case

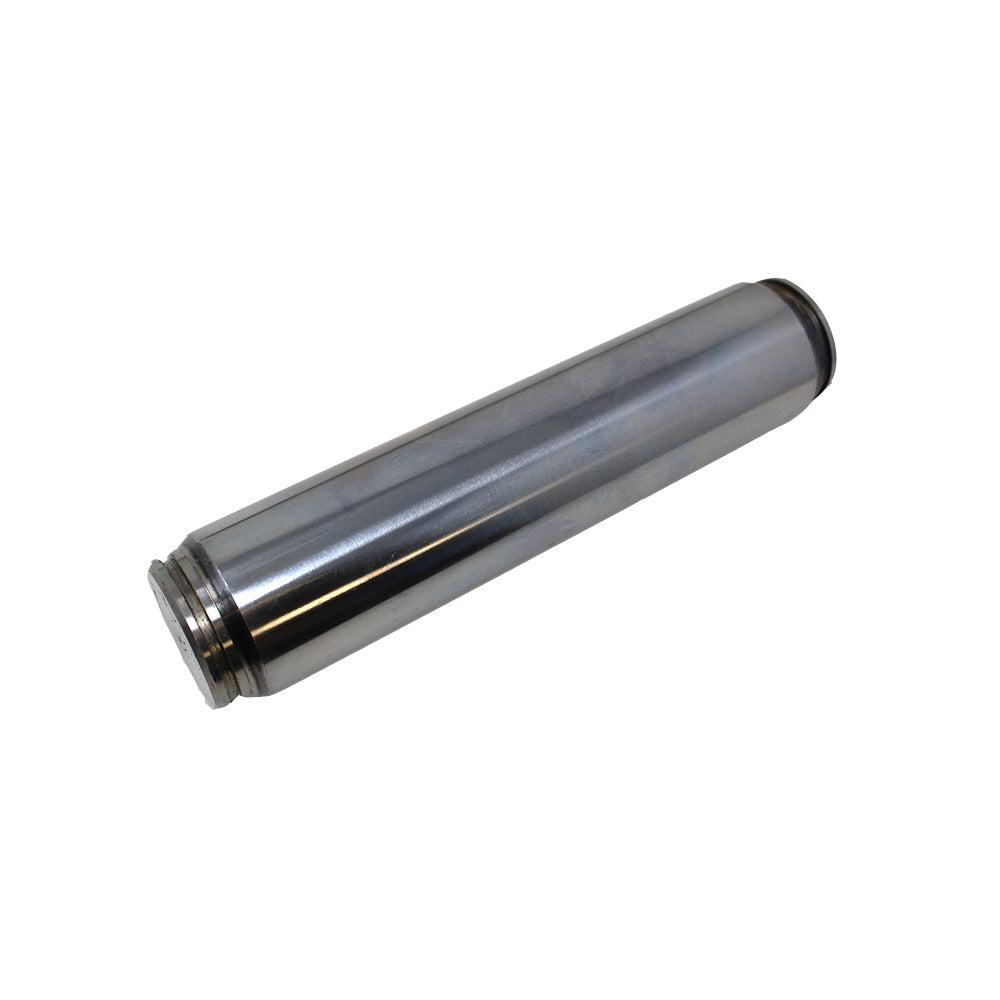

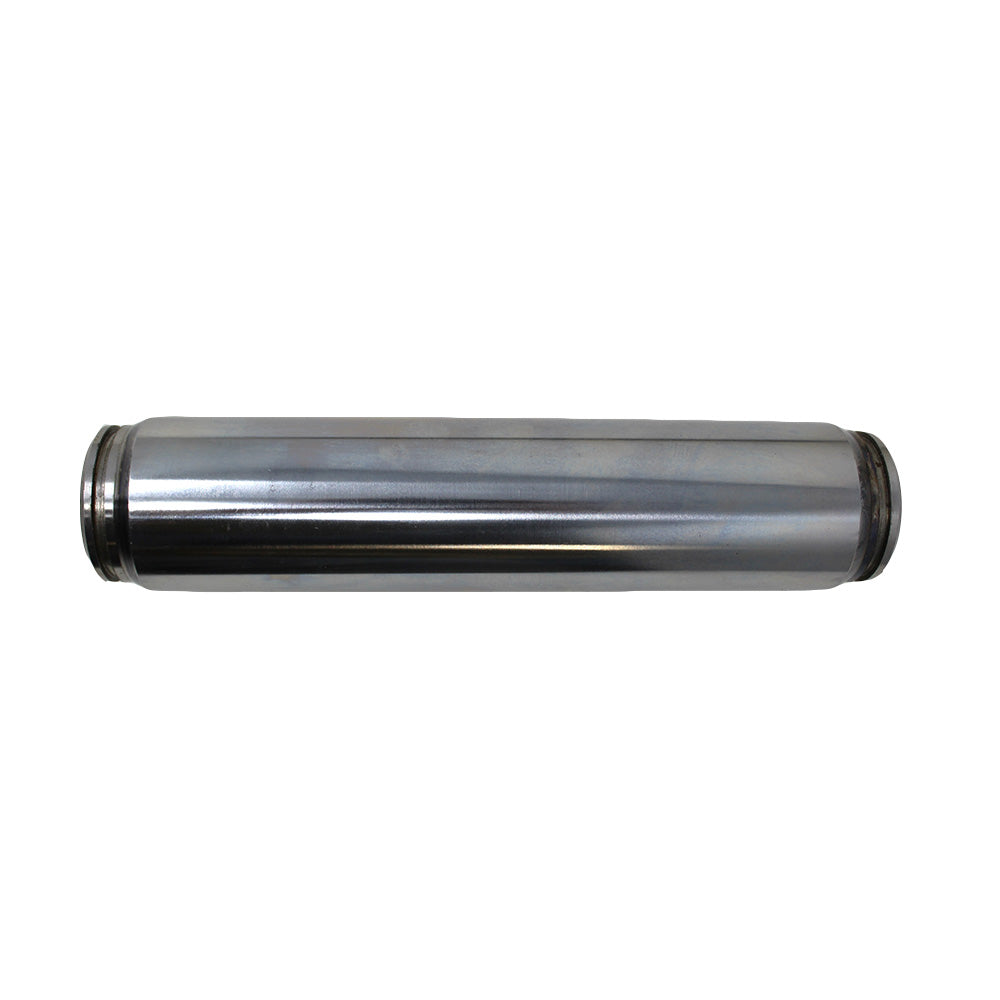

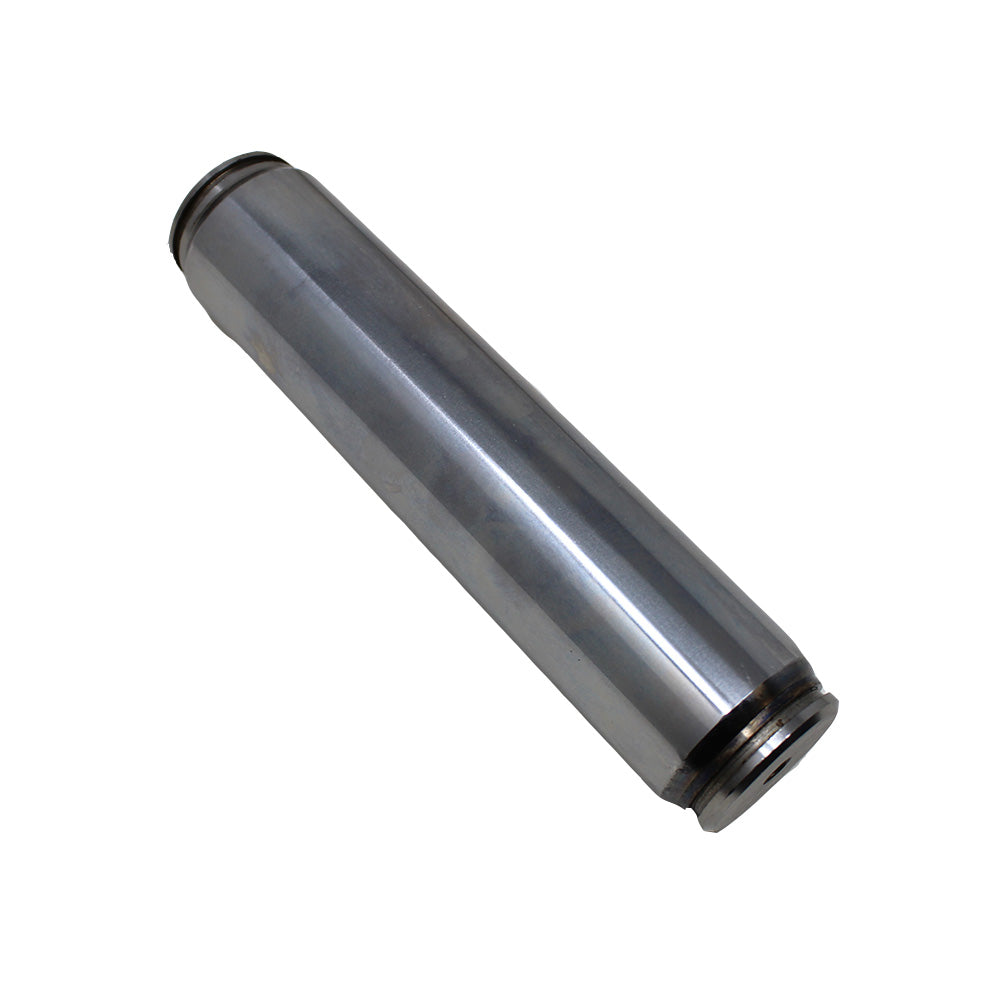

129040A1 Pin dipper cylinder to boom – Fits Case – additional image 2129040A1 Pin dipper cylinder to boom – Fits Case – additional image 3129040A1 Pin dipper cylinder to boom – Fits Case – additional image 4

NC-007316 · Hardware

129040A1 Pin dipper cylinder to boom – Fits Case

CAD 217.76

In stock

Pin dipper cylinder to boom – reference 129040A1. Catalogue-listed applications: Case 580L, 580M, 570LXT, 580L Series 2 (Series II), 580M Series II, 580M Series III, 570LXT Series II. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-007316
Reference numbers
129040A1, BAN90-0015
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Pin dipper cylinder to boom Fits Case 580L, 580L Series 2, 580M.

Configuration: Dipper Cylinder to Boom Pin Fits Case Backhoe Loaders
This pin connects the dipper cylinder to the boom on Fits Case backhoe loader models, serving as a critical pivot point in the backhoe arm assembly. It is a direct-fit aftermarket replacement for the OEM Fits Case part number 129040A1, designed to meet or exceed original equipment specifications.
Compatible Models
Fits Case Backhoe Loaders: 580L, 580L Series 2 (Series II), 580M, 580M Series II, 580M Series III
Fits Case Loader Landscapers: 570LXT, 570LXT Series II
Replaces Part Number(s):
129040A1, BAN90-0015
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 129040A1, BAN90-0015

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 580L
  • Case 580M
  • Case 570LXT
  • Case 580L Series 2 (Series II)
  • Case 580M Series II
  • Case 580M Series III
  • Case 570LXT Series II
Application notes
  • One New Aftermarket Replacement Dipper Cylinder to Boom Pin Fits Case Backhoe Loaders
  • This pin connects the dipper cylinder to the boom on Fits Case backhoe loader models, serving as a critical pivot point in the backhoe arm assembly. It is a direct-fit aftermarket replacement for the OEM Fits Case part number 129040A1, designed to meet or exceed original equipment specifications.
  • New aftermarket replacement part - not remanufactured, not used.
