D135690 Pin Dipper to bucket, 12" buckets only
D135690 Pin Dipper to bucket, 12" buckets only – additional image 2D135690 Pin Dipper to bucket, 12" buckets only – additional image 3D135690 Pin Dipper to bucket, 12" buckets only – additional image 4D135690 Pin Dipper to bucket, 12" buckets only – additional image 5

NC-006062 · Hardware

D135690 Pin Dipper to bucket, 12" buckets only

CAD 282.82

Availability to confirm

Pin Dipper to bucket, 12" buckets only – reference D135690. Catalogue-listed applications: Case, Case / International Harvester, International Harvester 480C, 480D, 480E, 580B, 580C, 580D, 580E. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-006062
Reference numbers
D135690, D102246
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Pin Dipper to bucket, 12" buckets only Fits Case 580K, 580SK.

Configuration: Dipper-to-Bucket Pin for Case (Case/IH) Backhoe Loaders - 12" Buckets Only

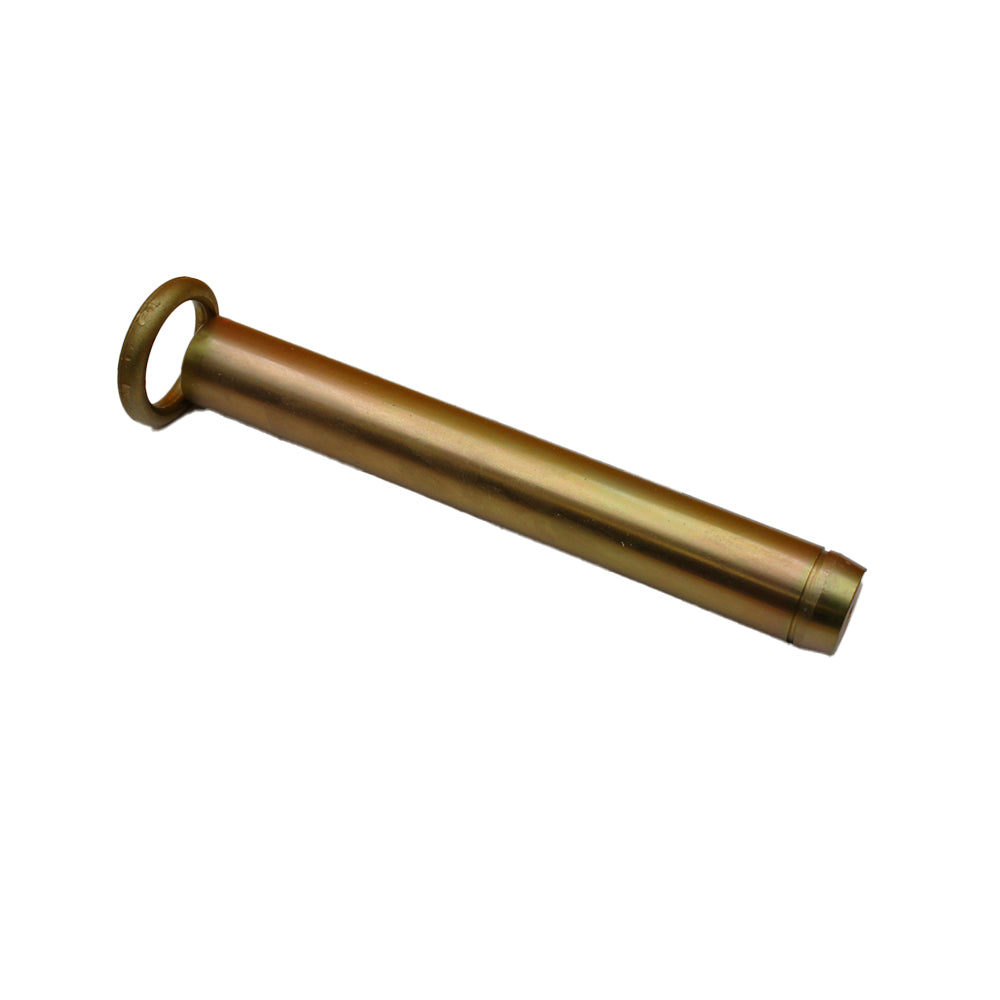

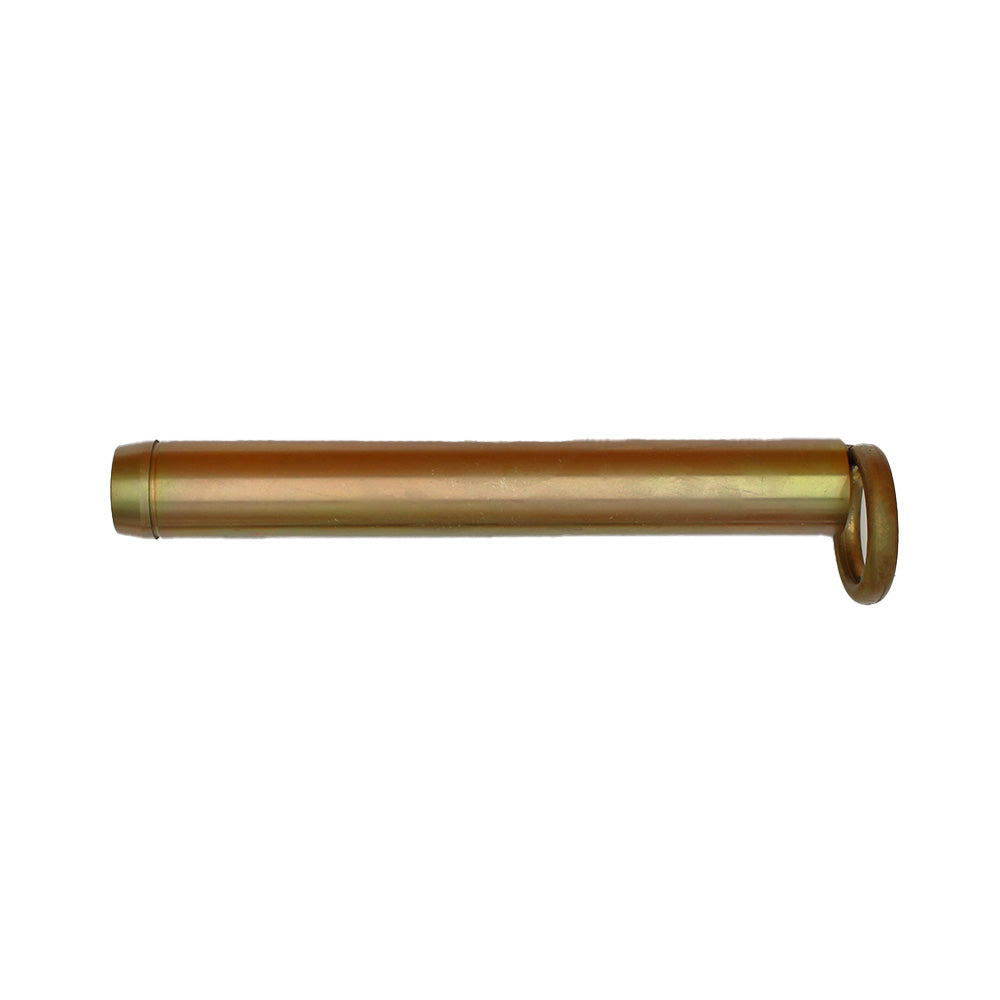

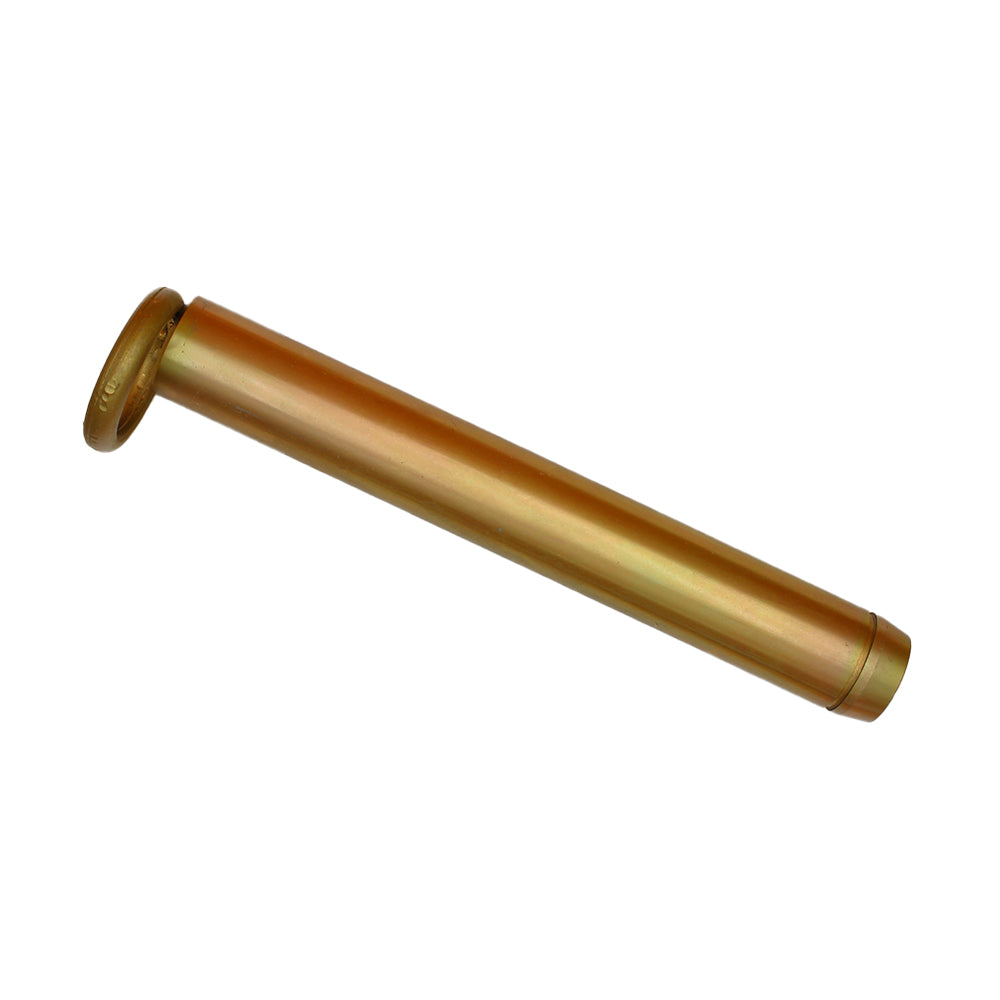

This aftermarket replacement dipper-to-bucket pin connects 12-inch wide backhoe buckets to the dipper stick on Case 480, 580, 590, and 680 Series backhoe loaders. The pin features a welded ring on one side to make bucket changes easier and is precision-machined to OEM dimensions for a secure, reliable fit. This part is for use with 12-inch wide buckets only -- confirm your bucket width before ordering.
Specifications
Compatible with: 12" Bucket Only
Length (End of Pin to Snap Ring Groove): 12-7/8"
Outer Diameter: 1-3/4"
Compatible Models
Case 480 Series: 480B, 480C, 480D, 480E
Case 580 Series: 580, 580B, 580C, 580D, 580E, 580K, 580SK (580 Super K), 580L, 580SL (580 Super L), 580M, 580SM (580 Super M), 580SE
Case 590 Series: 590 Turbo, 590 Super L
Case 680 Series: 680, 680C, 680E
Replaces Part Number(s):
D135690, D102246
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: D135690, D102246

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 480C
  • Case 480D
  • Case 480E
  • Case 580B
  • Case 580C
  • Case 580D
  • Case 580E
  • Case 580K
  • Case 580SK (580 Super K)
  • Case 580L
  • Case 580SL (580 Super L)
  • Case 580M
  • Case 580SM (580 Super M)
  • Case 580SE
  • Case 590 Super L
  • Case 680C
  • Case 680E
Application notes
  • One New Aftermarket Replacement Dipper-to-Bucket Pin for Case (Case/IH) Backhoe Loaders - 12" Buckets Only
  • This aftermarket replacement dipper-to-bucket pin connects 12-inch wide backhoe buckets to the dipper stick on Case 480, 580, 590, and 680 Series backhoe loaders. The pin features a welded ring on one side to make bucket changes easier and is precision-machined to OEM dimensions for a secure, reliable fit. This part is for use with 12-inch wide buckets only -- confirm your bucket width before ordering.
  • Compatible with: 12" Bucket Only
  • New aftermarket replacement part - not remanufactured, not used.
