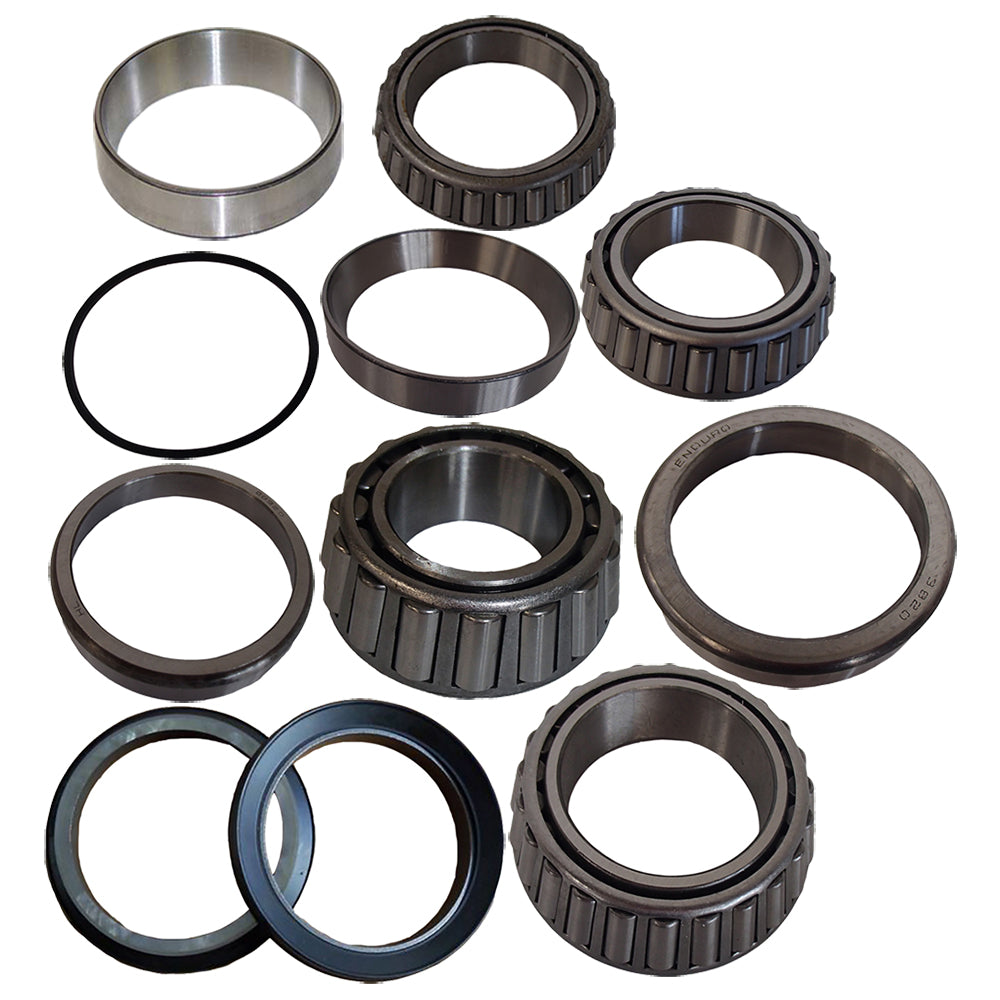

AT39525 Final Drive Bearing Kit
AT39525 Final Drive Bearing Kit – additional image 2AT39525 Final Drive Bearing Kit – additional image 3AT39525 Final Drive Bearing Kit – additional image 4AT39525 Final Drive Bearing Kit – additional image 5AT39525 Final Drive Bearing Kit – additional image 6AT39525 Final Drive Bearing Kit – additional image 7AT39525 Final Drive Bearing Kit – additional image 8

NC-006051 · Other Dozer Parts

AT39525 Final Drive Bearing Kit

CAD 544.99

Availability to confirm

Final Drive Bearing Kit – reference AT39525. Catalogue-listed applications: John Deere, Long. Bore Diameter: 60.325 mm; Length: 155.956 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-006051
Reference numbers
AT39525, AT36096, AT18876, AT36098, AT72157, 9671391, T120970, 8154, 8223, 3820, 8182, 8079, 3877, 9119, 9086, 9118, 9055, 8208
Listed package quantity
1
Bore Diameter
60.325 mm
Length
155.956 mm
Thickness
28 mm
Depth
155.956 mm
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Final Drive Bearing Kit Fits John Deere 450G 455G 555G AT36096 T120970.

Configuration: Bulldozer / Crawler Loader Final Drive Bearing and Seals Kit
Fits John Deere: 450G, 450G Long Track, 455G, 555G, 450G Wide Track Up to Serial Number 795142. Single Reduction.
Specifications:
(1) Rubber Ring Seal:
Outside Diameter: 7.72"
Cross Section Diameter: 0.12"
Inside Diameter: 7.48"

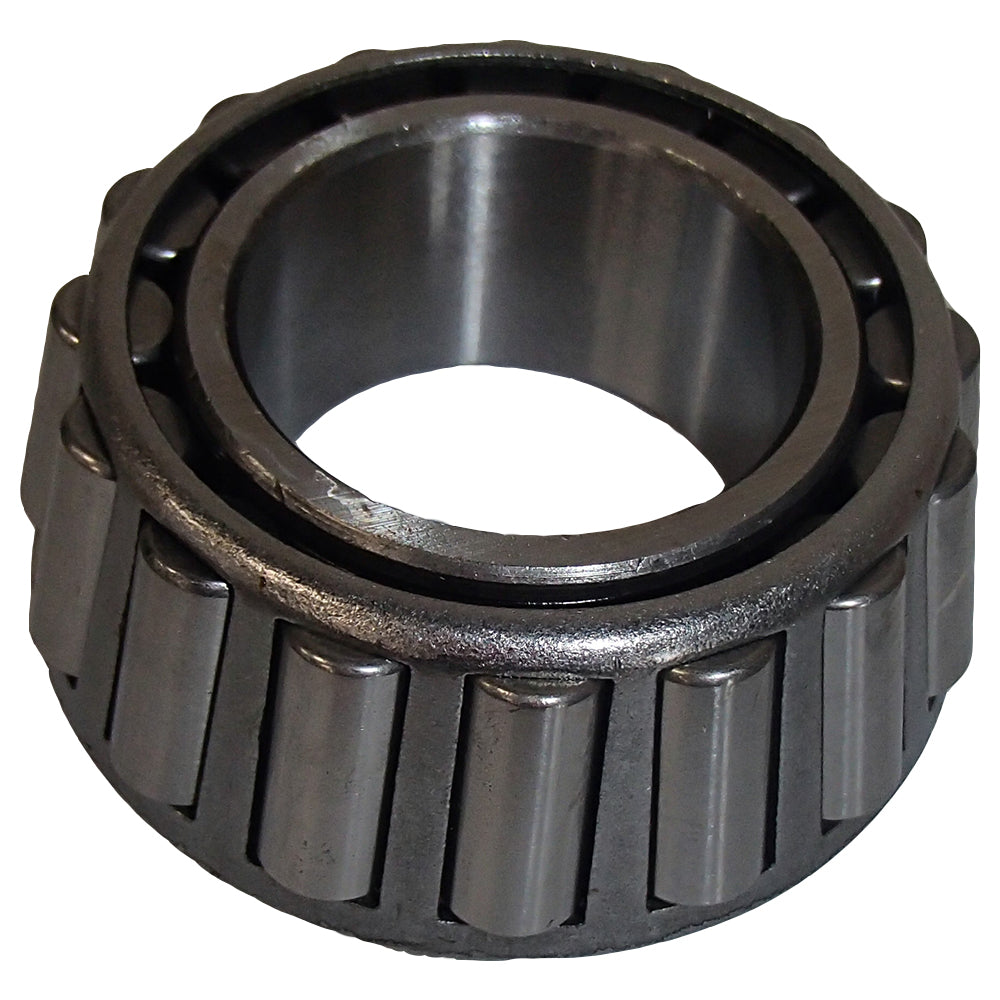

(1) Bearing Cone:
Outer Diameter: 122.08 mm
Inner Diameter: 84.73 mm
Width: 31.75 mm

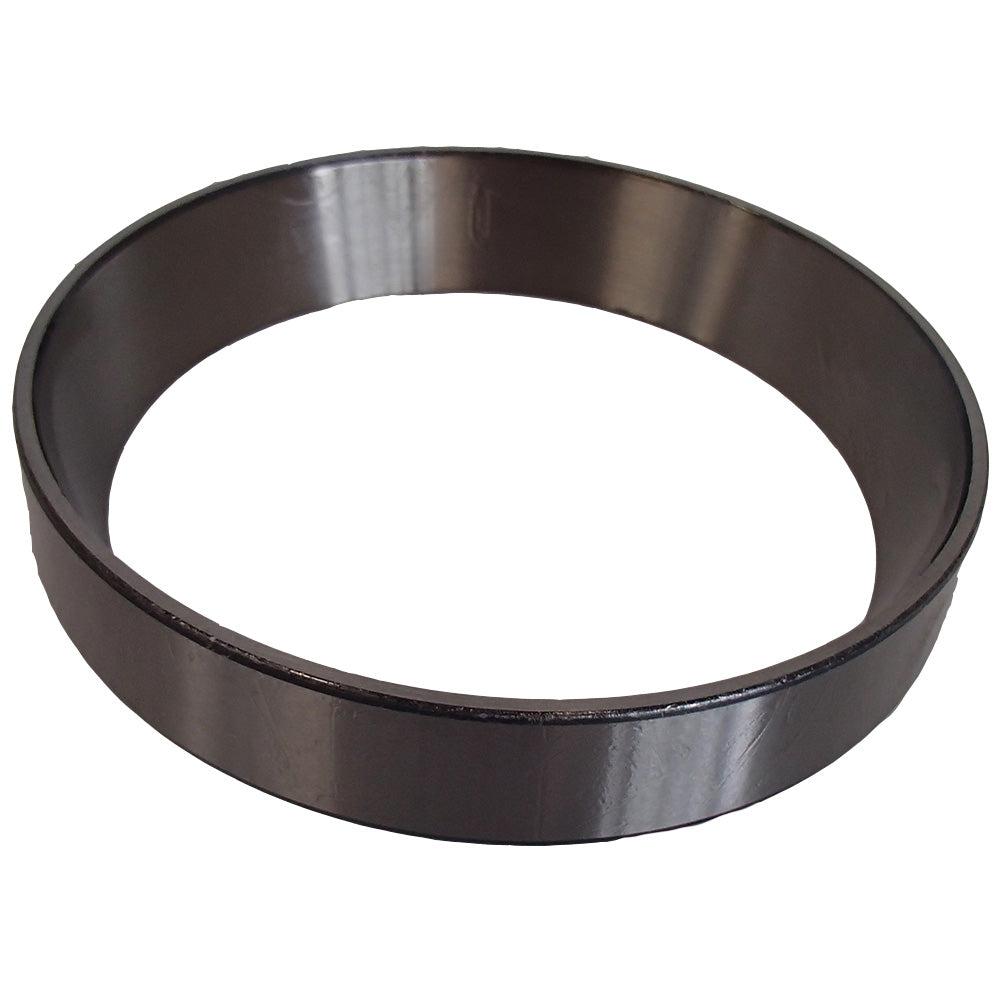

(1) Bearing Cup:
Length: 6.14"
Width: 1.14"
Depth: 6.14"
(1) Bearing Cone:
Inner Diameter: 65 mm
Outer Diameter: 110 mm
Thickness: 28 mm
(1) Bearing Cup:
Outer Diameter: 110 mm
Width: 22.5 mm

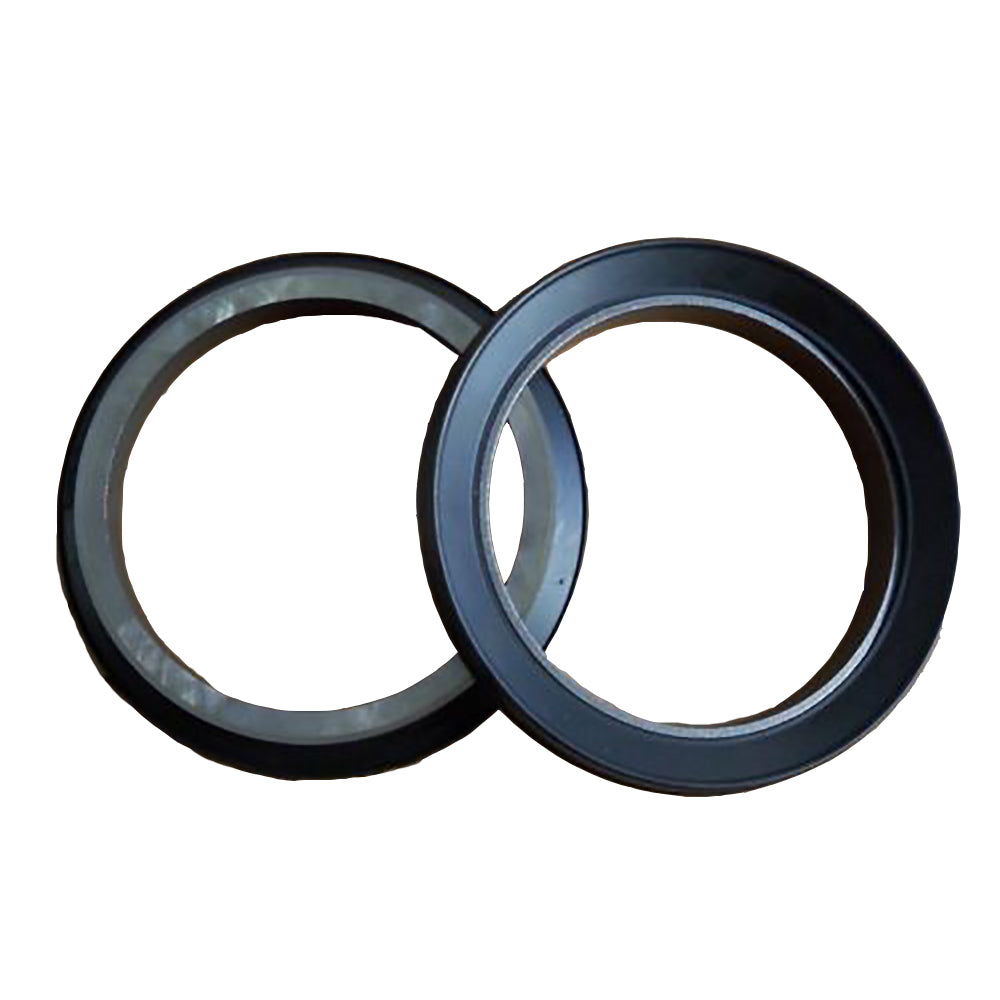

(1) Seal Set:
Includes 2 Steels and 2 Rubbers
Inner Diameter: 4-7/8"
Outer Diameter: 6-3/8"
Hardness: 58-62HRC/62-68HRC
(1) Internal Oil Seal:
Width: 9.52 mm
Fits Shaft Size: 60.33 mm
Outer Diameter: 92.15 mm
(1) Bearing Cone:
Inner Diameter: 41 mm
Width: 30.15 mm
(1) Tapered Bearing Cup:
Outer Diameter: 3.375"
Radius: .13"
Width: .937"
(1) Tapered Roller Bearing Cone:
Bore: 2.375"
Radius: .14"
Width: 1.000"
(1) Tapered Bearing Cup:
Outer Diameter: 4"
Width: 0.781"
Radius: 0.13"
Replaces Part Numbers:
AT39525, AT36096, AT18876, AT36098, AT72157, 9671391, T120970
Fits JD Bearings: 8208, 8154, 8223, 3820, 8182, 8079, 3877, 9119, 9086, 9118, 9055

Reference numbers: AT39525, AT36096, AT18876, AT36098, AT72157, 9671391, T120970, 8154, 8223, 3820, 8182, 8079, 3877, 9119, 9086, 9118, 9055, 8208
Application notes
  • One Aftermarket Replacement Bulldozer / Crawler Loader Final Drive Bearing and Seals Kit
  • Fits John Deere: 450G, 450G Long Track, 455G, 555G, 450G Wide Track Up to Serial Number 795142. Single Reduction.
