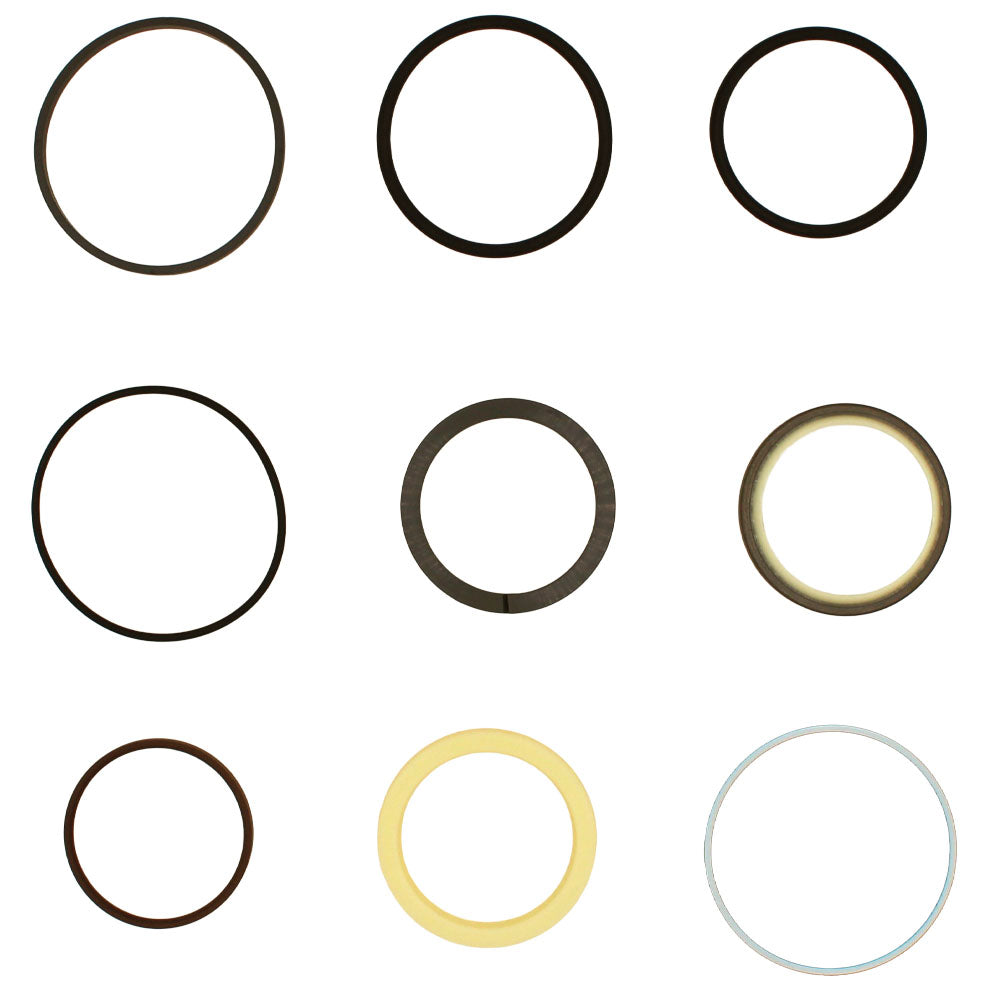

TH109390 Cylinder Seal Repair Kit – Fits John Deere

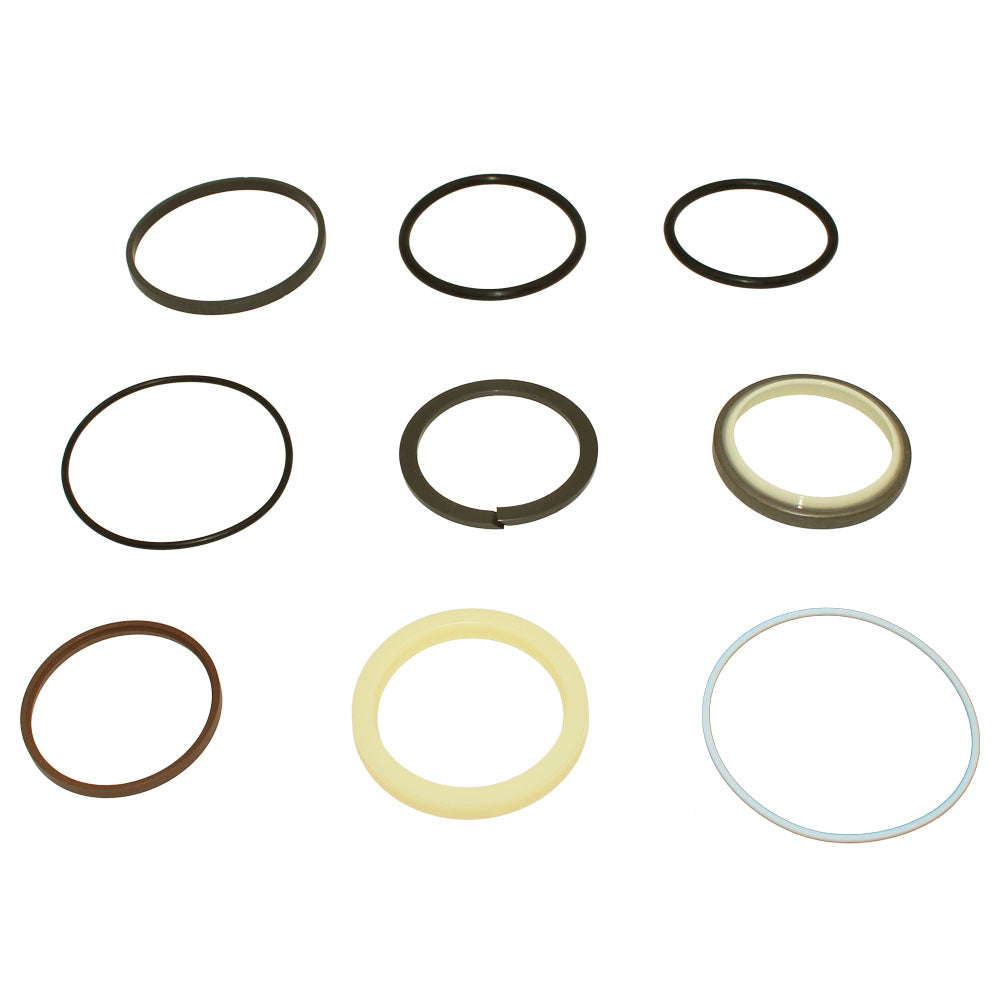

TH109390 Cylinder Seal Repair Kit – Fits John Deere – additional image 2

NC-005477 · Repair/Seal Kits

TH109390 Cylinder Seal Repair Kit – Fits John Deere

CAD 139.15

In stock

Cylinder Seal Repair Kit – reference TH109390. Catalogue-listed applications: John Deere 495D, 493D. Rod Diameter: 65 mm; Bore Diameter: 95 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-005477
Reference numbers
TH109390
Listed package quantity
1
Rod Diameter
65 mm
Bore Diameter
95 mm
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Cylinder Seal Repair Kit Fits John Deere Replaces TH109390.

Configuration: Cylinder Seal Kit
Specifications:
-Rod: 65 mm
-Bore: 95 mm
Made to Fit John Deere:
Excavator Models: 495D
Model Breaks: 495D (Bucket, Cylinder # AT182453)
Replaces Part Number(s): TH109390
Feller Buncher Models: 493D
Model Breaks: 493D (Bucket, Cylinder # TH109368)
Replaces Part Number(s): TH109390

Reference numbers: TH109390

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 495D
  • John Deere 493D
Application notes
  • One New Aftermarket Cylinder Seal Kit
