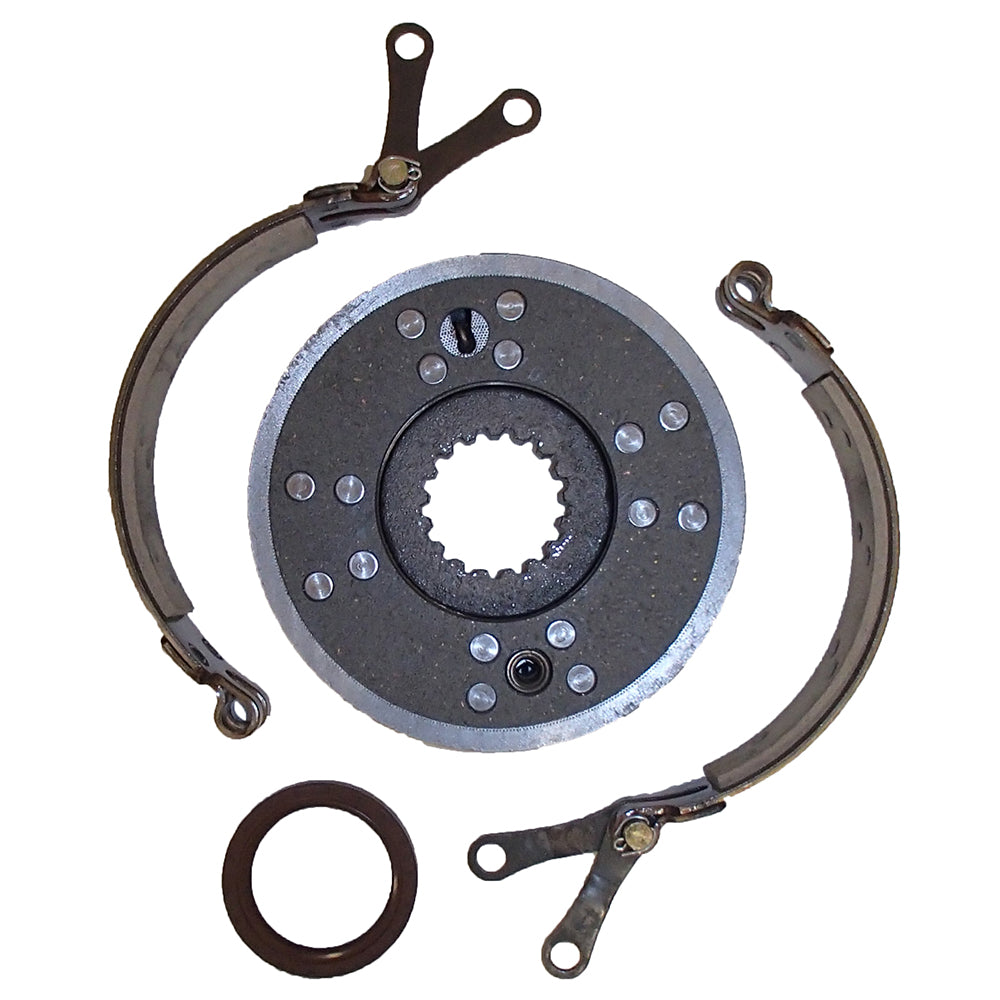

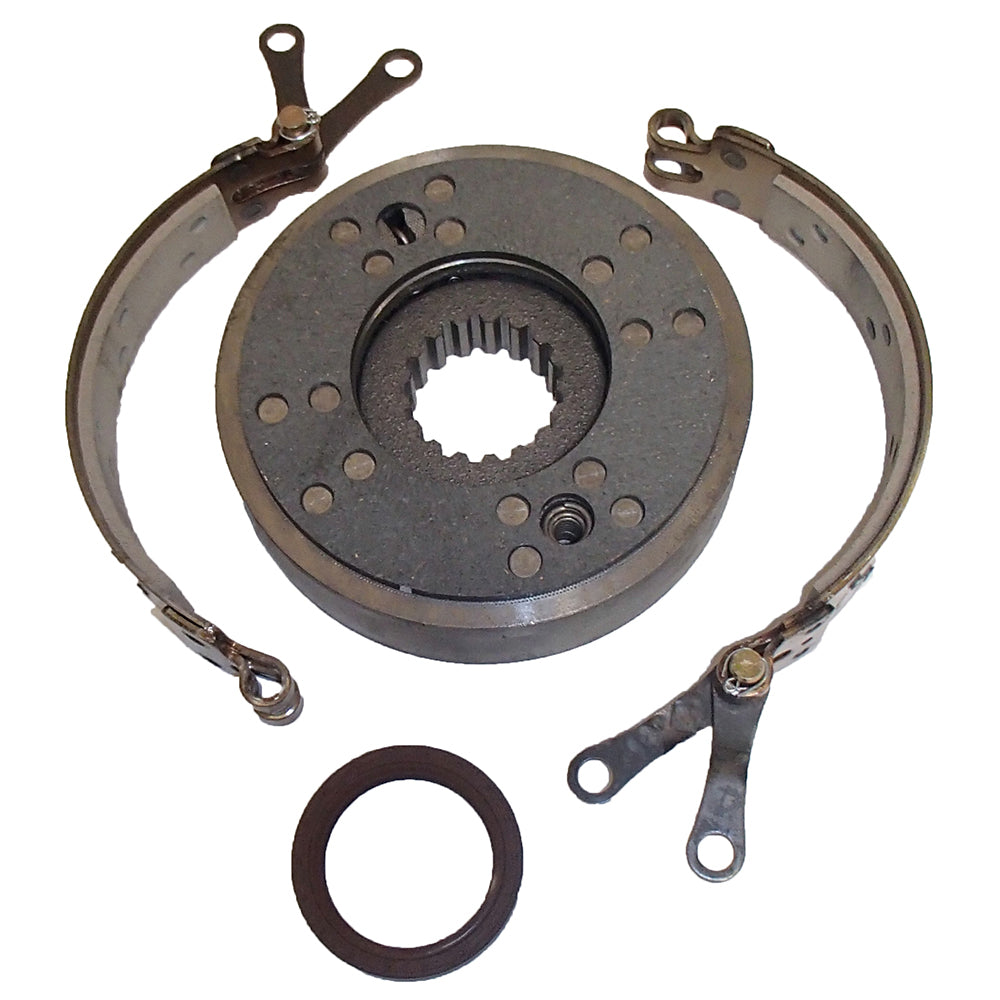

249022A1 Brake Pack Assembly with Oil Seal – Fits Case / International Harvester
249022A1 Brake Pack Assembly with Oil Seal – Fits Case / International Harvester – additional image 2249022A1 Brake Pack Assembly with Oil Seal – Fits Case / International Harvester – additional image 3249022A1 Brake Pack Assembly with Oil Seal – Fits Case / International Harvester – additional image 4249022A1 Brake Pack Assembly with Oil Seal – Fits Case / International Harvester – additional image 5249022A1 Brake Pack Assembly with Oil Seal – Fits Case / International Harvester – additional image 6249022A1 Brake Pack Assembly with Oil Seal – Fits Case / International Harvester – additional image 7249022A1 Brake Pack Assembly with Oil Seal – Fits Case / International Harvester – additional image 8

NC-005155 · Other Brake Components

249022A1 Brake Pack Assembly with Oil Seal – Fits Case / International Harvester

CAD 521.27

Availability to confirm

Brake Pack Assembly with Oil Seal – reference 249022A1. Catalogue-listed applications: Case / International Harvester 430, 530, 470, 570, 480, 580, 480B. Height: 63.5 mm; Thickness: 11.94 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-005155
Reference numbers
249022A1, 249022A2, 184072C1, 295810A1, 406902R91, AT21608, 249022A1249022A2249022A3CCTA142979A154350A157157A55474, G10689, H362380
Height
63.5 mm
Thickness
11.94 mm
Product information and configuration
Replacement part: Brake Pack Assembly with Oil Seal Fits Case/International Harvester 430. Match the reference number

Configuration: Brake Pack Assembly with Oil Seal
Specifications:
-(1) Brake Pack Assembly
-*The overall thickness of the assembled brake pack, including new linings is 2.14 - 2.15 per General Gear
-
-WILL NOT WORK ON TURBO MACHINES!.
-actual measurements 10-1/2" diameter,
-2-1/2" height
-2 used per tractor
-Replaces Part Numbers: 249022A1, 249022A2
-
-(1) Oil Seal
-Tech Info:
-53.4mm ID x 76.09mm OD x 11.94mm Thick
-Replaces Part Number: 184072C1, 295810A1, 406902R91, AT21608
Fits Case/International Harvester:
Models: 430, 530, 470, 570, 480, 580, 480B, 580B, 480C, 580C, 480D 2WD, 580D 2WD, 580D NON TURBO 4WD
Model Breaks: 580D 2WD,580D NON TURBO 4WD WILL NOT WORK ON THE TURBO 4WD MODELS
Replaces Part Number(s):
Replaces Part Number(s): 184072C1, 295810A1, 406902R91, AT21608, G10689, H362380
Models: 430, 530, 470, 570, 480, 580, 480B, 580B, 480C, 580C, 480D 2WD, 580D 2WD, 580D NON TURBO 4WD
Model Breaks: 580D 2WD,580D NON TURBO 4WD WILL NOT WORK ON THE TURBO 4WD MODELS
Replaces Part Number(s):

Reference numbers: 249022A1, 249022A2, 184072C1, 295810A1, 406902R91, AT21608, 249022A1249022A2249022A3CCTA142979A154350A157157A55474, G10689, H362380

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case / International Harvester 430
  • Case / International Harvester 530
  • Case / International Harvester 470
  • Case / International Harvester 570
  • Case / International Harvester 480
  • Case / International Harvester 580
  • Case / International Harvester 480B
  • Case / International Harvester 580B
  • Case / International Harvester 480C
  • Case / International Harvester 580C
  • Case / International Harvester 480D
  • Case / International Harvester 580D
Application notes
  • Aftermarket Brake Pack Assembly with Oil Seal
  • -WILL NOT WORK ON TURBO MACHINES!.
  • Models: 430, 530, 470, 570, 480, 580, 480B, 580B, 480C, 580C, 480D 2WD, 580D 2WD, 580D NON TURBO 4WD
  • Model Breaks: 580D 2WD,580D NON TURBO 4WD WILL NOT WORK ON THE TURBO 4WD MODELS
