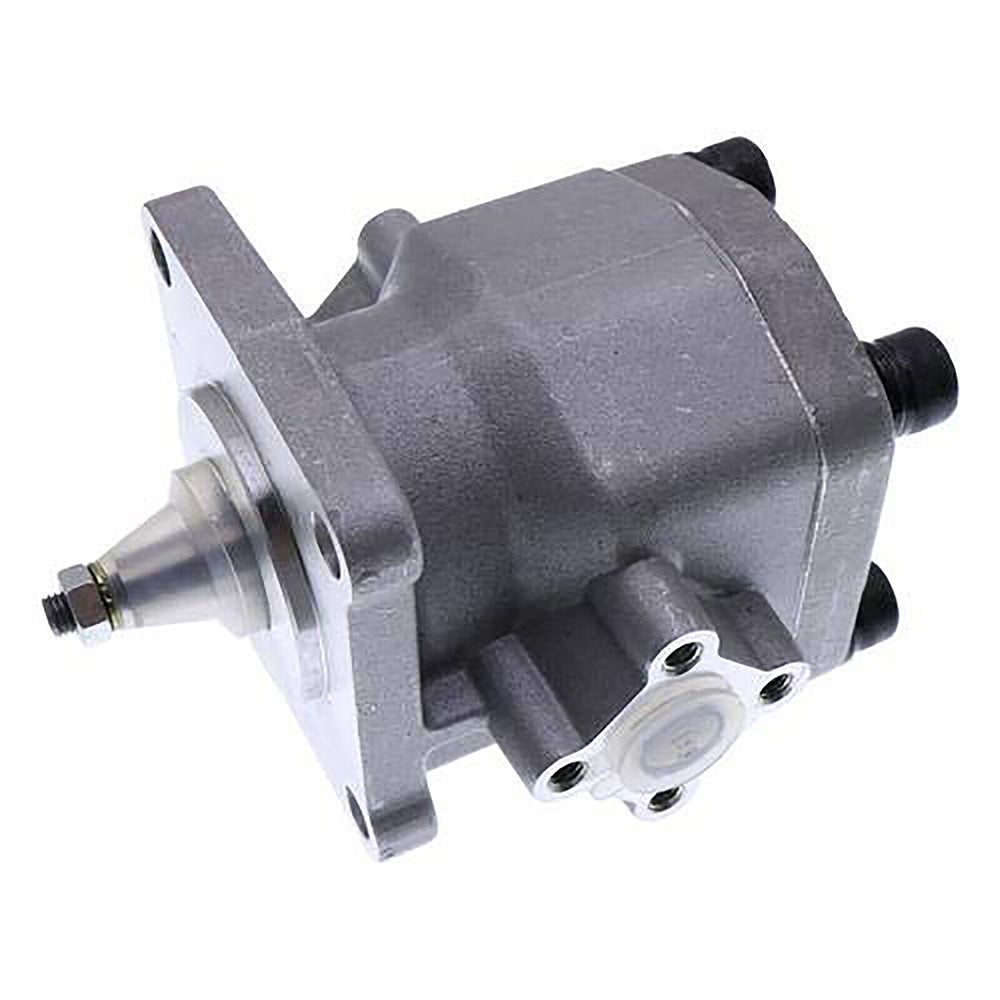

2403-3111-00 Pump, Hydraulic

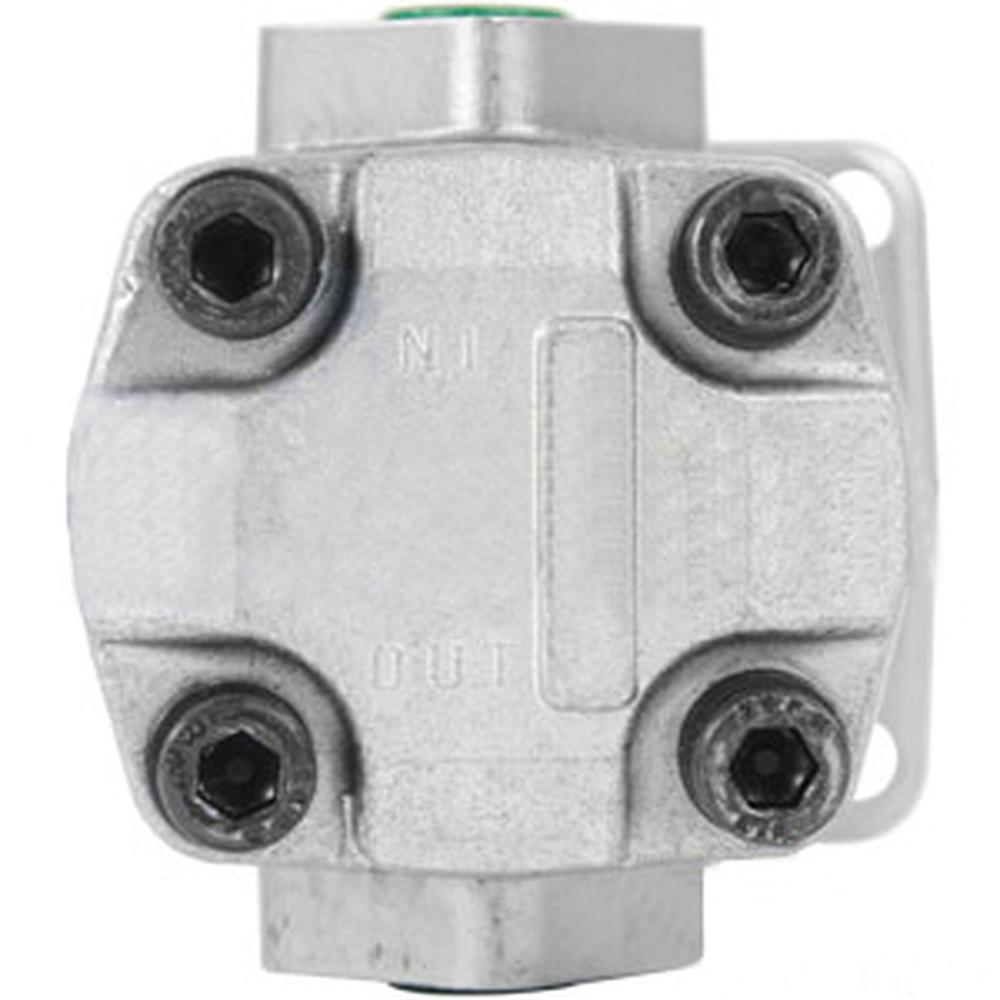

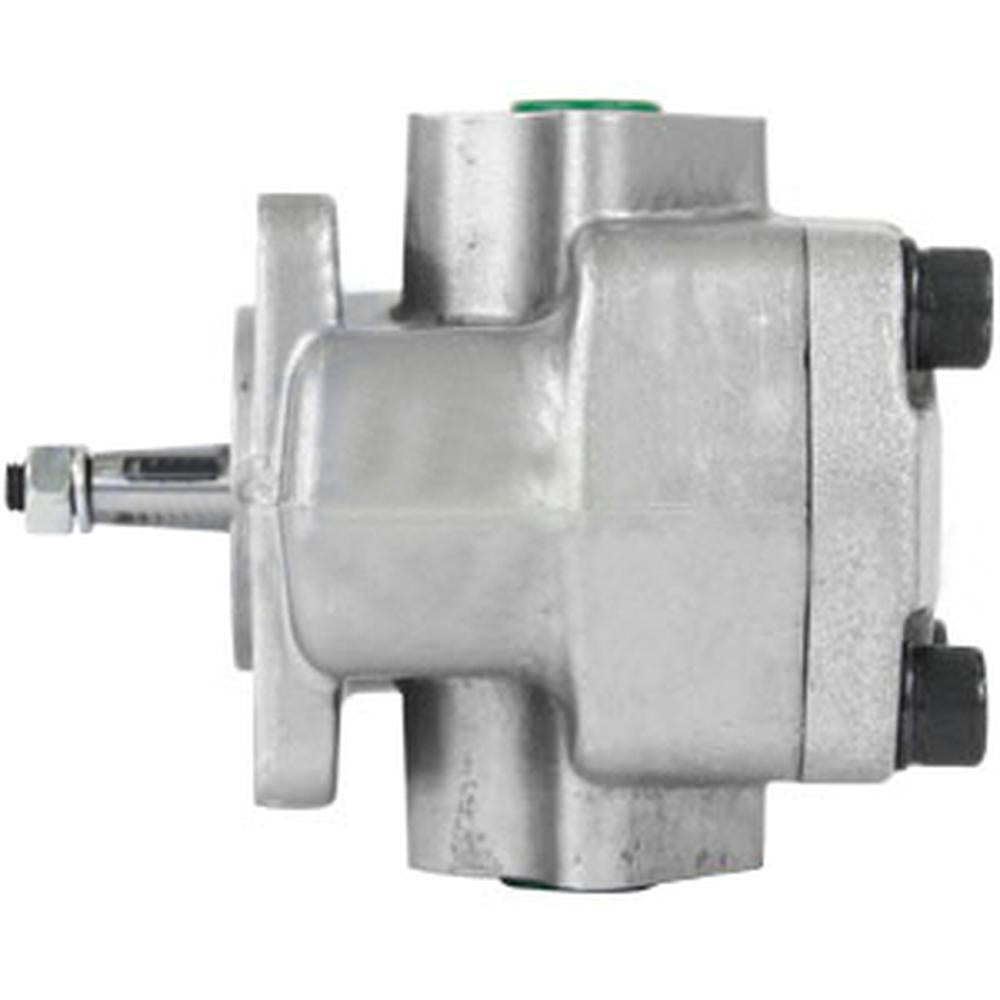

2403-3111-00 Pump, Hydraulic – additional image 22403-3111-00 Pump, Hydraulic – additional image 32403-3111-00 Pump, Hydraulic – additional image 4

NC-005137 · Pumps

2403-3111-00 Pump, Hydraulic

CAD 443.73

Availability to confirm

Pump, Hydraulic – reference 2403-3111-00. Catalogue-listed applications: Kubota, Massey Ferguson, Allis Chalmers L175, L185, L185F (2WD), L185DT (4WD), L225, L245, L245F (2WD). View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-005137
Reference numbers
2403-3111-00, 34150-36100, 34150-36102, 34150-36103, 34150-36110, 334150-36100, 35110-76100, 35110-76101, 35180-36100, 37150-36100, 37150-36110
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Pump, Hydraulic.

Configuration: Hydraulic Pump Fits Kubota, Fits Massey Ferguson, Hinomoto, Fits Allis Chalmers, and Yanmar Compact Tractors
This aftermarket replacement hydraulic pump fits a wide range of Fits Kubota L-Series compact tractors as well as compatible Fits Massey Ferguson, Hinomoto, Fits Allis Chalmers, and Yanmar models. It is a single, counter-clockwise rotation gear pump with a keyed shaft and 4-bolt diamond mount, supplying hydraulic pressure to the tractor's implement lift and hydraulic system.
Specifications
Pump Type: Single Gear Pump
Rotation: Counter-Clockwise (CCW)
Shaft Type: Keyed
Mount: 4-Bolt Diamond
Length: 94.5 mm
Front Inlet/Outlet Port Size: 16 mm
Front Inlet/Outlet Fixing Hole Size: M6
Front Inlet/Outlet Fixing Hole Spacing: 25 mm
Side Hole Spacing: 64 mm
Top Hole Spacing: 64 mm
Lip Measurement: 10 mm
Compatible Models
Fits Kubota L-Series Compact Tractors: L175, L185, L185F (2WD), L185DT (4WD), L225, L245, L245F (2WD), L245DT (4WD), L245H (High Clearance), L285, L295, L295F (2WD), L295DT (4WD), L1500, L1501, L1801, L2000, L2201, L3001
Fits Kubota Engines: D1301, DH1101, Z750, Z751, Z851
Fits Massey Ferguson: 205, 205-4
Hinomoto: E14 (D), E16, E18
Fits Allis Chalmers: 5020, 5030
Yanmar: YM180, YM186, YM187, YM1802, YM1810, YM1820, YM2000, YM2001, YM2002, YM2010, YM2200, YM2301, YM2310, YM2700
Replaces Part Number(s):
2403-3111-00, 2403311100, 34150-36100, 3415036100, 34150-36102, 3415036102, 34150-36103, 3415036103, 34150-36110, 3415036110, 334150-36100, 33415036100, 35110-76100, 3511076100, 35110-76101, 3511076101, 35180-36100, 3518036100, 37150-36100, 3715036100, 37150-36110, 3715036110
Aftermarket Interchange Numbers
3281125M91, 72098141, 194130-41120, 194100-41110, HYI60-0021, 1901-1000
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 2403-3111-00, 34150-36100, 34150-36102, 34150-36103, 34150-36110, 334150-36100, 35110-76100, 35110-76101, 35180-36100, 37150-36100, 37150-36110

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Kubota L175
  • Kubota L185
  • Kubota L185F (2WD)
  • Kubota L185DT (4WD)
  • Kubota L225
  • Kubota L245
  • Kubota L245F (2WD)
  • Kubota L245DT (4WD)
  • Kubota L245H (High Clearance)
  • Kubota L285
  • Kubota L295
  • Kubota L295F (2WD)
  • Kubota L295DT (4WD)
  • Kubota L1500
  • Kubota L1501
  • Kubota L1801
  • Kubota L2000
  • Kubota L2201
  • Kubota L3001
  • Kubota D1301
  • Kubota DH1101
  • Kubota Z750
  • Kubota Z751
  • Kubota Z851
  • Massey Ferguson 205
  • Massey Ferguson 205-4
  • Massey Ferguson E16
  • Massey Ferguson E18
  • Allis Chalmers 5020
  • Allis Chalmers 5030
  • Allis Chalmers YM186
  • Allis Chalmers YM187
  • Allis Chalmers YM1802
  • Allis Chalmers YM1810
  • Allis Chalmers YM1820
  • Allis Chalmers YM2000
  • Allis Chalmers YM2001
  • Allis Chalmers YM2002
  • Allis Chalmers YM2010
  • Allis Chalmers YM2200
  • Allis Chalmers YM2301
  • Allis Chalmers YM2310
  • Allis Chalmers YM2700
Application notes
  • One New Aftermarket Replacement Hydraulic Pump Fits Kubota, Fits Massey Ferguson, Hinomoto, Fits Allis Chalmers, and Yanmar Compact Tractors
  • This aftermarket replacement hydraulic pump fits a wide range of Fits Kubota L-Series compact tractors as well as compatible Fits Massey Ferguson, Hinomoto, Fits Allis Chalmers, and Yanmar models. It is a single, counter-clockwise rotation gear pump with a keyed shaft and 4-bolt diamond mount, supplying hydraulic pressure to the tractor's implement lift and hydraulic system.
  • Fits Kubota L-Series Compact Tractors: L175, L185, L185F (2WD), L185DT (4WD), L225, L245, L245F (2WD), L245DT (4WD), L245H (High Clearance), L285, L295, L295F (2WD), L295DT (4WD), L1500, L1501, L1801, L2000, L2201, L3001
  • Aftermarket Interchange Numbers
  • New aftermarket replacement part - not remanufactured, not used.
