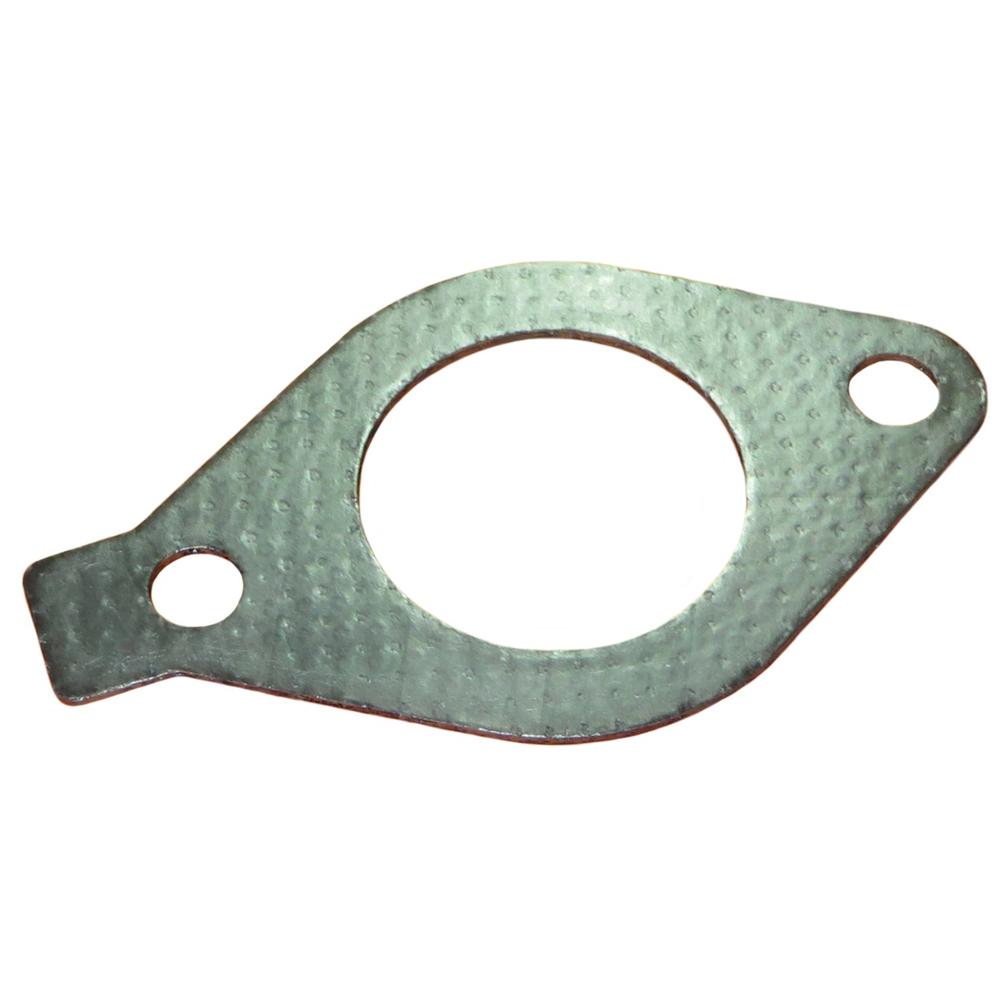

109-5313 Exhaust Manifold Gasket

NC-005013 · Gaskets & Gasket Sets

109-5313 Exhaust Manifold Gasket

CAD 4.51

Availability to confirm

Exhaust Manifold Gasket – reference 109-5313. Catalogue-listed applications: Caterpillar, Challenger 85C, 75C, R1600, R1700G, R1600G, 3176C, 3406E. Length: 152.4 mm; Width: 127 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-005013
Reference numbers
109-5313
Length
152.4 mm
Width
127 mm
Depth
2.032 mm
Product information and configuration
Replacement part: Exhaust Manifold Gasket Fits Caterpillar.

Configuration: Exhaust Manifold Gasket
Specifications:
-Length: 6”
-Width: 5”
-Depth: 0.08”
Fits Caterpillar:
Challenger Models: 85C, 75C
Replaces Part Number(s): 109-5313, 1095313
Load Haul Dump Models: R1600, R1700G, R1600G
Replaces Part Number(s): 109-5313, 1095313
Engines Models: 3176C, 3406E, 3406C, C-10, C-15, C-16, 3176B, 3176, 3406E
Replaces Part Number(s): 109-5313, 1095313

Reference numbers: 109-5313

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Caterpillar 85C
  • Caterpillar 75C
  • Caterpillar R1600
  • Caterpillar R1700G
  • Caterpillar R1600G
  • Caterpillar 3176C
  • Caterpillar 3406E
  • Caterpillar 3406C
  • Caterpillar C-10
  • Caterpillar C-15
  • Caterpillar C-16
  • Caterpillar 3176B
  • Caterpillar 3176
Application notes
  • Aftermarket Exhaust Manifold Gasket
