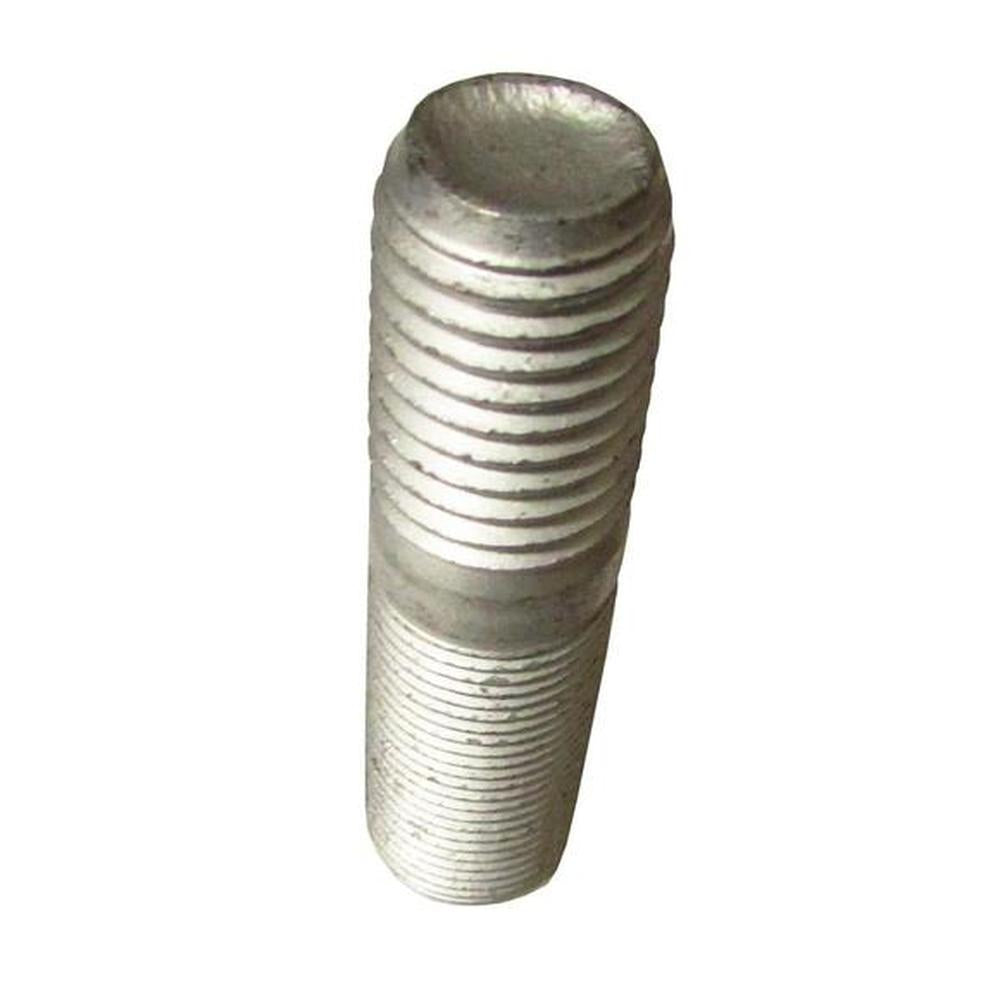

100556A1 Stud hub, special

NC-004859 · Front Axle

100556A1 Stud hub, special

CAD 10.44

In stock

Stud hub, special – reference 100556A1. Catalogue-listed applications: Case, Case / International Harvester, International Harvester 480E, 480E LL, 480F, 480F LL, 570L, 570LXT, 570MXT. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-004859
Reference numbers
100556A1, 87313746, 83952547, 83983489, K260218, K205124, CAR106199, CAR123563
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Stud hub, special Fits Case 570L, 580L & SL, 580M & SM, 585G, 586G, 588.

Configuration: Steering Axle Stud Bolt Fits Case (Fits Case/International Harvester) Backhoes, Forklifts, and Trenchers
This front axle hub stud bolt fits Carraro 4WD steering axles on Fits Case backhoe loaders, forklifts, and trenchers equipped with 8-bolt hubs. It secures the wheel hub to the front steering axle and is a direct replacement for OEM part number 100556A1 and its superseded predecessors.
Specifications
Hub Threads: M18 x 2.5
Nut Threads: M18 x 1.5
Length: 72.5 mm
Application: Carraro 4WD Steering Axle, 8-Bolt Hub
Compatible Models
Fits Case Backhoe Loaders (4WD): 480E, 480E LL, 480F, 480F LL, 570L, 570LXT, 570MXT, 570NXT, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M
Fits Case Forklifts (Steering Axle with 8-Bolt Hubs): 584E, 585E, 585G, 586E, 586G, 586H, 588G, 588H
Fits Case Tractors: 560, 595, 660, 760, 860, 995, C50, C60, C70, C80, C90, C100, CX50, CX60, CX70, CX80, CX90, CX100, MX90C, MX100C
Replaces Part Number(s):
100556A1, 87313746, 83952547, 83983489, K260218, K205124, CAR106199, CAR123563
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 100556A1, 87313746, 83952547, 83983489, K260218, K205124, CAR106199, CAR123563

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 480E
  • Case 480E LL
  • Case 480F
  • Case 480F LL
  • Case 570L
  • Case 570LXT
  • Case 570MXT
  • Case 570NXT
  • Case 580E
  • Case 580 Super E
  • Case 580K
  • Case 580 Super K
  • Case 580L
  • Case 580 Super L
  • Case 580M
  • Case 580 Super M
  • Case 590 Turbo
  • Case 590 Super L
  • Case 590 Super M
  • Case 584E
  • Case 585E
  • Case 585G
  • Case 586E
  • Case 586G
  • Case 586H
  • Case 588G
  • Case 588H
  • Case 560
  • Case 595
  • Case 660
  • Case 760
  • Case 860
  • Case 995
  • Case C50
  • Case C60
  • Case C70
  • Case C80
  • Case C90
  • Case C100
  • Case CX50
  • Case CX60
  • Case CX70
  • Case CX80
  • Case CX90
  • Case CX100
  • Case MX90C
  • Case MX100C
Application notes
  • One New Aftermarket Replacement Steering Axle Stud Bolt Fits Case (Fits Case/International Harvester) Backhoes, Forklifts, and Trenchers
  • This front axle hub stud bolt fits Carraro 4WD steering axles on Fits Case backhoe loaders, forklifts, and trenchers equipped with 8-bolt hubs. It secures the wheel hub to the front steering axle and is a direct replacement for OEM part number 100556A1 and its superseded predecessors.
  • Application: Carraro 4WD Steering Axle, 8-Bolt Hub
  • Fits Case Backhoe Loaders (4WD): 480E, 480E LL, 480F, 480F LL, 570L, 570LXT, 570MXT, 570NXT, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M
  • Fits Case Forklifts (Steering Axle with 8-Bolt Hubs): 584E, 585E, 585G, 586E, 586G, 586H, 588G, 588H
  • New aftermarket replacement part - not remanufactured, not used.
