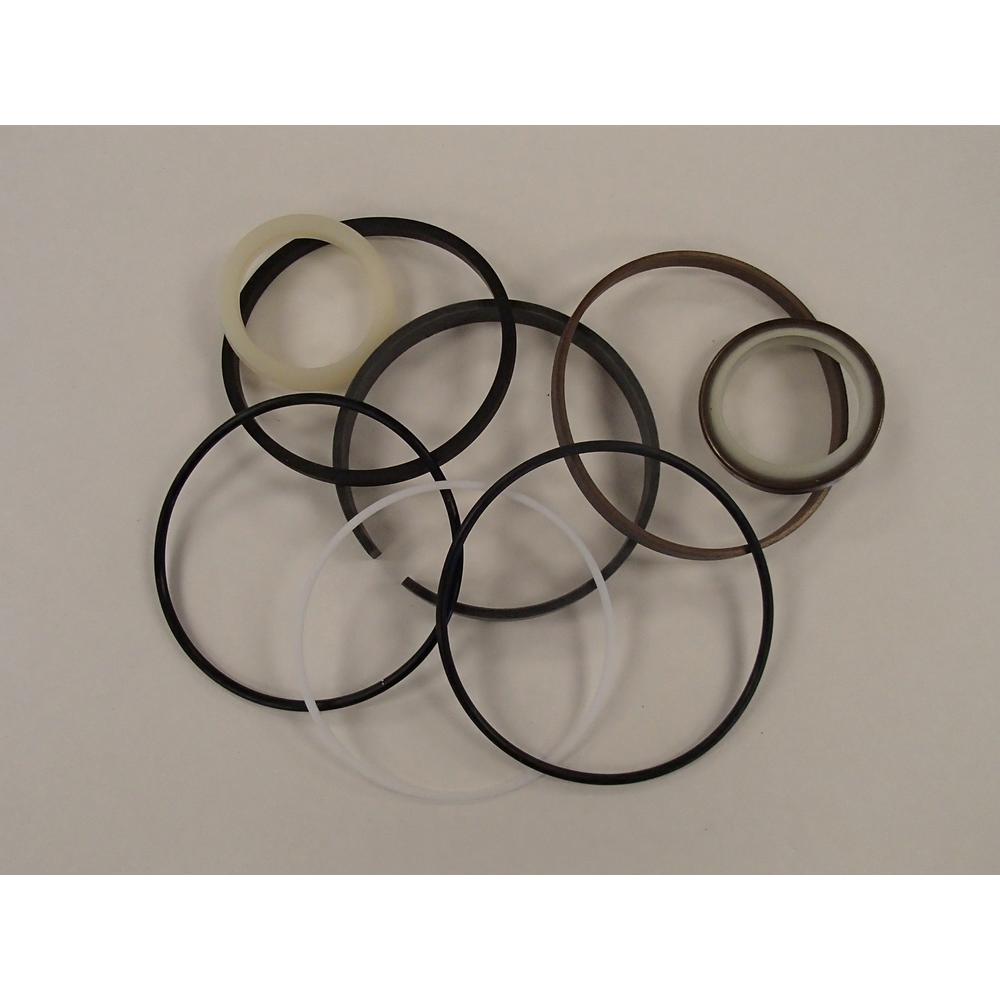

707-98-22410 Angle Lift Tilt Cylinder Seal Repair Kit – Fits Komatsu

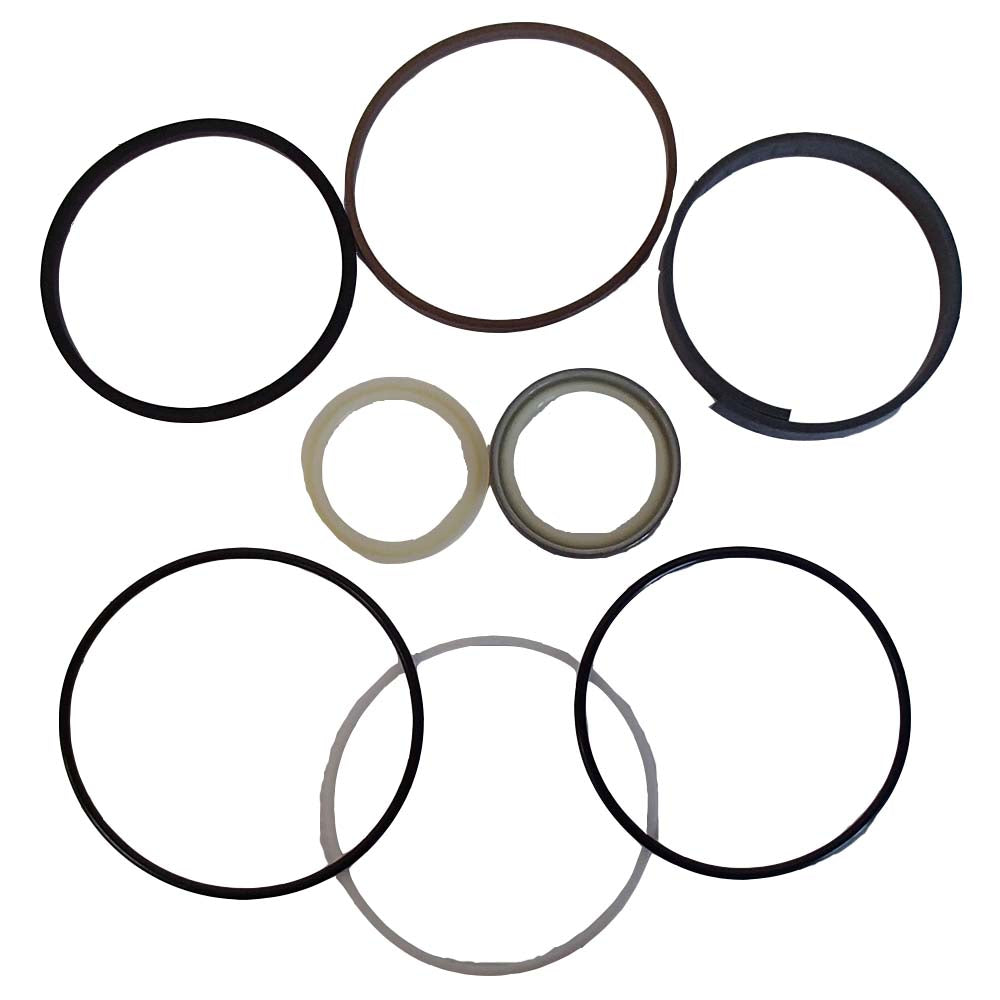

707-98-22410 Angle Lift Tilt Cylinder Seal Repair Kit – Fits Komatsu – additional image 2

NC-004622 · Cylinders

707-98-22410 Angle Lift Tilt Cylinder Seal Repair Kit – Fits Komatsu

CAD 102.06

In stock

Angle Lift Tilt Cylinder Seal Repair Kit – reference 707-98-22410. Catalogue-listed applications: Komatsu D31S-18, D31E-18, D31E-20, D31P-18, D31P-18A, D31P-20, D31P-20A. Rod Diameter: 40 mm; Bore Diameter: 90 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-004622
Reference numbers
707-98-22410
Rod Diameter
40 mm
Bore Diameter
90 mm
Product information and configuration
Replacement part: Angle Lift Tilt Cylinder Seal Repair Kit Fits Komatsu D31E-18 D31E-20.

Configuration: Angle Lift Tilt Cylinder Seal Kit
Specifications:
-Rod: 40 mm, Bore: 90 mm
-O-ring 70D NBR 1 89.4x3.1
-O-ring 90D NBR 1 84.4x3.1
-Back-up TFE 1 85x2.4x1.25
-Wear ring Nyl 1 90x12.5x3
-Wiper ring Ure/Metal 1 40x52x7
-Piston Seal TFE/NBR 1 90x5.5x6
-U-seal Ure 1 40x50x7
Fits Komatsu:
Crawler Loader Models: D31S-18
Replaces Part Number(s): 707-98-22410
Crawler/Dozer Models: D31E-18, D31E-20, D31P-18, D31P-18A, D31P-20, D31P-20A, D31PG-18A, D37E-5, D37P-2
Replaces Part Number(s): 707-98-22410

Reference numbers: 707-98-22410

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Komatsu D31S-18
  • Komatsu D31E-18
  • Komatsu D31E-20
  • Komatsu D31P-18
  • Komatsu D31P-18A
  • Komatsu D31P-20
  • Komatsu D31P-20A
  • Komatsu D31PG-18A
  • Komatsu D37E-5
  • Komatsu D37P-2
Application notes
  • Aftermarket Angle Lift Tilt Cylinder Seal Kit
