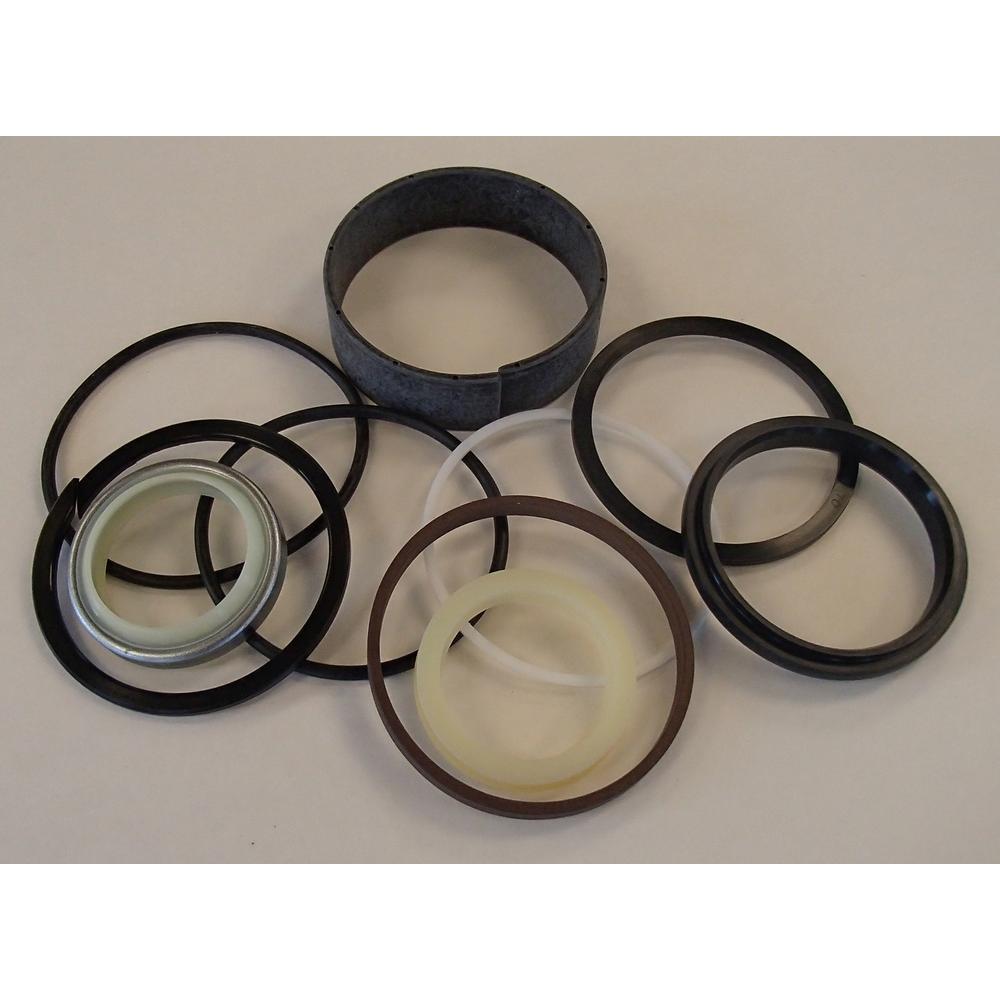

1016302010K Hydraulic Blade Lift Cylinder Seal Kit – Fits Komatsu
1016302010K Hydraulic Blade Lift Cylinder Seal Kit – Fits Komatsu – additional image 2

NC-003632 · O-Rings, Bearings, Gaskets & Seals

1016302010K Hydraulic Blade Lift Cylinder Seal Kit – Fits Komatsu

CAD 113.28

In stock

Hydraulic Blade Lift Cylinder Seal Kit – reference 1016302010K. Catalogue-listed applications: Komatsu D20A-7, D20P-7A, D21A-7, D21P-7A. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-003632
Reference numbers
1016302010K, 101-63-02010K-A, HYI40-0001
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Fits Komatsu 101-63-02010K Hydraulic Cylinder Seal Repair Kit.

Configuration: Hydraulic Blade Lift Cylinder Seal Kit for Komatsu D20 / D21 Series Crawler Dozers
This aftermarket replacement hydraulic cylinder seal kit rebuilds the blade lift cylinder on Komatsu D20 and D21 Series crawler dozers and crawler tractor-loaders. Sized for a 35 mm rod and 70 mm bore, the kit includes all seals needed to restore proper cylinder function and stop hydraulic leaks at the rod and piston.
Serial Number Restriction: Fits machines with Serial Numbers 75001-78603. Verify your serial number before ordering.
Specifications
Rod Diameter: 35 mm
Bore Diameter: 70 mm
Cylinder Type: Blade Lift Cylinder
Compatible Models
Komatsu D20 / D21 Series Crawler Dozers and Tractor-Loaders (Serial Numbers 75001-78603): D20A-7, D20P-7A, D21A-7, D21P-7A
Replaces Part Number(s):
101-63-02010K, 101-63-02010K-A, 1016302010K, HYI40-0001
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 1016302010K, 101-63-02010K-A, HYI40-0001

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Komatsu D20A-7
  • Komatsu D20P-7A
  • Komatsu D21A-7
  • Komatsu D21P-7A
Application notes
  • One New Aftermarket Replacement Hydraulic Blade Lift Cylinder Seal Kit for Komatsu D20 / D21 Series Crawler Dozers
  • This aftermarket replacement hydraulic cylinder seal kit rebuilds the blade lift cylinder on Komatsu D20 and D21 Series crawler dozers and crawler tractor-loaders. Sized for a 35 mm rod and 70 mm bore, the kit includes all seals needed to restore proper cylinder function and stop hydraulic leaks at the rod and piston.
  • Serial Number Restriction: Fits machines with Serial Numbers 75001-78603. Verify your serial number before ordering.
  • Komatsu D20 / D21 Series Crawler Dozers and Tractor-Loaders (Serial Numbers 75001-78603): D20A-7, D20P-7A, D21A-7, D21P-7A
  • New aftermarket replacement part - not remanufactured, not used.
