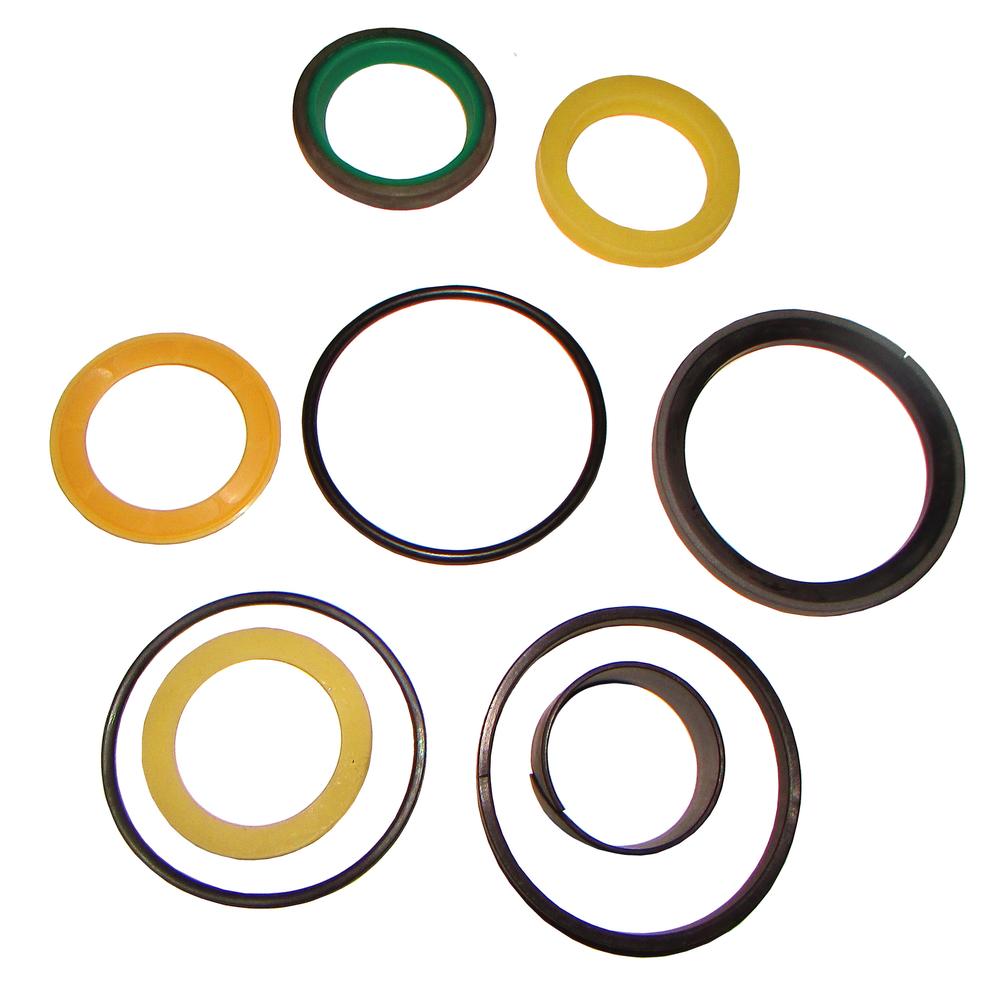

1543256C1 Hydraulic Cylinder Seal Repair Kit

NC-002512 · Repair/Seal Kits

1543256C1 Hydraulic Cylinder Seal Repair Kit

CAD 79.18

Availability to confirm

Hydraulic Cylinder Seal Repair Kit – reference 1543256C1. Catalogue-listed applications: Case, Case / International Harvester, Case IH 570LXT, 570MXT (Loader Bucket Tilt and 3-Point Lift Cylinders), 550E, 550G (Blade Tilt Cylinders), 585G, 586G, 588G (Tilt Cylinders). View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-002512
Reference numbers
1543256C1
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Hydraulic Cylinder Seal Repair Kit Fits Case 1543256C1.

Configuration: Hydraulic Cylinder Seal Kit for Case/International Harvester Backhoes, Dozers, Skid Steers, Forklifts, and Landscape Loaders
This aftermarket hydraulic cylinder seal kit replaces OEM part number 1543256C1 and fits a wide range of Case (Case/International Harvester) equipment. It is used across multiple cylinder applications including backhoe loader bucket tilt cylinders, loader bucket tilt cylinders, dozer blade tilt cylinders, skid steer boom and dipper cylinders, forklift tilt cylinders, and landscape loader 3-point lift cylinders. Cross-reference number G110050 is a verified interchange for this kit.
Specifications
Rod Diameter: 1.5 in (1-1/2 in)
Barrel (Bore) ID: 3 in
Compatible Models
Case / Case IH Backhoe Loaders: 580K, 580 Super K, 580 Super L, 580M Series 1, 580M Series 2, 580M Series 3, 580 Super M Series 1, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580N, 580N EP, 580SN, 590 Turbo, 590SL Series 1 (up to serial # JJG0210574), 780D
Case Landscape Loaders: 570LXT, 570MXT (Loader Bucket Tilt and 3-Point Lift Cylinders)
Case Crawler Dozers: 550E, 550G (Blade Tilt Cylinders)
Case Skid Steer Loaders (with Model D125 Hoe): Boom and Dipper Cylinders - fits cylinders 1346450C2 and 1346411C3
Case Forklifts: 585G, 586G, 588G (Tilt Cylinders); 586H, 588H Tier 4A and Tier 4B (Tilt Cylinders - fits cylinders 318877A1 and 84426790)
Replaces Part Number(s):
1543256C1
Aftermarket Interchange Numbers
G110050
Note: This kit fits specific cylinder applications within each model line. Verify the cylinder part number stamped on the gland (the threaded section where the rod extends) before ordering. For the 590SL, fitment is Series 1 only, up to serial number JJG0210574.
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 1543256C1

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case 570LXT
  • Case 570MXT (Loader Bucket Tilt and 3-Point Lift Cylinders)
  • Case 550E
  • Case 550G (Blade Tilt Cylinders)
  • Case 585G
  • Case 586G
  • Case 588G (Tilt Cylinders)
  • Case 586H
Application notes
  • One New Aftermarket Replacement Hydraulic Cylinder Seal Kit for Case/International Harvester Backhoes, Dozers, Skid Steers, Forklifts, and Landscape Loaders
  • This aftermarket hydraulic cylinder seal kit replaces OEM part number 1543256C1 and fits a wide range of Case (Case/International Harvester) equipment. It is used across multiple cylinder applications including backhoe loader bucket tilt cylinders, loader bucket tilt cylinders, dozer blade tilt cylinders, skid steer boom and dipper cylinders, forklift tilt cylinders, and landscape loader 3-point lift cylinders. Cross-reference number G110050 is a verified interchange for this kit.
  • Case / Case IH Backhoe Loaders: 580K, 580 Super K, 580 Super L, 580M Series 1, 580M Series 2, 580M Series 3, 580 Super M Series 1, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580N, 580N EP, 580SN, 590 Turbo, 590SL Series 1 (up to serial # JJG0210574), 780D
  • Case Skid Steer Loaders (with Model D125 Hoe): Boom and Dipper Cylinders - fits cylinders 1346450C2 and 1346411C3
  • Aftermarket Interchange Numbers
  • Note: This kit fits specific cylinder applications within each model line. Verify the cylinder part number stamped on the gland (the threaded section where the rod extends) before ordering. For the 590SL, fitment is Series 1 only, up to serial number JJG0210574.
  • New aftermarket replacement part - not remanufactured, not used.
