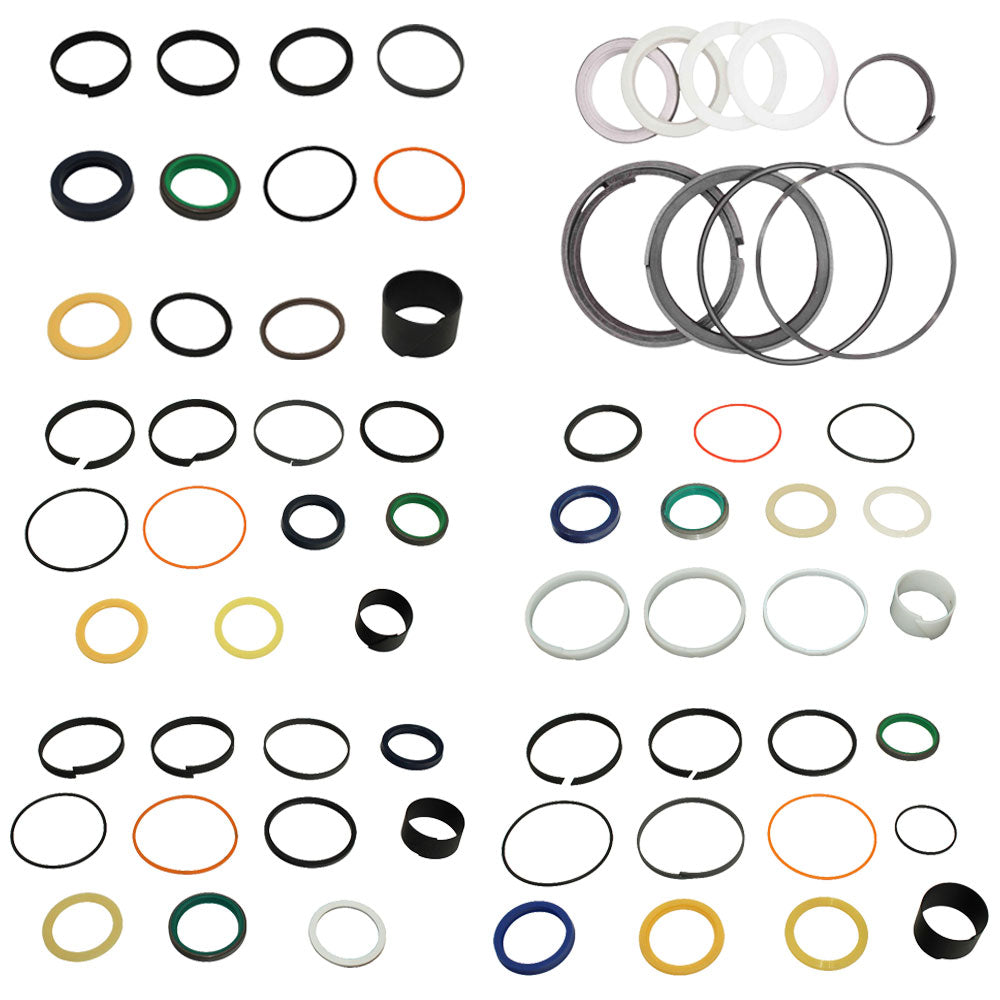

1543253C1 Whole Machine Seal Repair Kit – Fits Case / International Harvester

NC-001036 · Cylinders

1543253C1 Whole Machine Seal Repair Kit – Fits Case / International Harvester

CAD 597.46

Availability to confirm

Whole Machine Seal Repair Kit – reference 1543253C1. Catalogue-listed applications: Case / International Harvester 480F LL, 480E, 480E LL, 480F, 480D, W11, 580D. Rod Diameter: 38.1 mm; Bore Diameter: 63.5 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-001036
Reference numbers
1543253C1, 1543254C1, 1543261C1, 1543262C1, G101288, 1543277C1, G105549
Listed package quantity
1
Rod Diameter
38.1 mm
Bore Diameter
63.5 mm
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Whole Machine Seal Repair Kit Fits Case/International Harvester Replaces 1543253C1.

Configuration: Whole Machine Seal Kit
Specifications:
-(1) Backhoe Loader Bucket Tilt Cylinder Seal Kit
-1-1/2" Rod, 2-1/2" Bore
-Replaces Part Number: 1543253C1
-
-(1) Cylinder Seal Kit
-Backhoe Swing Hydraulic Seal Kit
-Rod x Bore 1-1/2 X 3-1/2
-Replaces Part Number: 1543254C1
-
-(1) Cylinder Seal Kit
-Hydraulic Seal Kit
-Rod x Bore 1-3/4 x 3-1/2
-Replaces Part Numbers: 1543261C1
-
-(1) Cylinder Seal Kit
-Hydraulic Seal Kit
-Rod x Bore 1-3/4 X 3
-Replaces Part Number: 1543262C1
-
-(1) Cylinder Seal Kit
-11 pieces total in this kit - 10 of them will be used for any given application - there is an extra flat buffer
-Rod x Bore 2 X 3-1/2"
-Replaces Part Numbers: G101288
-
-(1) Cylinder Seal Kit
-Hydraulic Seal Kit
-Rod x Bore 2-1/4 X 4
-Replaces Part Number: 1543277C1
Made to Fit Case/International Harvester:
Loader Backhoe Models: 480F LL, 480E, 480E LL, 480F, 480D, W11, 580D, 580 SUPER E, 580 SUPER D, W11B, 480C, 480D LL, 350B, 580C
Replaces Part Number(s): 1543253C1, 1543254C1, 1543261C1, G105549, 1543262C1, G101288, 1543277C1

Reference numbers: 1543253C1, 1543254C1, 1543261C1, 1543262C1, G101288, 1543277C1, G105549

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case / International Harvester 480F LL
  • Case / International Harvester 480E
  • Case / International Harvester 480E LL
  • Case / International Harvester 480F
  • Case / International Harvester 480D
  • Case / International Harvester W11
  • Case / International Harvester 580D
  • Case / International Harvester 580 SUPER E
  • Case / International Harvester 580 SUPER D
  • Case / International Harvester W11B
  • Case / International Harvester 480C
  • Case / International Harvester 480D LL
  • Case / International Harvester 350B
  • Case / International Harvester 580C
Application notes
  • One New Aftermarket Whole Machine Seal Kit
