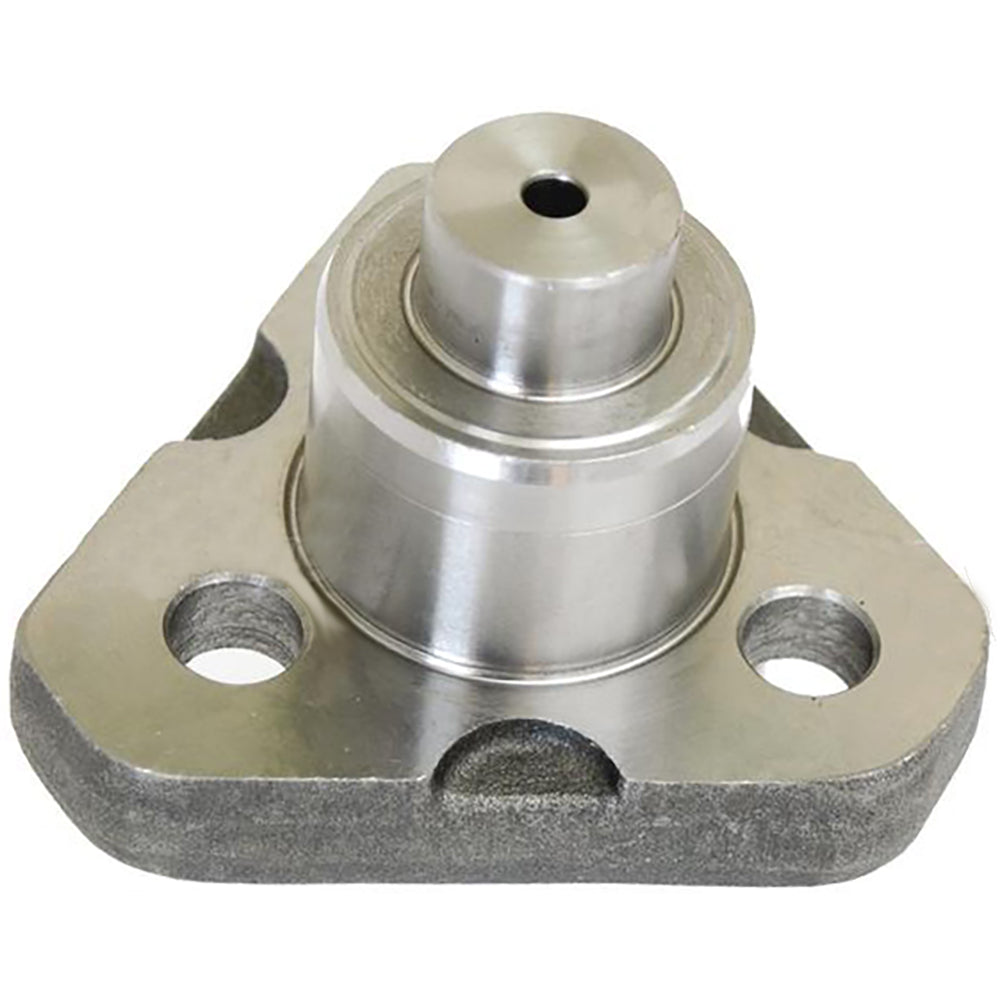

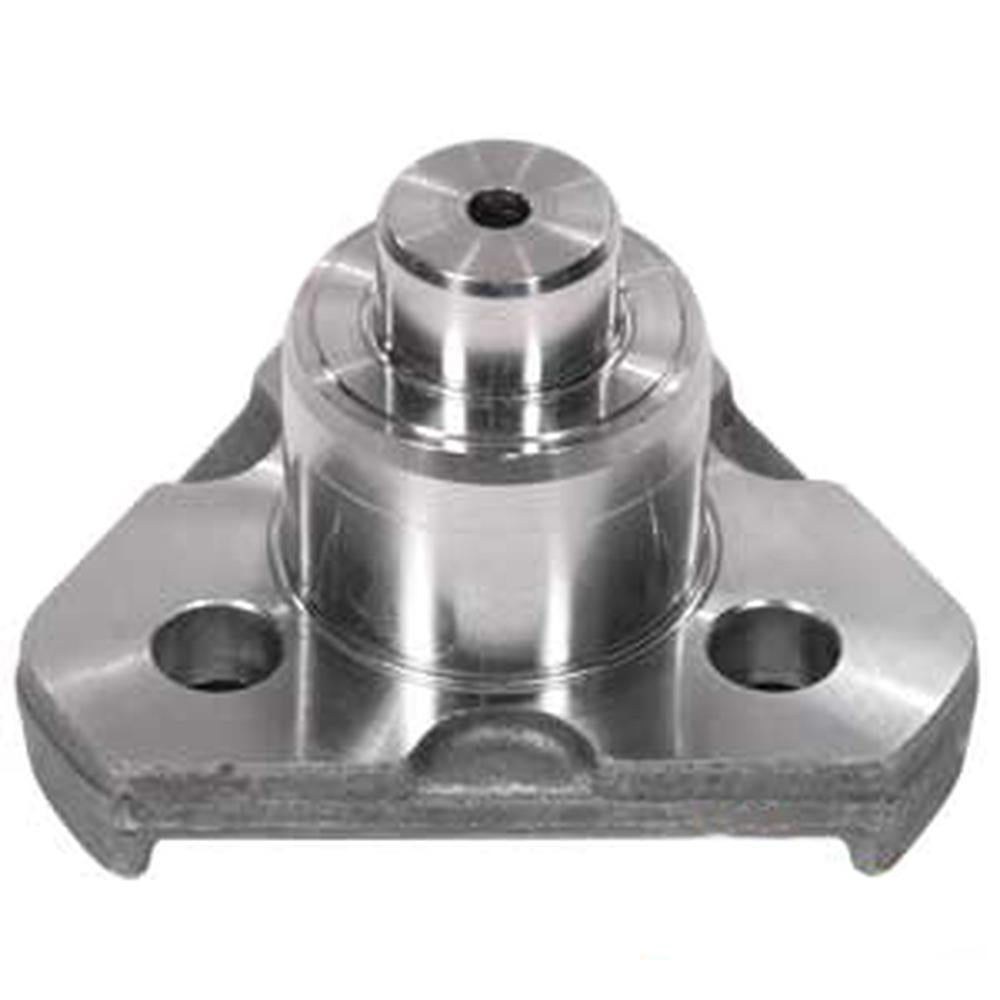

N13504 King Pin – Fits Case IH
N13504 King Pin – Fits Case IH – additional image 2N13504 King Pin – Fits Case IH – additional image 3

NC-000563 · Other Parts

N13504 King Pin – Fits Case IH

CAD 223.27

In stock

King Pin – reference N13504. Catalogue-listed applications: Case IH 480E, 480E LL, 480E LLInd., 480EInd., 480F, 480F LL, 480F LLInd.. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-000563
Reference numbers
N13504, 3475348M1, 137700410835, CAR118526, 83952503
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: King Pin Fits Case IH.

Configuration: King Pin
Fits Case IH Models: 480E, 480E LL, 480E LLInd., 480EInd., 480F, 480F LL, 480F LLInd., 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250, 580, 580 Super E, 580 Super EInd., 580 Super K, 580 Super KInd., 580K, 580KInd., 584E, 584E Forklift, 585E, 585E Forklift, 586E, 586E Forklift, 590, 590 TurboInd., 590T
Specifications:
-A mm: 28
-B mm: 16
-C mm: 66
Replaces Part Number(s): N13504

Additional specifications:
MFWD Lower King Pin

Reference numbers: N13504, 3475348M1, 137700410835, CAR118526, 83952503

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case IH 480E
  • Case IH 480E LL
  • Case IH 480E LLInd.
  • Case IH 480EInd.
  • Case IH 480F
  • Case IH 480F LL
  • Case IH 480F LLInd.
  • Case IH 5120
  • Case IH 5130
  • Case IH 5140
  • Case IH 5150
  • Case IH 5220
  • Case IH 5230
  • Case IH 5240
  • Case IH 5250
  • Case IH 580
  • Case IH 580 Super E
  • Case IH 580 Super EInd.
  • Case IH 580 Super K
  • Case IH 580 Super KInd.
  • Case IH 580K
  • Case IH 580KInd.
  • Case IH 584E
  • Case IH 584E Forklift
  • Case IH 585E
  • Case IH 585E Forklift
  • Case IH 586E
  • Case IH 586E Forklift
  • Case IH 590
  • Case IH 590 TurboInd.
  • Case IH 590T
  • Case IH 480E LLInd
  • Case IH 480EInd
  • Case IH 480F LLInd
  • Case IH 580 Super EInd
  • Case IH 580 Super KInd
  • Case IH 580KInd
  • Case IH 590 TurboInd
Application notes
  • One New Aftermarket King Pin
