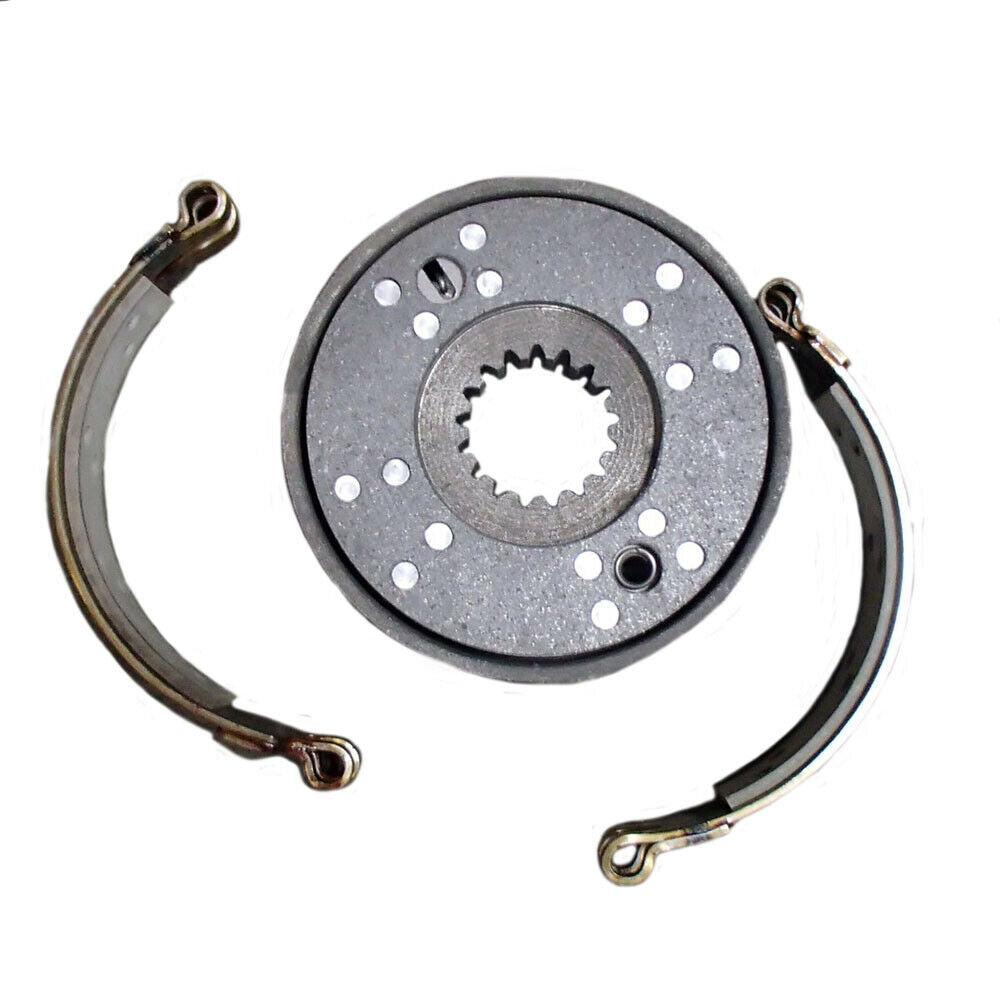

249022A1 Backhoe Brake Pack Assembly – Fits Case / International Harvester

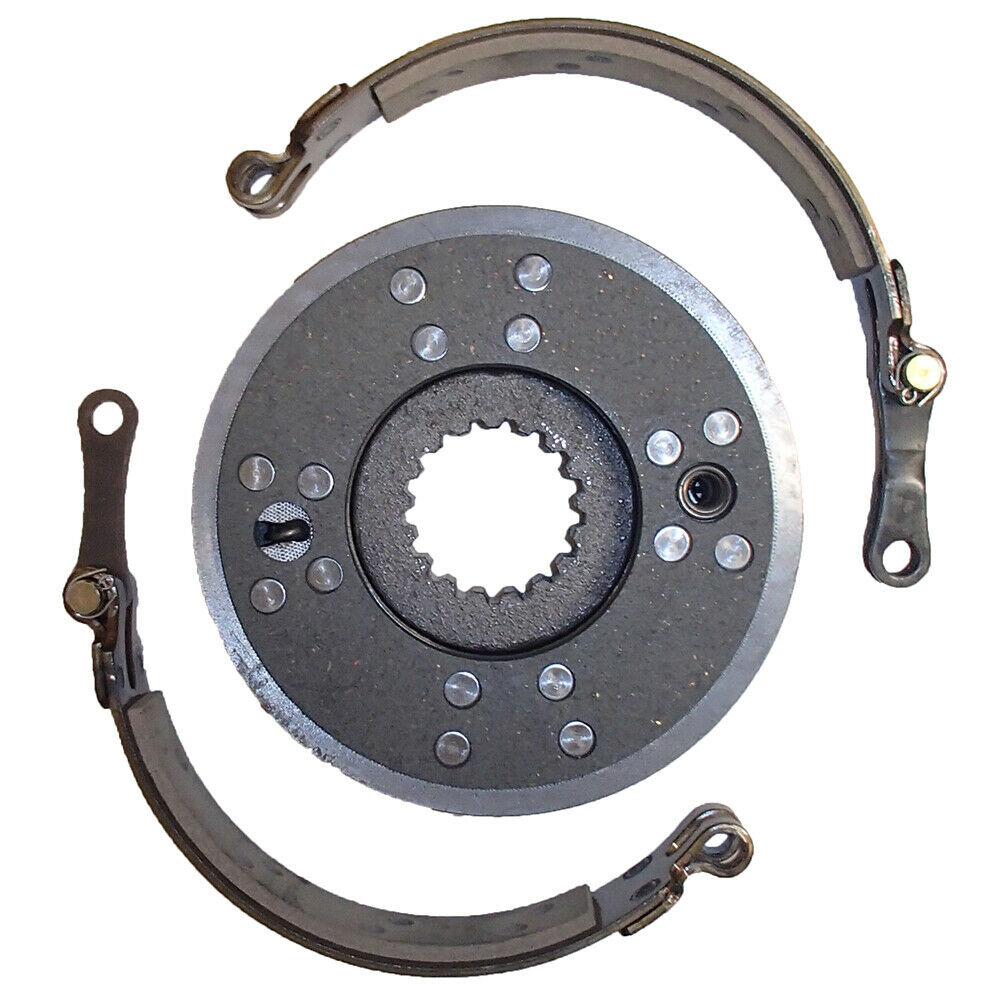

249022A1 Backhoe Brake Pack Assembly – Fits Case / International Harvester – additional image 2

NC-000472 · Other Brake Components

249022A1 Backhoe Brake Pack Assembly – Fits Case / International Harvester

CAD 477.13

Availability to confirm

Backhoe Brake Pack Assembly – reference 249022A1. Catalogue-listed applications: Case / International Harvester 430, 530, 470, 570, 480, 580, 480B. Height: 63.5 mm. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-000472
Reference numbers
249022A1, 249022A1-A, 249022A3, 249022A3-A, A142979, A142979-A, A154350, A154350-A, A155474, A155474-A, A156383, A157, A157157, A157157-A
Listed package quantity
1
Height
63.5 mm
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Backhoe Brake Pack Assembly Fits Case 430 530 470 570 480 580 480B.

Configuration: Pre-Assembled Brake Pack Assembly
Fits Case/International Harvester Tractor:
430, 530, 470, 570, 480, 580, 480B
Specifications:
10.5" diameter
2.5" height
Brake Pack comes complete with both Half Housings, Outer Bands, Balls and Springs ready to install.
We also sell the lining kits to rebuild your drums #22 or brake bands #23
Instillation: When installing brake pack be sure housing is in a vertical (stand up) position. Install brake bands first. This allows brake bands to center themselves upright and brake pack to slide into position.
Replaces Part Numbers:
249022A3, A154350, A157157, 249022A1, A142979

Additional specifications:
*The overall thickness of the assembled brake pack, including new linings is 2.14 - 2.15 Actual measurements 10-1/2" diameter, 2-1/2" height 2 used per tractor WILL NOT WORK ON TURBO MACHINES!. Brake Pack Assembly

Reference numbers: 249022A1, 249022A1-A, 249022A3, 249022A3-A, A142979, A142979-A, A154350, A154350-A, A155474, A155474-A, A156383, A157, A157157, A157157-A

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • Case / International Harvester 430
  • Case / International Harvester 530
  • Case / International Harvester 470
  • Case / International Harvester 570
  • Case / International Harvester 480
  • Case / International Harvester 580
  • Case / International Harvester 480B
Application notes
  • One New Aftermarket Replacement Pre-Assembled Brake Pack Assembly
  • Brake Pack comes complete with both Half Housings, Outer Bands, Balls and Springs ready to install.
