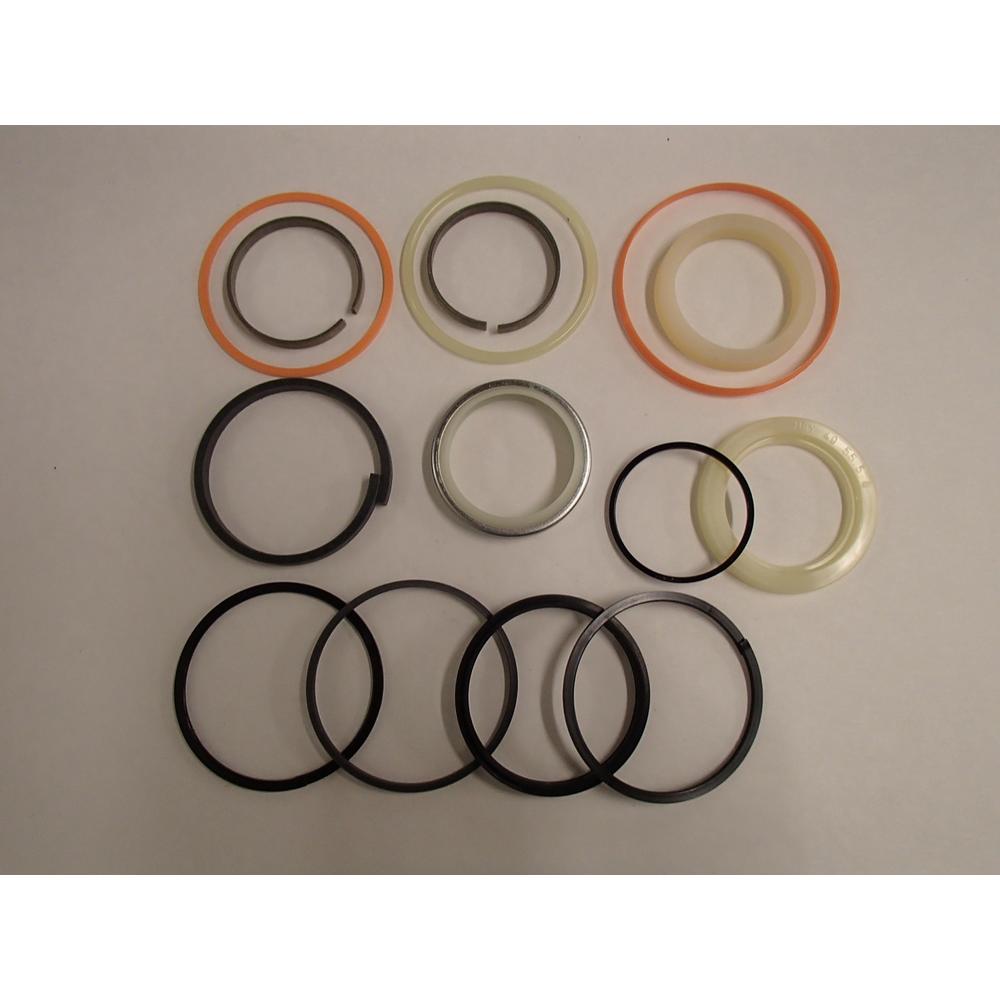

AH153497 Hydraulic Cylinder Seal Kit – Fits John Deere

NC-087601 · Cylinders

AH153497 Hydraulic Cylinder Seal Kit – Fits John Deere

CAD 142.78

Availability to confirm

Hydraulic Cylinder Seal Kit – reference AH153497. Catalogue-listed applications: John Deere 450H, 544H LL. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-087601
Reference numbers
AH153497
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Fits John Deere 450H 544H NEW Seal Repair Kit.

Configuration: Hydraulic Cylinder Seal Kit Fits John Deere Crawler Dozers and Wheel LoadersThis aftermarket replacement hydraulic cylinder seal kit replaces OEM part number AH153497 and is designed to restore the blade angle cylinder on Fits John Deere 450H and 450J crawler dozers, as well as the steering cylinder on Fits John Deere 544H, 544H LL, and TC54H wheel loaders. Restoring worn or leaking cylinder seals helps maintain proper hydraulic pressure and precise blade or steering control.
Specifications
Rod Diameter: 40 mm
Bore Diameter: 63 mm Cylinder (450H / 450J Blade Angle): AH216716 Cylinder (544H / 544H LL / TC54H Steering): AH147586 Serial Number Restrictions 450J (Blade Angle Cylinder): Fits After Serial Number 102818 and Before Serial Number 1028107 only 544H / 544H LL / TC54H (Steering Cylinder): Fits Before Serial Number 568522 only Compatible Models
Fits John Deere Crawler Dozers / Loaders (Blade Angle Cylinder): 450H, 450JFits John Deere Wheel Loaders (Steering Cylinder): 544H, 544H LL, TC54HFits John Deere (Additional
Listed applications:
): LX100-5
Replaces Part Number(s):AH153497, AH153497-ANew aftermarket replacement part - not remanufactured, not used.

Reference numbers: AH153497

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 450H
  • John Deere 544H LL
Application notes
  • One New Aftermarket Replacement Hydraulic Cylinder Seal Kit Fits John Deere Crawler Dozers and Wheel LoadersThis aftermarket replacement hydraulic cylinder seal kit replaces OEM part number AH153497 and is designed to restore the blade angle cylinder on Fits John Deere 450H and 450J crawler dozers, as well as the steering cylinder on Fits John Deere 544H, 544H LL, and TC54H wheel loaders. Restoring worn or leaking cylinder seals helps maintain proper hydraulic pressure and precise blade or steering control.Specifications Rod Diameter: 40 mm Bore Diameter: 63 mm Cylinder (450H / 450J Blade Angle): AH216716 Cylinder (544H / 544H LL / TC54H Steering): AH147586 Serial Number Restrictions 450J (Blade Angle Cylinder): Fits After Serial Number 102818 and Before Serial Number 1028107 only 544H / 544H LL / TC54H (Steering Cylinder): Fits Before Serial Number 568522 only Compatible Models Fits John Deere Crawler Dozers / Loaders (Blade Angle Cylinder): 450H, 450JFits John Deere Wheel Loaders (Steering Cylinder): 544H, 544H LL, TC54HFits John Deere (Additional Fitment): LX100-5 Replaces Part Number(s):AH153497, AH153497-ANew aftermarket replacement part - not remanufactured, not used.
