971-20005060 Sprocket

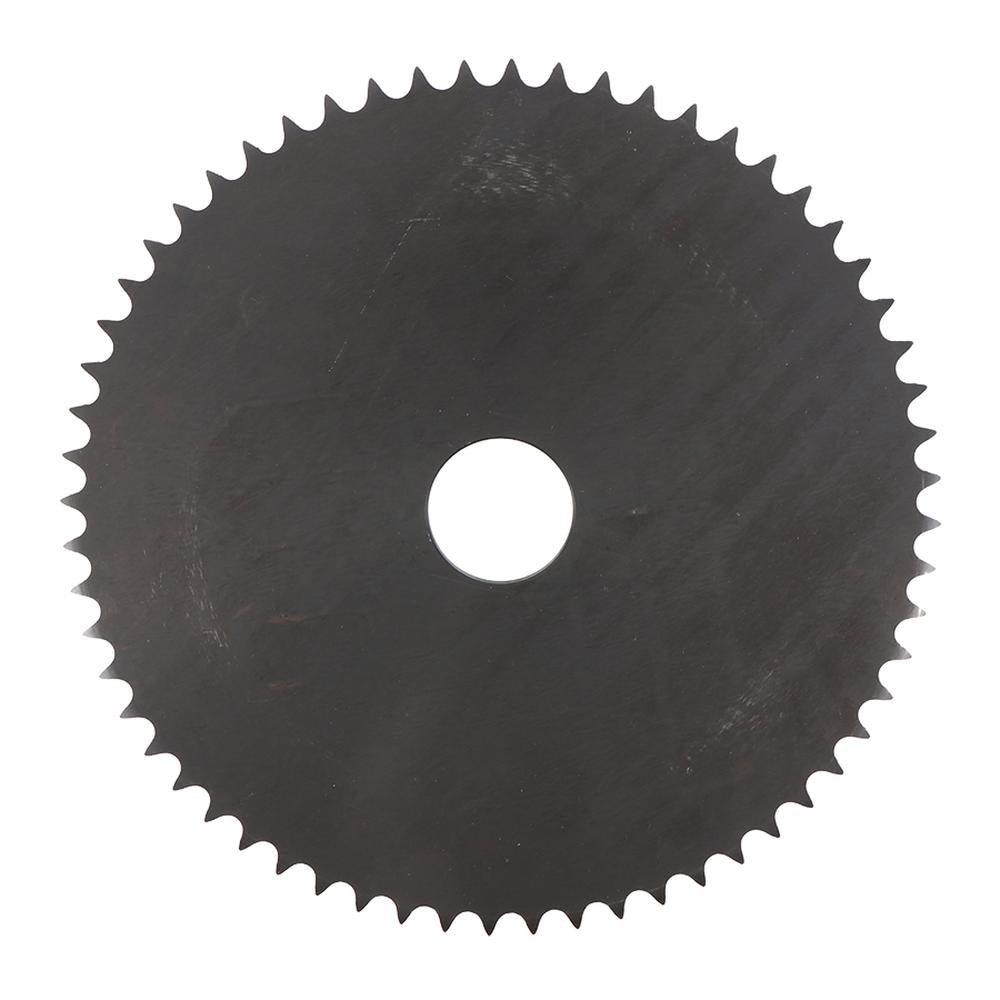

971-20005060 Sprocket – additional image 2

NC-086882 · Sprockets, Bars, Hubs & Pulleys

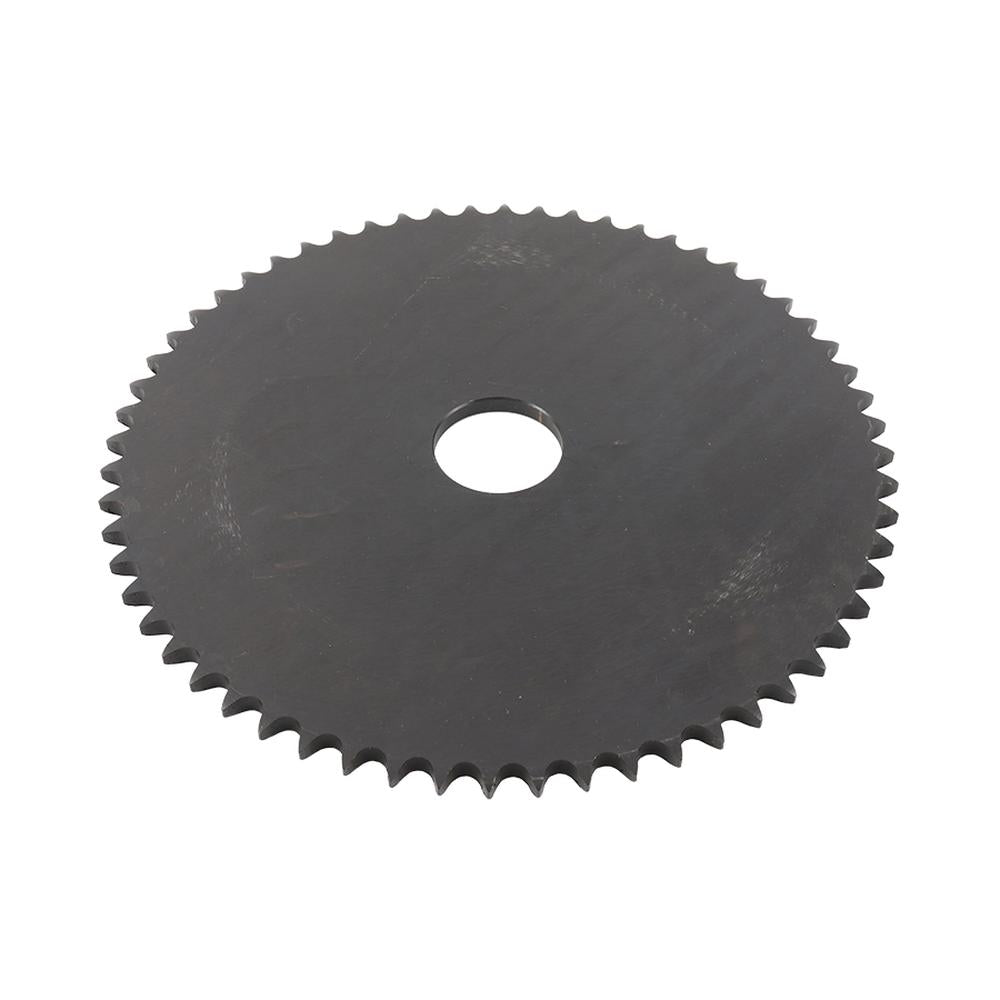

971-20005060 Sprocket

CAD 146.22

Availability to confirm

Sprocket – reference 971-20005060. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-086882
Reference numbers
971-20005060, 20005060, 50X60
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Sprocket.

Configuration: #50 Roller Chain Weld-On Sprocket - 60 Tooth X-Series HubThis 60-tooth weld-on sprocket is designed for use with ANSI standard #50 roller chain (5/8" pitch) in agricultural drive and conveying applications. The sprocket is hubless -- it mounts by welding directly to any compatible X-Series weld-on hub (hub not included, sold separately). Common applications include planters, balers, grain handling equipment, conveyors, and other agricultural machinery using #50 drive chain. Manufactured to ANSI B29.1 standards for dimensional compatibility with all ANSI #50 roller chain.Specifications Chain Size: #50 ANSI Roller Chain (5/8" pitch) Number of Teeth: 60 Outside Diameter: 12.306" Hub Bore (center): 2" Hub Type: X-Series Weld-On (hub required, not included) Sprocket Style: Hubless flat plate weld-on Hub Compatibility NoteThis sprocket requires a separately purchased X-Series weld-on hub. It is compatible with any standard X-Series weld-on hub with a 2" bore. Do not attempt to install without a proper hub.Replaces Part Number(s):WSS105060Aftermarket Interchange Numbers00105060, 971-20005060, 20005060, 50X60, A-50X60-AINew aftermarket replacement part - not remanufactured, not used.

Reference numbers: 971-20005060, 20005060, 50X60
Application notes
  • One New Aftermarket Replacement #50 Roller Chain Weld-On Sprocket - 60 Tooth X-Series HubThis 60-tooth weld-on sprocket is designed for use with ANSI standard #50 roller chain (5/8" pitch) in agricultural drive and conveying applications. The sprocket is hubless -- it mounts by welding directly to any compatible X-Series weld-on hub (hub not included, sold separately). Common applications include planters, balers, grain handling equipment, conveyors, and other agricultural machinery using #50 drive chain. Manufactured to ANSI B29.1 standards for dimensional compatibility with all ANSI #50 roller chain.Specifications Chain Size: #50 ANSI Roller Chain (5/8" pitch) Number of Teeth: 60 Outside Diameter: 12.306" Hub Bore (center): 2" Hub Type: X-Series Weld-On (hub required, not included) Sprocket Style: Hubless flat plate weld-on Hub Compatibility NoteThis sprocket requires a separately purchased X-Series weld-on hub. It is compatible with any standard X-Series weld-on hub with a 2" bore. Do not attempt to install without a proper hub.Replaces Part Number(s):WSS105060Aftermarket Interchange Numbers00105060, 971-20005060, 20005060, 50X60, A-50X60-AINew aftermarket replacement part - not remanufactured, not used.
