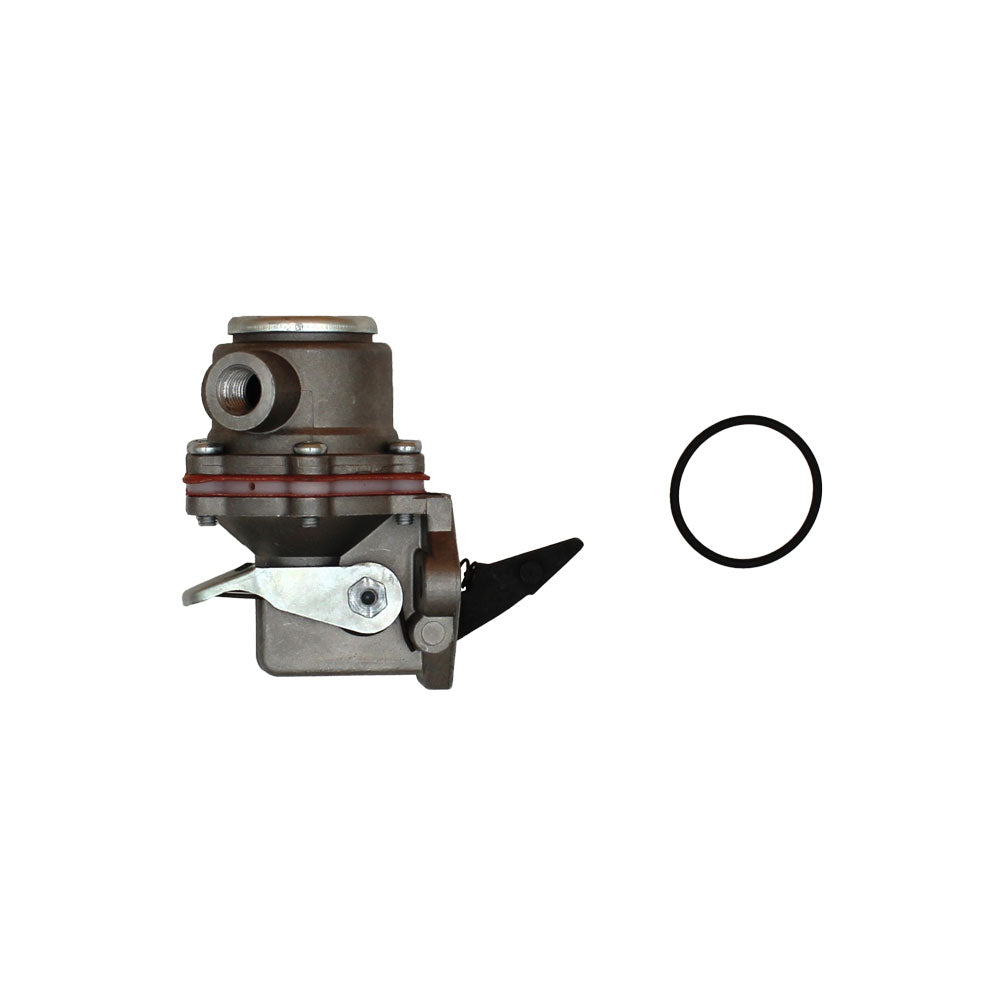

4757882 Fuel Pump

Quantity indicated in catalogue: 1

Replacement part: 4757882, 504090936 Fuel Pump Fits Ford/New Holland.

Configuration: Fuel Lift Pump for Ford/New Holland, Fiat, and Case IH TractorsThis mechanical fuel lift pump draws diesel fuel from the tank and delivers it to the injection pump at the correct pressure, ensuring reliable engine starting and steady power under load. It features a 2-bolt mounting flange with an M12x1.5 mm thread size and uses an O-ring style seal for a leak-free connection. Designed as a direct-fit replacement for Ford (New Holland), Fiat, Case IH, and Farmall diesel tractors across multiple series including the TL, TN, TD, TK, TT, JX, and classic numeric series.Specifications Mounting: 2-bolt flange Thread Size: M12x1.5 mm Seal Type: O-ring (included) Pump Type: Mechanical fuel lift pump (cam-actuated) Compatible ModelsNew Holland TL Series: TL70, TL80, TL90, TL100New Holland TN Series: TN55, TN55D, TN55S, TN55V, TN60A, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65N, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA, TN75N, TN75NA, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95VANew Holland TD Series: TD3.50, TD5.65, TD5.75, TD5.80, TD5.90, TD5.100, TD5.110, TD55D, TD60, TD60D, TD65B, TD65D, TD65F, TD70, TD70D, TD75D, TD75F, TD80, TD80D, TD85D, TD85F, TD90, TD90D, TD95, TD95D, TD95D HC PLUSNew Holland TK Series: TK65, TK65F, TK65V, TK70, TK70FA, TK70VA, TK75, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK75VA, TK76, TK76M, TK80, TK80A, TK80MA, TK85, TK85M, TK90, TK90A, TK90MA, TK95, TK95M, TK100ANew Holland TT Series: TT35, TT39, TT40, TT50, TT55, TT60A, TT65, TT65D, TT75, TT75A, TT4.55, TT4.75, TT4.80, TT4.90New Holland JX/JXM Series: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100, JX100U, JX110, JX1060C, JX1060V, JX1070C, JX1070N, JX1070V, JX1075C, JX1075N, JX1075V, JX1095C, 55JXM, 65JXM, 75JXM, 80JXM, 90JXMNew Holland T-Series: T3.50F, T3.55F, T3.65F, T3.75F, T4.65S, T5.100New Holland Numeric Series: 4835, 5635, 6635, 7635, 3830, 75A, 65A, L65Ford Numeric Series: 3830, 4010S, 4030, 4230, 4330, 4330V, 4430, 4635, 4835, 5010S, 5500, 5530, 5635, 6530, 6610S, 7610S, 7635Case IH / Farmall JX Series: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, MX100C, CX100Fiat Numeric Series: 45-46, 45-46DT, 45-66, 45-66DT, 45-76V, 50-66, 50-66DT, 55-46, 55-46DT, 55-56, 55-56DT, 55-66, 55-66DT, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-56, 60-56DT, 60-66, 60-66DT, 60-76F, 60-76FDT, 60-86F, 60-86FDT, 60-86SV, 60-86SVDT, 60-86V, 60-86VDT, 60-90, 60-90DT, 60-93, 60-93DT, 60-94, 60-94DT, 65-46, 65-46DT, 65-56, 65-56DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 65A, 70-56, 70-56DT, 70-66, 70-66DT, 70-66F, 70-66FDT, 70-66LP, 70-66S, 70-66SDT, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-88, 70-88DT, 70-90, 70-90DT, 72-93, 72-93DT, 72-94, 72-94DT, 75A, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76F, 80-76FDT, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DTReplaces Part Number(s):4757882, 504090936, 84550751, 84550742, 84281012, 84281011, 84280977, 5803087486, 5802322849, 5801833326, 5097152, 48076416, 47750097, 4740718, 4709283, 4667510Aftermarket Interchange NumbersAlso interchanges with: FSG60-0092 (item number). Cross-references with applications for Allis Chalmers 5040/5045/5050 (72093848), Hesston (4740717, 504090935), Long Tractor (TX10289), and Oliver (31-2900044, 31-2905019) -- verify fitment for those applications before ordering.New aftermarket replacement part - not remanufactured, not used.

Reference numbers: 4757882, 504090936, 84550751, 84550742, 84281012, 84281011, 84280977, 5803087486, 5802322849, 5801833326, 5097152, 48076416, 47750097, 4740718, 4709283

• One New Aftermarket Replacement Fuel Lift Pump for Ford/New Holland, Fiat, and Case IH TractorsThis mechanical fuel lift pump draws diesel fuel from the tank and delivers it to the injection pump at the correct pressure, ensuring reliable engine starting and steady power under load. It features a 2-bolt mounting flange with an M12x1.5 mm thread size and uses an O-ring style seal for a leak-free connection. Designed as a direct-fit replacement for Ford (New Holland), Fiat, Case IH, and Farmall diesel tractors across multiple series including the TL, TN, TD, TK, TT, JX, and classic numeric series.Specifications Mounting: 2-bolt flange Thread Size: M12x1.5 mm Seal Type: O-ring (included) Pump Type: Mechanical fuel lift pump (cam-actuated) Compatible ModelsNew Holland TL Series: TL70, TL80, TL90, TL100New Holland TN Series: TN55, TN55D, TN55S, TN55V, TN60A, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65N, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA, TN75N, TN75NA, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95VANew Holland TD Series: TD3.50, TD5.65, TD5.75, TD5.80, TD5.90, TD5.100, TD5.110, TD55D, TD60, TD60D, TD65B, TD65D, TD65F, TD70, TD70D, TD75D, TD75F, TD80, TD80D, TD85D, TD85F, TD90, TD90D, TD95, TD95D, TD95D HC PLUSNew Holland TK Series: TK65, TK65F, TK65V, TK70, TK70FA, TK70VA, TK75, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK75VA, TK76, TK76M, TK80, TK80A, TK80MA, TK85, TK85M, TK90, TK90A, TK90MA, TK95, TK95M, TK100ANew Holland TT Series: TT35, TT39, TT40, TT50, TT55, TT60A, TT65, TT65D, TT75, TT75A, TT4.55, TT4.75, TT4.80, TT4.90New Holland JX/JXM Series: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100, JX100U, JX110, JX1060C, JX1060V, JX1070C, JX1070N, JX1070V, JX1075C, JX1075N, JX1075V, JX1095C, 55JXM, 65JXM, 75JXM, 80JXM, 90JXMNew Holland T-Series: T3.50F, T3.55F, T3.65F, T3.75F, T4.65S, T5.100New Holland Numeric Series: 4835, 5635, 6635, 7635, 3830, 75A, 65A, L65Ford Numeric Series: 3830, 4010S, 4030, 4230, 4330, 4330V, 4430, 4635, 4835, 5010S, 5500, 5530, 5635, 6530, 6610S, 7610S, 7635Case IH / Farmall JX Series: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, MX100C, CX100Fiat Numeric Series: 45-46, 45-46DT, 45-66, 45-66DT, 45-76V, 50-66, 50-66DT, 55-46, 55-46DT, 55-56, 55-56DT, 55-66, 55-66DT, 55-76F, 55-76FDT, 55-76V, 55-76VDT, 60-56, 60-56DT, 60-66, 60-66DT, 60-76F, 60-76FDT, 60-86F, 60-86FDT, 60-86SV, 60-86SVDT, 60-86V, 60-86VDT, 60-90, 60-90DT, 60-93, 60-93DT, 60-94, 60-94DT, 65-46, 65-46DT, 65-56, 65-56DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 65A, 70-56, 70-56DT, 70-66, 70-66DT, 70-66F, 70-66FDT, 70-66LP, 70-66S, 70-66SDT, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-88, 70-88DT, 70-90, 70-90DT, 72-93, 72-93DT, 72-94, 72-94DT, 75A, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76F, 80-76FDT, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DTReplaces Part Number(s):4757882, 504090936, 84550751, 84550742, 84281012, 84281011, 84280977, 5803087486, 5802322849, 5801833326, 5097152, 48076416, 47750097, 4740718, 4709283, 4667510Aftermarket Interchange NumbersAlso interchanges with: FSG60-0092 (item number). Cross-references with applications for Allis Chalmers 5040/5045/5050 (72093848), Hesston (4740717, 504090935), Long Tractor (TX10289), and Oliver (31-2900044, 31-2905019) -- verify fitment for those applications before ordering.New aftermarket replacement part - not remanufactured, not used.
