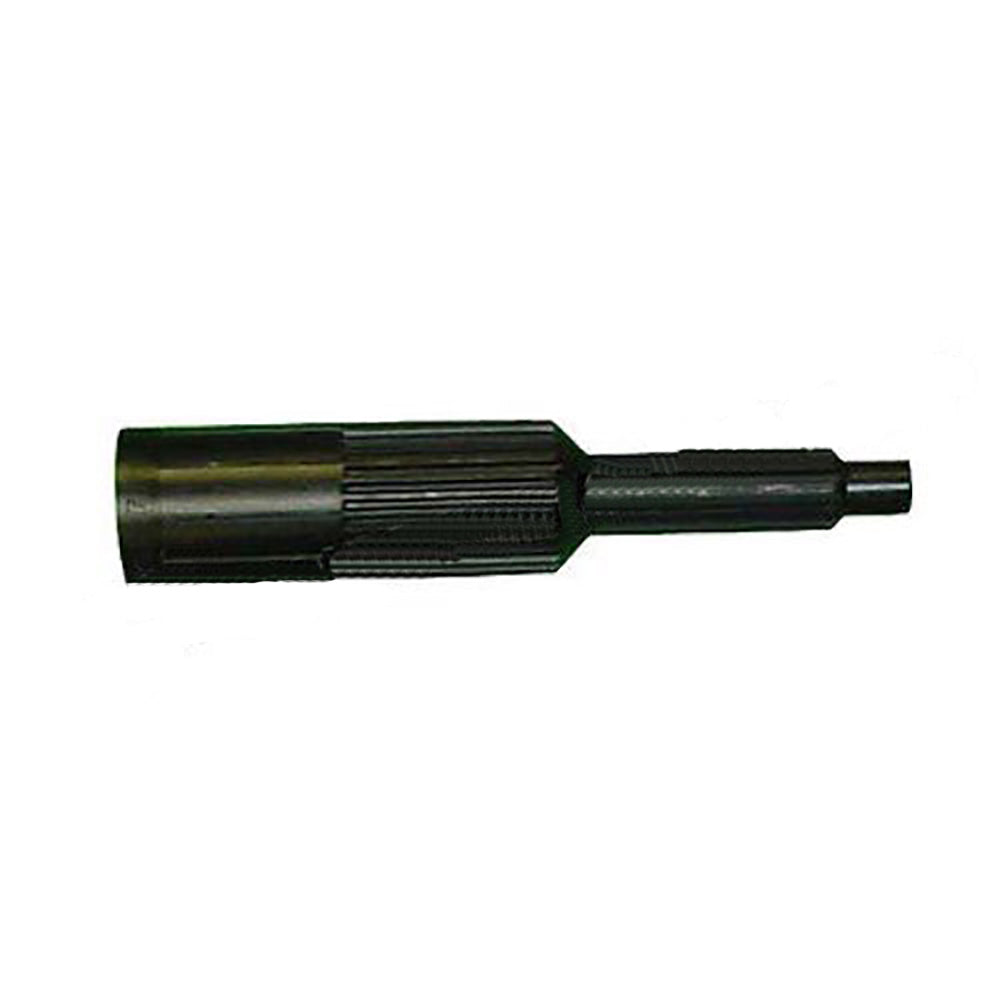

1112-5805 and 29 Spline Clutch Alignment Tool

NC-043047 · Gasket, Seals, Tools & Other

1112-5805 and 29 Spline Clutch Alignment Tool

CAD 46.23

In stock

and 29 Spline Clutch Alignment Tool – reference 1112-5805. Catalogue-listed applications: Ford, Ford / New Holland, New Holland. Spline count: 29. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-043047
Reference numbers
1112-5805, C1112-5805T, AG03
Listed package quantity
1
Spline count
29
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: and 29 Spline Clutch Alignment Tool fits Models Listed Below.

Configuration: Dual Clutch Alignment Tool for Ford and Ford New Holland TractorsThis dual clutch alignment tool is designed to properly center and align the clutch disc during clutch installation on Ford and Ford New Holland tractors equipped with a dual-stage clutch. The tool features a 29-spline end (1-7/8" O.D.) and a 10-spline end (1" O.D.) with a 0.670" pilot diameter, ensuring correct disc positioning before the transmission is mated to the engine.
Specifications Type: Dual Large End O.D.: 1-7/8" | Spline Count: 29 Small End O.D.: 1" | Spline Count: 10 Pilot O.D.: 0.670" Compatible ModelsFord / Ford New Holland: 2000 Series (3-cyl, 1965-1974), 2150, 2300, 230A, 231, 2310, 233, 234, 250C, 2600, 2600N, 2600V, 260C, 2610, 2810, 2910, 3000 Series, 3055, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 333, 3330, 334, 335, 340, 3400, 340A, 340B, 3430, 345C, 345D, 3500, 3550, 3600, 3600N, 3600V, 3610, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4190, 4200, 4330, 4340, 4400, 4410, 445, 445A, 445C, 450, 4500, 455, 455D, 4600, 4600O, 4600SU, 4610, 4610O, 4610SU, 4630, 4830, 5000, 5030, 5100, 5190, 5200, 530A, 531, 5340, 540, 540A, 540B, 545A, 545C, 545D, 550, 555, 555A, 555B, 5600, 5610, 5700, 5900, 655, 655A, 6600, 6600C, 6600O, 6610, 6610O, 6700, 6710, 7100, 7200, 7600, 7600C, 7700
Replaces Part Number(s):1112-5805, AG03, C1112-5805T, C1112-5805T-ANew aftermarket replacement part - not remanufactured, not used.

Reference numbers: 1112-5805, C1112-5805T, AG03
Application notes
  • One New Aftermarket Replacement Dual Clutch Alignment Tool for Ford and Ford New Holland TractorsThis dual clutch alignment tool is designed to properly center and align the clutch disc during clutch installation on Ford and Ford New Holland tractors equipped with a dual-stage clutch. The tool features a 29-spline end (1-7/8" O.D.) and a 10-spline end (1" O.D.) with a 0.670" pilot diameter, ensuring correct disc positioning before the transmission is mated to the engine.Specifications Type: Dual Large End O.D.: 1-7/8" | Spline Count: 29 Small End O.D.: 1" | Spline Count: 10 Pilot O.D.: 0.670" Compatible ModelsFord / Ford New Holland: 2000 Series (3-cyl, 1965-1974), 2150, 2300, 230A, 231, 2310, 233, 234, 250C, 2600, 2600N, 2600V, 260C, 2610, 2810, 2910, 3000 Series, 3055, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 333, 3330, 334, 335, 340, 3400, 340A, 340B, 3430, 345C, 345D, 3500, 3550, 3600, 3600N, 3600V, 3610, 3900, 3910, 3930, 4000, 4100, 4110, 4130, 4140, 4190, 4200, 4330, 4340, 4400, 4410, 445, 445A, 445C, 450, 4500, 455, 455D, 4600, 4600O, 4600SU, 4610, 4610O, 4610SU, 4630, 4830, 5000, 5030, 5100, 5190, 5200, 530A, 531, 5340, 540, 540A, 540B, 545A, 545C, 545D, 550, 555, 555A, 555B, 5600, 5610, 5700, 5900, 655, 655A, 6600, 6600C, 6600O, 6610, 6610O, 6700, 6710, 7100, 7200, 7600, 7600C, 7700 Replaces Part Number(s):1112-5805, AG03, C1112-5805T, C1112-5805T-ANew aftermarket replacement part - not remanufactured, not used.
