AR46268 Sending Unit – Fits John Deere

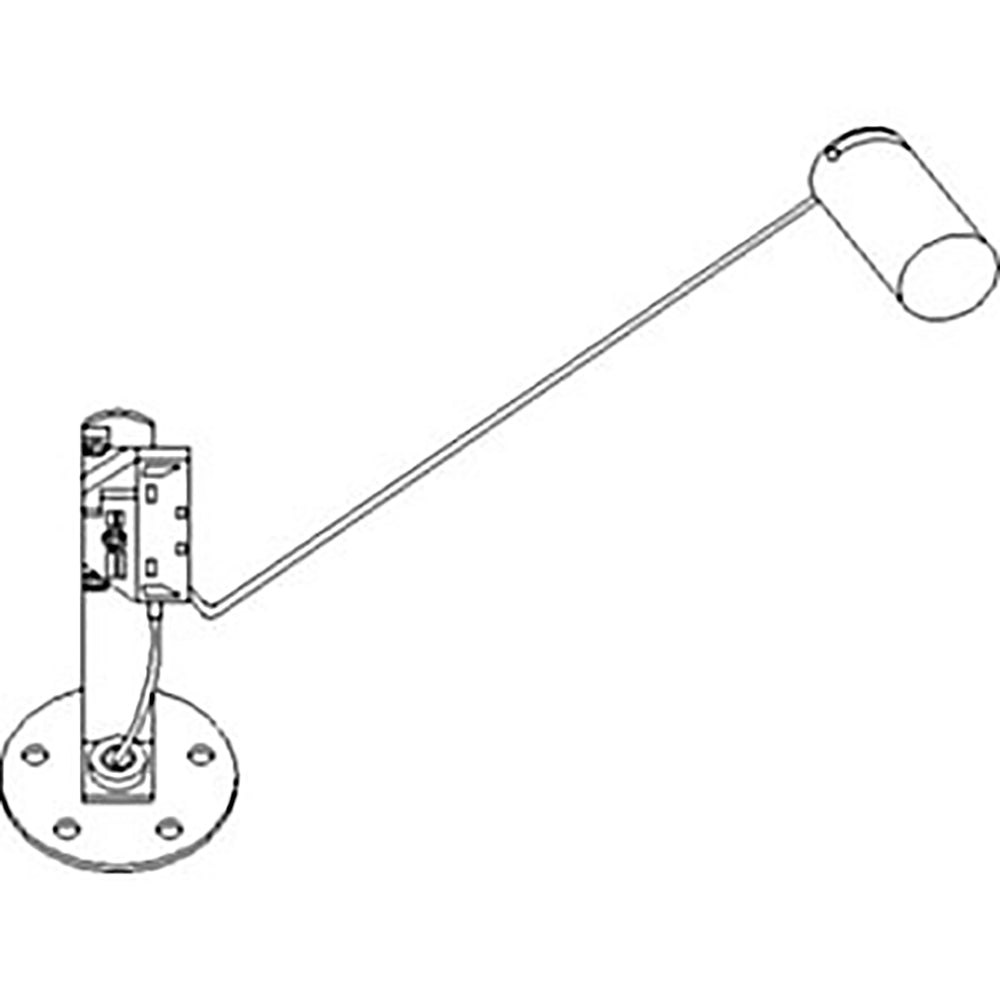

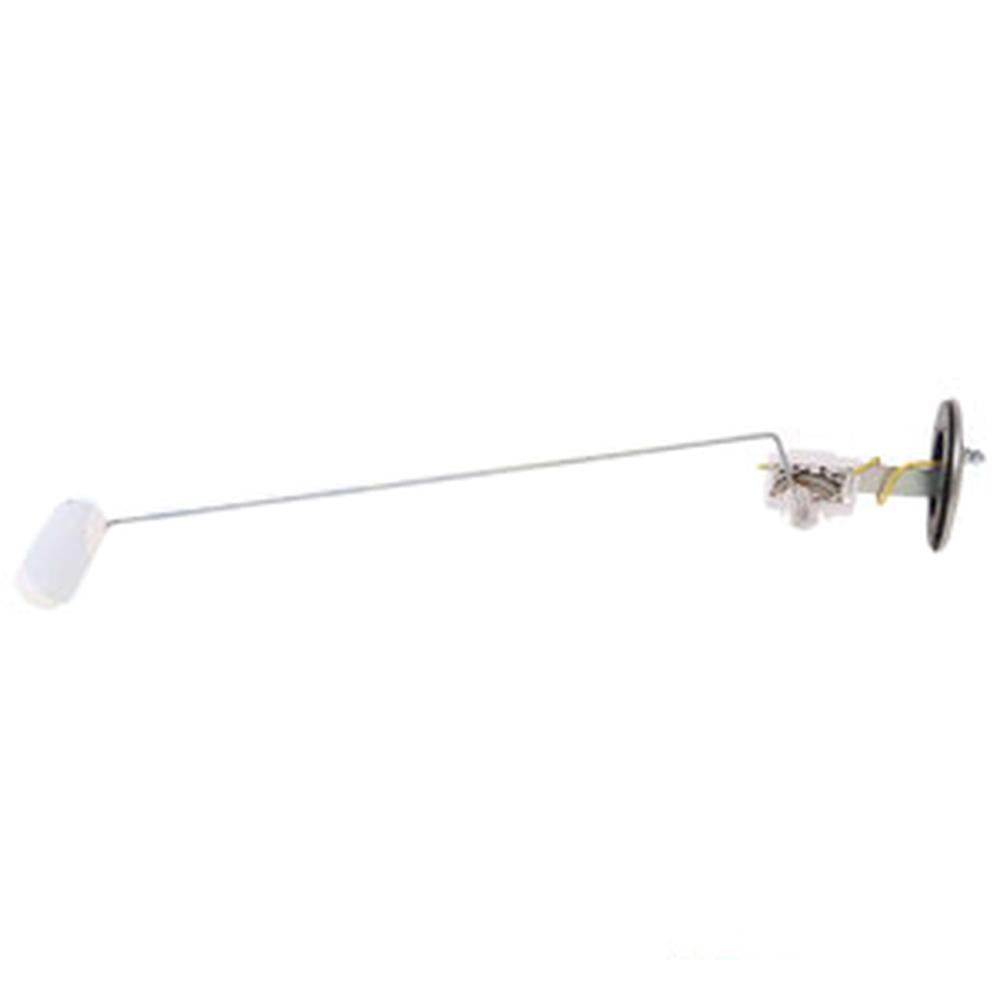

AR46268 Sending Unit – Fits John Deere – additional image 2AR46268 Sending Unit – Fits John Deere – additional image 3

NC-035916 · Fuel System Parts & Components

AR46268 Sending Unit – Fits John Deere

CAD 125.43

In stock

Sending Unit – reference AR46268. Catalogue-listed applications: John Deere. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-035916
Reference numbers
AR46268
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Sending Unit AR46268 Fits Case 3020 4000 4020 600.

Configuration: Fuel Sending Unit AR46268 for John Deere Tractors and Industrial Equipment
This aftermarket replacement fuel sending unit (replaces John Deere OEM part number AR46268) monitors fuel tank level and transmits a resistance signal to the dash-mounted fuel gauge. The unit features a threaded-type terminal and includes a mounting gasket. Works with gas or diesel engines. For best results, pair this sending unit with a compatible fuel gauge to ensure matching ohm and voltage ranges.
Specifications
Resistance: 30-250 Ohms
Overall Length: 17 in.
Bolt Circle: 2 in.
Voltage: 12-volt, positive or negative ground compatible
Terminal Type: Threaded
Includes mounting gasket
Compatible with gas and diesel engines
Compatible Models
John Deere Tractors: 3020 (S/N 123000 and up), 4000, 4020 (S/N 201000 and up), 4320
John Deere Industrial / Construction: 600 (S/N 201000 and up), 860, 860A, 860B
Replaces Part Number(s):
AR46268
Aftermarket Interchange Numbers
A-AR46268, AMAR46268, 1403-3404, JDS1710, MM1059
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: AR46268
Application notes
  • One New Aftermarket Replacement Fuel Sending Unit AR46268 for John Deere Tractors and Industrial Equipment
  • This aftermarket replacement fuel sending unit (replaces John Deere OEM part number AR46268) monitors fuel tank level and transmits a resistance signal to the dash-mounted fuel gauge. The unit features a threaded-type terminal and includes a mounting gasket. Works with gas or diesel engines. For best results, pair this sending unit with a compatible fuel gauge to ensure matching ohm and voltage ranges.
  • Compatible with gas and diesel engines
  • John Deere Tractors: 3020 (S/N 123000 and up), 4000, 4020 (S/N 201000 and up), 4320
  • John Deere Industrial / Construction: 600 (S/N 201000 and up), 860, 860A, 860B
  • Aftermarket Interchange Numbers
  • New aftermarket replacement part - not remanufactured, not used.
