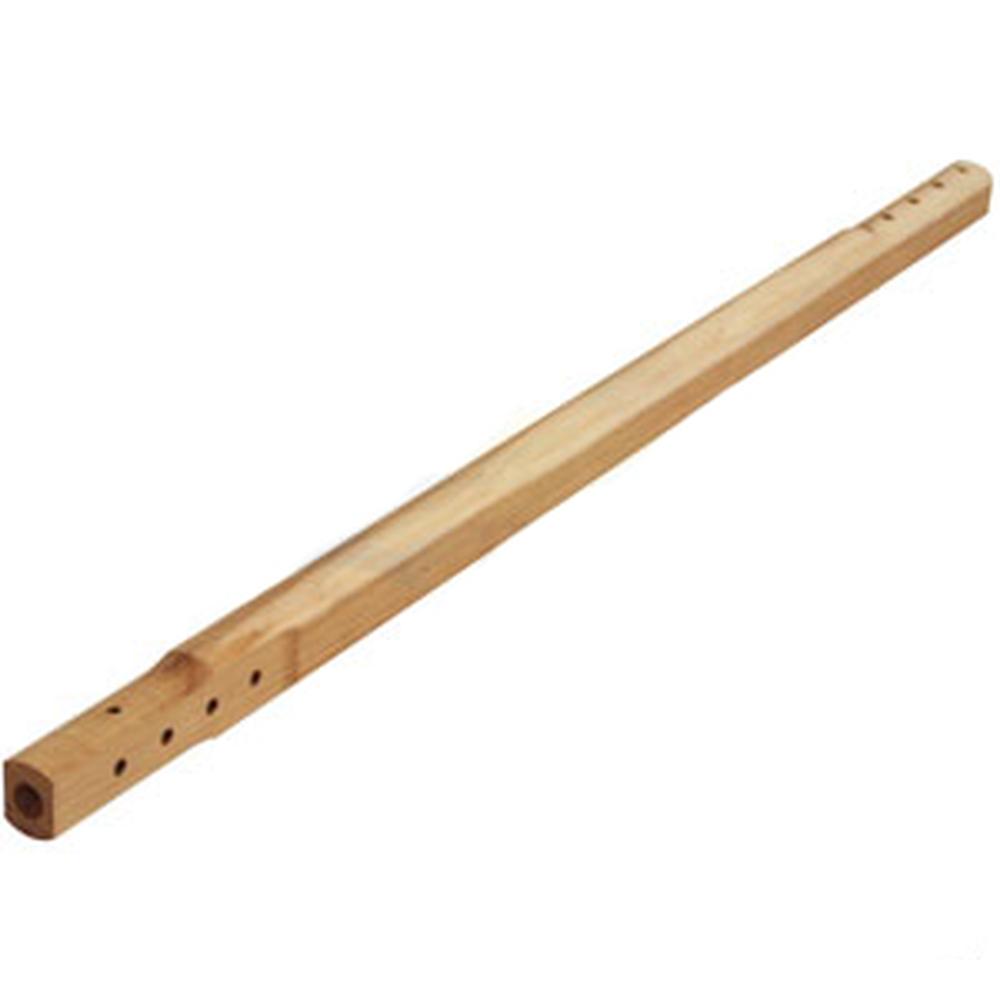

H28286 Wood – Fits John Deere

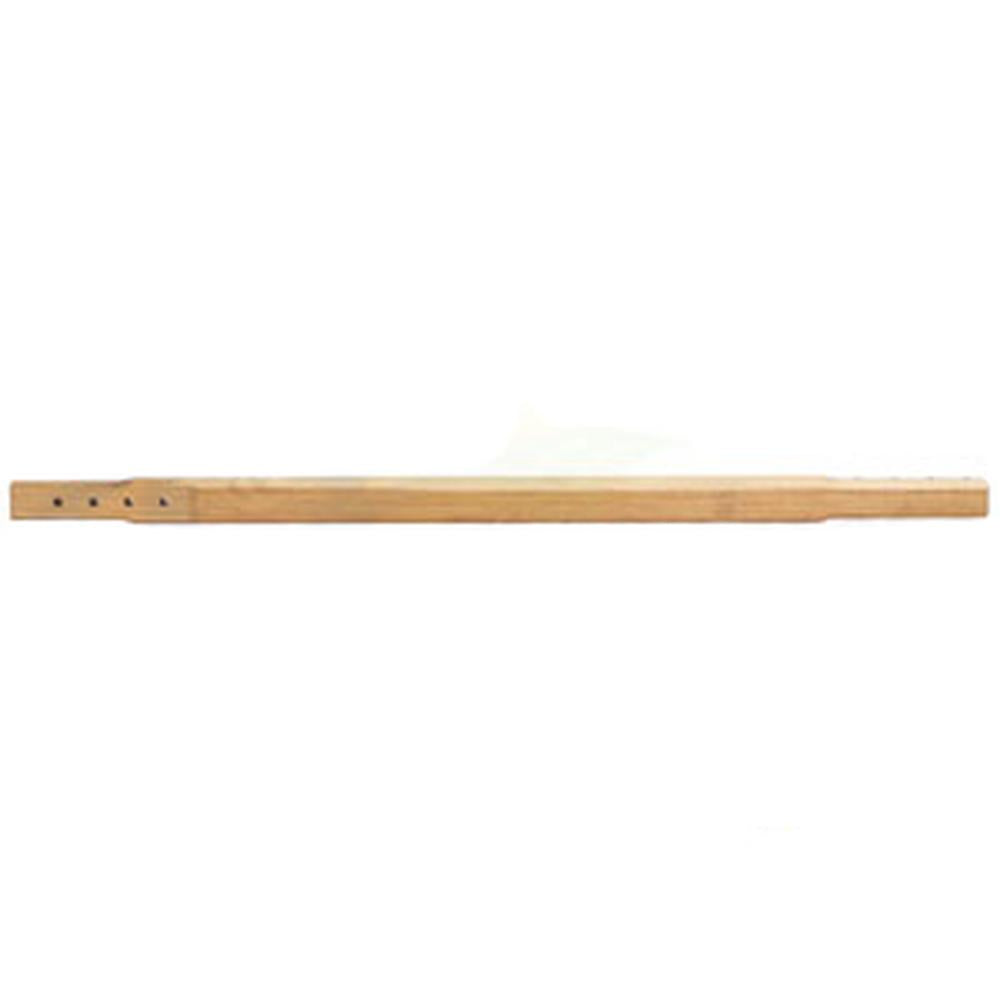

H28286 Wood – Fits John Deere – additional image 2

NC-033690 · Corn/Grain Head Parts

H28286 Wood – Fits John Deere

CAD 100.11

Availability to confirm

Wood – reference H28286. Catalogue-listed applications: John Deere 37, 38, 39, 8W, 9W. View photos, specifications, CAD pricing and delivery options from NorthCore.

Request availability, shipping and a final quote before ordering.

Ask about this part

Part specifications and references

NorthCore code
NC-033690
Reference numbers
H28286, 81C40
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Wood H28286 Fits John Deere 37 38 39 8W 9W.

Configuration: Wood Pitman Arm Fits John Deere Sickle Mowers
This wood pitman arm is a critical component of the sickle mower drive system, converting rotary motion from the gearbox into the reciprocating action that drives the sickle bar cutterhead. It Fits John Deere 37, 38, 39, 8W, and 9W pull-type sickle mowers. The pitman arm is subject to flex and wear during operation and is a common maintenance replacement item on these classic hay-cutting machines.
Specifications
Length: 36-13/16 in. (approx. 36.75 in.)
Width: approx. 1.81 in.
Height: approx. 1.42 in.
Weight: approx. 2 lbs.
Compatible Models
Fits John Deere Sickle Mowers: 37, 38, 39, 8W, 9W
Replaces Part Number(s):
H28286, 81C40
Aftermarket Interchange Numbers
A-H28286
New aftermarket replacement part - not remanufactured, not used.

Reference numbers: H28286, 81C40

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • John Deere 37
  • John Deere 38
  • John Deere 39
  • John Deere 8W
  • John Deere 9W
Application notes
  • One New Aftermarket Replacement Wood Pitman Arm Fits John Deere Sickle Mowers
  • Aftermarket Interchange Numbers
  • New aftermarket replacement part - not remanufactured, not used.
