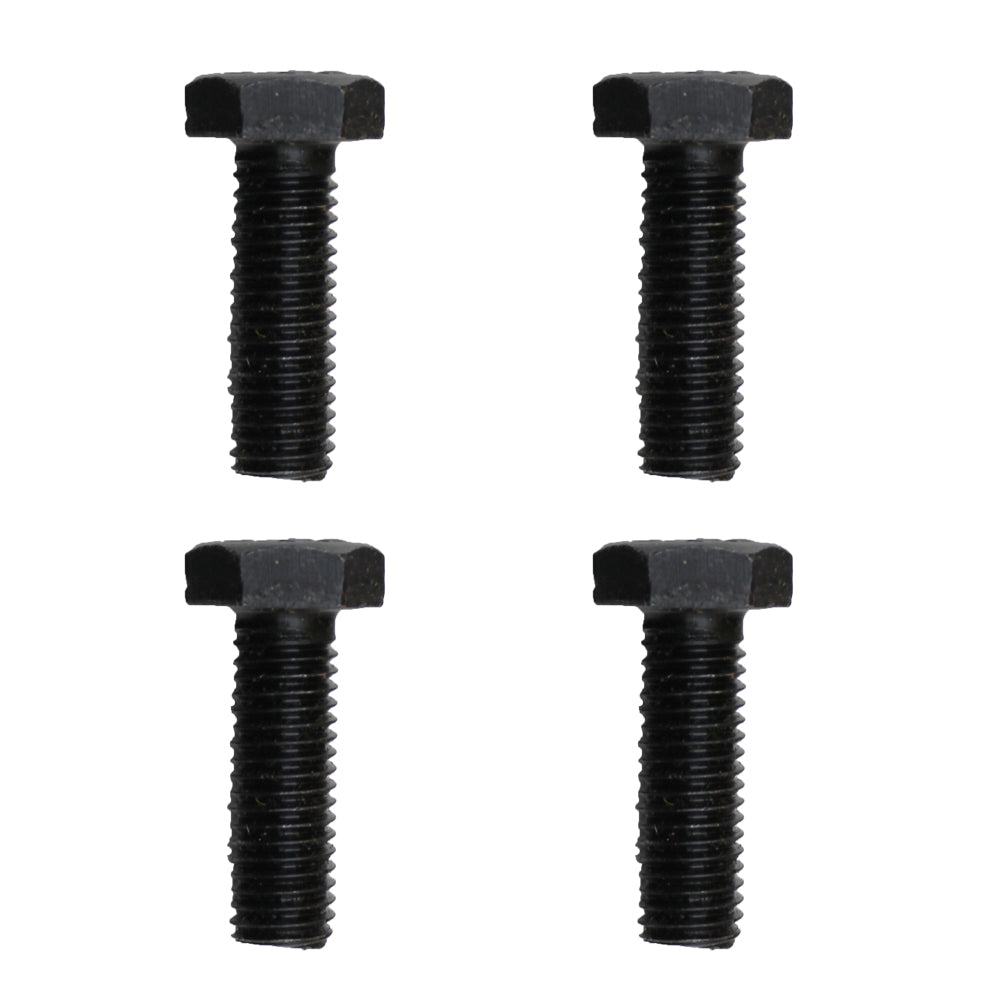

1321/0509 Patch Lock Bolts Trunnion 4PK – Fits JCB

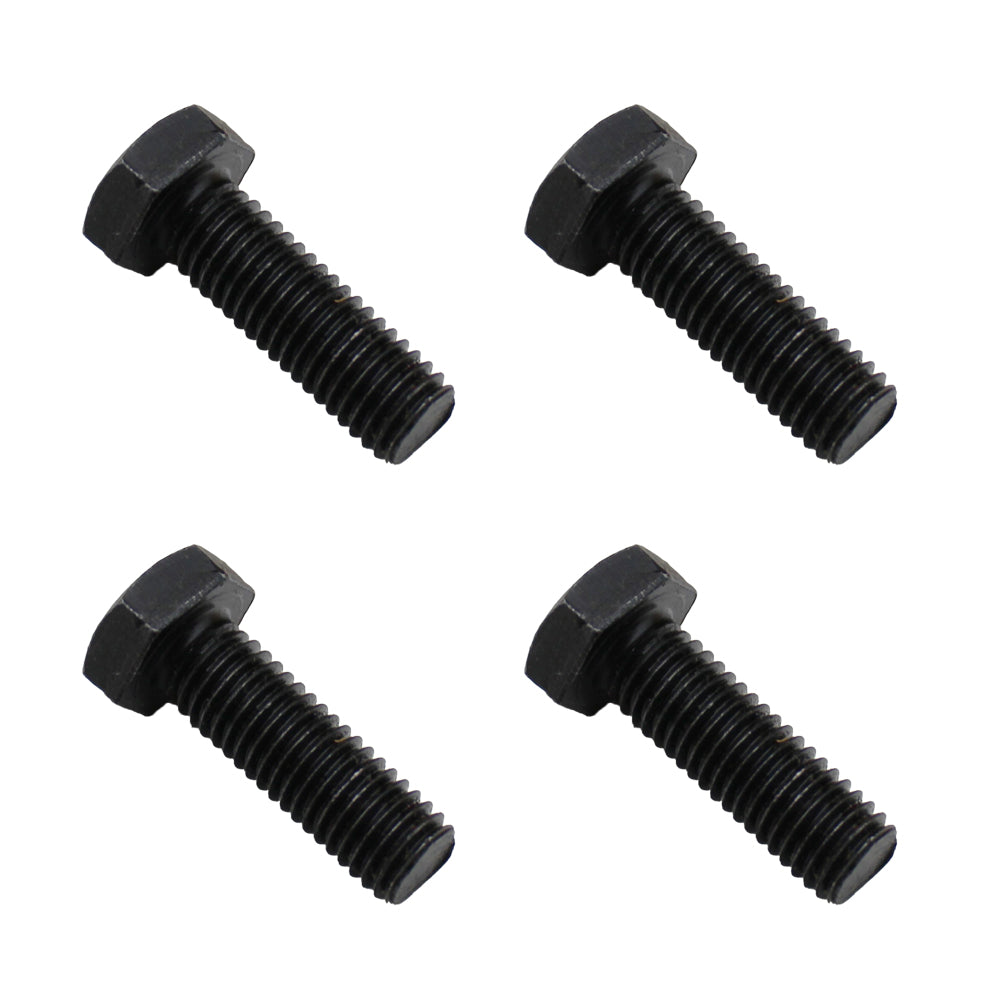

1321/0509 Patch Lock Bolts Trunnion 4PK – Fits JCB – additional image 2

NC-009607 · Excavator Components

1321/0509 Patch Lock Bolts Trunnion 4PK – Fits JCB

CAD 261.50

In stock

Patch Lock Bolts Trunnion 4PK – reference 1321/0509. Catalogue-listed applications: JCB 504B, 505-19, 506B, 527-67, 530-120, 531-70, 535-60. View photos, specifications, CAD pricing and delivery options from NorthCore.

Standard delivery: 3–7 business days. Other services and estimates are shown at checkout. Minimum online order: CAD 100 in parts, excluding shipping and tax. Add this part to your cart to calculate delivery and review your order.

Ask about this part

Part specifications and references

NorthCore code
NC-009607
Reference numbers
1321/0509, 1321-0509, 1318/0509Z, 1318-0509Z
Listed package quantity
1
Product information and configuration
Quantity indicated in catalogue: 1

Replacement part: Patch Lock Bolts Trunnion 4PK For JCB Backhoes Loadalls Ind Models.

Configuration: Patch Lock Bolt (Trunnion Screw)
Fits JCB Backhoe Loaders: 3C, 3CX, 3D, 3DX, 4C, 4CN, 4CX, 214, 215, 216, 217, 1400B, 1550B, 1600B, 1700B
Fits JCB Compact Backhoes: 2CX, 2CXS, 2CXSL, 2DX LE
Fits JCB Loadall Models: 504B, 505-19, 506B, 527-67, 530-120, 531-70, 535-60, 537LE, 540 FS Plus, 550-140
Fits JCB Industrial Models: SD40, SD80, PD80
Item Specs:
Diameter: M12
Length: 35mm
Includes: 4 Bolts/Screws
Replaces Part Number(s): 1321/0509, 1321-0509, 13210509, 1318/0509Z, 1318-0509Z, 13180509Z

Reference numbers: 1321/0509, 1321-0509, 1318/0509Z, 1318-0509Z

Catalogue-listed applications

Use these as reference information. Check the part numbers, specifications and any application restrictions against your equipment.

  • JCB 504B
  • JCB 505-19
  • JCB 506B
  • JCB 527-67
  • JCB 530-120
  • JCB 531-70
  • JCB 535-60
  • JCB 537LE
  • JCB 540 FS Plus
  • JCB 550-140
  • JCB SD40
  • JCB SD80
  • JCB PD80
  • JCB 3C
  • JCB 3CX
  • JCB 3D
  • JCB 3DX
  • JCB 4C
  • JCB 4CN
  • JCB 4CX
  • JCB 214
  • JCB 215
  • JCB 216
  • JCB 217
  • JCB 1400B
  • JCB 1550B
  • JCB 1600B
  • JCB 1700B
  • JCB 2CX
  • JCB 2CXS
  • JCB 2CXSL
  • JCB 2DX LE
Application notes
  • One New Aftermarket Patch Lock Bolt (Trunnion Screw)
